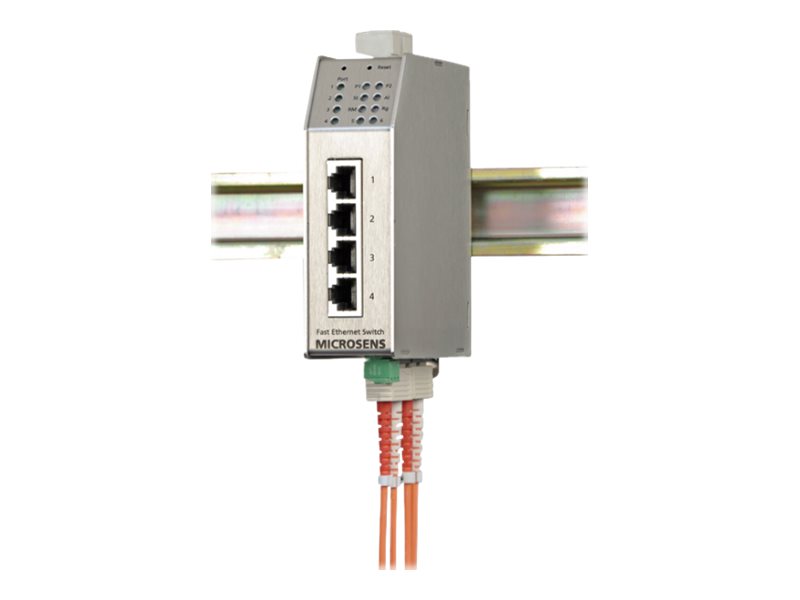

MICROSENS Fast Ethernet Industrial Switch Ring-Redundancy Switch 6-porte Fibre Channel
MICROSENS Fast Ethernet Industrial Switch with Ring-Redundancy - Switch - Administreret - 4 x 10/100 + 2 x 100Base-FX - DIN monterbar på skinne
Specifications
|
Produktbeskrivelse
|
MICROSENS Fast Ethernet Industrial Switch with Ring-Redundancy - switch - 6 porte - Administreret
|
|
Enhedstype
|
Switch - 6 porte - Administreret
|
|
Undertype
|
Fibre Channel
|
|
Porte
|
4 x 10/100 + 2 x 100Base-FX
|
|
MAC adresse table størrelse
|
1 K indtastningshukommelse
|
|
Protokol til fjernadministration
|
SNMP, Telnet, HTTP, CLI
|
|
Egenskaber
|
VLAN-understøttet, auto-uplink (auto MDI/MDI-X), håndterbar, gem og send, QoS
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac
|
|
Dimensioner (B x D x H)
|
3.8 cm x 10.8 cm x 11.6 cm
|
|
Vægt
|
750 g
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac
|
|
Device Type
|
Switch - 6 ports - managed
|
|
Enclosure Type
|
DIN rail mountable
|
|
Features
|
VLAN support, auto-uplink (auto MDI/MDI-X), manageable, store and forward, Quality of Service (QoS)
|
|
MAC Address Table Size
|
1K entries
|
|
Ports
|
4 x 10/100 + 2 x 100Base-FX
|
|
Remote Management Protocol
|
SNMP, Telnet, HTTP, CLI
|
|
Status Indicators
|
Port transmission speed, port duplex mode, power, link/activity
|
|
Subtype
|
Fibre Channel
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
4 x 100Base-TX RJ-45 | 2 x 100Base-FX
|
|
Power
|
|
|
Power Consumption Operational
|
6 Watt
|
|
Power Device
|
External power adapter
|
|
Miscellaneous
|
|
|
Compliant Standards
|
EN55022, EN55024, EN 60950-1, MIL-HDBK-217F
|
|
MTBF
|
400,000 hour(s)
|
|
Dimensions & Weight
|
|
|
Depth
|
10.8 cm
|
|
Height
|
11.6 cm
|
|
Weight
|
750 g
|
|
Width
|
3.8 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
60 °C
|
|
Min Operating Temperature
|
-20 °C
|
