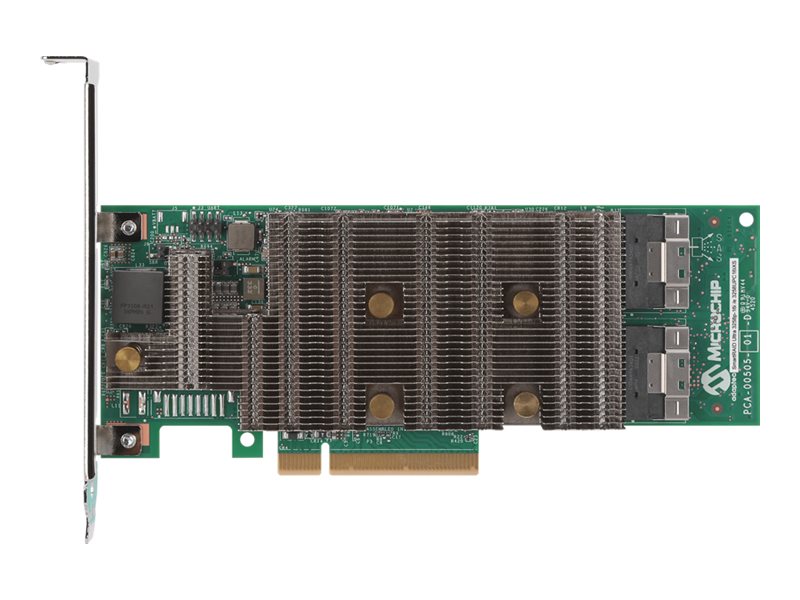

Microchip Adaptec DuoConnect 3204-8i/e Styreenhed til lagring (RAID)

Microchip Adaptec DuoConnect 3204-8i/e - Styreenhed til lagring (RAID) - 8 Kanal - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - RAID 0, 1, 5, 6, 10, 50, RAID 1T, RAID 10T - PCIe 4.0 x8

Varenummer: 1001579407
Model: 3204C8IXS
EAN: 0760884158371
Brand:
Microchip Technology
Vægt: 0.4 kg

Specifications

Produktbeskrivelse
Microchip Adaptec DuoConnect 3204-8i/e - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8
Enhedstype
Styreenhed til lagring (RAID) - indstikskort
Bustype
PCIe 4.0 x8
Interface
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Dataoverførselshastighed
24 Gbit/s
Buffer størrelse
4 GB
Understøttede enheder
Harddisk, diskarray (RAID), solid state drev
Antal kanaler
8
Maks. antal lagerenheder
256
RAID-niveau
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 1T, RAID 10T
Systemkrav
FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Debian Linux, Red Hat Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Oracle Solaris, Citrix XenServer, Oracle Linux, Windows 10
Dimensioner (B x D x H)
16.8 cm x 6.89 cm
