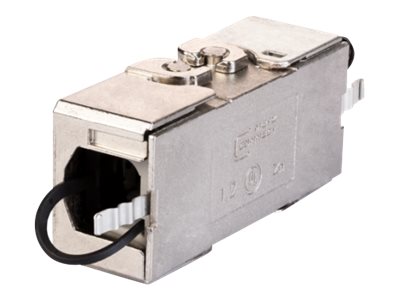

Metz Connect Cable connector class EA 180° Grå

Metz Connect Cable connector class EA 180° - Kabelkobling - CAT 7 - STP - metalfarvet

Varenummer: 1000301377
Model: 130863-04-E
EAN: 4251394607900
Brand:
METZ CONNECT

Specifications

Produktbeskrivelse
Metz Connect Cable connector class EA 180° - kabelkobling
Produkttype
Kabelkobling - CAT 7
Dimensioner (B x D x H)
1.47 cm x 4.661 cm x 2.26 cm
Produktmateriale
Sprøjtestøbt zink
Farve
Metalfarvet
Ledningsføringssystem
T568A/B
Overensstemmelsesstandarder
IEEE 802.3bt/IEEE 802.3af/IEEE 802.3an/IEEE 802.3at
Specifications

Full specifications

General
Depth
4.661 cm
Enclosure Color
Metallic
Height
2.26 cm
Product Material
Die-cast zinc
Product Type
Cable coupler - CAT 7
Width
1.47 cm
Cabling & Wiring
Compliant Standards
IEEE 802.3bt/IEEE 802.3af/IEEE 802.3an/IEEE 802.3at
Pair Qty
4
Technology
Shielded twisted pair (STP)
Termination Type
IDC
Wiring Scheme
T568A/B
Miscellaneous
Features
Strain relief, for cable diameter 5.5 - 10 mm, 0.409 - 0.643 mm solid copper wire diameter, 0.483 - 0.762 mm stranded copper wire diameter
Environmental Parameters
Max Operating Temperature
70 °C
Min Operating Temperature
-40 °C
