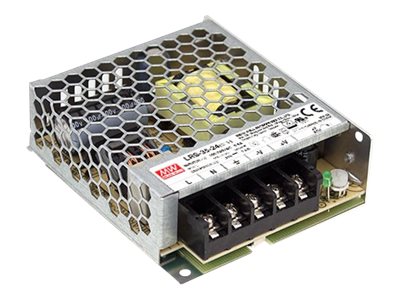

Mean Well LRS-35 series LRS-35-12 36Watt

Mean Well LRS-35 series LRS-35-12 - Strømforsyning (intern) - AC 115/230 V - 36 Watt

Product no: 997322574
Model: LRS-35-12
EAN: 4711287434506
Brand:
Mean Well
Weight: 0.23 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Mean Well LRS-35 series LRS-35-12 - strømforsyning - 36 Watt
Enhedstype
Strømforsyning - intern
Indgangspænding
AC 115/230 V
Udgangspænding
12 V ± 1%
Strømkapacitet
36 Watt
Dimensioner (B x D x H)
9.9 cm x 8.2 cm x 3 cm
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Device Type
Power supply - internal
Power Device
Efficiency
86%
Frequency Required
47 - 63 Hz
Input Voltage
AC 115/230 V
Input Voltage Range
AC 85 - 264 / 120 - 373 V
Output Voltage
12 V ± 1%
Power Capacity
36 Watt
Miscellaneous
Compliant Standards
TUV, CISPR 22 Class B, EN55022 Class B, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 50082-2, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, EN 60950-1, EN61000-3-2, EN61000-3-3, cURus
Features
Overvoltage protection, overload protection, cold-start function, short-circuit protection
MTBF
763,600 hours
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating
20 - 90% (non-condensing)
Max Operating Temperature
70 °C
Min Operating Temperature
-30 °C
Dimensions & Weight
Depth
8.2 cm
Height
3 cm
Width
9.9 cm
Dimensions & Weight (Shipping)
Shipping Weight
230 g
