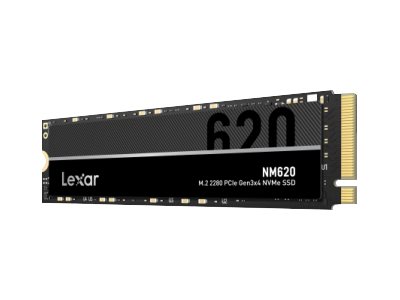

Lexar NM620 SSD 256GB M.2 PCI Express 3.0 x4 (NVMe)

Lexar NM620 - SSD - 256 GB - intern - M.2 2280 - PCIe 3.0 x4 (NVMe)

Product no: 998605925
Model: LNM620X256G-RNNNG
EAN: 0843367123148
Brand:
Lexar
Weight: 0.06 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Lexar NM620 - SSD - 256 GB - PCIe 3.0 x4 (NVMe)
Type
Solid state-drev - intern
Kapacitet
256 GB
Model
M.2 2280
Grænseflade
PCIe 3.0 x4 (NVMe)
Egenskaber
Stødsikret, vibrations dampning, 3D NAND Technology, Low-Density Parity Check, NVM Express (NVMe) 1.4
Dimensioner (B x D x H)
22 mm x 80 mm x 2.45 mm
Vægt
9 g
Lokalisering
Global
Producentgaranti
5 års garanti
Specifications

Full specifications

General
Capacity
256 GB
Depth
80 mm
Device Type
Solid state drive - internal
Features
Shock-resistant, vibration dampening, 3D NAND Technology, Low-Density Parity Check, NVM Express (NVMe) 1.4
Form Factor
M.2 2280
Height
2.45 mm
Interface
PCIe 3.0 x4 (NVMe)
Weight
9 g
Width
22 mm
Performance
Drive Writes Per Day (DWPD)
0.44
Internal Data Rate
3300 MBps (read) / 1300 MBps (write)
Maximum 4KB Random Read
92000 IOPS
Maximum 4KB Random Write
240000 IOPS
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Compatible Bay
M.2 2280
Interfaces
1 x PCI Express 3.0 x4 (NVMe)
Miscellaneous
Compliant Standards
VCCI, BSMI, FCC, RCM
Localization
Worldwide
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature
70 °C
Max Storage Temperature
85 °C
Min Operating Temperature
0 °C
Min Storage Temperature
-40 °C
Shock Tolerance (operating)
1500 g @ 0.5 ms half-sine wave
Vibration Tolerance (operating)
20 g @ 10-2000 Hz
