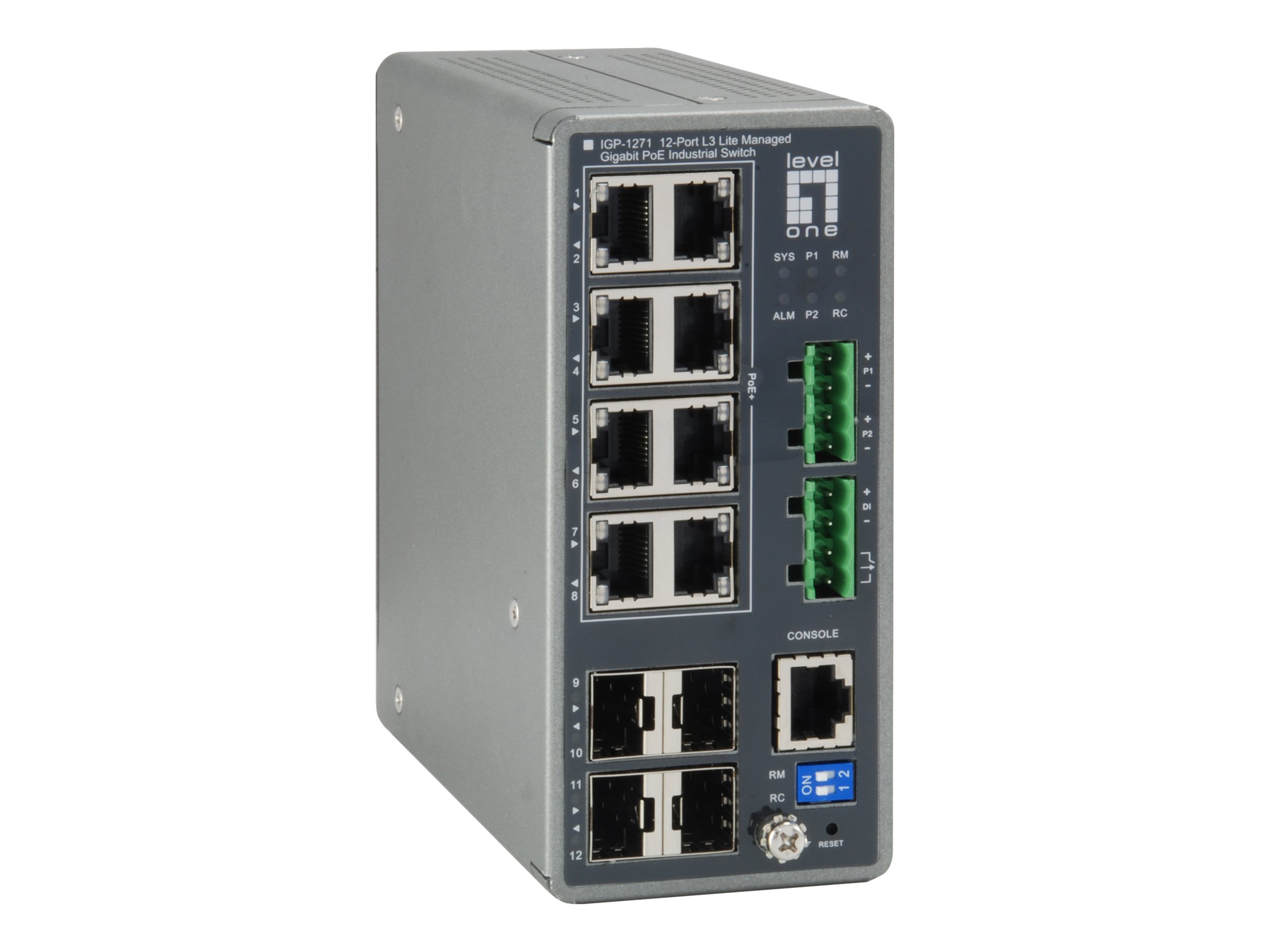

LevelOne IGP-1271 Switch 12-porte Gigabit PoE+

LevelOne IGP-1271 - Switch - L3 Lite - Administreret - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - DIN monterbar på skinne - PoE+ (240 W) - DC power

Varenummer: 992948523
Model: IGP-1271
EAN: 4015867202654
Brand:
LevelOne
Vægt: 0.7 kg

Specifications

Produktbeskrivelse
LevelOne IGP-1271 - switch - 12 porte - Administreret
Enhedstype
Switch - 12 porte - L3 Lite - Administreret
Undertype
Gigabit Ethernet
Porte
8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE-budget
240 W
Præstation
Omkoblingskapacitet: 24 Gbps<br>Pakkevideresendelseshastighed: 17,856 Mpps
MAC adresse table størrelse
8K indtastningshukommelse
Jumborammesupport
9216 byte
Protokol til fjernadministration
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SMTP
Egenskaber
IGMP snooping, Syslog understøttet, portspejling, gem og send, IPv6 understøttet, sFlow, STP support, MSTP support, DHCP snooping, QoS, DHCP server, STP Root Guard, UDLD, IPv4 support, LLDP support, Port Security, DHCP klient, Energy Efficient Ethernet, MVR, 500 KB pakkebuffer, løkkeforebyggelse, GVRP, 802.1x autentificering, SNMP-support, ERPS, Protokol-baseret VLANs support, Storm Control, IP-kildebekyttelse, NTP, Voice VLAN, Private VLAN, DMS, MAC based VLAN, BPDU Guard, OAM support mechanism, Rapid Reconfiguration of Spanning Tree (RSTP)
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2
Effekt
DC 48 - 57 V
Dimensioner (B x D x H)
6.2 cm x 13 cm x 13.5 cm
Vægt
680 g
Specifications

Full specifications

General
Authentication Method
RADIUS, TACACS+
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2
Device Type
Switch - 12 ports - L3 Lite - managed
Enclosure Type
DIN rail mountable
Encryption Algorithm
SSL
Features
IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, STP Root Guard, Uni-Dir
Flash Memory
32 MB
Jumbo Frame Support
9216 bytes
MAC Address Table Size
8K entries
Performance
Switching capacity: 24 Gbps | Packet forwarding rate: 17.856 Mpps
PoE Budget
240 W
Ports
8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
RAM
128 MB
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SMTP
Status Indicators
Port status, power, system, alarm, ring master, coupling
Subtype
Gigabit Ethernet
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 | 4 x 1000Base-X SFP | 1 x console RJ-45 management
Power
Power Consumption Operational
239.2 Watt
Voltage Required
DC 48 - 57 V
Miscellaneous
Cables Included
1 x console cable
Compliant Standards
EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EMI, IP30
Rack Mounting Kit
Included
Dimensions & Weight
Depth
13 cm
Height
13.5 cm
Weight
680 g
Width
6.2 cm
Environmental Parameters
Humidity Range Operating
10 - 90% (non-condensing)
Humidity Range Storage
10 - 90% (non-condensing)
Max Operating Temperature
75 °C
Max Storage Temperature
85 °C
Min Operating Temperature
-40 °C
Min Storage Temperature
-40 °C
