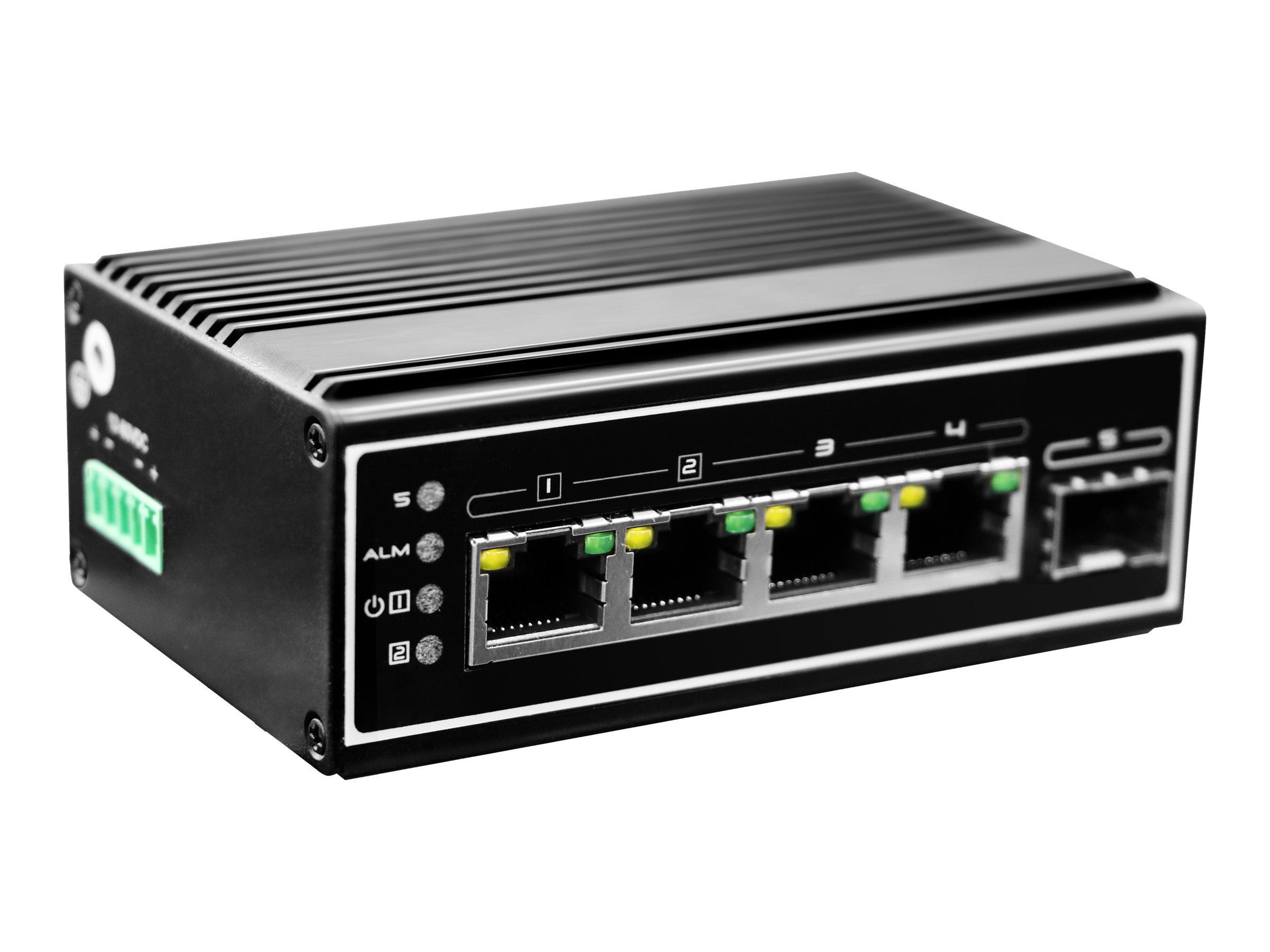

LevelOne IGP-0502 Switch 5-porte Gigabit PoE+
LevelOne IGP-0502 - Switch - -40 °C til 75 °C - 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP - desktop, DIN monterbar på skinne, væg-monterbar - PoE+ (120 W) - DC power
-
Product no 1000563373
Model IGP-0502
Brand LevelOne
EAN 4015867228173
Weight 0.35 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LevelOne IGP-0502 - switch - -40 °C til 75 °C - 5 porte |
| Enhedstype | Switch - 5 porte |
| Undertype | Gigabit Ethernet |
| Porte | 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 120 W |
| Præstation | Bagplanshastighed: 10 Gbps<br>Pakkevideresendelseshastighed: 14.88 Mpps |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9000 byte |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), halv dupleksmodus, fuld dupleksmodus, blæserløs, metalkabinet, PSE, 6 KV strømstødsbeskyttelse |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Effekt | DC 48 - 57 V |
| Dimensioner (B x D x H) | 10.1 cm x 6.5 cm x 3.6 cm |
| Vægt | 350 g |
| Farve | Sort |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, fanless, metal housing, Power Sourcing Equipment (PSE), 6KV Surge protection |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 8K entries |
| Performance | Backplane speed: 10 Gbps | Packet forwarding rate: 14.88 Mpps |
| PoE Budget | 120 W |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Status Indicators | Power, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W | 1 x Gigabit LAN SFP |
| Power | |
| Power Consumption Operational | 5 Watt |
| Voltage Required | DC 48 - 57 V |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | FCC, IP30 |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 3.6 cm |
| Weight | 350 g |
| Width | 10.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
