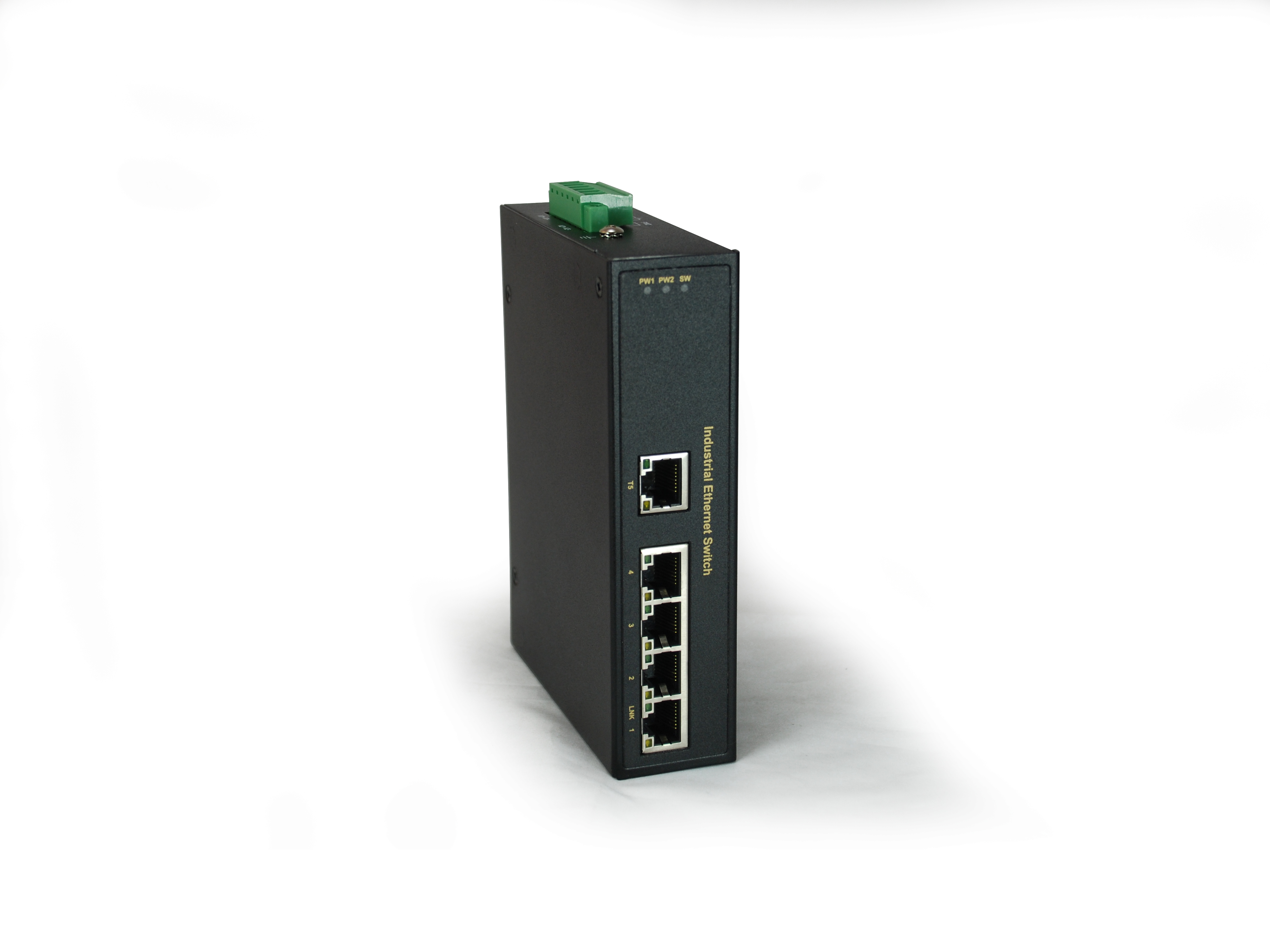

LevelOne IFS-0501 Switch 5-porte 10/100
LevelOne IFS-0501 - Switch - 5 x 10/100 - desktop, DIN monterbar på skinne, væg-monterbar - DC strøm
-
Product no 989513233
Model IFS-0501
Brand LevelOne
EAN 4015867192283
Weight 0.47 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LevelOne IFS-0501 - switch - 5 porte |
| Enhedstype | Switch - 5 porte |
| Undertype | Fast Ethernet |
| Porte | 5 x 10/100 |
| Præstation | Bagplans switching-kapacitet: 1 Gbps<br>Fremsendelsespræstation: 148000 pakker pr. sekund |
| MAC adresse table størrelse | 1 K indtastningshukommelse |
| Egenskaber | Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, 1 MB pakkebuffer, metalkabinet |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Effekt | DC 9 - 56 V |
| Dimensioner (B x D x H) | 3.62 cm x 10.5 cm x 14.2 cm |
| Vægt | 460 g |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 1MB packet buffer, metal housing |
| MAC Address Table Size | 1K entries |
| Performance | Backplane switching capacity: 1 Gbps | Forwarding performance: 148000 packets per second |
| Ports | 5 x 10/100 |
| Status Indicators | Power, link OK |
| Subtype | Fast Ethernet |
| Expansion / Connectivity | |
| Interfaces | 5 x 100Base-TX RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | DC 9 - 56 V |
| Miscellaneous | |
| Compliant Standards | VCCI, EN55022, EN55024, FCC, EN 60950-1, EN 55011, EN50155, EN 50121-4, IP30, EN 50121-3-2 |
| Dimensions & Weight | |
| Depth | 10.5 cm |
| Height | 14.2 cm |
| Weight | 460 g |
| Width | 3.62 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
