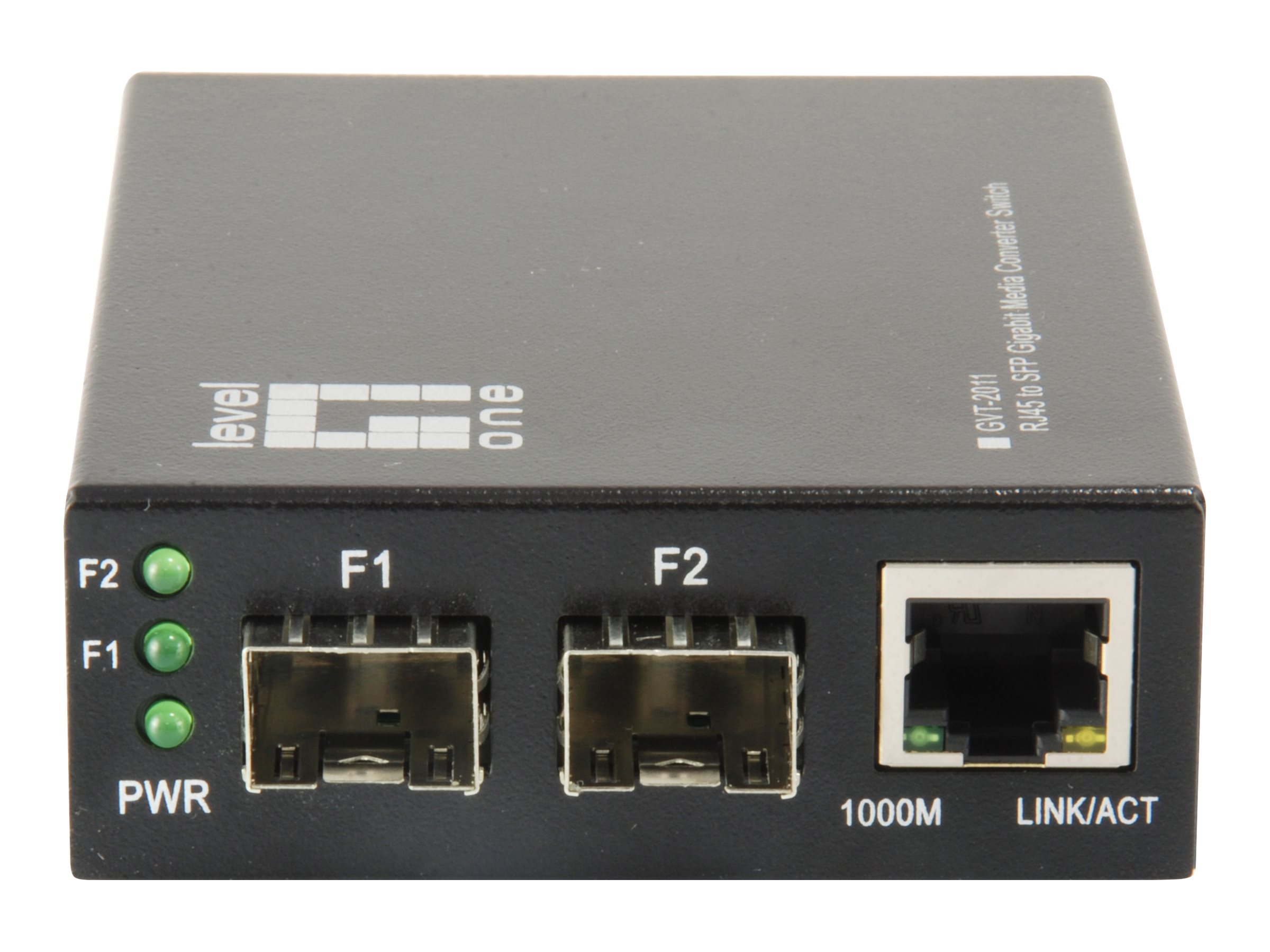

LevelOne GVT-2011 Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet

LevelOne GVT-2011 - Fibermedieomformer - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)

  • Product no 992952972

    Model GVT-2011

    Brand LevelOne

    EAN 4015867202517

    Weight 0.3 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse LevelOne GVT-2011 - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE
Enhedstype Fibermedieomformer - RJ-45 / SFP (mini-GBIC)
Model Ekstern
Kabeltype 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN, 1GbE
Dimensioner (B x D x H) 7.1 cm x 9.4 cm x 2.6 cm
Vægt 300 g
General
Device Type Fiber media converter
Form Factor External
Networking
Cabling Type 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Connectivity Technology Wired
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, wall mountable, Back Pressure Support, 9 KB Jumbo Frame, VLAN Tagging
Status Indicators Power, 1000M device connected, link/activity
Expansion / Connectivity
Interfaces 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female | 2 x Ethernet 1000Base-SX - SFP female
Miscellaneous
Compliant Standards FCC
Power
Power Consumption Operational 5 Watt
Power Device External power adapter
Dimensions & Weight
Depth 9.4 cm
Height 2.6 cm
Weight 300 g
Width 7.1 cm
Environmental Parameters
Humidity Range Operating 5 - 90% (non-condensing)
Max Operating Temperature 55 °C
Min Operating Temperature -10 °C
