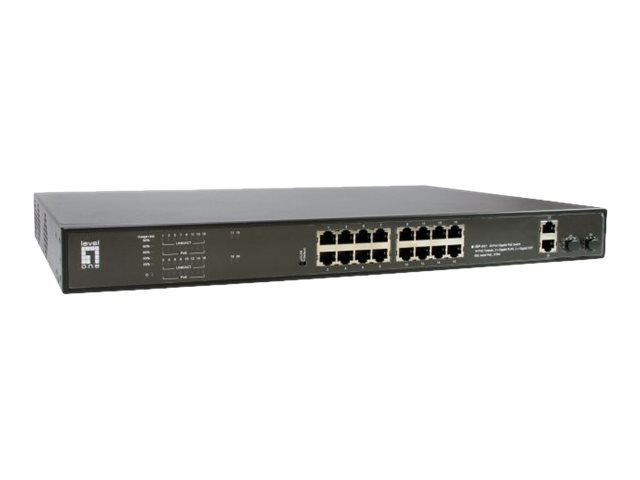

LevelOne GEP-2021 Switch 20-porte Gigabit PoE
LevelOne GEP-2021 - Switch - 16 x 10/100/1000 (PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink) - desktop, monterbar på stativ - PoE (270 W)
Specifications
|
Produktbeskrivelse
|
LevelOne GEP-2021 - switch - 20 porte - monterbar på stativ
|
|
Enhedstype
|
Switch - 20 porte
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
16 x 10/100/1000 (PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
PoE-budget
|
270 W
|
|
Præstation
|
Bagplanshastighed: 40 Gbps
|
|
Kapacitet
|
Pakkebufferstørrelse: 29.8 Mpps
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Egenskaber
|
Indbygget DIP switch, 8KV ESD Protector, 6KV ESD Protector, 6 KV strømstødsbeskyttelse
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
|
|
Effekt
|
AC 100-240 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
44.2 cm x 28.5 cm x 4.4 cm
|
|
Vægt
|
4 kg
|
|
Farve
|
Sort
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
Packet buffer size: 29.8 Mpps
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
|
|
Device Type
|
Switch - 20 ports
|
|
Enclosure Type
|
Desktop, rack-mountable
|
|
Features
|
Built-in DIP switch, 8KV ESD Protector, 6KV ESD Protector, 6KV Surge protection
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Backplane speed: 40 Gbps
|
|
PoE Budget
|
270 W
|
|
Ports
|
16 x 10/100/1000 (PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
Processor
|
X Realtek Semiconductor RTL8332L
|
|
RAM
|
4 MB
|
|
Status Indicators
|
Power, PoE, link/activity
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
16 x 1000Base-T RJ-45 PoE / downlink - 30 W | 2 x 1000Base-T RJ-45 uplink | 2 x 1000Base-X SFP uplink
|
|
Power
|
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Color
|
Black
|
|
Compliant Standards
|
RoHS
|
|
Included Accessories
|
19" rack mounting kit
|
|
MTBF
|
250,000 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
28.5 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
4 kg
|
|
Width
|
44.2 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 90%
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
85 °C
|
|
Min Operating Temperature
|
-10 °C
|
|
Min Storage Temperature
|
-40 °C
|
