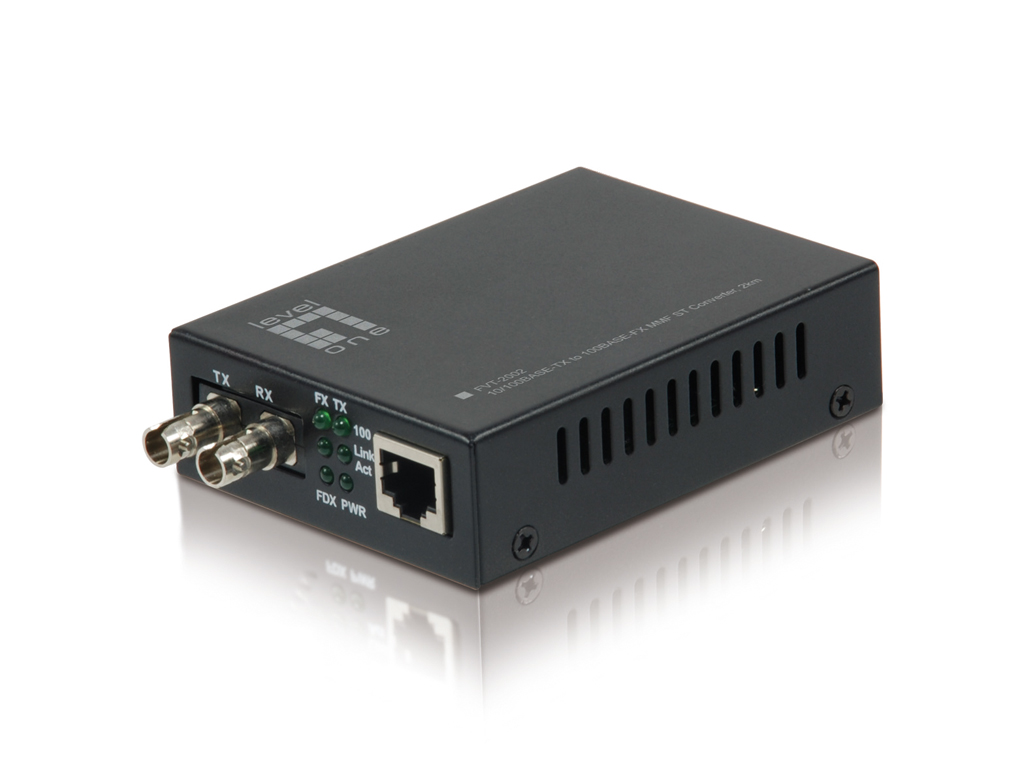

LevelOne FVT-2002 Fibermedieomformer Ethernet Fast Ethernet

LevelOne FVT-2002 - Fibermedieomformer - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST multimodus - op til 2 km - 1310 nm

Product no: 988806032
Model: FVT-2002
EAN: 4015867185148
Brand:
LevelOne
Weight: 0.42 kg

Specifications

Produktbeskrivelse
LevelOne FVT-2002 - fibermedieomformer - 10Mb LAN, 100Mb LAN
Enhedstype
Fibermedieomformer - RJ-45 / ST multimodus
Model
Ekstern
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Maks. overføringsafstand
2 km
Dimensioner (B x D x H)
7.1 cm x 9.4 cm x 2.6 cm
Vægt
420 g
Specifications

Full specifications

General
Device Type
Fiber media converter
Form Factor
External
Networking
Cabling Type
10Base-T, 100Base-FX, 100Base-TX
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Connectivity Technology
Wired
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
100 Mbps
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), built-in DIP switch
Max Transfer Distance
2 km
Optical Wave Length
1310 nm
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces
1 x Ethernet 10Base-T/100Base-TX - RJ-45 female | 1 x Ethernet 100Base-FX - ST multi-mode female x 2
Miscellaneous
Compliant Standards
FCC
Power
Power Device
External power adapter
Dimensions & Weight
Depth
9.4 cm
Height
2.6 cm
Weight
420 g
Width
7.1 cm
Environmental Parameters
Humidity Range Operating
5 - 90% (non-condensing)
Max Operating Temperature
55 °C
Min Operating Temperature
-10 °C

Media
