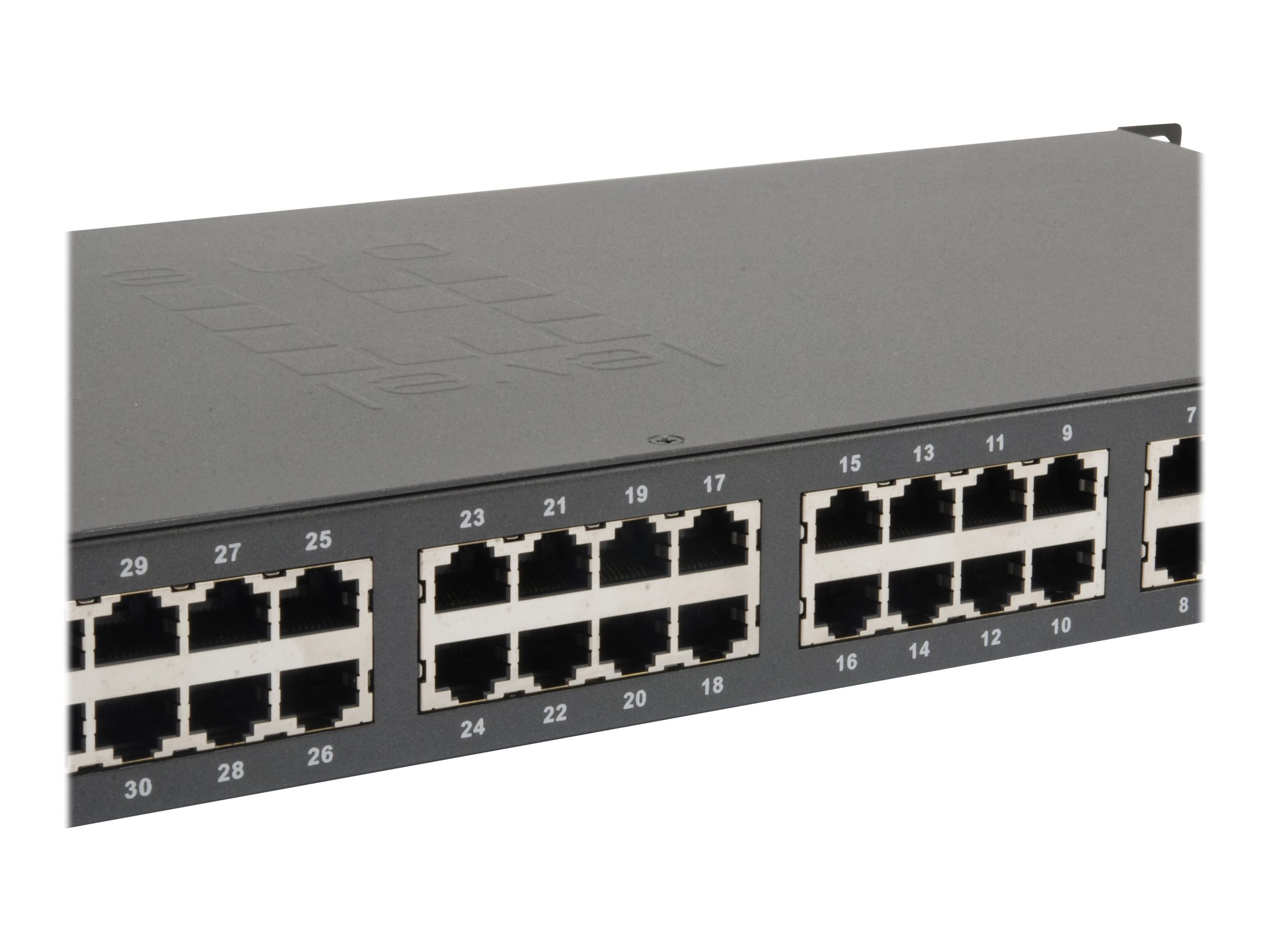

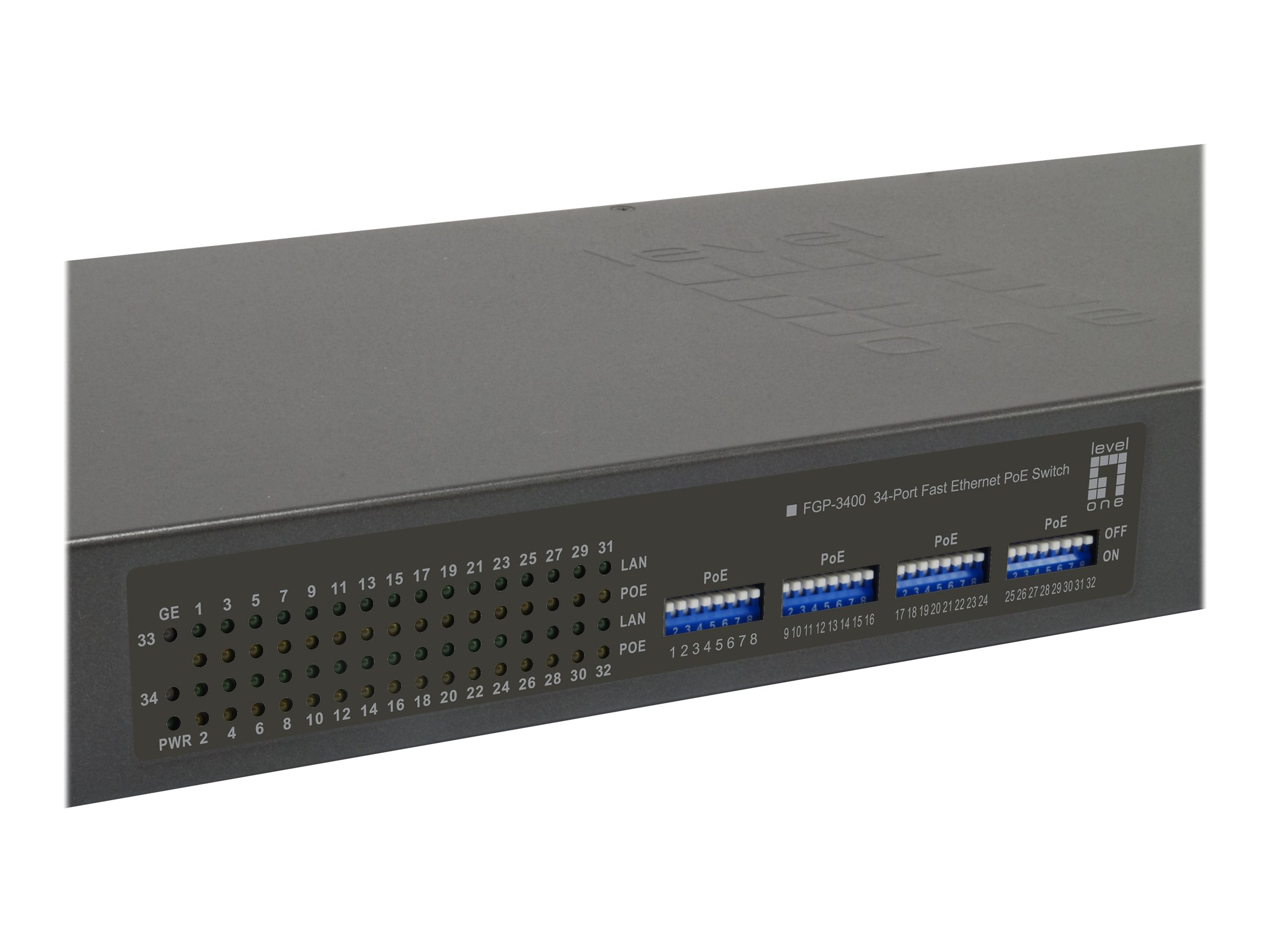

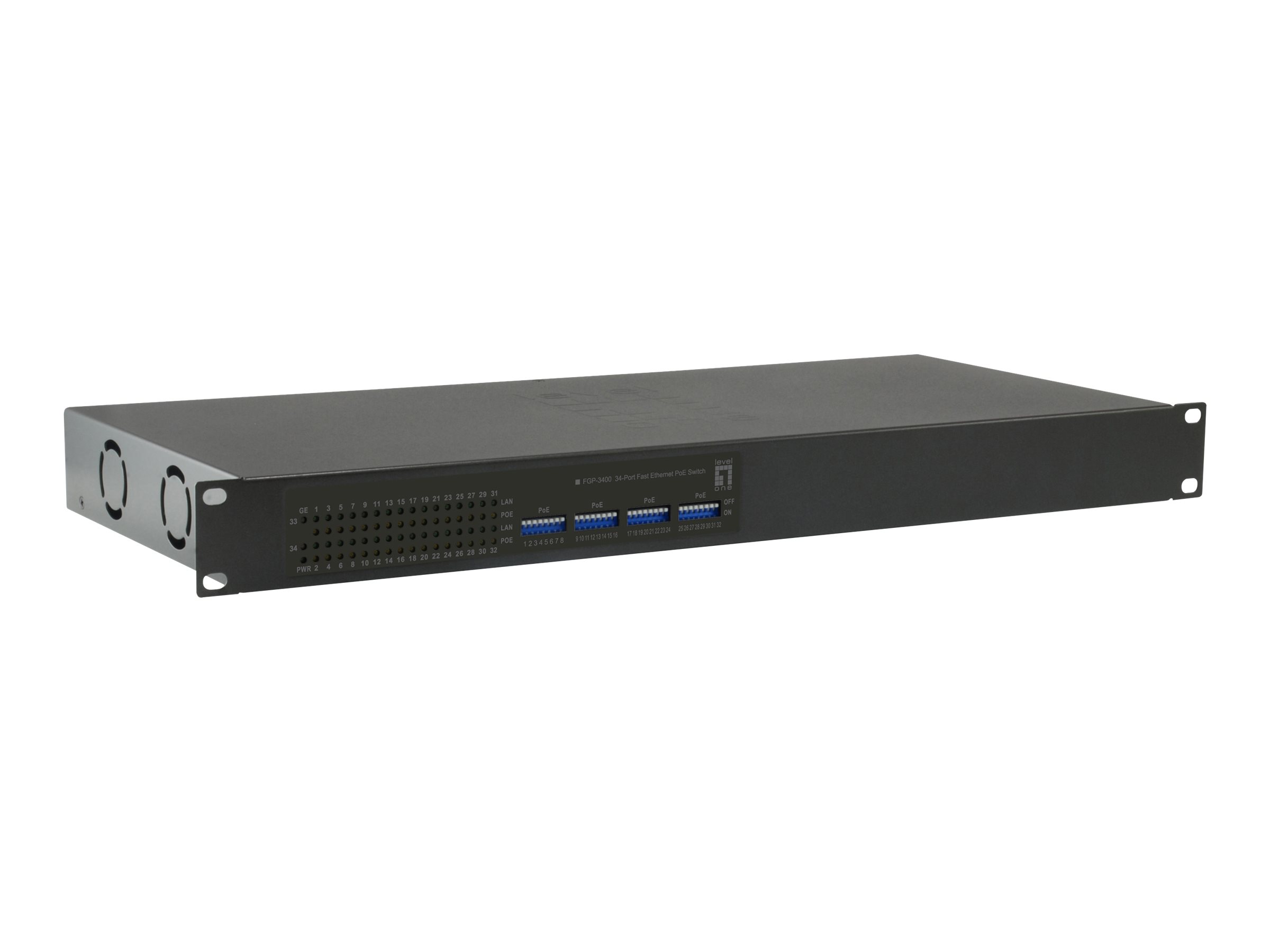

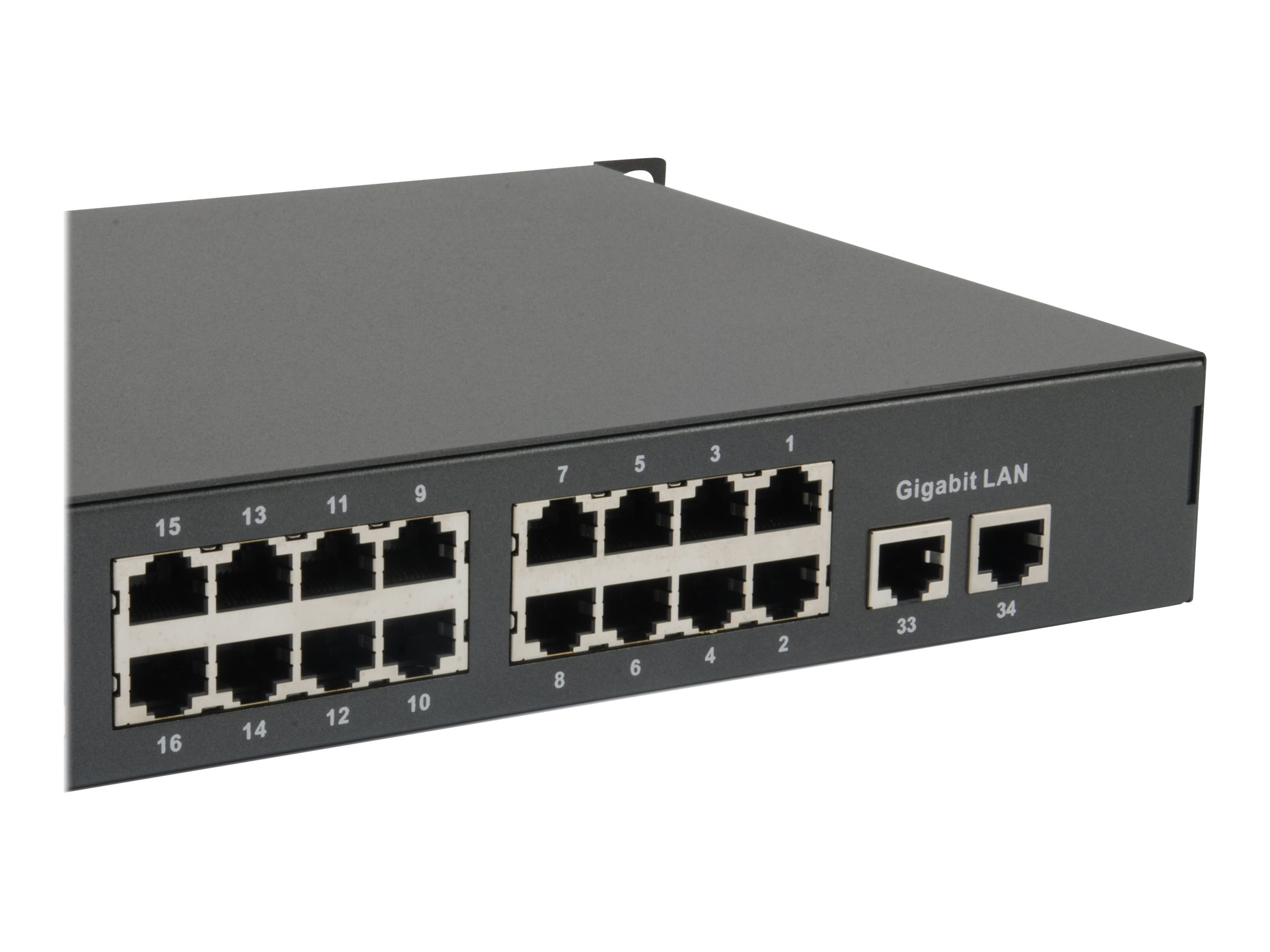

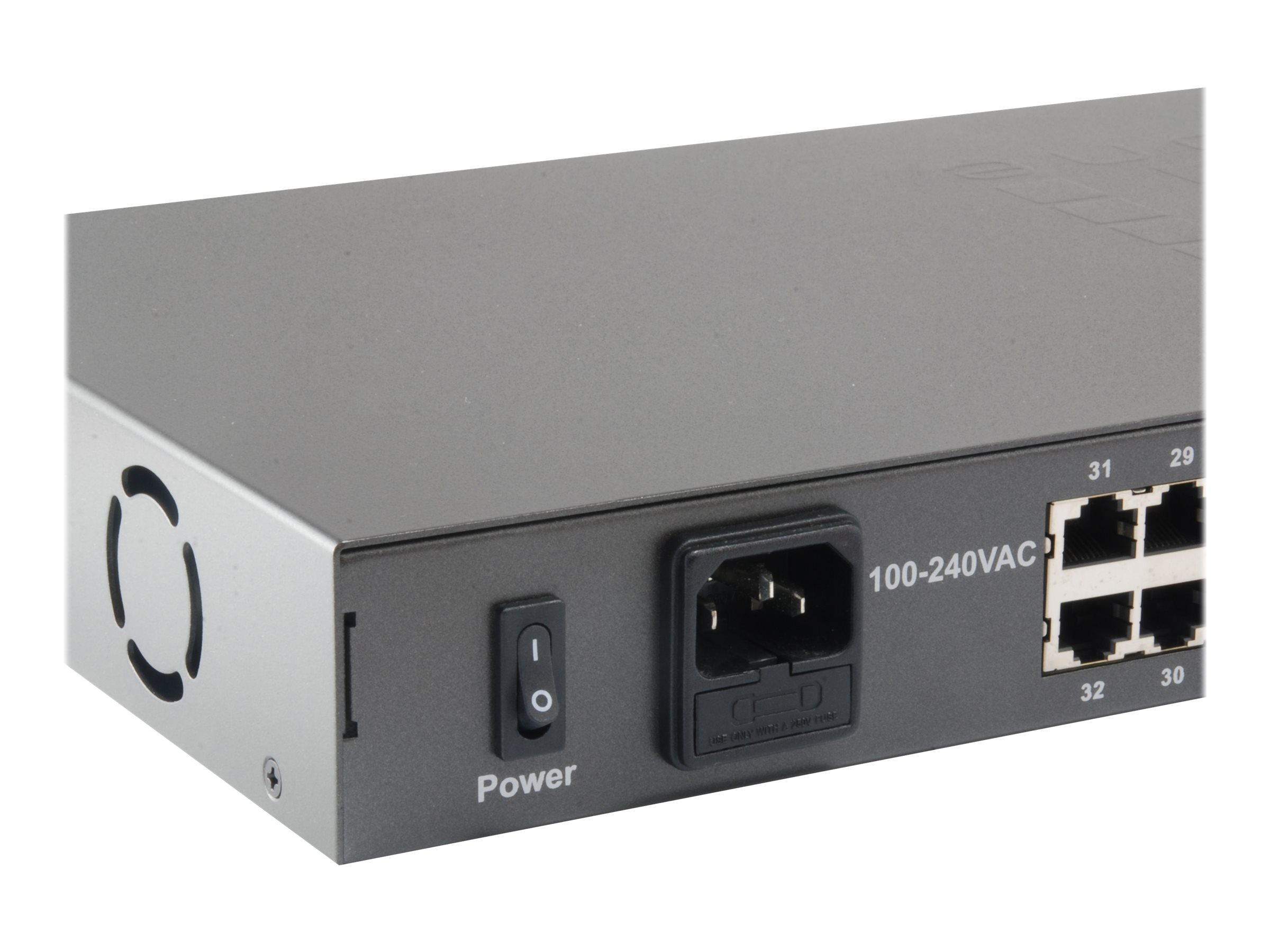

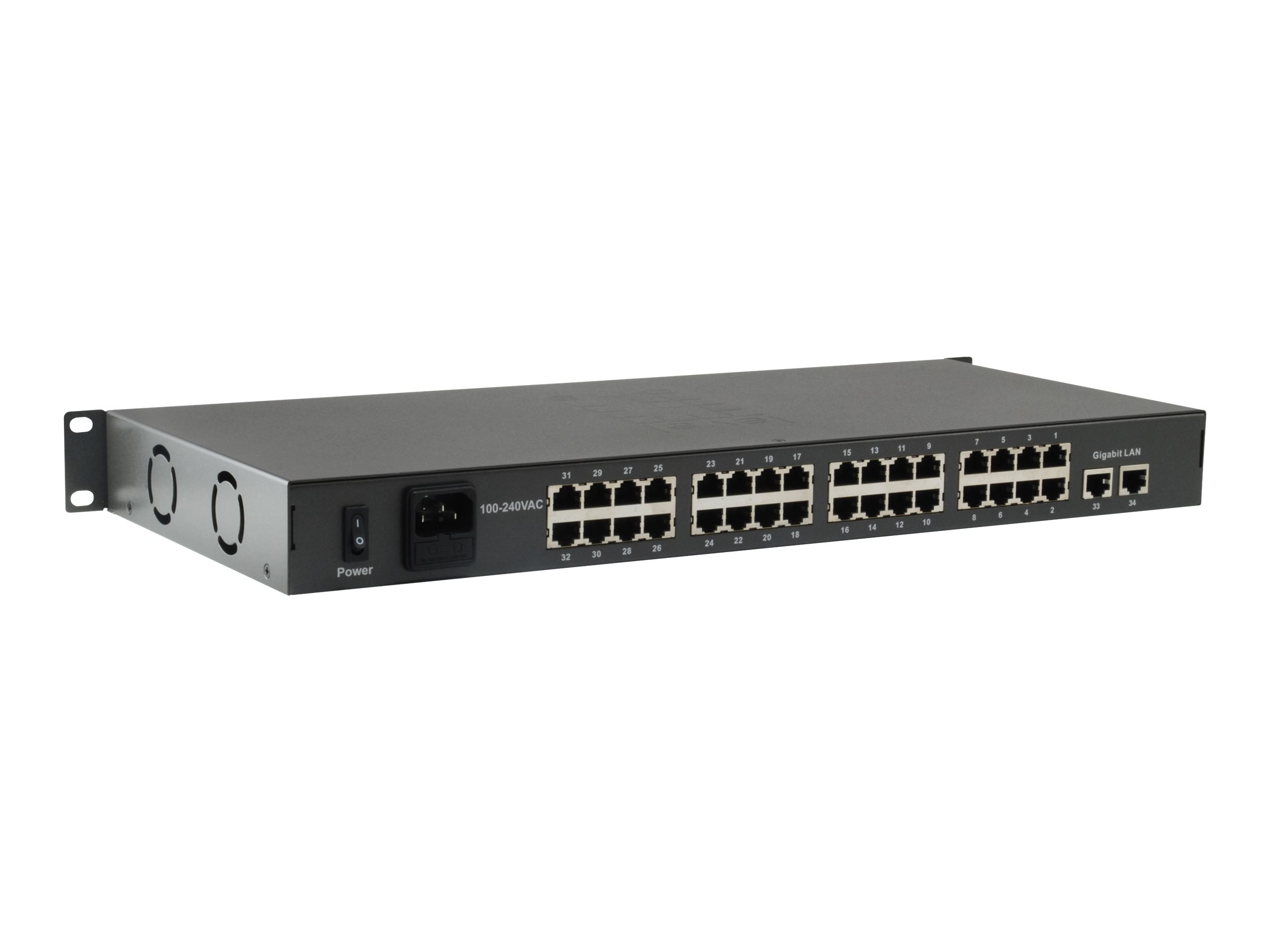

LevelOne FGP-3400W630 Switch 34-porte 10/100 PoE+

LevelOne FGP-3400W630 - Switch - 32 x 10/100 (PoE+) + 2 x 10/100/1000 - desktop, monterbar på stativ - PoE+ (630 W)

  • Product no 993201504

    Model FGP-3400W630

    Brand LevelOne

    EAN 4015867203279

    Weight 3.1 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse LevelOne FGP-3400W630 - switch - 34 porte - monterbar på stativ
Enhedstype Switch - 34 porte
Pakningstype Monterbar på stativ
Undertype Fast Ethernet
Porte 32 x 10/100 (PoE+) + 2 x 10/100/1000
Power Over Ethernet (PoE) PoE+
PoE-budget 630 W
Præstation Bagplanshastighed: 10,4 Gbps<br>Pakkevideresendelseshastighed: 1488000 pps<br>Omkoblingskapacitet: 10,4 Gbps
MAC adresse table størrelse 32K indtastningshukommelse
Jumborammesupport 16KB
Egenskaber Datatransport, komplet duplex ydeevne, STP support, 8 MB pakkebuffer
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Effekt AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H) 44.2 cm x 19.7 cm x 4.3 cm
Vægt 2 kg
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Device Type Switch - 34 ports
Enclosure Type Desktop, rack-mountable
Features Flow control, full duplex capability, Spanning Tree Protocol (STP) support, 8MB packet buffer
Jumbo Frame Support 16KB
MAC Address Table Size 32K entries
Performance Backplane speed: 10.4 Gbps | Packet forwarding rate: 1488000 pps | Switching capacity: 10.4 Gbps
PoE Budget 630 W
Ports 32 x 10/100 (PoE+) + 2 x 10/100/1000
Power Over Ethernet (PoE) PoE+
Status Indicators Power, PoE, LAN, uplink
Subtype Fast Ethernet
Expansion / Connectivity
Interfaces 32 x 100Base-TX RJ-45 PoE+ - 30 W | 2 x 1000Base-T RJ-45
Power
Power Consumption Operational 630 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards FCC Class A certified, AS/NZS CISPR 22, IEC 61000-4-2:2008, IEC 61000-4-5:2005, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, IEC 61000-4-4:2012, IEC 61000-4-6:2013, IEC 61000-4-3:2006+A1:2007+A2:2010
Included Accessories Rubber feet
MTBF 74,000 hours
Rack Mounting Kit Included
Dimensions & Weight
Depth 19.7 cm
Height 4.3 cm
Weight 2 kg
Width 44.2 cm
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Humidity Range Storage 10 - 90% (non-condensing)
Max Operating Temperature 40 °C
Max Storage Temperature 70 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
