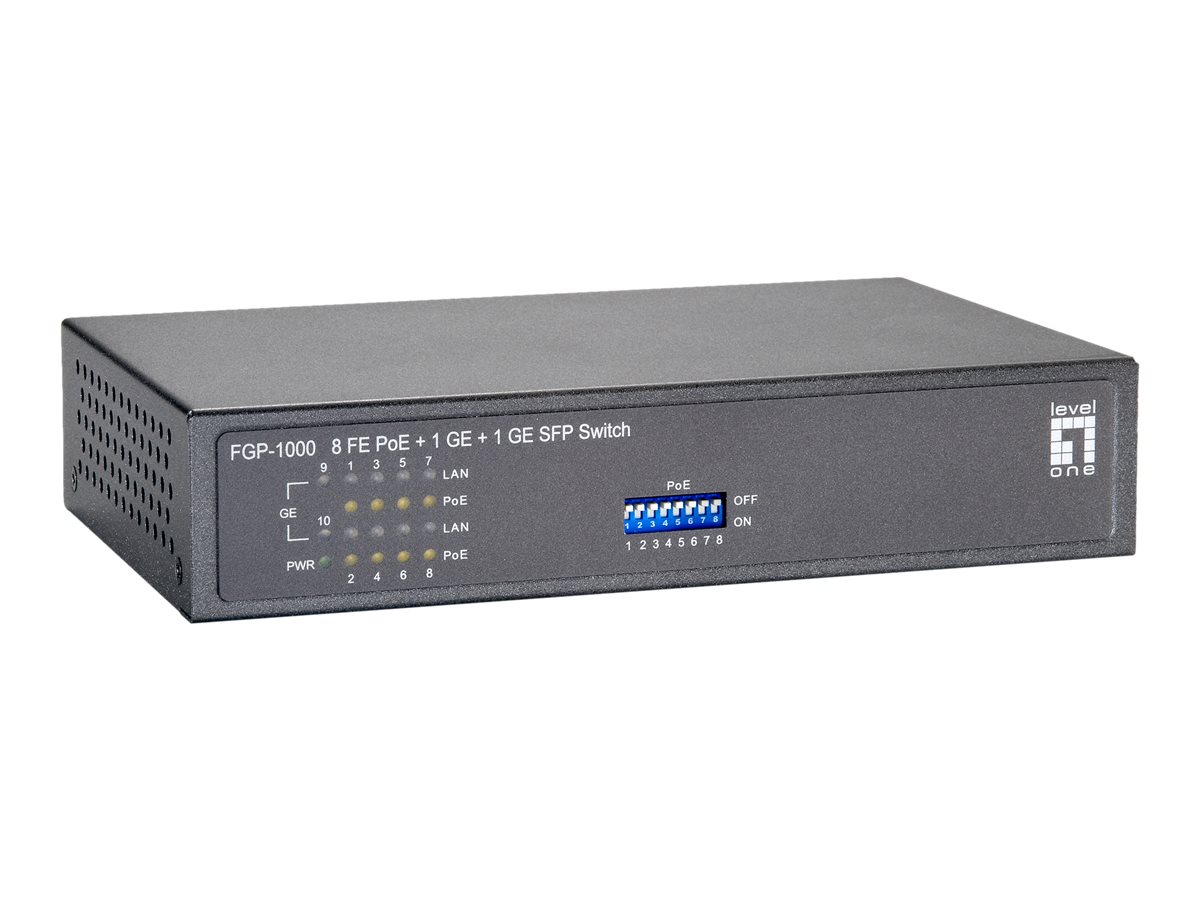

LevelOne FGP-1000W90 Switch 10-porte 10/100 PoE
LevelOne FGP-1000W90 - Switch - 8 x 10/100 (PoE) + 1 x 10/100/1000 + 1 x 100/1000 SFP - desktop, væg-monterbar - PoE (82 W)
Specifications
|
Produktbeskrivelse
|
LevelOne FGP-1000W90 - switch - 10 porte
|
|
Enhedstype
|
Switch - 10 porte
|
|
Undertype
|
Fast Ethernet
|
|
Porte
|
8 x 10/100 (PoE) + 1 x 10/100/1000 + 1 x 100/1000 SFP
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
PoE-budget
|
82 W
|
|
Præstation
|
Pakkevideresendelseshastighed: 1.488.000 pakker pr. sekund<br>Bagplanshastighed: 5,6 Gbps
|
|
MAC adresse table størrelse
|
4K indtastningshukommelse
|
|
Egenskaber
|
Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, PoE-overstrømsbeskyttelse, PoE-kredsløbssorteringsbeskyttelse
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
|
|
Dimensioner (B x D x H)
|
18.8 cm x 11.8 cm x 3.8 cm
|
|
Vægt
|
1.2 kg
|
Full specifications
|
General
|
|
|---|---|
|
Built-in Devices
|
LED panel
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
|
|
Device Type
|
Switch - 10 ports
|
|
Enclosure Type
|
Desktop, wall-mountable
|
|
Features
|
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, PoE overcurrent protection, PoE circuit sorting protection
|
|
MAC Address Table Size
|
4K entries
|
|
Performance
|
Packet forwarding rate: 1488000 packets per second | Backplane speed: 5.6 Gbps
|
|
PoE Budget
|
82 W
|
|
Ports
|
8 x 10/100 (PoE) + 1 x 10/100/1000 + 1 x 100/1000 SFP
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
Status Indicators
|
Power, active, PoE, link/speed
|
|
Subtype
|
Fast Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x 100Base-TX RJ-45 PoE | 1 x 1000Base-T RJ-45 | 1 x 1000Base-X SFP
|
|
Power
|
|
|
Power Consumption Operational
|
90 Watt
|
|
Power Device
|
External power adapter
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS
|
|
Dimensions & Weight
|
|
|
Depth
|
11.8 cm
|
|
Height
|
3.8 cm
|
|
Weight
|
1.2 kg
|
|
Width
|
18.8 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Humidity Range Storage
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
45 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
