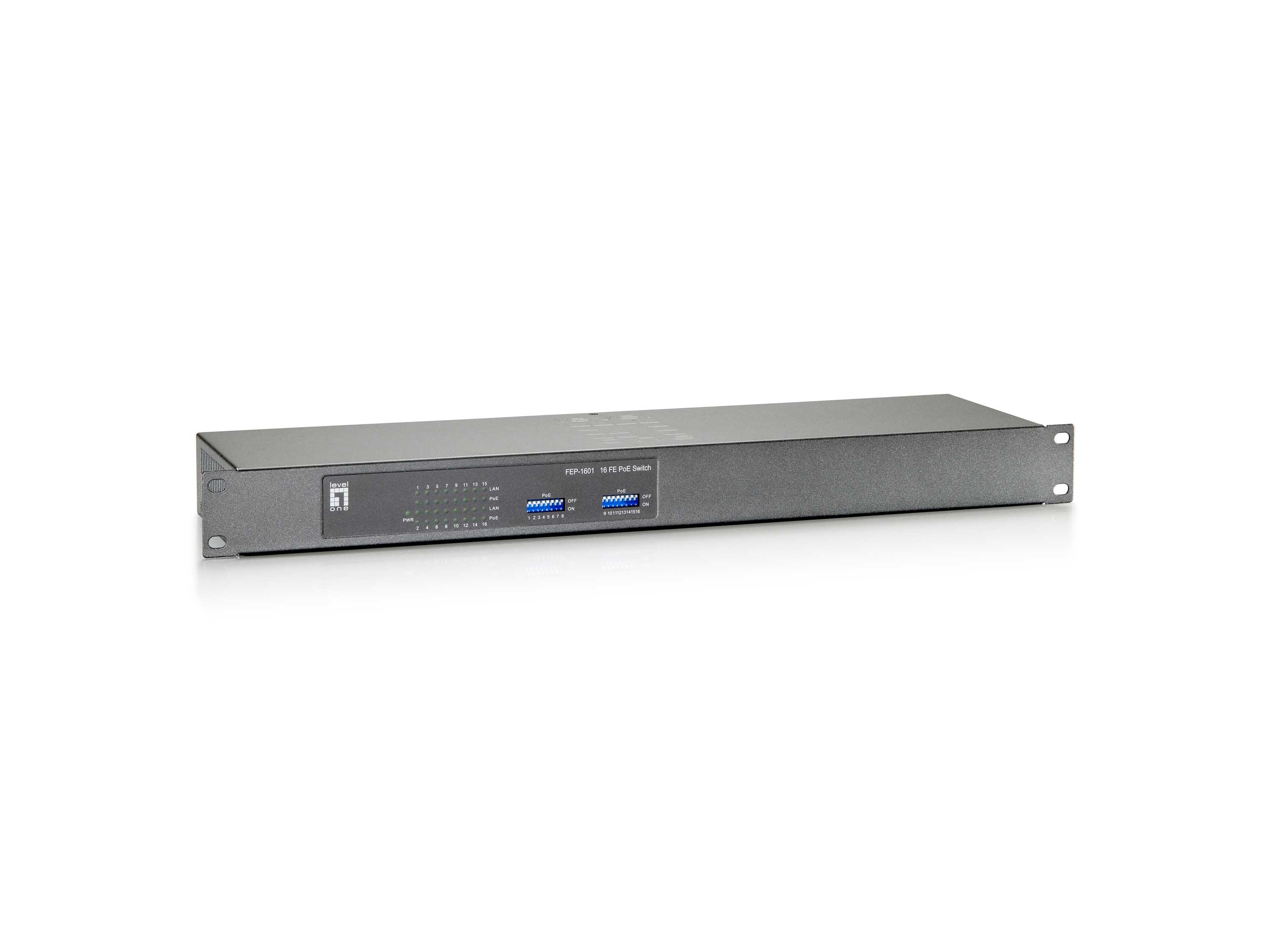

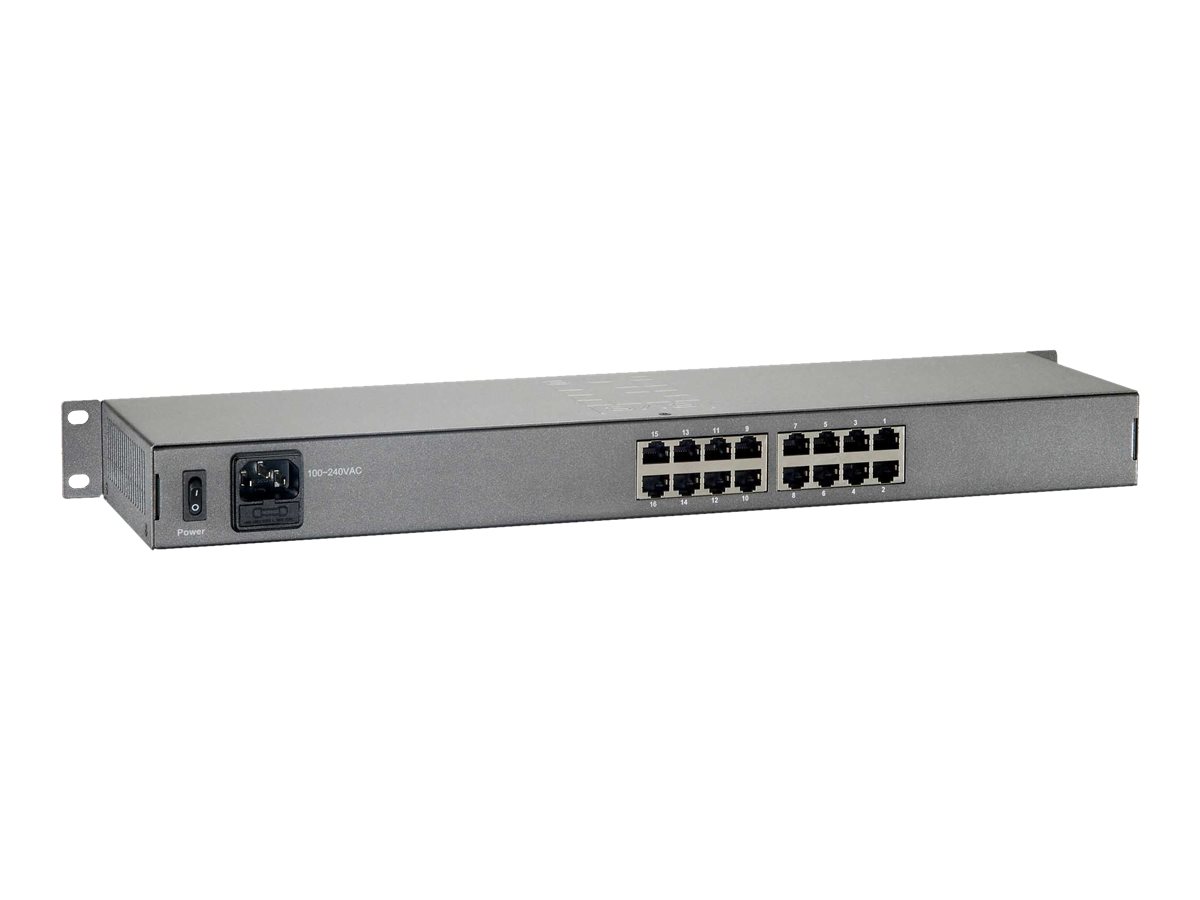

LevelOne FEP-1601W120 Switch 16-porte 10/100 PoE+
LevelOne FEP-1601W120 - Switch - 16 x 10/100 (PoE+) - desktop, monterbar på stativ - PoE+ (112 W)
Specifications
|
Basis omskiftning RJ-45 Ethernet porte, antal
|
16
|
|
Basis omskiftning RJ-45 Ethernet porttype
|
Fast Ethernet (10/100)
|
|
Antal installerede SFP moduler
|
0
|
|
Antal installerede SFP+ moduler
|
0
|
|
Netværksstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
|
|
10G understøttelse
|
Ingen
|
|
MAC adresselabel
|
4000 entries
|
|
Switch kapacitet
|
3,2 Gbit/sek.
|
|
Stativ-montering
|
Ja
|
|
Strøm over Ethernet (PoE)
|
Ja
|
Full specifications
|
General
|
|
|---|---|
|
Built-in Devices
|
LED panel
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Device Type
|
Switch - 16 ports
|
|
Enclosure Type
|
Desktop, rack-mountable
|
|
Features
|
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, built-in DIP switch, metal housing, PoE overcurrent protection, PoE circuit sorting protection
|
|
MAC Address Table Size
|
4K entries
|
|
Performance
|
Backplane speed: 3.2 Gbps | Forwarding performance: 148000 packets per second
|
|
PoE Budget
|
112 W
|
|
Ports
|
16 x 10/100 (PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Status Indicators
|
Power, active, PoE, link/speed
|
|
Subtype
|
Fast Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
16 x 100Base-TX RJ-45 PoE+
|
|
Power
|
|
|
Power Consumption Operational
|
120 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS
|
|
Dimensions & Weight
|
|
|
Depth
|
11.8 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
2.2 kg
|
|
Width
|
48 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Humidity Range Storage
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
45 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
