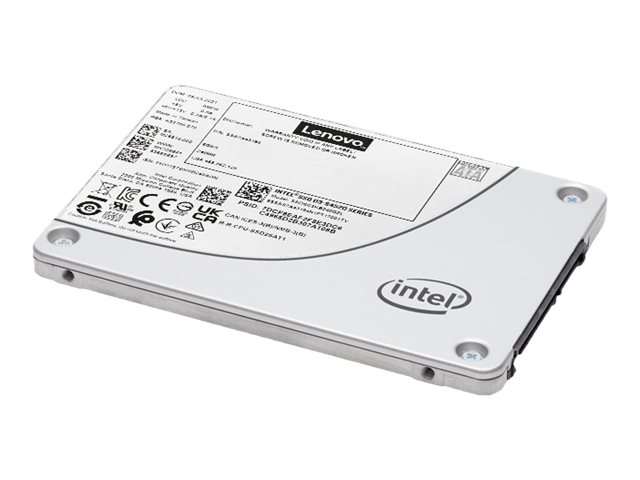

Lenovo ThinkSystem Solid state-drev S4520 960GB 2.5" SATA-600
Lenovo ThinkSystem S4520 - SSD - Read Intensive - krypteret - 960 GB - intern - 2.5" - SATA 6Gb/s - 256-bit AES - for ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5")
Product no:
1000654782
Model:
4XB7A77461
EAN:
0889488593415
Brand:
Weight:
0.07 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Lenovo ThinkSystem S4520 - SSD - Read Intensive - 960 GB - SATA 6Gb/s
|
|
Type
|
Solid state-drev - intern
|
|
Kapacitet
|
960 GB
|
|
Hardware kryptering
|
Ja
|
|
Krypterings algoritme
|
256-bit AES
|
|
NAND Flashhukommelses-type
|
3D triple-level cell (TLC)
|
|
Model
|
2.5"
|
|
Grænseflade
|
SATA 6Gb/s
|
|
Dataoverførselshastighed
|
600 MBps
|
|
Drevklasse
|
Read Intensive
|
|
Egenskaber
|
Termisk drosling, Ende-til-ende databeskyttelse, 3D NAND Technology, Standard Endurance Technology (SET), Enhanced Power Loss Protection, S.M.A.R.T.
|
|
Dimensioner (B x D x H)
|
70 mm x 100 mm x 7 mm
|
|
Vægt
|
70 g
|
|
Producentgaranti
|
1 års garanti
|
|
Designet for
|
ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5")
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
960 GB
|
|
Depth
|
100 mm
|
|
Device Type
|
Solid state drive - internal
|
|
Encryption Algorithm
|
256-bit AES
|
|
Features
|
Thermal throttling, End-to-end data protection, 3D NAND Technology, Standard Endurance Technology (SET), Enhanced Power Loss Protection, S.M.A.R.T.
|
|
Form Factor
|
2.5"
|
|
Hardware Encryption
|
Yes
|
|
Height
|
7 mm
|
|
Interface
|
SATA 6Gb/s
|
|
NAND Flash Memory Type
|
3D triple-level cell (TLC)
|
|
Weight
|
70 g
|
|
Width
|
70 mm
|
|
Performance
|
|
|
4KB Random Read
|
90000 IOPS
|
|
4KB Random Write
|
43000 IOPS
|
|
Average Latency
|
36 μs
|
|
Drive Class
|
Read Intensive
|
|
Drive Transfer Rate
|
600 MBps (external)
|
|
Drive Writes Per Day (DWPD)
|
3
|
|
Internal Data Rate
|
550 MBps (read) / 510 MBps (write)
|
|
SSD Endurance
|
5.3 PB
|
|
Reliability
|
|
|
MTBF
|
2,000,000 hours
|
|
Non-Recoverable Errors
|
1 per 10^17
|
|
Expansion & Connectivity
|
|
|
Compatible Bay
|
2.5"
|
|
Interfaces
|
1 x SATA 6 Gb/s
|
|
Power
|
|
|
Power Consumption
|
3 Watt (typical)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, BSMI CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, FCC CFR47 Part 15 B Class B, EN 55032:2012, KCC Article 11.1, AS/NZS CI
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - replacement - 1 year
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Shock Tolerance (non-operating)
|
1000 g @ 0.5 ms
|
|
Shock Tolerance (operating)
|
1000 g @ 0.5 ms
|
|
Vibration Tolerance (non-operating)
|
3.13 g @ 5-800 Hz
|
|
Vibration Tolerance (operating)
|
2.17 g @ 5-700 Hz
|
|
Compatibility Information
|
|
|
Designed For
|
Lenovo ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5")
|
