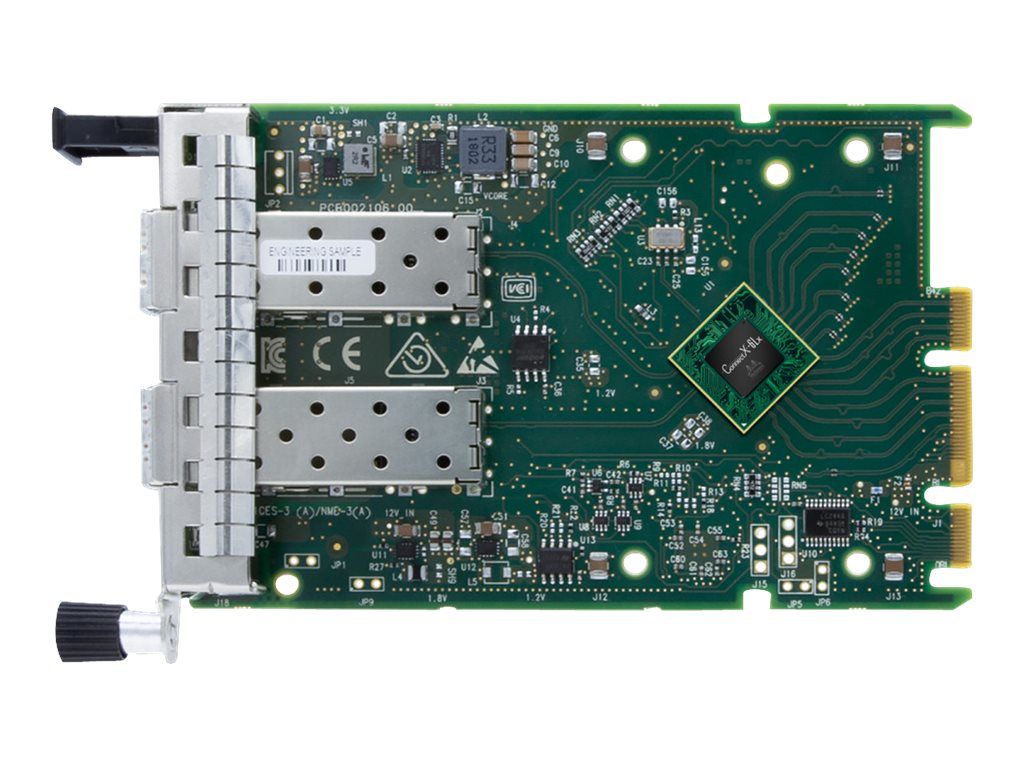

Lenovo ThinkSystem Mellanox ConnectX-6 Lx Netværksadapter 10 Gigabit Ethernet RDMA over Converged Ethernet (RoCE) 25 Gigabit Ethernet
Lenovo ThinkSystem Mellanox ConnectX-6 Lx - Netværksadapter - OCP 3.0 - 10/25 Gigabit SFP28 x 2 - for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node
-
Product no 999336572
Model 4XC7A62582
Brand
Go to brand's websiteEAN 0889488542628
Weight 0.22 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Lenovo ThinkSystem Mellanox ConnectX-6 Lx - netværksadapter - OCP 3.0 - 10/25 Gigabit SFP28 x 2 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort |
| Grænseflade (bus) type | Open Compute Project mezzanine (OCP) 3.0 |
| Porte | 10/25 Gigabit SFP28 x 2 |
| Dimensioner (B x D x H) | 7.6 cm x 11.5 cm |
| Dataforbindelsesprotokol | 10GbE, RoCE, 25GbE |
| Netværks/overføselsprotokol | SMB |
| Overensstemmelsesstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by, IEEE 1149.6 |
| Producentgaranti | 1 års garanti |
| Designet for | ThinkAgile HX5530 Appliance; HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node; MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node; MX3331-H Certified Node; MX3530-H Hybrid Appliance; MX3531-H Hybrid Certified Node; VX7330-N Appliance; VX75XX Certified Node |
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Networking | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by, IEEE 1149.6 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE), 25 Gigabit Ethernet |
| Features | TCP/IP offloading, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), UDP/IP offloading, iSCSI remote boot, Ethernet remote boot, Transmit Side Scaling (TSS), RDMA |
| Network / Transport Protocol | SMB |
| Ports | 10/25 Gigabit SFP28 x 2 |
| Expansion / Connectivity | |
| Interfaces | 2 - SFP28 |
| Miscellaneous | |
| Compliant Standards | VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, RCM |
| Dimensions & Weight | |
| Depth | 11.5 cm |
| Width | 7.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile HX5530 Appliance 7Z82 | Lenovo ThinkAgile HX5531 Certified Node 7Z84 | Lenovo ThinkAgile HX7530 Appliance 7Z82 | Lenovo ThinkAgile HX7531 Certified Node 7Z84 | Lenovo ThinkAgile MX3330-F Appliance 7D19 | Lenovo ThinkAgile MX3330-H A |
