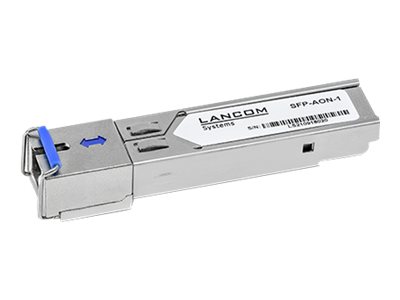

LANCOM SFP-AON-1 SFP (mini-GBIC) transceiver modul Gigabit Ethernet AON

LANCOM SFP-AON-1 - SFP (mini-GBIC) transceiver modul - AON, 1GbE - 1000Base-BX10-U, 1000BASE-BX20-U - SC/UPC enkelttilstand - op til 20 km - 1310 (TX) / 1480-1580 (RX) nm - for LANCOM 1790, 1900, 1906, 1926, ISG-1000, ISG-4000, ISG-8000

Varenummer: 1000050461
Model: 60200
EAN: 4044144602009
Brand:
LANCOM Systems
Vægt: 0.17 kg

Specifications

Produktbeskrivelse
LANCOM SFP-AON-1 - SFP (mini-GBIC) transceiver modul - AON, 1GbE
Enhedstype
SFP (mini-GBIC) transceiver modul - SC/UPC enkelttilstand
Model
Indstiksmodul
Kabeltype
1000Base-BX10-U, 1000BASE-BX20-U
Dataoverførselshastighed
1 Gbps
Optisk bølgelængde
1310 (TX) / 1480-1580 (RX) nm
Dataforbindelsesprotokol
AON, 1GbE
Maks. overføringsafstand
20 km
Designet for
LANCOM 1790EF, 1900EF, 1900EF-5G, 1906VA, 1906VA-4G, 1926VAG, 1926VAG-4G, 1926VAG-5G, ISG-1000, ISG-4000, ISG-8000
Specifications

Full specifications

General
Device Type
SFP (mini-GBIC) transceiver module
Form Factor
Plug-in module
Networking
Cabling Type
1000BASE-BX20-U, 1000Base-BX10-U
Connectivity Technology
Wired
Data Link Protocol
GigE, AON
Data Transfer Rate
1 Gbps
Features
Fibre-to-the-home (FTTH)
Max Transfer Distance
20 km
Optical Wave Length
1310 (TX) / 1480-1580 (RX) nm
Expansion / Connectivity
Interfaces
1 x Ethernet 1000Base-BX10-U/1000Base-BX20-U - SC/APC single-mode
Miscellaneous
Cables Included
1 x LC/APC to SC/APC cable - 3 m
Compliant Standards
MSA SFF-8472
Power
Power Consumption Operational
1 Watt
Environmental Parameters
Max Operating Temperature
85 °C
Min Operating Temperature
-40 °C
Compatibility Information
Designed For
LANCOM 1790EF, 1900EF, 1900EF-5G, 1906VA, 1906VA-4G, 1926VAG, 1926VAG-4G, 1926VAG-5G, ISG-1000, ISG-4000, ISG-8000
