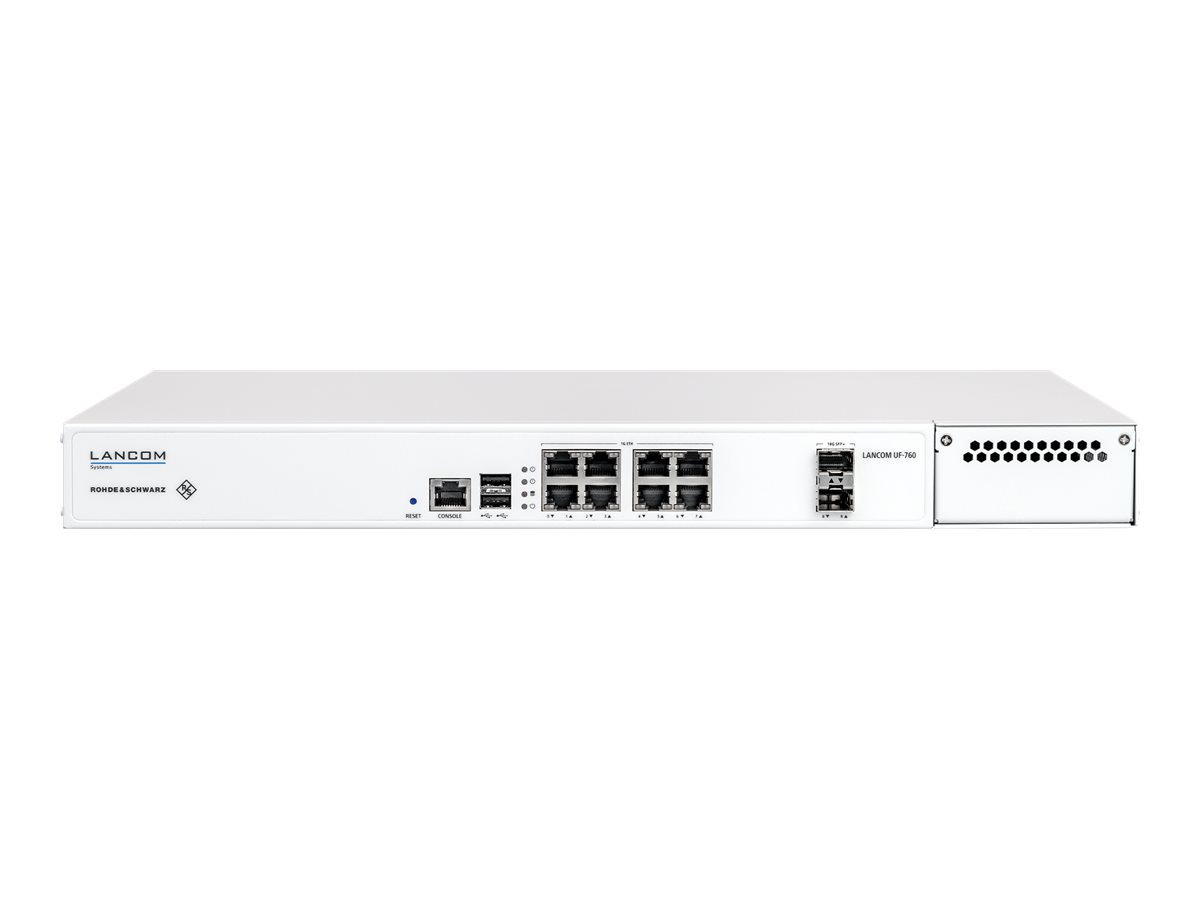

LANCOM R&S Unified Firewall UF-760 Firewall 10porte Rackmonterbar

LANCOM R&S Unified Firewall UF-760 - Firewall - 10 porte - 10GbE - 1U - cloud-administreret - rackmonterbar

Product no: 999922477
Model: 55035
EAN: 4044144550355
Brand:
LANCOM Systems
Weight: 9.09 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
LANCOM R&S Unified Firewall UF-760 - firewall - cloud-administreret
Enhedstype
Firewall
Formfaktor
Rackmonterbar - 1U
Antal porte
10
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Præstation
IPS throughput: 13 Gbps<br>Firewall-gennemløb (TCP): 49.83 Gbps<br>VPN throughput (IPSec): 19.7 Gbps<br>Unified Threat Management (UTM) gennemløb (HTTPS-traffik): 3,4 Gbps
Kapacitet
Sideløbende sessioner: 16700000<br>VPN-tunneler: 1000 - 5000
Udstyr inkluderet
2 x strømledninger, 2 x 19" monteringsbøjler
Effekt
AC 100-240 V (50/60 Hz)
Overskudsspænding
Ja
Dimensioner (B x D x H)
44 cm x 36.4 cm x 4.4 cm
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Built-in Devices
4 x fans
Depth
36.4 cm
Device Type
Firewall
Height
4.4 cm
Height (Rack Units)
1U
Width
44 cm
Networking
Authentication Method
Kerberos, X.509 certificates, Active Directory, Extensible Authentication Protocol (EAP), XAUTH authentication
Capacity
Concurrent sessions: 16700000 | VPN tunnels: 1000 - 5000
Cloud-Managed
Yes
Compliant Standards
IEEE 802.1Q
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Features
VPN support, SNAT support, load balancing, VLAN support, content filtering, Intrusion Detection System (IDS), High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, HTTPS proxy, anti-spam protection, Quality of Servic
Form Factor
Rack-mountable
Network / Transport Protocol
TCP/IP, UDP/IP, IPSec, FTP, DHCP, SMTPS, POP3S, IMAPS
Performance
IPS throughput: 13 Gbps | Firewall throughput (TCP): 49.83 Gbps | VPN throughput (IPSec): 19.7 Gbps | Unified Threat Management (UTM) throughput (HTTPS traffic): 3.4 Gbps
Ports Qty
10
Remote Management Protocol
SNMP, SNMP 3, SNMP 2c, HTTP, HTTPS, SCP
Routing Protocol
BGP
Status Indicators
Power, HDD activity, link/activity, link/speed
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x expansion slot
Interfaces
8 x 1000Base-T - RJ-45 | 2 x 10Gb Ethernet - SFP+ | 1 x console - RJ-45 | 3 x USB 2.0 - Type A
Miscellaneous
Compliant Standards
Directive 2011/65/EU, Regulation EC 1907/2006, Directive 2014/35/EU, Directive 2014/30/EU
Included Accessories
2 x power cords, 2 x 19" mounting brackets
Power
Installed Qty
2
Max Supported Qty
2
Power Device
Internal power supply
Power Redundancy
Yes
Voltage Required
AC 100-240 V (50/60 Hz)
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating
10 - 85% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
