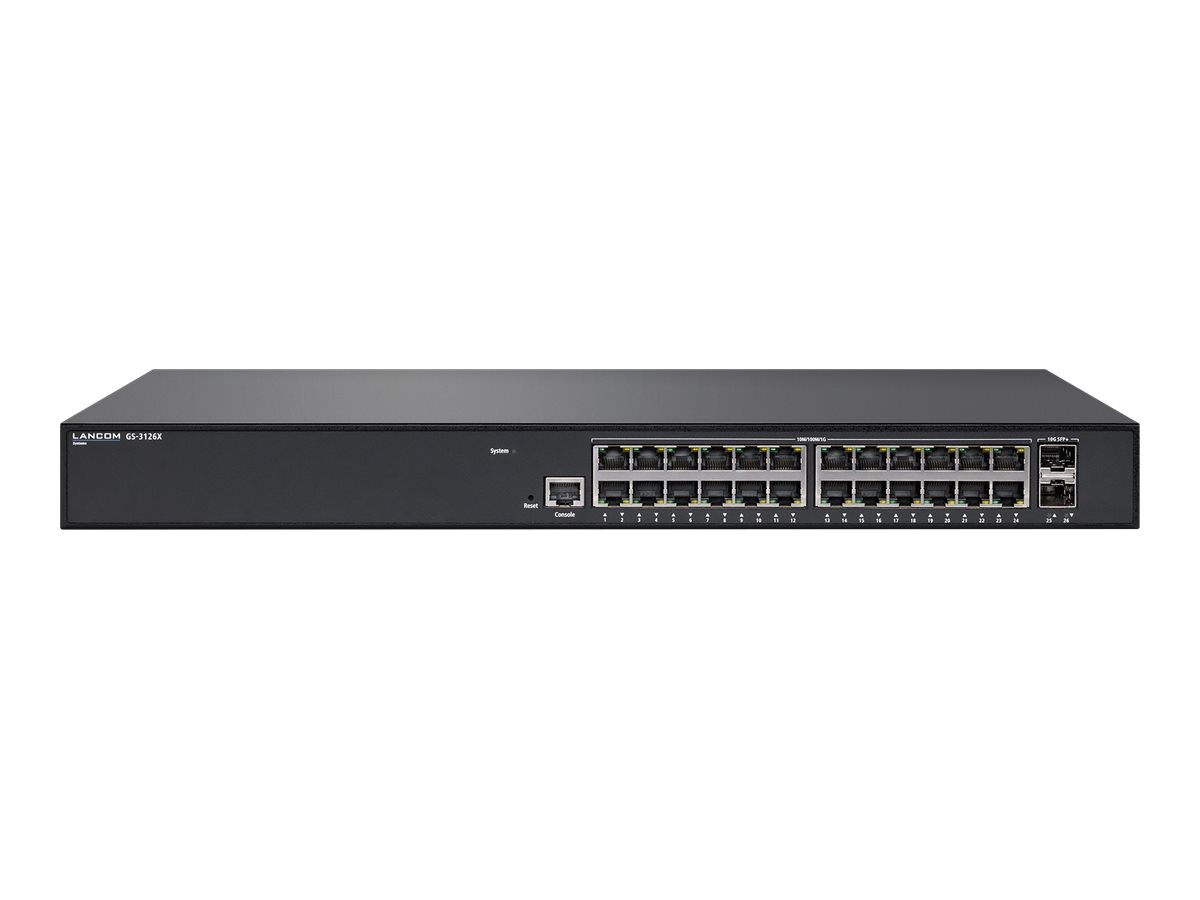

LANCOM GS-3126X Switch 24-porte Gigabit
LANCOM GS-3126X - Switch - L3 Lite - Administreret - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) - monterbar på stativ
Specifications
|
Produktbeskrivelse
|
LANCOM GS-3126X - switch - 24 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 24 porte - L3 Lite - Administreret
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink)
|
|
Præstation
|
Kapacitet: 88 Gbps<br>Gennemløb (64-byte pakkestørrelse): 130 Mpps
|
|
Kapacitet
|
VLAN-mærkater: 4096<br>Aktive VLANer: 4000<br>IGMP multicast-grupper: 1024
|
|
MAC adresse table størrelse
|
32K indtastningshukommelse
|
|
Jumborammesupport
|
10240 byte
|
|
Routingprotokol
|
IGMPv2, IGMP, statisk IP routing, IGMPv3, MLD
|
|
Protokol til fjernadministration
|
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, SSH, CLI, ICMP
|
|
Egenskaber
|
Datatransport, VLAN-understøttet, portspejling, gem og send, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, sFlow, STP support, RSTP support, MSTP support, ACL support, DHCP server, MDL snooping, nulstillingsknap, IPv4 support, LLDP support, DHCP videresendelse, LACP, Port Security, portbaseret adgangsstyring, DHCP klient, Energy Efficient Ethernet, MIB, dobbelt firmware-billeder, NAC, CoS, mærket VLAN, GVRP, IGMP proxy, sky-administreret, metalkabinet, DSCP support, IP-kildebekyttelse, SCP, Link Aggregation, MIB II, IGMP-forespørger, VLAN Double Tagging (Q-in-Q), Voice VLAN, LLDP-MED, Guest VLAN
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
44.2 cm x 21.1 cm x 4.4 cm
|
|
Vægt
|
2.7 kg
|
|
Producentgaranti
|
5 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
Secure Shell (SSH), RADIUS, TACACS+
|
|
Capacity
|
VLAN tags: 4096 | Active VLANs: 4000 | IGMP multicast groups: 1024
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az
|
|
Device Type
|
Switch - 24 ports - L3 Lite - managed
|
|
Enclosure Type
|
Rack-mountable 1U
|
|
Encryption Algorithm
|
MD5, SSL
|
|
Features
|
Flow control, VLAN support, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree
|
|
Jumbo Frame Support
|
10240 bytes
|
|
MAC Address Table Size
|
32K entries
|
|
Performance
|
Throughput: 88 Gbps | Throughput (64-byte packet size): 130 Mpps
|
|
Ports
|
24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink)
|
|
Remote Management Protocol
|
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, SSH, CLI, ICMP
|
|
Routing Protocol
|
IGMPv2, IGMP, static IP routing, IGMPv3, MLD
|
|
Status Indicators
|
System, link/activity/speed
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
24 x 1000Base-T RJ-45 | 2 x 10Gbit LAN SFP+ uplink | 1 x console RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
30 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x serial cable - 1.5 m
|
|
Compliant Standards
|
EN55022, EN55024, EN 60950-1, FCC CFR47 Part 15 A, RFC1213, RFC1493, RFC2674, RFC2460
|
|
Rack Mounting Kit
|
Included
|
|
Dimensions & Weight
|
|
|
Depth
|
21.1 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
2.7 kg
|
|
Width
|
44.2 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 5 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
