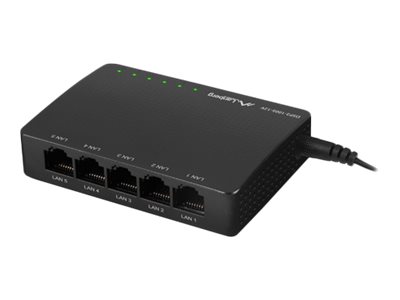

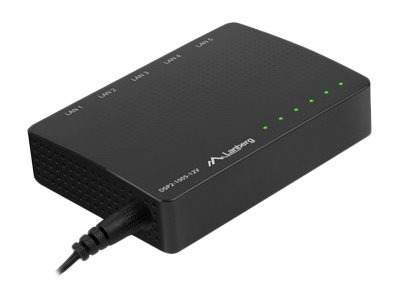

Lanberg DSP2-1005-12V Switch 5-porte Gigabit
Lanberg DSP2-1005-12V - Switch - ikke administreret - 5 x 10/100/1000 - desktop, væg-monterbar - AC 100 - 240 V
-
Product no 995792060
Model DSP2-1005-12V
Brand Lanberg
EAN 5901969424164
Weight 0.17 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Lanberg DSP2-1005-12V - switch - 5 porte - ikke administreret |
| Enhedstype | Switch - 5 porte - ikke administreret |
| Undertype | Gigabit Ethernet |
| Porte | 5 x 10/100/1000 |
| Præstation | Skift af båndbredde: 10 Gbps |
| MAC adresse table størrelse | 2K indtastningshukommelse |
| Egenskaber | Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, til vægmontering, plastisk husning, Back Pressure Support, passiv PoE-understøttet, MAC-adresselæring, MAC-adressealdring |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x |
| Effekt | AC 100 - 240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 9.3 cm x 6.57 cm x 2.23 cm |
| Vægt | 140 g |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, wall mountable, plastic housing, Back Pressure Support, passive PoE supported, MAC address learning, MAC address aging |
| MAC Address Table Size | 2K entries |
| Performance | Switching bandwidth: 10 Gbps |
| Ports | 5 x 10/100/1000 |
| Processor | 1 x MediaTek MT7530D |
| Status Indicators | Power, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Power | |
| Power Consumption Operational | 2.64 Watt |
| Power Device | External power adapter |
| Power Provided | 12 V - 0.5 A |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | Plug and Play, RoHS, WEEE |
| Dimensions & Weight | |
| Depth | 6.57 cm |
| Height | 2.23 cm |
| Weight | 140 g |
| Width | 9.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
