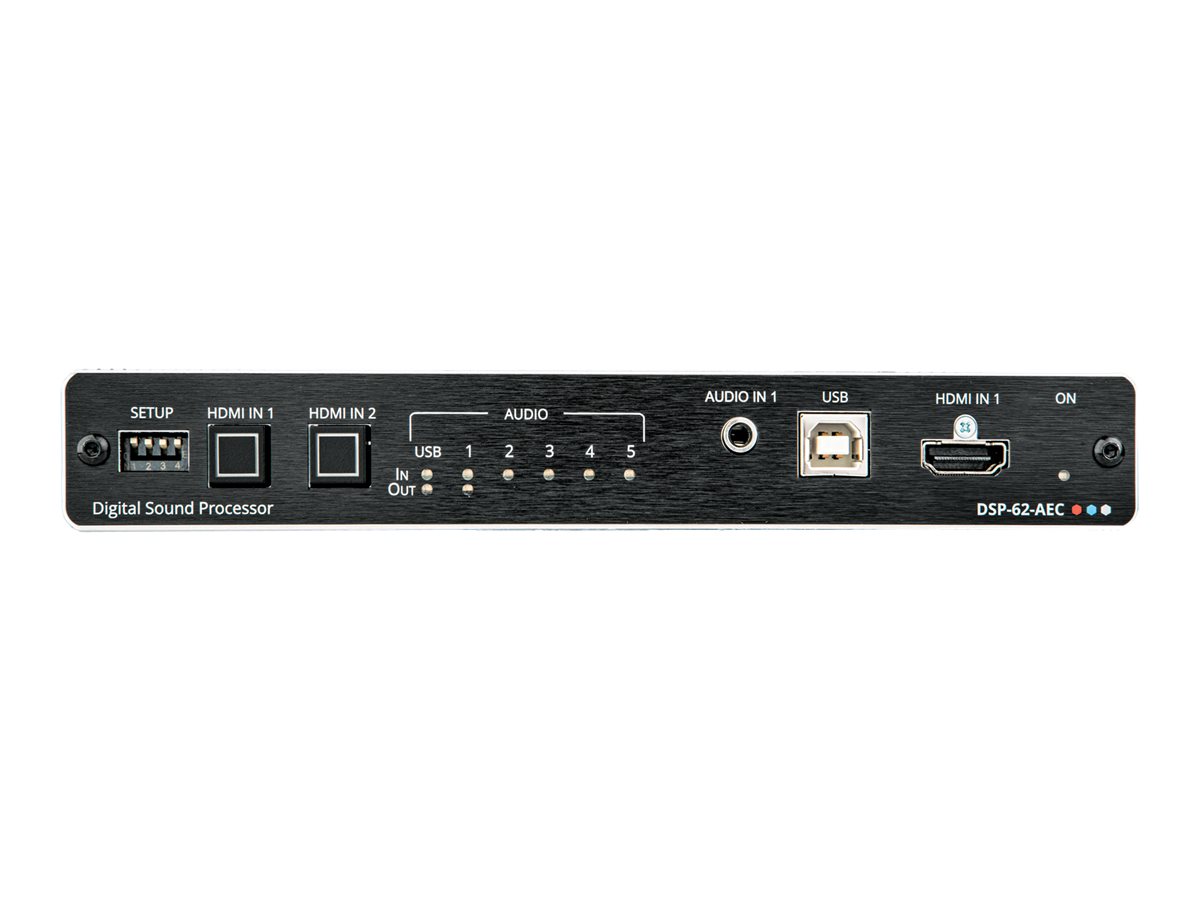

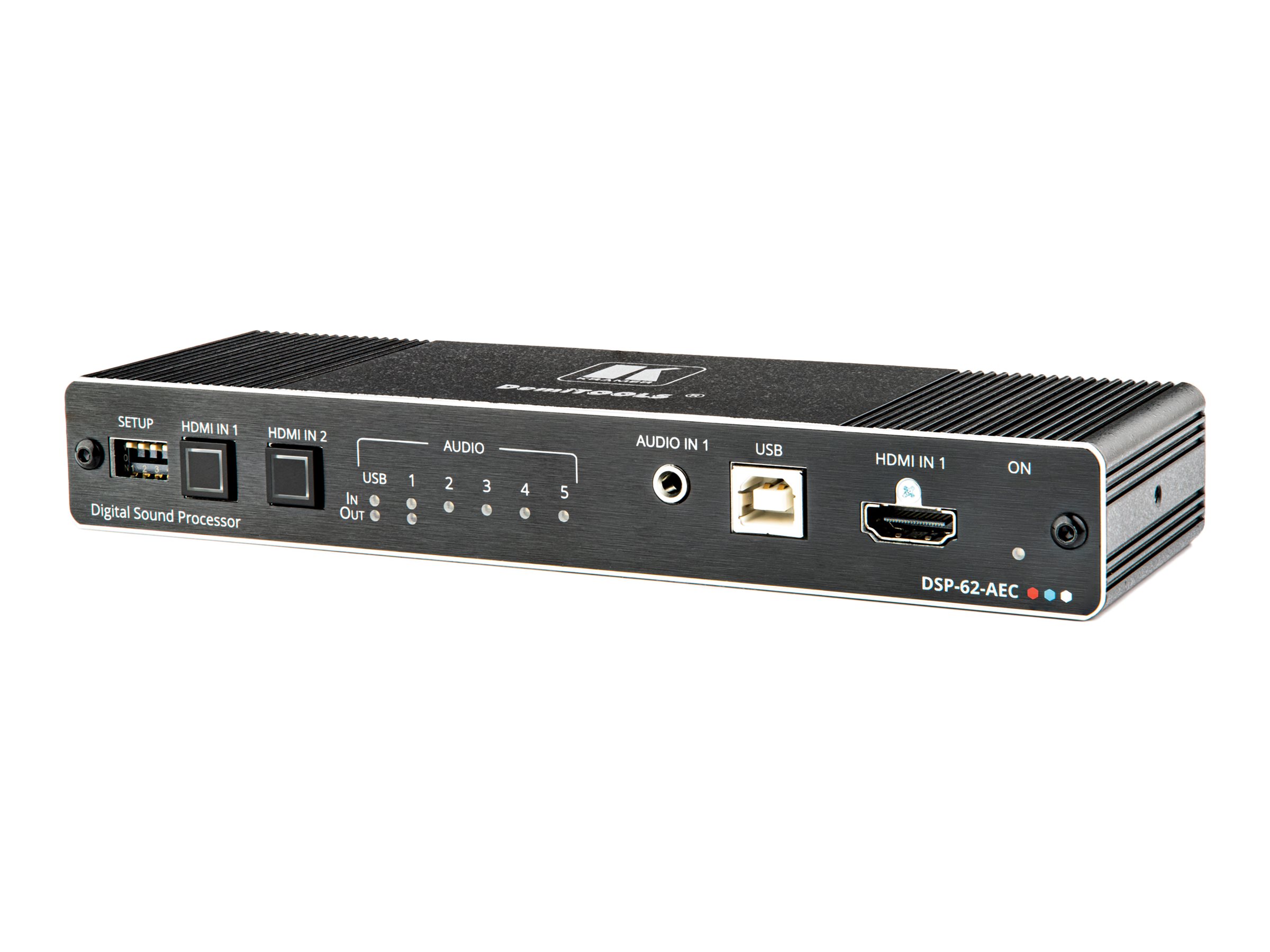

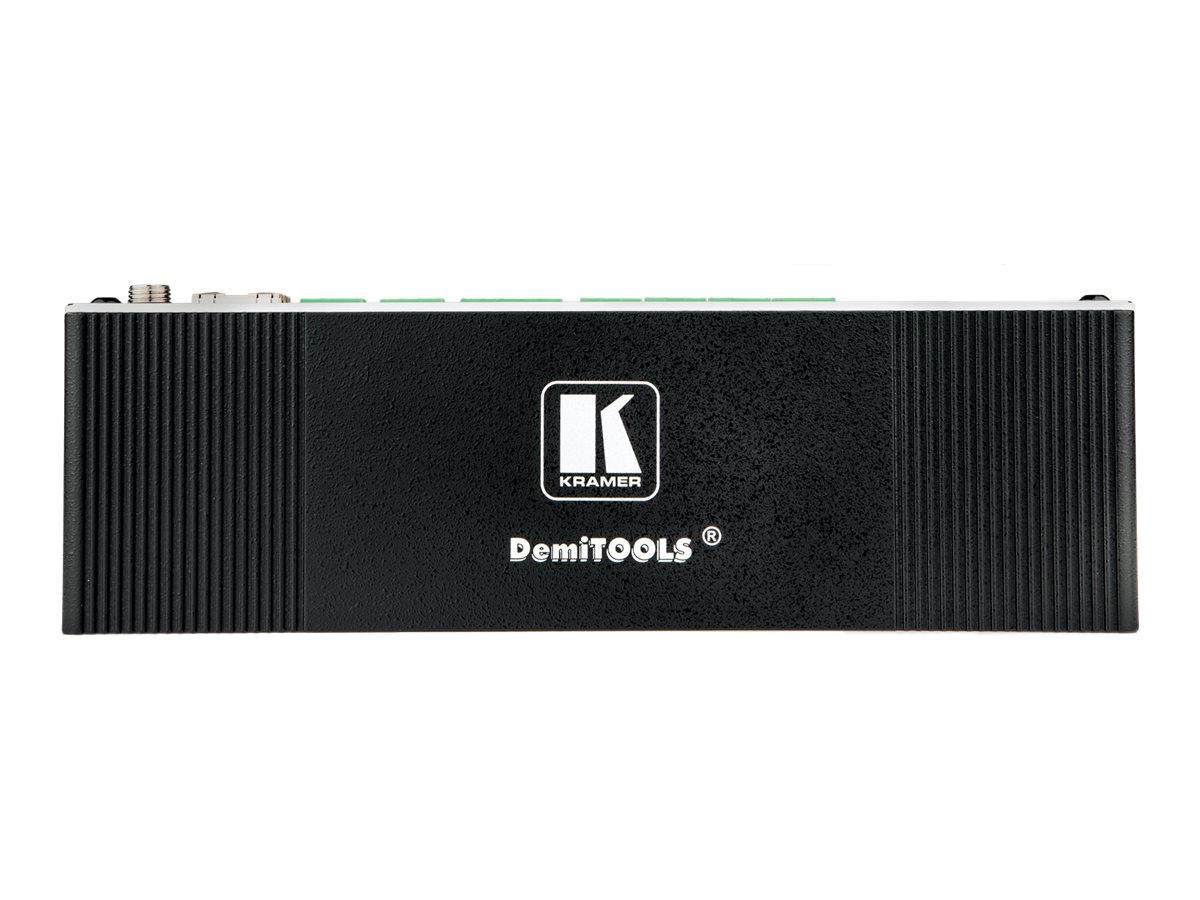

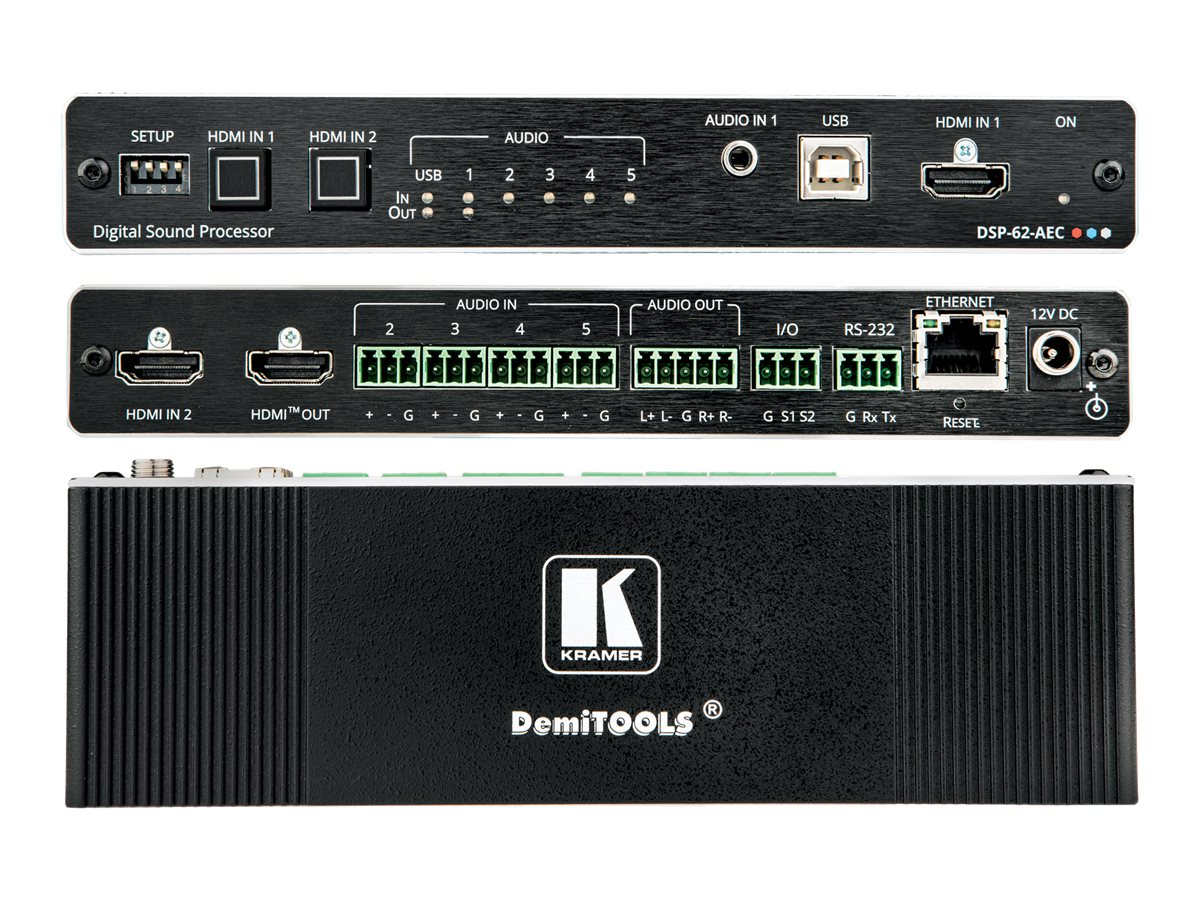

Kramer XSPerience DSP-62-AEC 6x2 matrix switcher / audio disembedder

Kramer XSPerience DSP-62-AEC - 6x2 matrixskifter/audio-afindlejrer

Product no: 998145974
Model: 13-80555090
EAN: 7291063090524
Brand:
Kramer Electronics
Weight: 0.2 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Kramer XSPerience DSP-62-AEC 6x2 matrixskifter/audio-afindlejrer
Type
6x2 matrixskifter/audio-afindlejrer
Dimensioner (B x D x H)
19.05 cm - 5.96 cm - 2.74 cm
Vægt
200 g
Specifications

Full specifications

General
Depth
5.96 cm
Height
2.74 cm
Type
6x2 matrix switcher / audio disembedder
Weight
200 g
Width
19.05 cm
Studio & Production Equipment
Features
HDCP 2.2 compliant, Acoustic Echo Cancellation (AEC) technology, 4K60 4:4:4 18Gbps signal support
Power
Low Voltage Power
DC 12 V / PoE
Kit Content
Kit Content
(1) x power adapter | (1) x USB cable

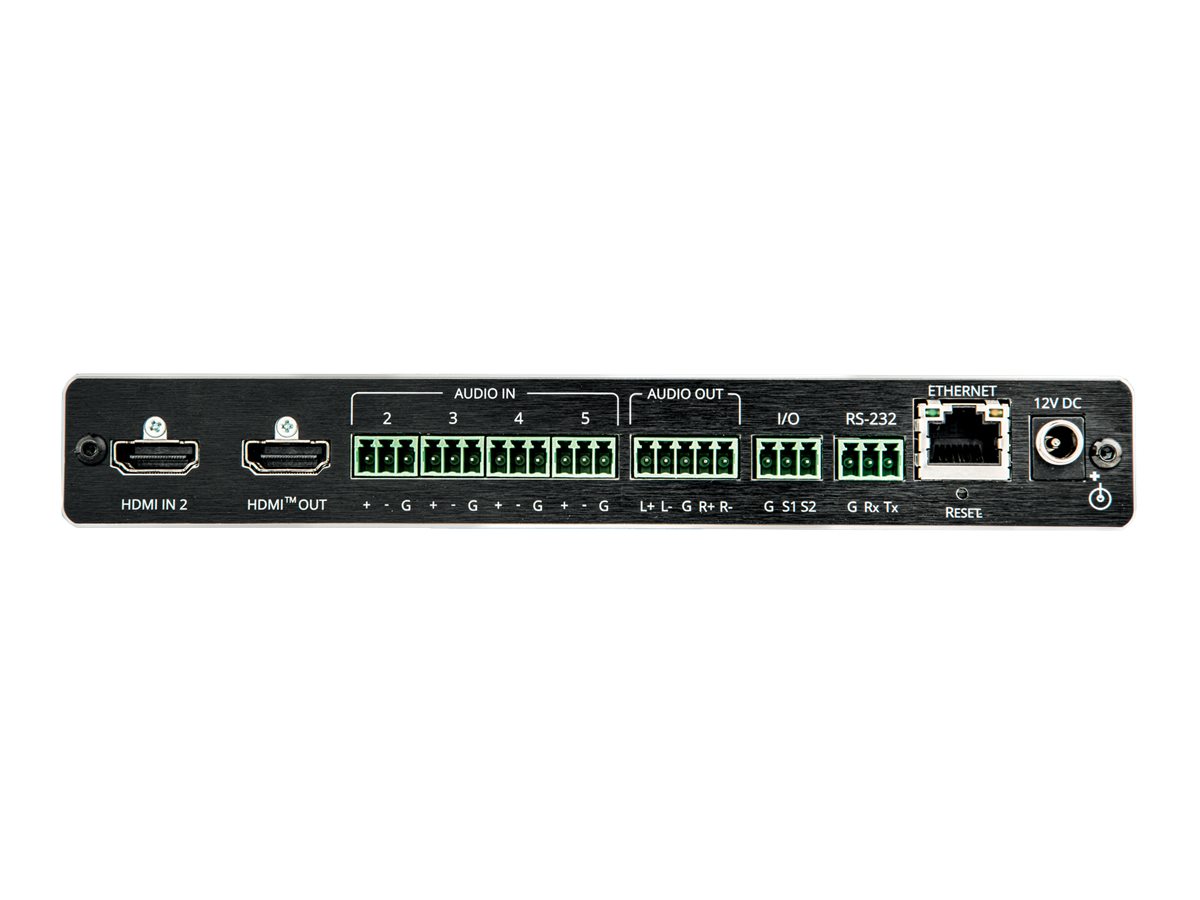

Terminals
Terminals
(2) x HDMI input - 19 pin HDMI Type A | (1) x unbalanced audio input - mini-phone stereo 3.5 mm | (4) x balanced audio input - 3-pin terminal block | (1) x HDMI output - 19 pin HDMI Type A | (1) x balanced audio output - 5-pin terminal block - stereo
Environmental Parameters
Humidity Range Operating
10 - 90%
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Dimensions & Weight (Shipping)
Shipping Depth
16.5 cm
Shipping Height
5.2 cm
Shipping Weight
600 g
Shipping Width
34.5 cm
