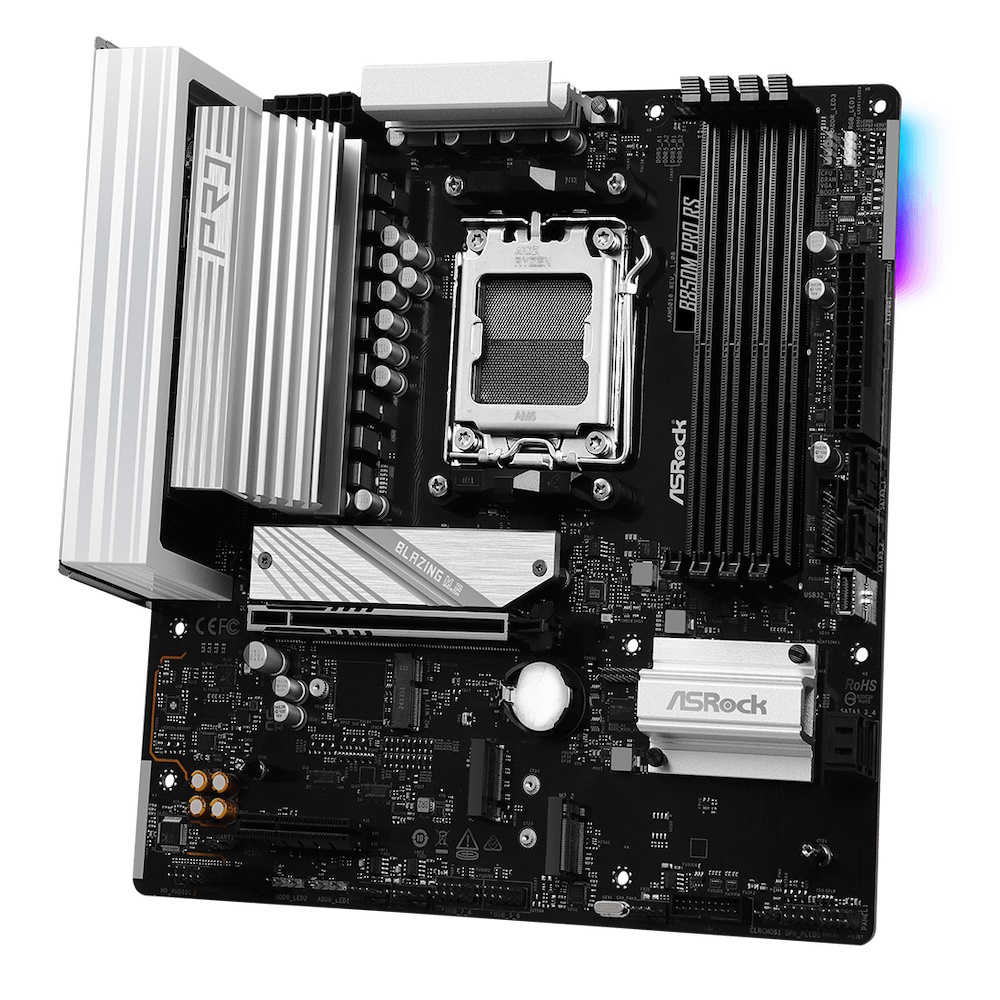

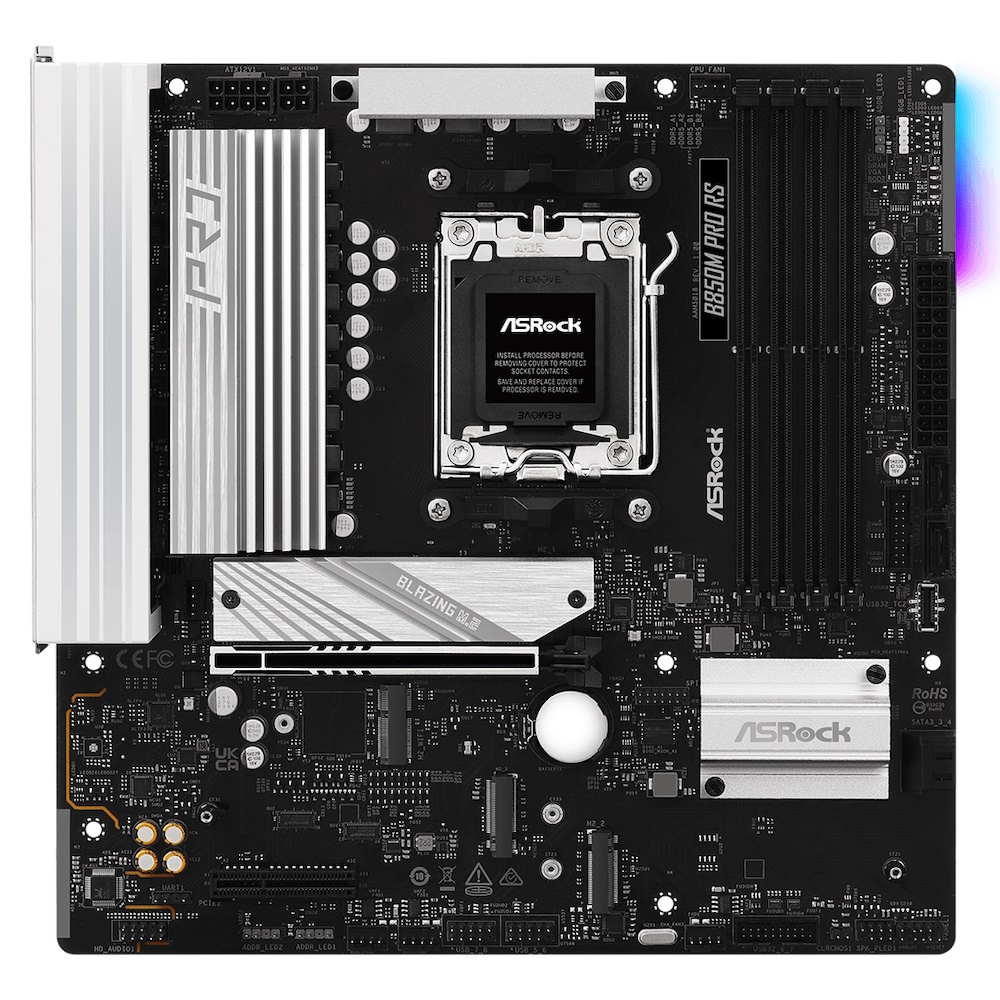

ASRock B850M Pro RS mATX AM5

ASRock B850M Pro RS - mATX - Socket AM5 - 4x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG

  • Product no 1002936291

    Model 90-MXBR6-A0UAYZ

    Brand
    Go to brand's website

    EAN 4711581490345

    Weight 1.26 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
CPU Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset AMD B850
Memory 4x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Max: 256GB
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN Dragon RTL8125BG - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Slots 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage 1x Blazing M.2 Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 2x Hyper M.2 Socket, supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors
USB 1x USB 3.2 Gen2 Type-C (Rear), 1x USB 3.2 Gen2 Type-A (Rear), 1x USB 3.2 Gen1 Type-C (Front), 6x USB 3.2 Gen1 Type-A (2 Rear , 4 Front), 8x USB 2.0 (4 Rear, 4 Front)

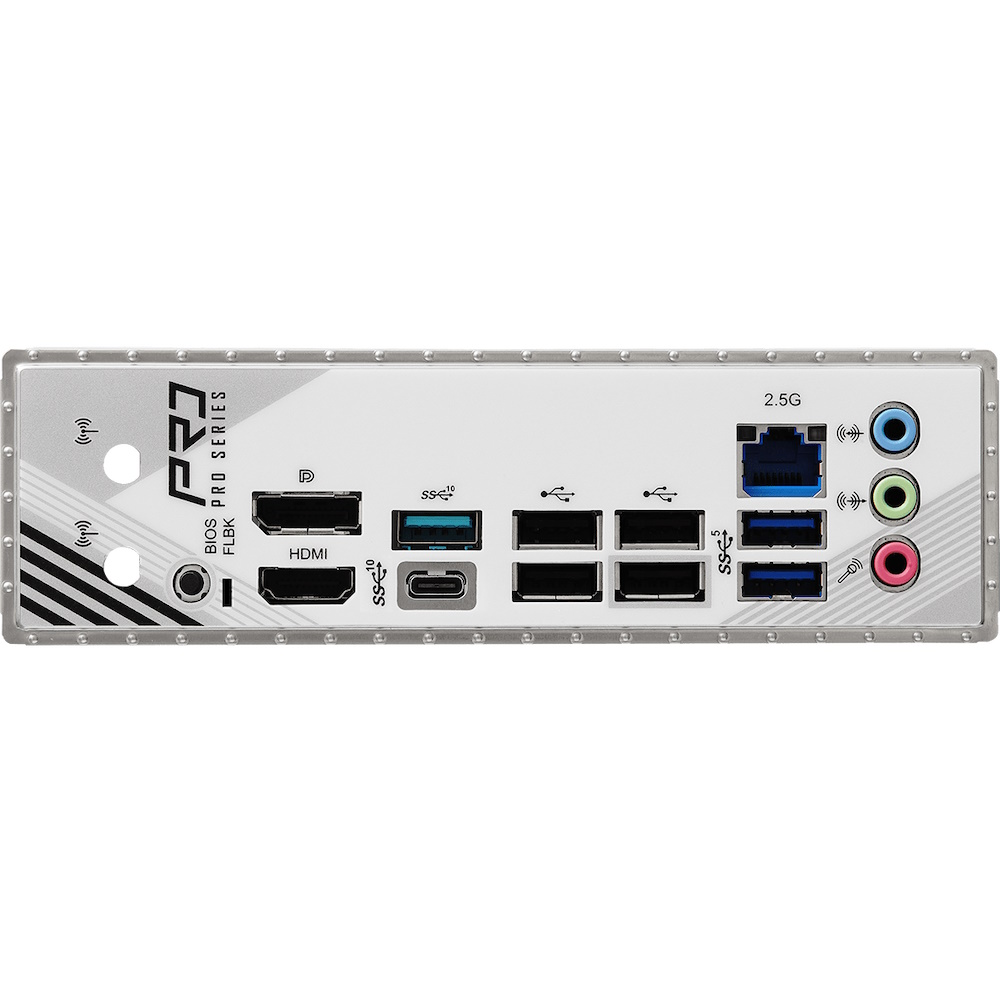

Rear Panel I/O 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port, 2x USB 3.2 Gen1 Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories 2x SATA Data Cables, 1x Screw for M.2 Socket
Form Factor Micro ATX Form Factor: 24.4 cm x 24.4 cm
Certifications FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
