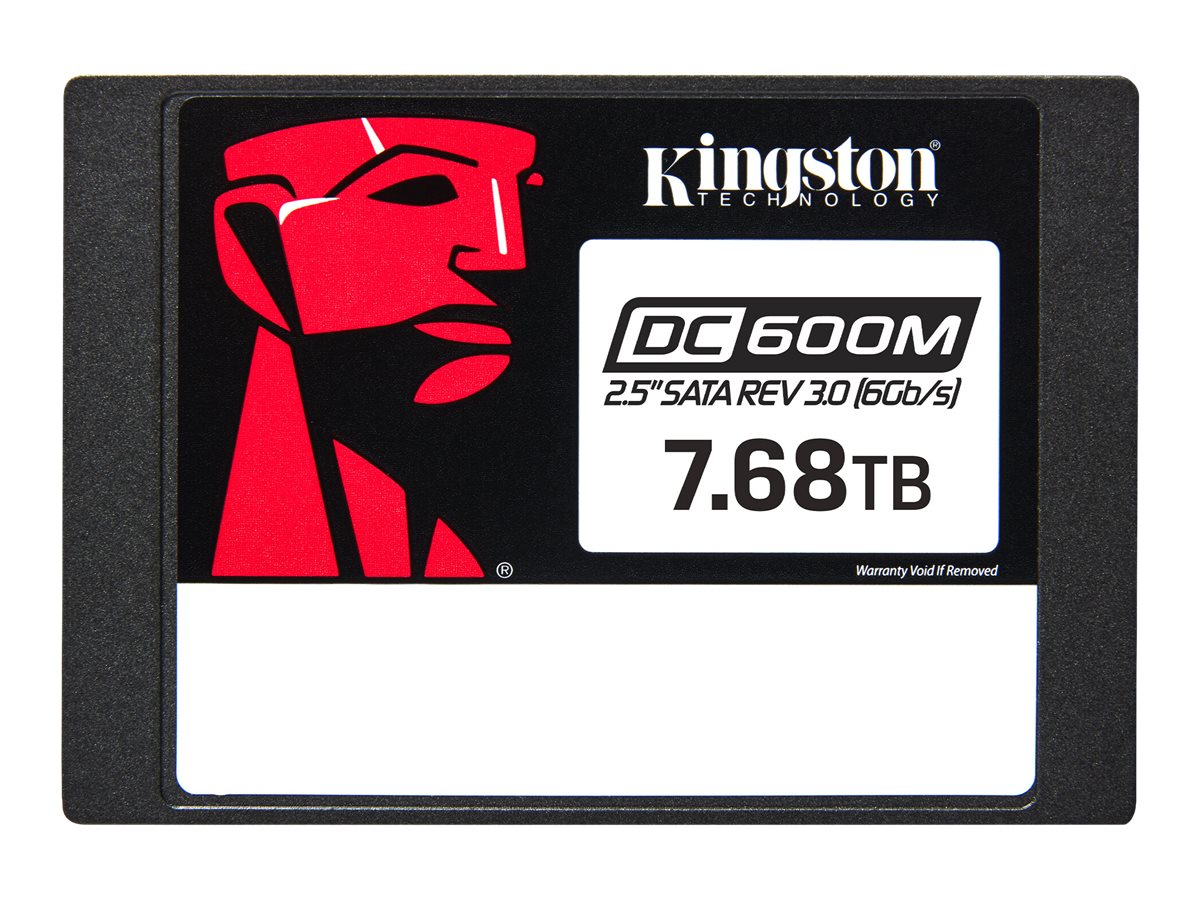

Kingston SSD DC600M 7.68TB 2.5" Serial ATA-300 Serial ATA-600
Kingston DC600M - SSD - Mixed Use - 7.68 TB - intern - 2.5" - SATA 6Gb/s
Kingstons DC600M SSD er en 4. generations datacenter SATA 3.0, hurtig SSD med 3D TLC NAND beregnet til "mixed use" arbejdsbelastninger. DC600M er velegnet til brug i højvolumen rackmonterede servere og inkluderer hardwarebaseret on-board PLP. Via strømtabskondensatorer beskytter DC600M data mod uventet strømsvigt for at reducere muligheden for datatab og sikre, at drevet geninitialiseres ved næste opstart af systemet. DC600M er designet til at levere latency og IOPS-konsistens til systemintegratorer, hyperscale-datacentre og udbydere af cloud-tjenester.
Specifications
|
Produktbeskrivelse
|
Kingston DC600M - SSD - Mixed Use - 7.68 TB - SATA 6Gb/s
|
|
Type
|
Solid state-drev - intern
|
|
Kapacitet
|
7.68 TB
|
|
NAND Flashhukommelses-type
|
3D triple-level cell (TLC)
|
|
Model
|
2.5"
|
|
Grænseflade
|
SATA 6Gb/s
|
|
Dataoverførselshastighed
|
600 MBps
|
|
Drevklasse
|
Mixed Use
|
|
Egenskaber
|
Dynamic and Static Wear Leveling, Hot-Plug Support, Power Loss Protection (PLP), høj Quality of Service (QoS), S.M.A.R.T sunhedsinformationssupport
|
|
Dimensioner (B x D x H)
|
69.9 mm x 100 mm x 7 mm
|
|
Vægt
|
92.34 g
|
|
Producentgaranti
|
5 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
7.68 TB
|
|
Depth
|
100 mm
|
|
Device Type
|
Solid state drive - internal
|
|
Encryption Algorithm
|
256-bit AES
|
|
Features
|
Dynamic and Static Wear Leveling, Hot-Plug Support, Power Loss Protection (PLP), high Quality of Service (QoS), S.M.A.R.T health information support
|
|
Form Factor
|
2.5"
|
|
Hardware Encryption
|
Yes
|
|
Height
|
7 mm
|
|
Interface
|
SATA 6Gb/s
|
|
NAND Flash Memory Type
|
3D triple-level cell (TLC)
|
|
Weight
|
92.34 g
|
|
Width
|
69.9 mm
|
|
Performance
|
|
|
Average Latency
|
170 μs
|
|
Drive Class
|
Mixed Use
|
|
Drive Transfer Rate
|
600 MBps (external)
|
|
Drive Writes Per Day (DWPD)
|
1.66
|
|
Internal Data Rate
|
560 MBps (read) / 530 MBps (write)
|
|
Maximum 4KB Random Read
|
94000 IOPS
|
|
Maximum 4KB Random Write
|
34000 IOPS
|
|
SSD Endurance
|
14016 TB
|
|
Reliability
|
|
|
MTBF
|
2,000,000 hours
|
|
Expansion & Connectivity
|
|
|
Compatible Bay
|
2.5"
|
|
Interfaces
|
1 x SATA 6 Gb/s - 7 pin Serial ATA
|
|
Power
|
|
|
Power Consumption
|
1.45 Watt (average) | 1.3 Watt (idle) | 1.6 Watt (max read) | 3.6 Watt (max write)
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 5 years | Technical support - 5 years
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
70 °C
|
|
Max Storage Temperature
|
85 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
|
Vibration Tolerance (non-operating)
|
20 g @ 10-2000 Hz
|
|
Vibration Tolerance (operating)
|
2.17 g @ 7-800 Hz
|
Features
Hardware-baseret PLP
Power loss-kondensatorer til at beskytte brugerdata mod uventet strømsvigt og forbedre ydeevnen.
Leverer fremragende Quality of Service (QoS)
Optimeret forudsigelighed af ydeevne for at opfylde serviceniveauaftaler (SLA'er).
