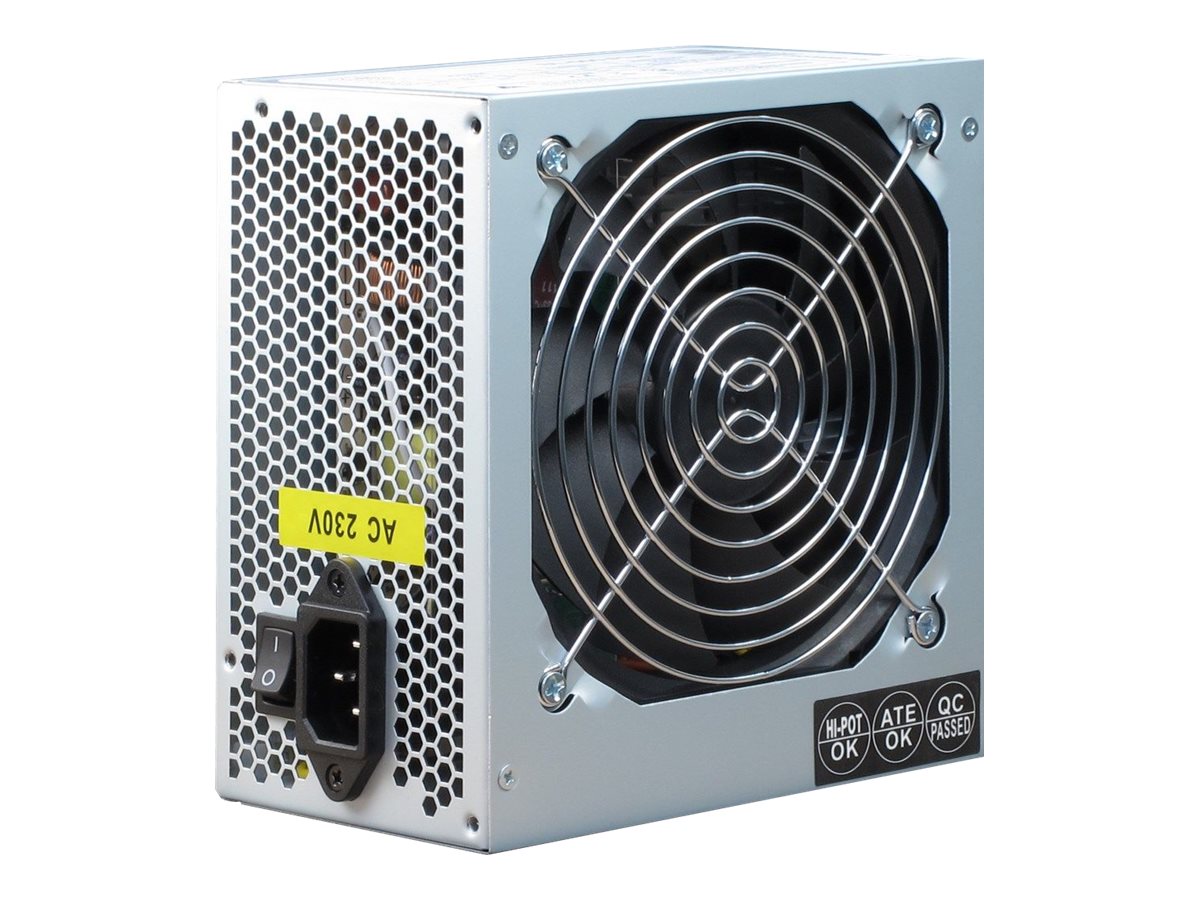

Inter-Tech SL-500 Plus Strømforsyning 500Watt

Inter-Tech SL-500 Plus - Strømforsyning (intern) - ATX12V 2.4 - AC 230 V - 500 Watt - aktiv PFC

  • Product no 990041957

    Model 88882140

    Brand Inter-Tech Elektroni

    EAN 4260133129108

    Weight 1.41 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Inter-Tech SL-500 Plus - strømforsyning - 500 Watt
Enhedstype Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse ATX12V 2.4
Vægt 990 g
Indgangspænding AC 230 V
Udgangspænding +3.3, +5, ±12 V
Strømkapacitet 500 Watt
Output Current +3.3V - 15 A<br>+5V - 16 A<br>+12V - 30 A<br>+5VSB - 2.5 A<br>-12V - 0.8 A
Output-stikforbindelser 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>4 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
Kølesystem 120 mm ventilator
Udstyr inkluderet Kabelbånd
Dimensioner (B x D x H) 15 cm x 14 cm x 8.6 cm
Producentgaranti 2 års garanti
General
Device Type Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor ATX
Specification Compliance ATX12V 2.4
Power Device
Efficiency 82%
Frequency Required 50 - 60 Hz
Input Voltage AC 230 V
Output Current +3.3V - 15 A | +5V - 16 A | +12V - 30 A | +5VSB - 2.5 A | -12V - 0.8 A
Output Voltage +3.3, +5, ±12 V
Power Capacity 500 Watt
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 4 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x 4 pin mini-power connector
Miscellaneous
Cables Included Power cable - external
Compliant Standards FCC
Cooling System 120 mm fan
Features On/off switch, overcurrent protection, overvoltage protection, short-circuit protection, non-modular
Included Accessories Cable ties
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Sound Emission 19 dB
Dimensions & Weight
Depth 14 cm
Height 8.6 cm
Weight 990 g
Width 15 cm
Dimensions & Weight (Shipping)
Shipping Depth 16.5 cm
Shipping Height 9 cm
Shipping Weight 1.28 kg
Shipping Width 21.5 cm
