Produktbeskrivelse
|
Inter-Tech IPC 3U-3508 - rack-monterbar - ATX
|
|
Produkttype
|
Systemkabinet
|
|
Model
|
Rack-monterbar
|
|
I/O-kontakter
|
2 x USB 3.0
|
|
Understøttede motherboards
|
ATX, microATX, Mini-ITX
|
|
Server-lagringsenheder
|
SATA/SAS - hot-swap
|
|
Egenskaber, systemkabinet
|
Strøm-LED, HDD LED, nulstillingsknap, strømknap
|
|
Strømenhed
|
Ingen strømforsyning (ATX)
|
|
Dimensioner (B x D x H)
|
48.2 cm x 52.8 cm x 13.2 cm
|
|
Vægt
|
9.51 kg
|
|
Producentgaranti
|
2 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

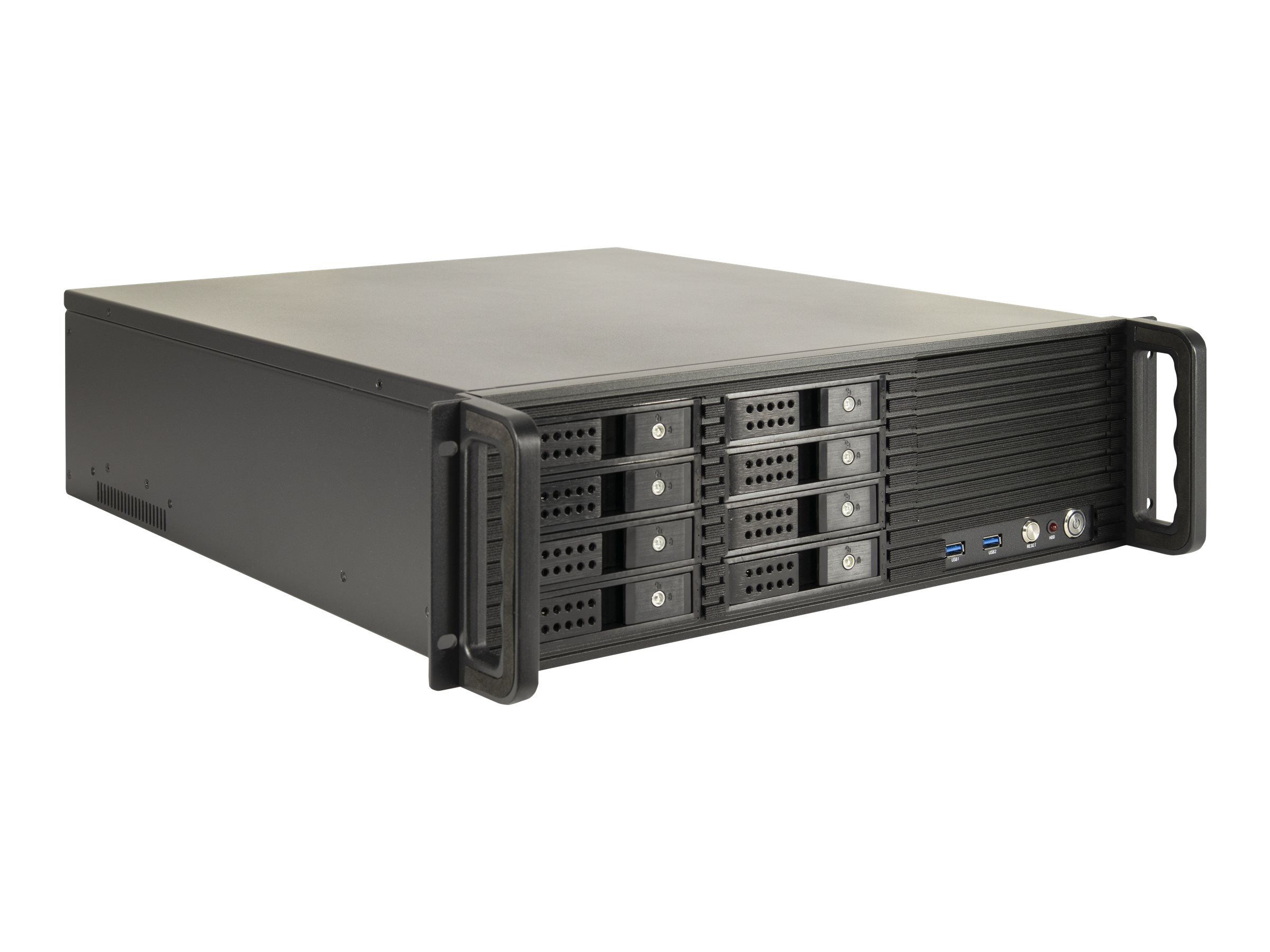

Inter-Tech IPC 3U-3508 Rackversion ATX Sort
Inter-Tech IPC 3U-3508 - Rack-monterbar - ATX - SATA/SAS - hot-swap - ingen strømforsyning (ATX) - USB
Varenummer:
1001015677
Model:
88887335
EAN:
4260455646420
Brand:
Vægt:
12.78 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|

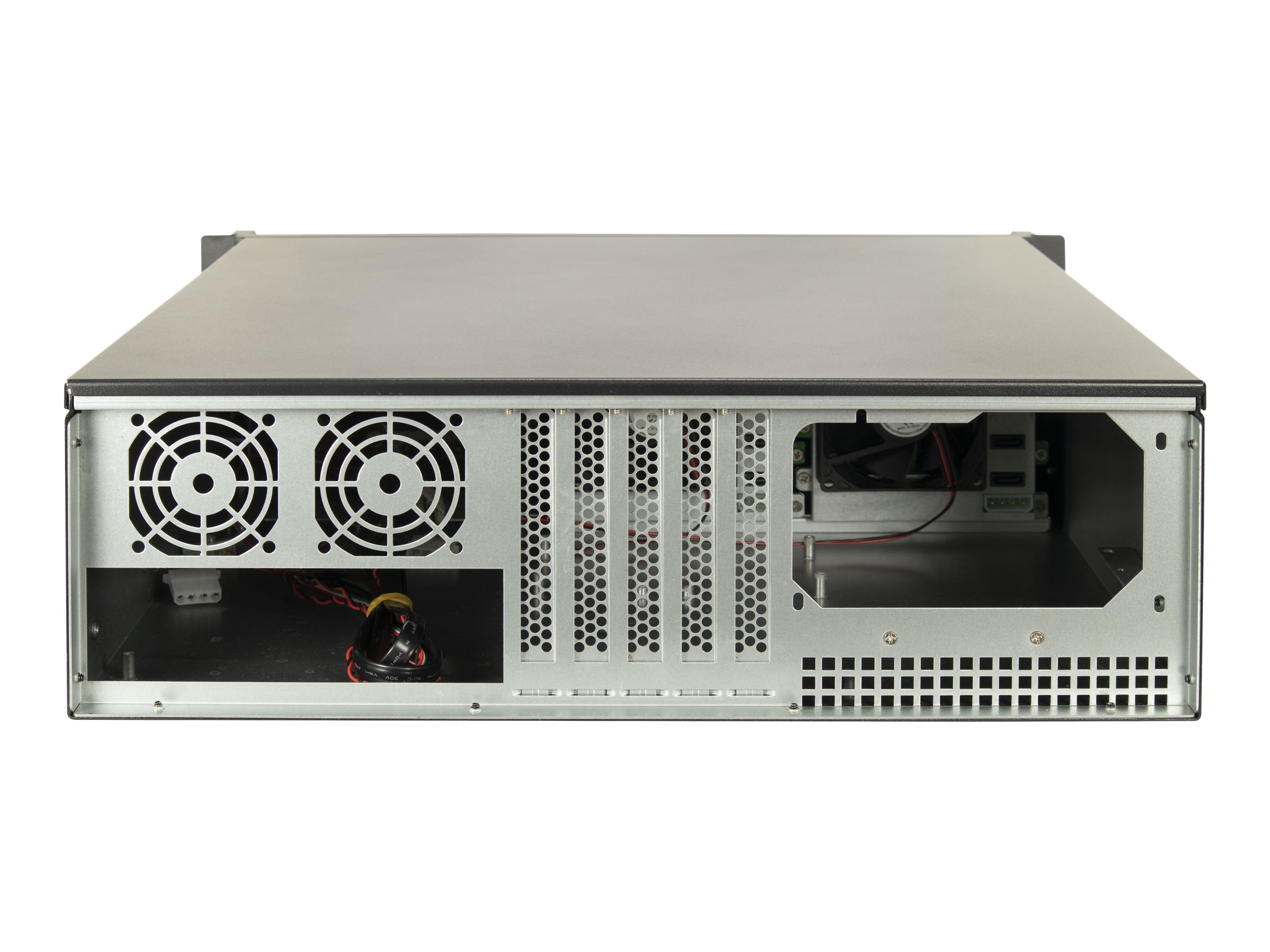

Cooling System
|
Internal: 80 mm fan x 2 | Rear: 60 mm fan mount x 2
|
|
CPU Cooler Max Height
|
100 mm
|
|
Form Factor
|
Rack-mountable
|
|
Front Accessible Bays Qty
|
2
|
|

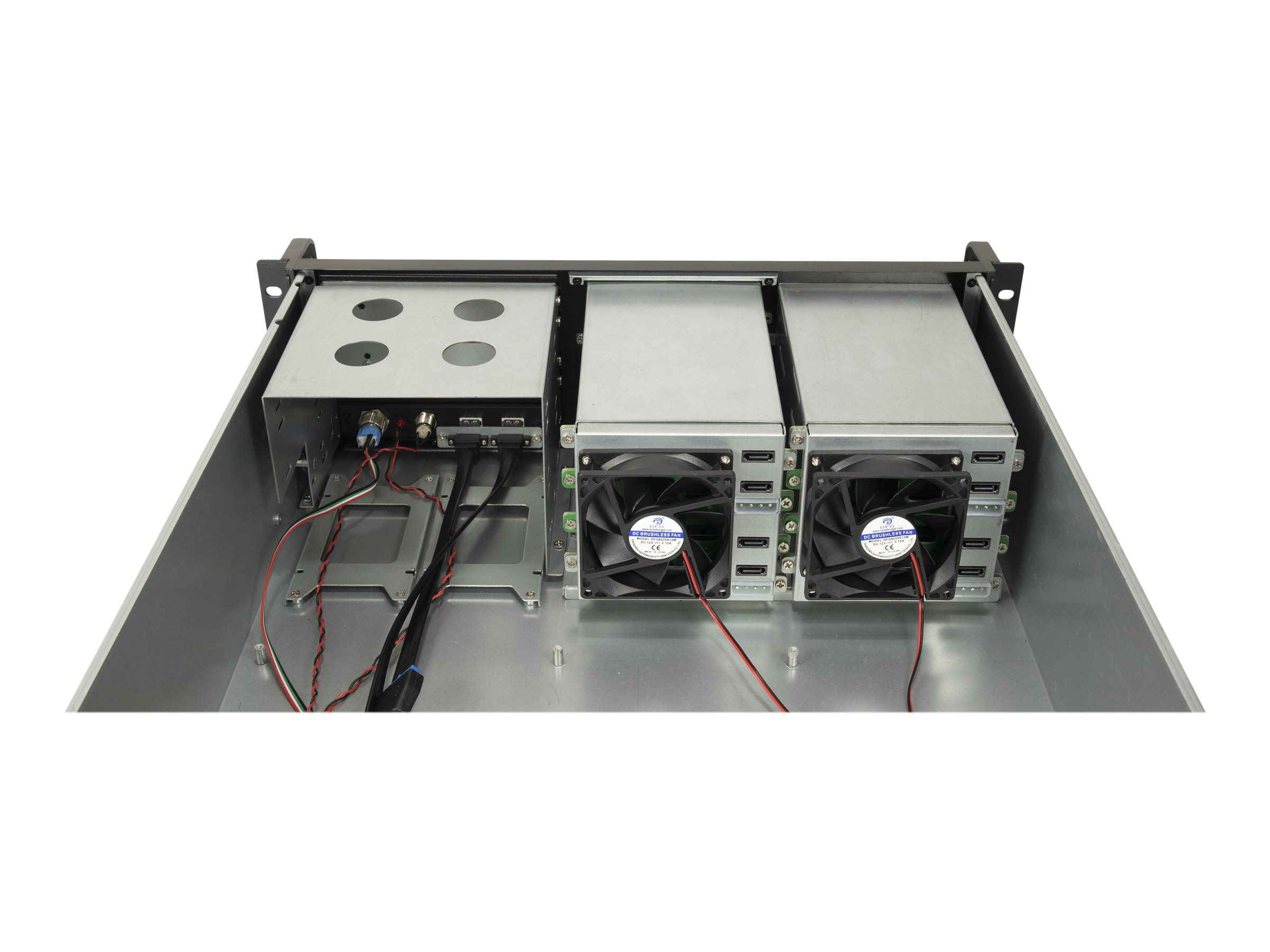

Hot-Swap Bays Qty
|
8
|
|
Internal Bays Qty
|
2
|
|
Max Mainboard Size
|
ATX
|
|
Max Supported Dimensions
|
30.5 cm x 24.4 cm
|
|
Product Material
|
1.0-1.2 mm steel
|
|
Server Swappable Drive Interface
|
SATA/SAS
|
|
Supported Motherboards
|
ATX, microATX, Mini-ITX
|
|
System Cabinet Features
|
Power LED, HDD LED, reset button, power button
|
|
Video Card Max Length
|
244 mm
|
|
Expansion / Connectivity
|
|
|

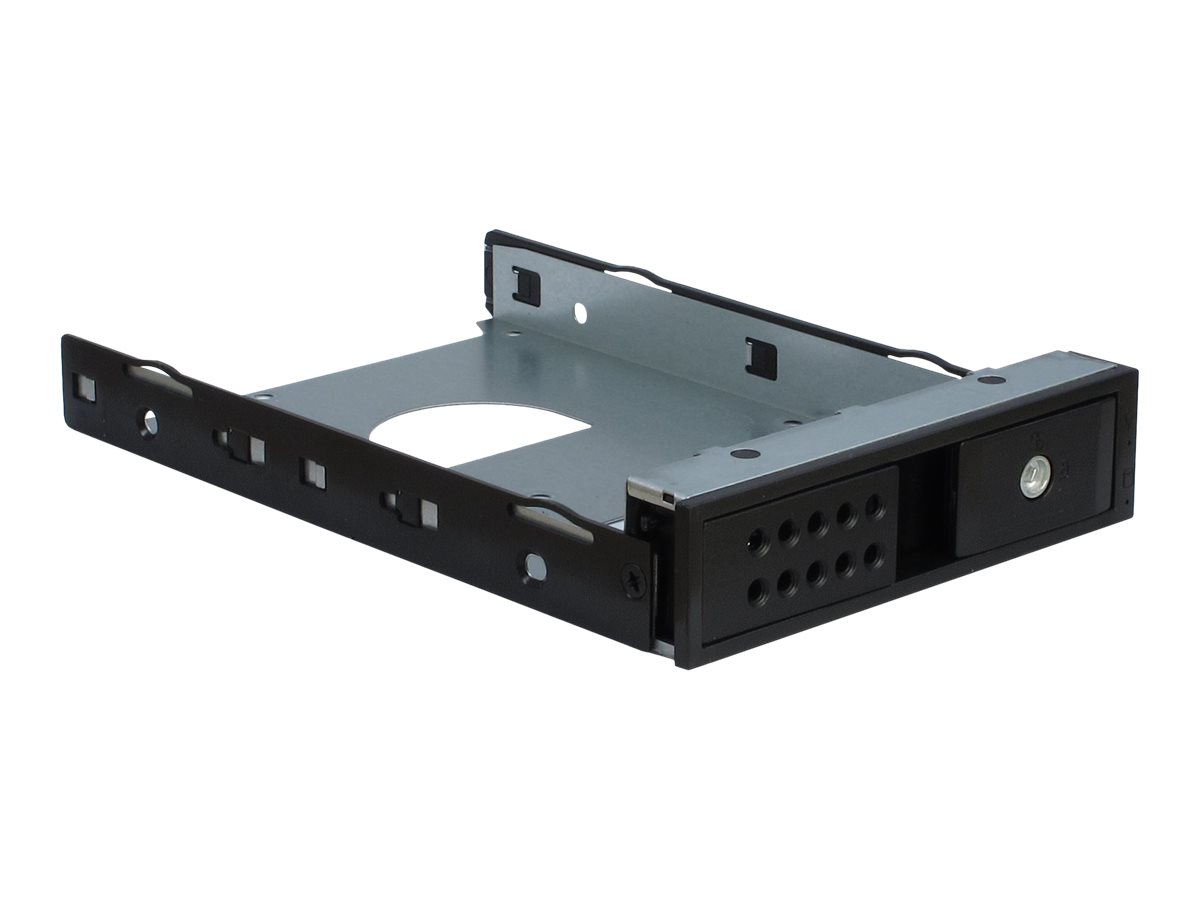

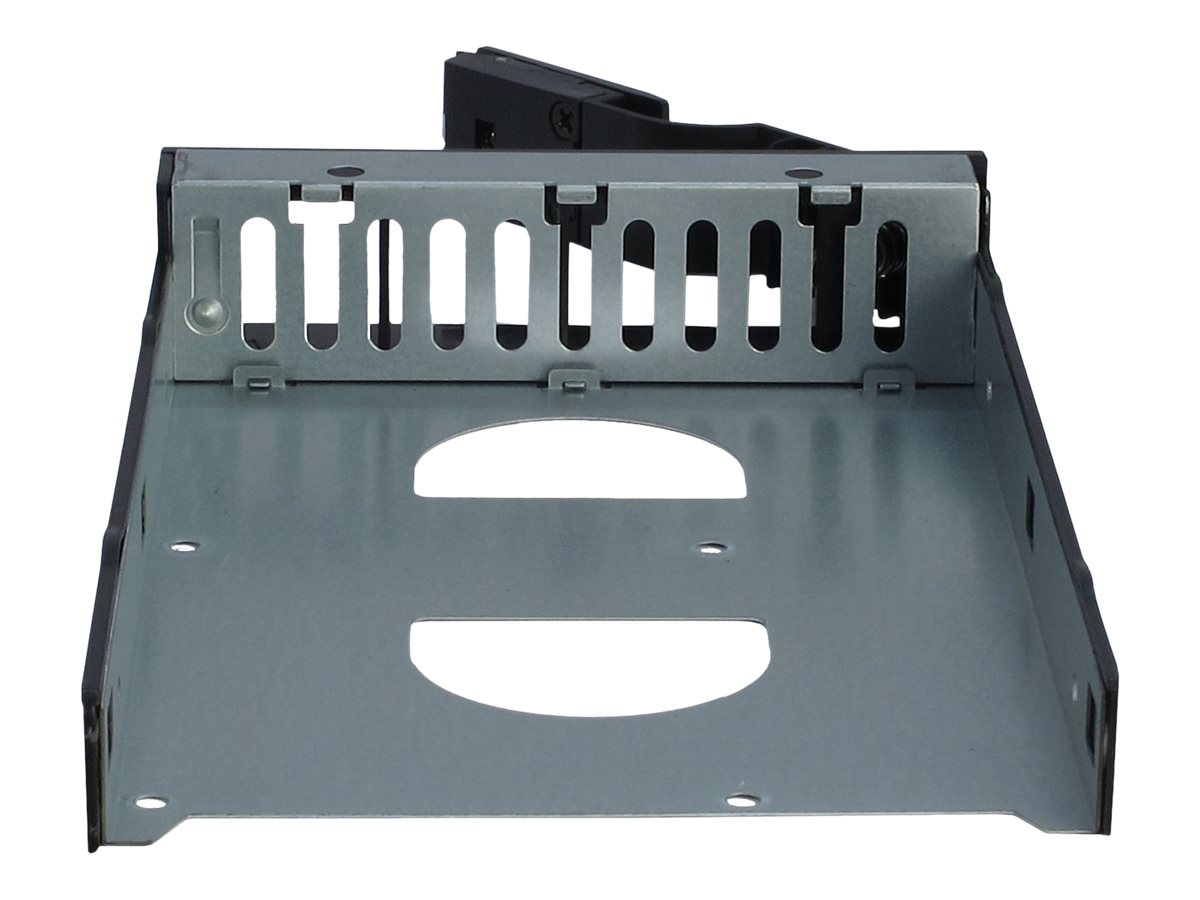

Expansion Bays
|
2 (total) / 2 (free) x internal - 2.5" | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" shared | 2 (total) / 2 (free) x front accessible - 5.25"
|
|

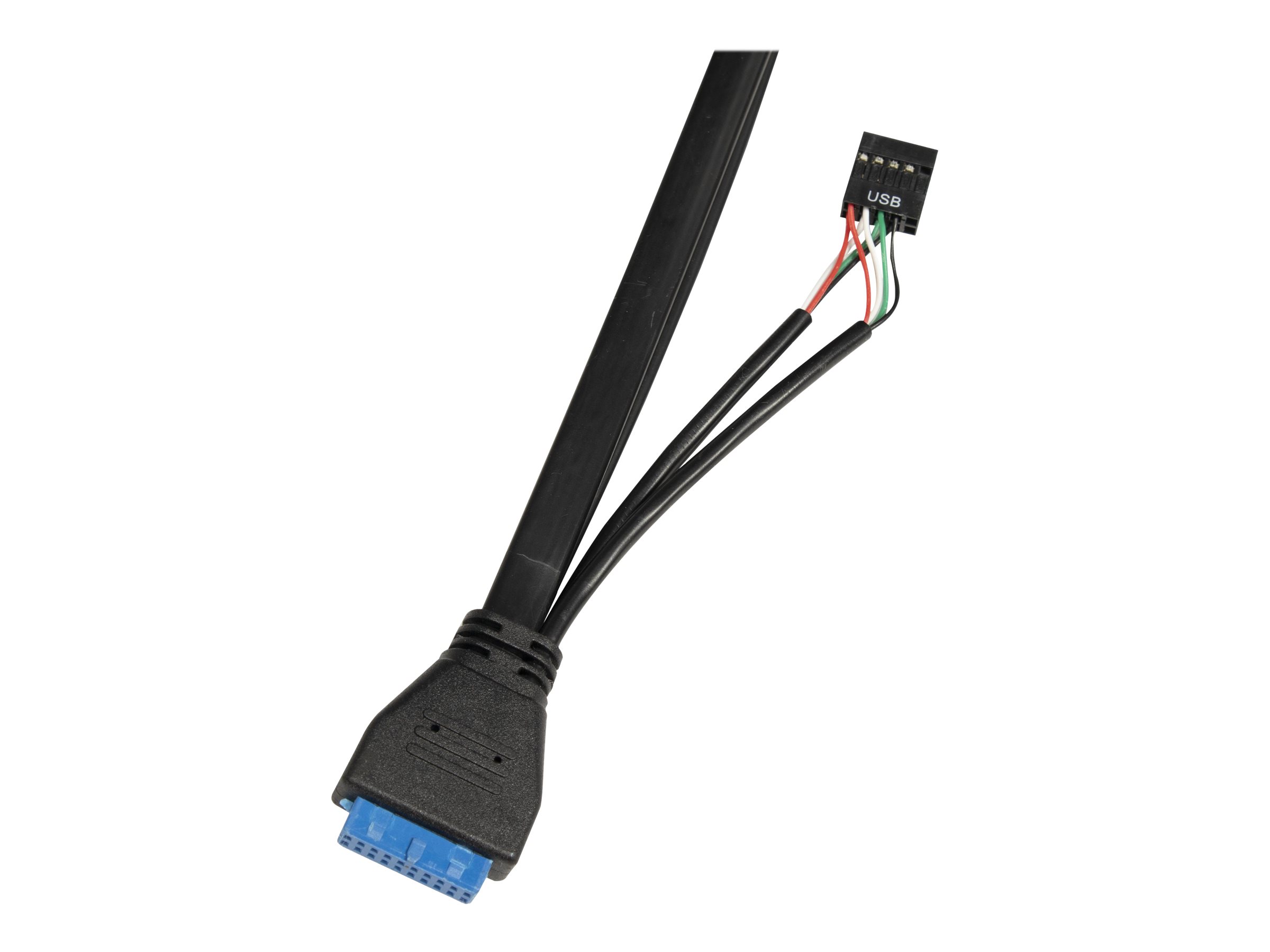

Interfaces
|
2 x USB 3.0
|
|
Miscellaneous
|
|
|
Included Accessories
|

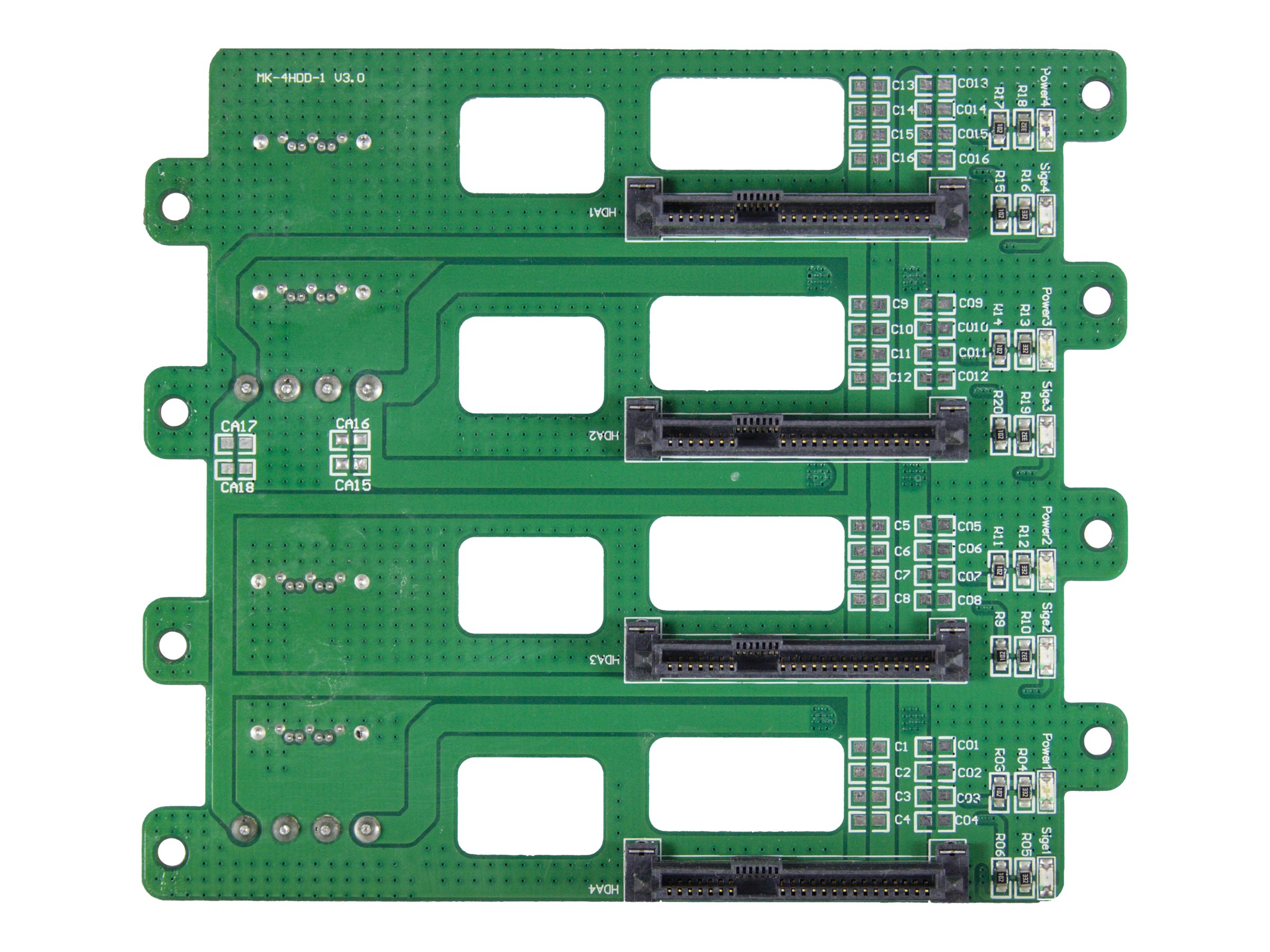

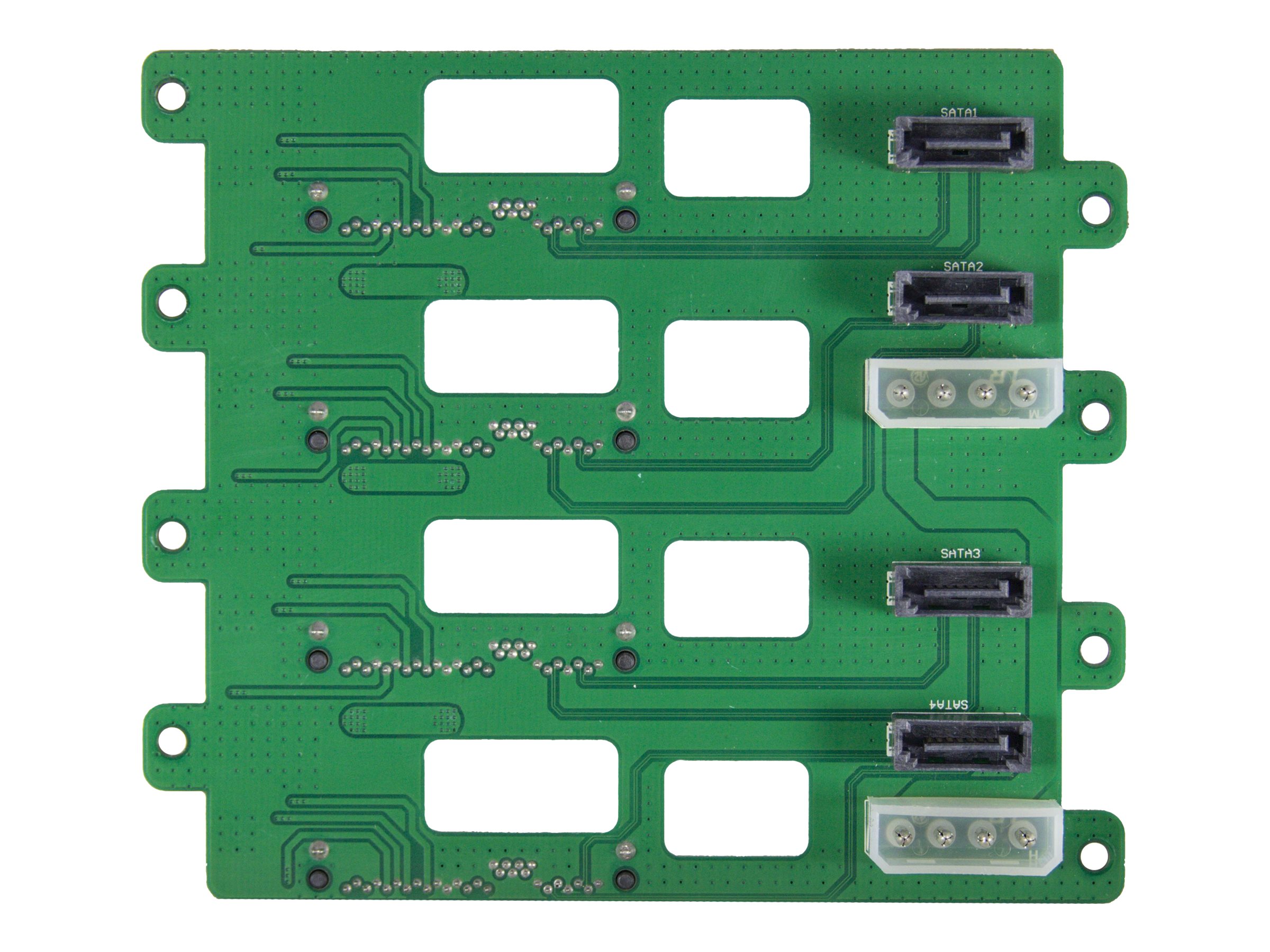

SAS / SATA backplane, screws, power supply mounting bracket, 5 slot brackets
|
|
Power
|
|
|
Power Device
|
No power supply
|
|
Specification Compliance
|
ATX
|
|
Dimensions & Weight
|
|
|
Depth
|
52.8 cm
|
|
Height
|
13.2 cm
|
|
Weight
|
9.51 kg
|
|
Width
|
48.2 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
65.5 cm
|
|
Shipping Height
|
24.5 cm
|
|
Shipping Weight
|
12.47 kg
|
|
Shipping Width
|
57.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
