Intellinet Modular Plug CAT 6a Afskærmet parsnoet (STP) Netværk-konnektor

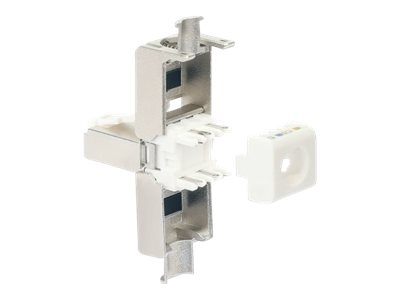

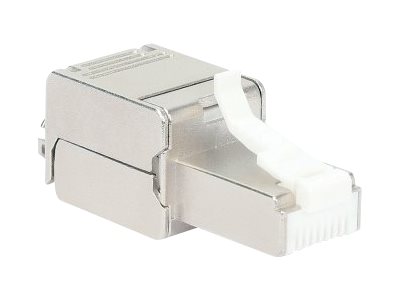

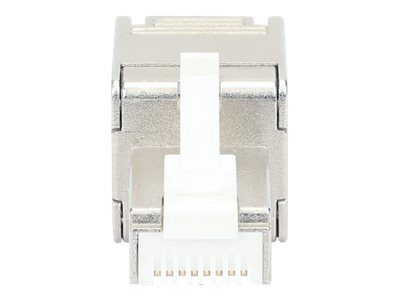

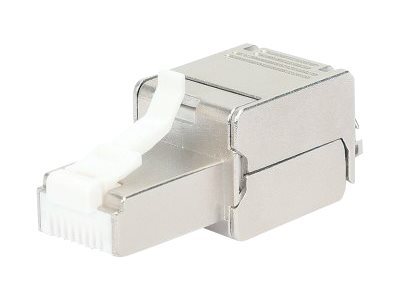

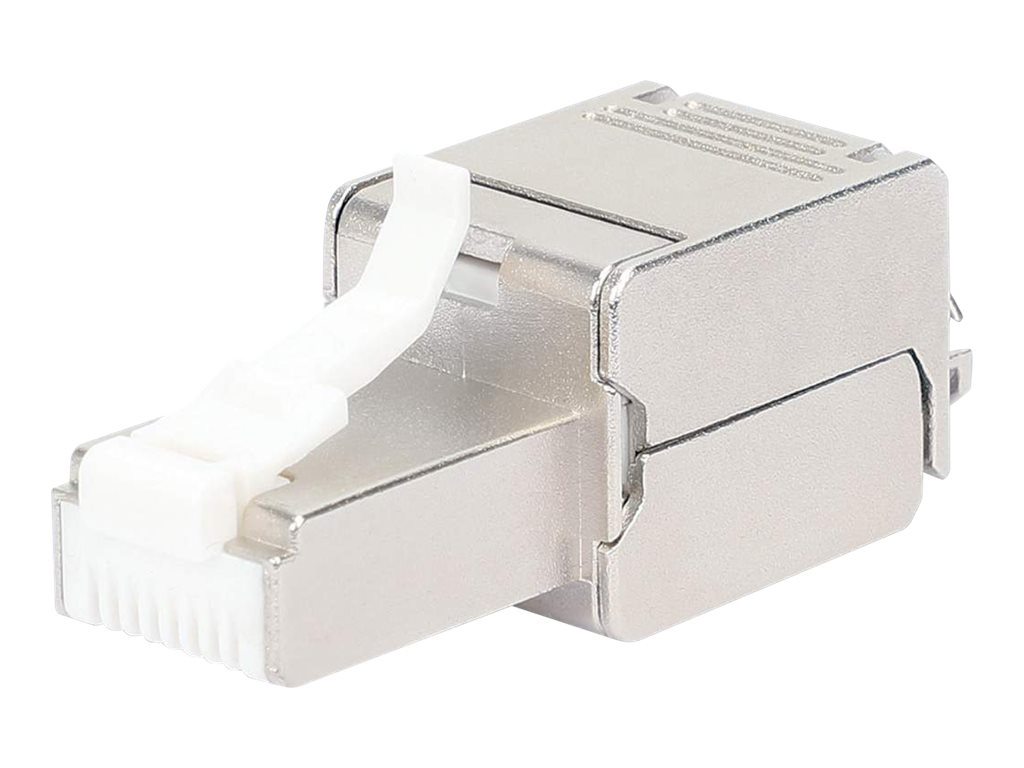

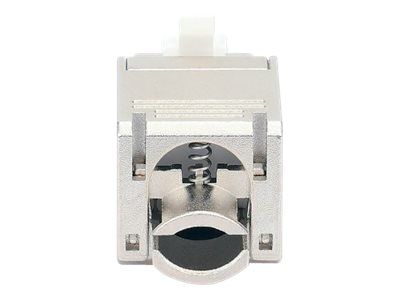

Intellinet Modular Plug Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug, For Easy and Quick High-quality Cable Assembly in the Field, STP, for Solid & Stranded Wire, Gold-plated Contacts, Metal Housing - Netværk-konnektor - RJ-45 (han) - STP - CAT 6a - IEEE 802.3bt

Varenummer: 1000209581
Model: 790796
EAN: 0766623790796
Brand:
Intellinet
Vægt: 0.02 kg

Specifications

Produktbeskrivelse
Intellinet Modular Plug Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug, For Easy and Quick High-quality Cable Assembly in the Field, STP, for Solid & Stranded Wire, Gold-plated Contacts, Metal Housing - netværk-konnektor
Type
Netværk-konnektor - CAT 6a - IEEE 802.3bt
Teknologi
Afskærmet parsnoet (STP)
Ledningsføringssystem
T568A/B
Egenskaber
Toolless, afskærmede stikforbindelser, stikforbindelser af fosforbronze, zink sprøjtestøbt kabinet, PoE-klar, PoE++ klar, UPoE-klar, 4PPoE-klar
Forbindelsesled
RJ-45 - han
Producentgaranti
Begrænset livtidsgaranti
Specifications

Full specifications

General
Depth
4.1 cm
Features
Toolless, shielded connectors, phosphor bronze connectors, zinc die-cast housing, PoE ready, PoE++ ready, UPoE ready, 4PPoE ready
Height
1.8 cm
Network Cable Type
Network connector - CAT 6a - IEEE 802.3bt
Pairs per Cable
8 pairs
Plated Connector
Gold
Technology
STP
Weight
20 g
Width
1.5 cm
Wiring Scheme
T568A/B
Connectivity
Connector
RJ-45 - male
Miscellaneous
Compliant Standards
FCC, RoHS, ISO/IEC 11801, IEC 60603-7-51 - up to 500 MHz
Manufacturer Warranty
Service & Support
Limited lifetime warranty
Environmental Parameters
Max Operating Temperature
60 °C
Min Operating Temperature
-10 °C
