Produktbeskrivelse
|
HPE LCD8500 - KVM-konsol - 18.51"
|
|
Enhedstype
|
KVM-konsol - 18.51"
|
|
KVM Switch
|
USB
|
|
Egenskaber
|
Tastatur, touchpad
|
|
Standard opløsning
|
1600 x 1200 ved 60 Hz
|
|
Lysstyrke
|
187 cd/m²
|
|
Kontrastforhold
|
700:1
|
|
Responstid
|
16 ms
|
|
Spænding
|
AC 120/230 V (50/60 Hz)
|
|
Farve
|
Sølv
|
|
Dimensioner (B x D x H)
|
43.61 cm x 43.3 cm x 4.23 cm
|
|
Højde (rackenheder)
|
1U
|
|
Vægt
|
5.2 kg
|
|
Overensstemmelsesstandarder
|
WEEE
|
|
Producentgaranti
|
3 års garanti
|
|
Designet for
|
ProLiant DL120 Gen9, DL160 Gen8, DL160 Gen9, DL180 Gen9, DL20 Gen9, DL320e Gen8, DL360e Gen8, DL360p Gen8, DL380 Gen9, DL380e Gen8, DL380p Gen8, DL385p Gen8, DL580 Gen9, DL60 Gen9, DL80 Gen9, MicroServer Gen8, ML110 Gen9, ML150 Gen9, ML310e Gen8, ML350e Gen8
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

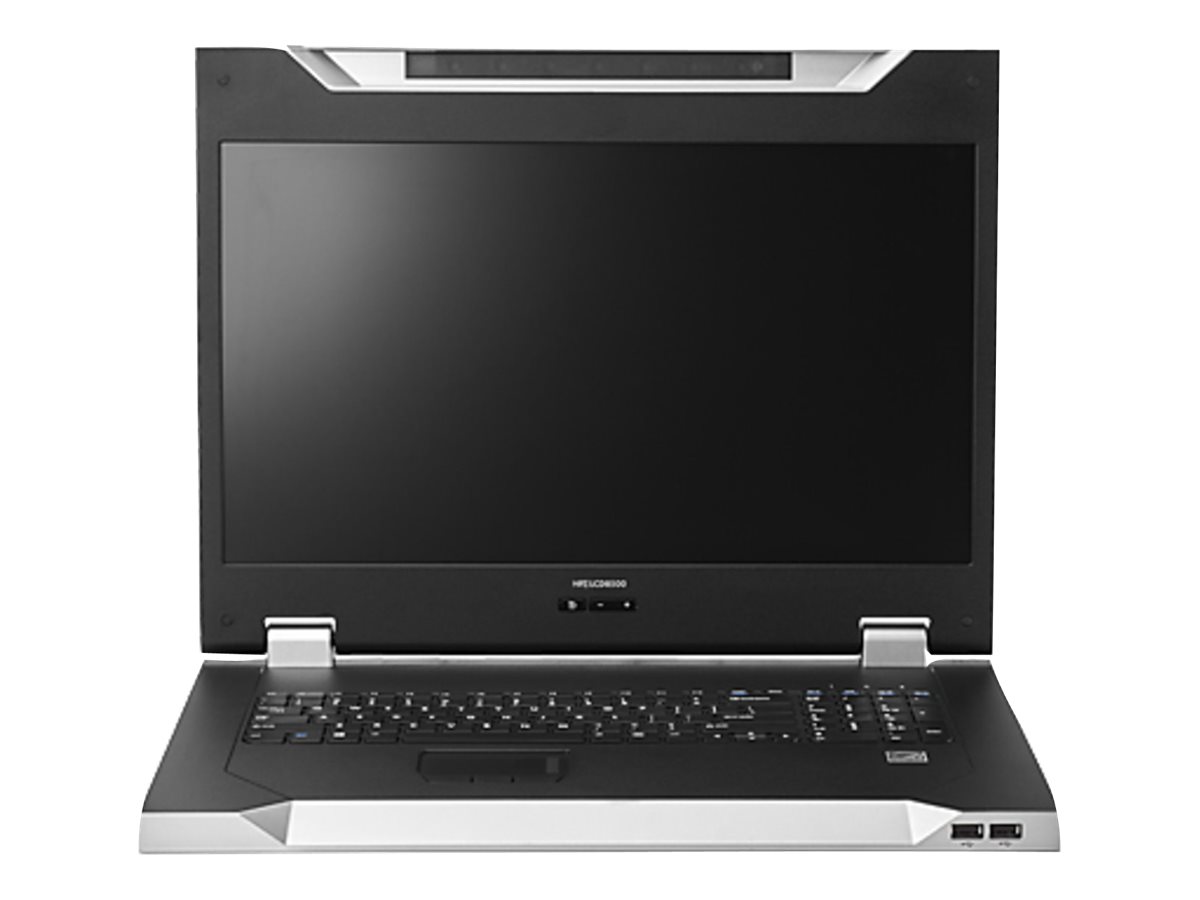

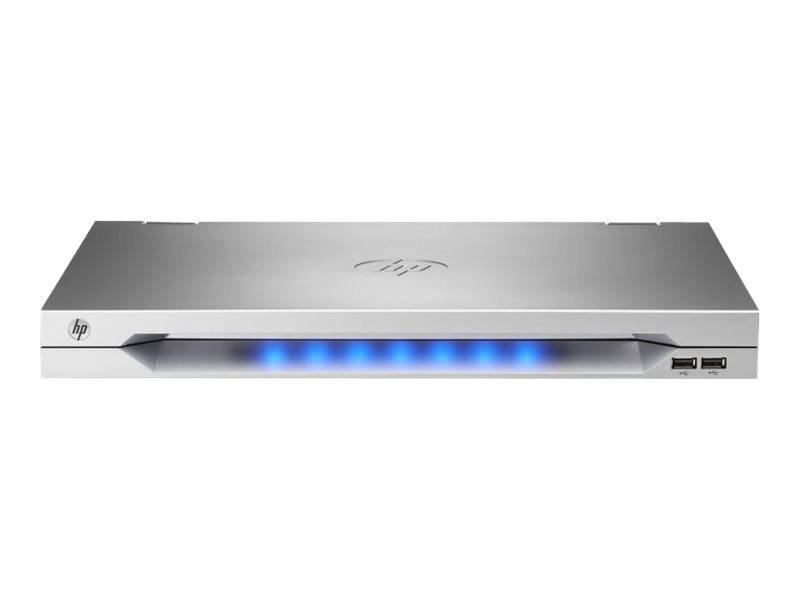

HPE LCD8500 KVM-konsol
HPE LCD8500 - KVM-konsol - USB - 18.51" - rackversion - 1600 x 1200 @ 60 Hz - 187 cd/m² - 700:1 - 16 ms - sølv - 1U - for ProLiant DL20 Gen9, DL360p Gen8, DL380 Gen9, DL580 Gen9, MicroServer Gen8, ML110 Gen9
Har du brug for den avancerede KVM-teknologi til at styre serverne i dit rack? Dette HPE KVM-konsolsæt kombinerer både rack-displaypanel og tastatur med touchpad i en 1U-formfaktor. Den 1U rackmonterede formfaktor gør det muligt at montere en KVM-konsolswitch direkte bag den. HPE LCD8500 1U rackmonteret konsolsæt med 18,51-tommers TFT LCD brightview-skærm understøtter almindelige videoopløsninger. LCD8500 1U rackmonteret konsolsæt har et forbedret kabinet, der gør identifikation i racket meget lettere.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Brightness
|
187 cd/m²
|
|
Color
|
Silver
|
|
Contrast Ratio
|
700:1
|
|
Controls & Adjustments
|
Brightness, contrast
|
|
Diagonal Size
|
18.51"
|
|
Dimensions (WxDxH)
|
43.61 cm x 43.3 cm x 4.23 cm
|
|
Display Type
|
KVM console / TFT active matrix
|
|
Height (Rack Units)
|
1U
|
|
Native Resolution
|
1600 x 1200 at 60 Hz
|
|
OSD Languages
|
Chinese (simplified), English, German, French, Italian, Spanish, Japanese
|
|
Response Time
|
16 ms
|
|
Weight
|
5.2 kg
|
|
Input
|
|
|
Type
|
Keyboard, touchpad
|
|
KVM
|
|
|
Keyboard / Mouse Interface
|
USB
|
|
Connectivity
|
|
|
Interfaces
|
2 x USB
|
|
Miscellaneous
|
|
|
Compliant Standards
|
WEEE
|
|
Mounting Kit
|
Included
|
|
Power
|
|
|
Input Voltage
|
AC 120/230 V (50/60 Hz)
|
|
Power Consumption (Typical)
|
36 Watt
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - parts - 3 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Compatibility Information
|
|
|
Designed For
|
HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage
|
Features
Ultratæt, højtydende KVM-konsol med display og tastatur
Dette HPE KVM-konsolsæt giver en ultratæt, højtydende KVM-konsol, der kombinerer både rack-skærmpanel og tastatur med touchpad i en 1U formfaktor, der giver dig mulighed for at montere en KVM-konsolswitch direkte bagved den. HPE LCD8500 1U rackmonteret konsolsæt har en 18,51-tommers TFT LCD brightview-skærm, der understøtter almindelige videoopløsninger. Active Matrix TFT LCD-skærmen leverer et flimmerfrit billede, der er skarpere i fokus. Har USB-porte på forsiden til brug med KVM-konsoller, der understøtter virtuelle medier.
Avanceret, ergonomisk design
Dette HPE KVM-konsolsæt har et forbedret kabinet, som gør det meget nemmere at identificere det i racket. Dens Lid Switch display management-funktion slukker for displayets baggrundsbelysning, når konsollen lukkes, og genstarter til den aktuelle tilstand, når den åbnes igen, hvilket er med til at forlænge displaypanelets levetid.
Media
HPE LCD8500 1U INTL Rackmount Console Kit
Need a console with the latest in KVM technology to manage the servers in your rack? Knowledge is power – know what’s going on right at the rack with the HPE Enterprise LCD Consoles. HPE Enterprise LCD Consoles provides a high-performance display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it. The HPE LCD8500 with 18.5-inch WXGA TFT LCD Brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 features a silver enclosure making identification in the rack easier. The integrated keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. Also included, is a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
Ultra-Dense, High-Performance KVM Console Display and Keyboard
- HPE Enterprise LCD Consoles combine the rack display panel and keyboard with touch pad in a 1U form factor that allows you to mount a KVM console switch directly behind it saving you space.
- Features an 18.5-inch WXGA TFT LCD Brightview display that supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates.
- Active Matrix TFT LCD display guarantees a flicker-free picture that is sharper in focus than a CRT monitor.
- Includes two (2) front side USB pass-through ports for use with KVM Console Switches that support virtual media.
Advanced, Ergonomic Design
- Features a silver colored enclosure making identification in the rack much easier.
- Includes a three-button touch pad, four (4) scroll keys, and Windows shortcut keys.
- Lid Switch display management feature shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
- Tool-less rails for rack installation are included with each console kit allowing for quick and easy installation within minutes.
Specifications
| TechnicalSpecifications | |
|---|---|
| Warranty | Three year Limited Warranty for parts only |
| Product dimensions (metric) | HxWxD 4.23 x 43.61 x 43.3 cm |
| Weight | 5.2 kg |
