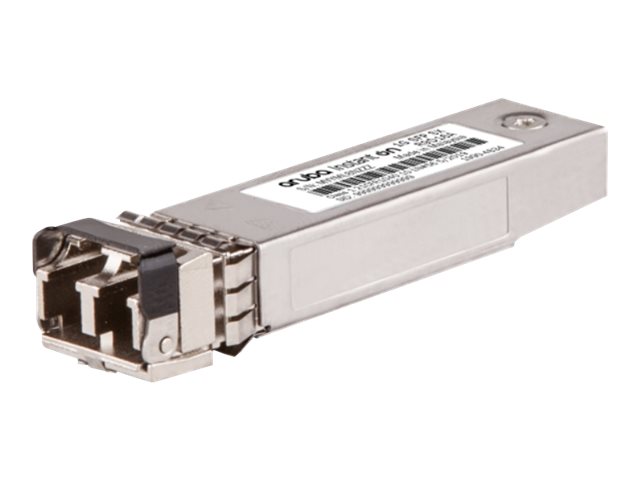

HPE Aruba Instant On SFP+ transceiver modul 10 Gigabit Ethernet
HPE Aruba Instant On - SFP+ transceiver modul - 10GbE - 10GBase-SR - LC multimodus - op til 300 m - for HPE Aruba Instant On Instant On 1930, 1960
-
Product no 1000355562
Model R9D18A
Brand Hewlett Packard Ente
EAN 0190017566955
Weight 0.04 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba Instant On - SFP+ transceiver modul - 10GbE |
| Enhedstype | SFP+ transceiver modul - LC multimodus |
| Model | Indstiksmodul |
| Kabeltype | 10GBase-SR |
| Dataoverførselshastighed | 10 Gbps |
| Dataforbindelsesprotokol | 10GbE |
| Maks. overføringsafstand | 300 m |
| Dimensioner (B x D x H) | 1.5 cm x 5.6 cm x 1.3 cm |
| Vægt | 20 g |
| Designet for | HPE Aruba Instant On Instant On 1930, 1960 |
| General | |
|---|---|
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Cabling Type | 10GBase-SR |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Max Transfer Distance | 300 m |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LRM - LC multi-mode |
| Miscellaneous | |
| Compliant Standards | OM3 |
| Dimensions & Weight | |
| Depth | 5.6 cm |
| Height | 1.3 cm |
| Weight | 20 g |
| Width | 1.5 cm |
| Compatibility Information | |
| Designed For | HPE Aruba Instant On 1830 24G 2SFP Switch, 1830 48G 24p Class4 PoE 4SFP 370W Switch, 1830 48G 4SFP Switch, 1830 8G 4p Class4 PoE 65W Switch, 1830 8G Switch, 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch |
HPE Aruba Networking Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver
Does interconnect reliability and reach impacting your infrastructure? HPE Networking Transceiver Options are designed to increase the performance of network connectivity, requiring high-bandwidth, low-latency connections between compute nodes, storage nodes, and switch nodes. To verify superior system performance, HPE Networking Transceiver Options, deliver compatibility with HPE Storage solutions and networking adapters.
Extended Temperature optical solutions for 100GbE and 64Gb Fibre Channel
Advanced Transceiver Features
- Designed to increase the performance of network connectivity, requiring high-bandwidth, and low-latency connections between compute nodes and switch nodes.
- QSFP-DD, QSFP56, QSFP28, SFP56, SFP28, and SFP+ form factors to reduce cost and improve reliability while delivering industry compatibility.
- Extended Temperature options to support 0 to 85C environmental requirements.
Rigorous Production Testing Delivers Ease of Installation, Performance, and Durability
- HPE Networking Transceiver Options exceed industry requirements to deliver high performance and high quality resulting in low or no faults over solution life.
- Compliance with Restriction on Hazardous Substances (RoHS) directive.
- Transceivers are designed for growing bandwidth in data centers and providing high speed and efficient connectivity.
Breakout Copper DAC and Optical AOC Cables
- Allows Ethernet switches to deliver 100GbE ports, which may further breakout into four 25GbE ports or support for 40GbE, which can further breakout into four 10GbE ports.
- Optimized port configuration enables high-speed rack connectivity to the server at 10GbE or 25GbE speeds with 100GbE uplink ports.
- Now supporting 400GbE interconnectivity, which may further breakout into 4x100GbE or 8x50GbE ports, depending upon the customers application.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | SFP+, SPF28, SFP56, QSFP+, QSFP28, QSFP56, QSFP-DD |
| Transceiver form factor | Pluggable transceiver |
| Connector type | LC, MPO8, MPO12, or MPO16 |
| Cable type | Uses OM3/OM4 LC or MPO (8,12,16) Cabling |
| Wavelength | 850nm and 1310nm |
| Maximum distance | 100m OM4 70m OM3 Single Mode out to 500m |
| Fiber type | Multi Mode or Single Mode |
| Product dimensions (metric) | 1.3 x 1.5 x 5.6 cm |
| Weight | 20 gm |
| TechnicalSpecificationsSKU | |
| Differentiator | 10G SFP+ LC SR 300m OM3 MMF transceiver for use in select Aruba products. |
