HPE Aruba Instant ON AP25 (RW) Trådløs forbindelse Hvid
HPE Networking Instant On AP25 (RW) - Trådløs forbindelse - Wi-Fi 6 - Bluetooth - 2.4 GHz, 5 GHz - cloud-administreret - BTO - væg/loftsmonterbar
Specifications
|
Produktbeskrivelse
|
HPE Networking Instant On AP25 (RW) - trådløs forbindelse - Wi-Fi 6, Bluetooth - cloud-administreret
|
|
Enhedstype
|
Trådløs forbindelse
|
|
Formfaktor
|
Væg/loftsmonterbar - indendørs
|
|
Dataforbindelsesprotokol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
|
|
Frekvensbånd
|
2.4 GHz, 5 GHz
|
|
Præstation
|
Maksimum datahastighed (5 GHz): 4,8 Gbps<br>Maksimum datahastighed (2,4 GHz): 574 Mbps<br>Samlet båndbredde: 5,3 Gbps
|
|
Udstyr inkluderet
|
Væg/loftsskinnemonteringsklemme
|
|
Power Over Ethernet (PoE) understøttet
|
PoE
|
|
Pristype
|
BTO
|
|
Dimensioner (B x D x H)
|
20.3 cm 5.1 cm
|
|
Vægt
|
1.18 kg
|
|
Producentgaranti
|
2 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Wireless access point
|
|
Height
|
5.1 cm
|
|
Ruggedized Design
|
Indoor
|
|
Weight
|
1.18 kg
|
|
Width
|
20.3 cm
|
|
Networking
|
|
|
Cloud-Managed
|
Yes
|
|
Compliant Standards
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
|
|
Connectivity Technology
|
Wireless
|
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth LE
|
|
Encryption Algorithm
|
WPA2, WPA3
|
|
Features
|
Wall mountable, static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), MU-MIMO technology
|
|
Form Factor
|
Wall / ceiling mountable
|
|
Frequency Band
|
2.4 GHz, 5 GHz
|
|
Line Coding Format
|
1024 QAM
|
|
Network / Transport Protocol
|
PPPoE
|
|
Performance
|
Maximum data rate (5 GHz): 4.8 Gbps | Maximum data rate (2.4 GHz): 574 Mbps | Aggregate bandwidth: 5.3 Gbps
|
|
Spread Spectrum Method
|
OFDMA
|
|
Status Indicators
|
Status, reset
|
|
Antenna
|
|
|
Antenna
|
Internal
|
|
Antenna Qty
|
2
|
|
Directivity
|
Omni-directional
|
|
Gain Level
|
4.55 dBi
|
|
Internet of Things (IoT)
|
|
|
Communications Technology
|
Bluetooth Low Energy (LE)
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x 2.5GBase-T (uplink, PoE) - RJ-45 - 20.1 W
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x network cable
|
|
Compliant Standards
|
EN 60601-1-2, EN 60601-1-1, WFA
|
|
Included Accessories
|
Wall/ceiling rail mounting clip
|
|
MTBF
|
76 years
|
|
Pricing Type
|
BTO
|
|
Power
|
|
|
Power Over Ethernet (PoE) Supported
|
PoE
|
|
Software / System Requirements
|
|
|
Software Included
|
InstantOn
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years | Technical support - phone consulting - 90 days from date of purchase | Technical support - web support - 2 years
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
Media

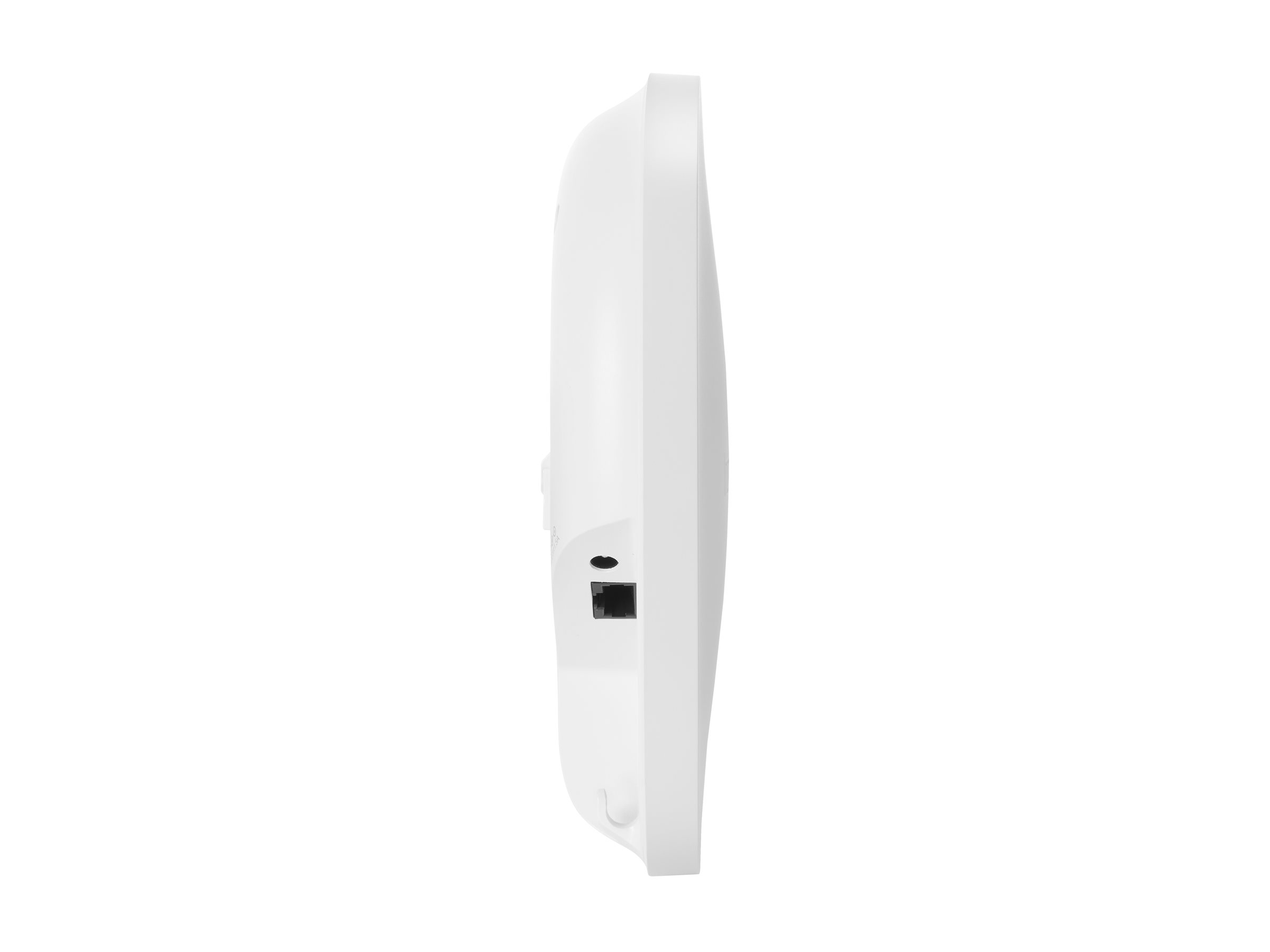

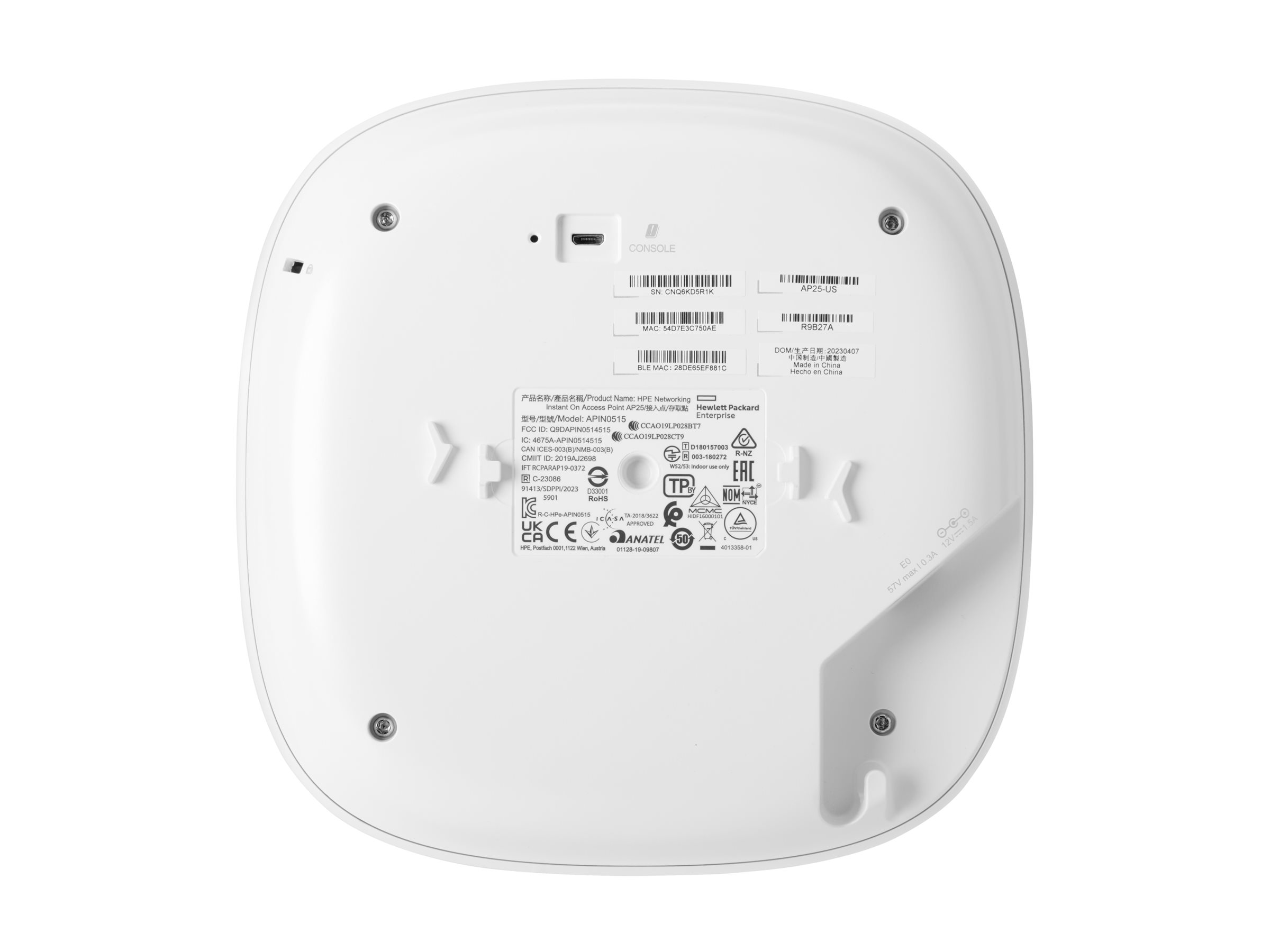

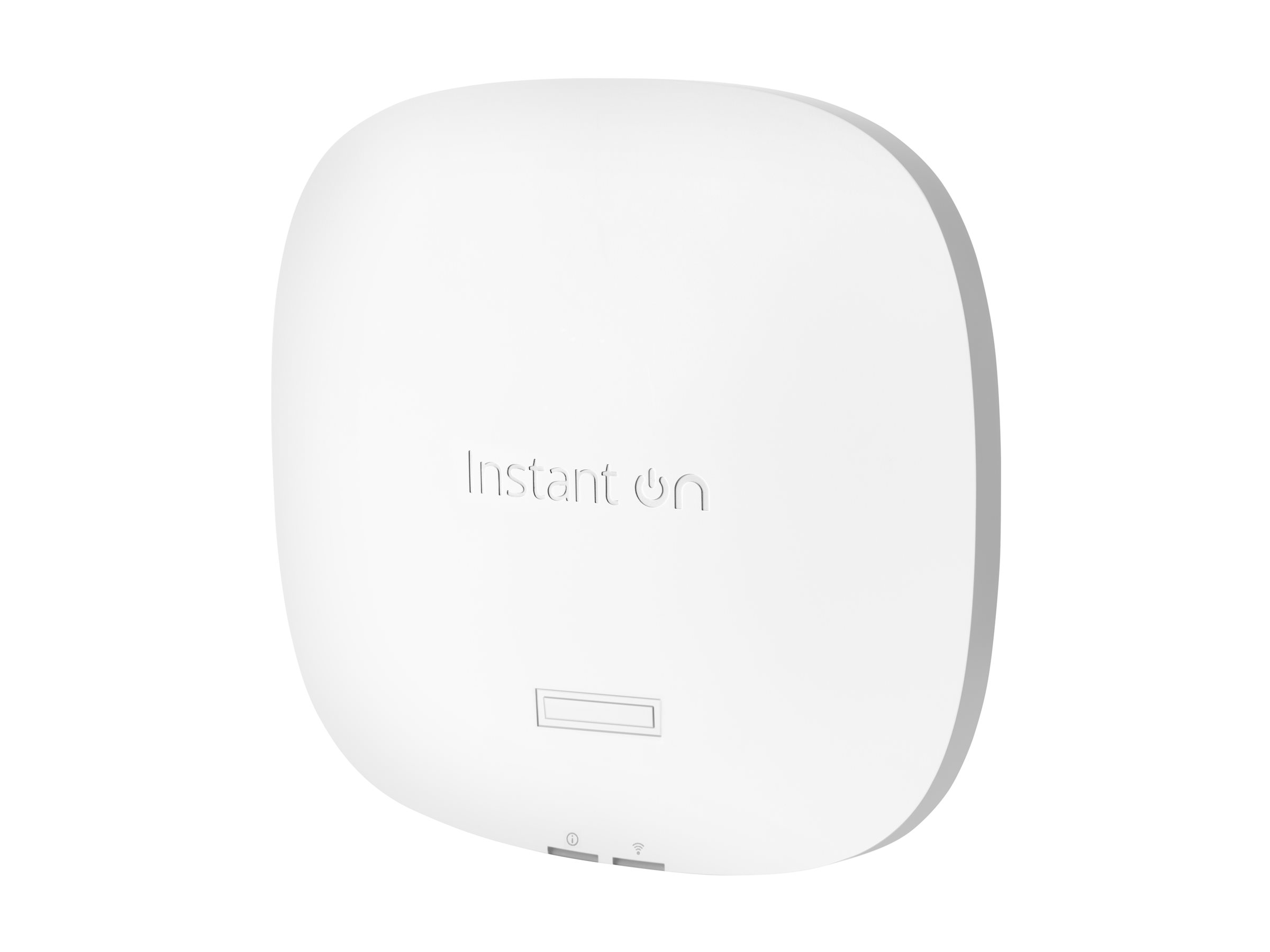

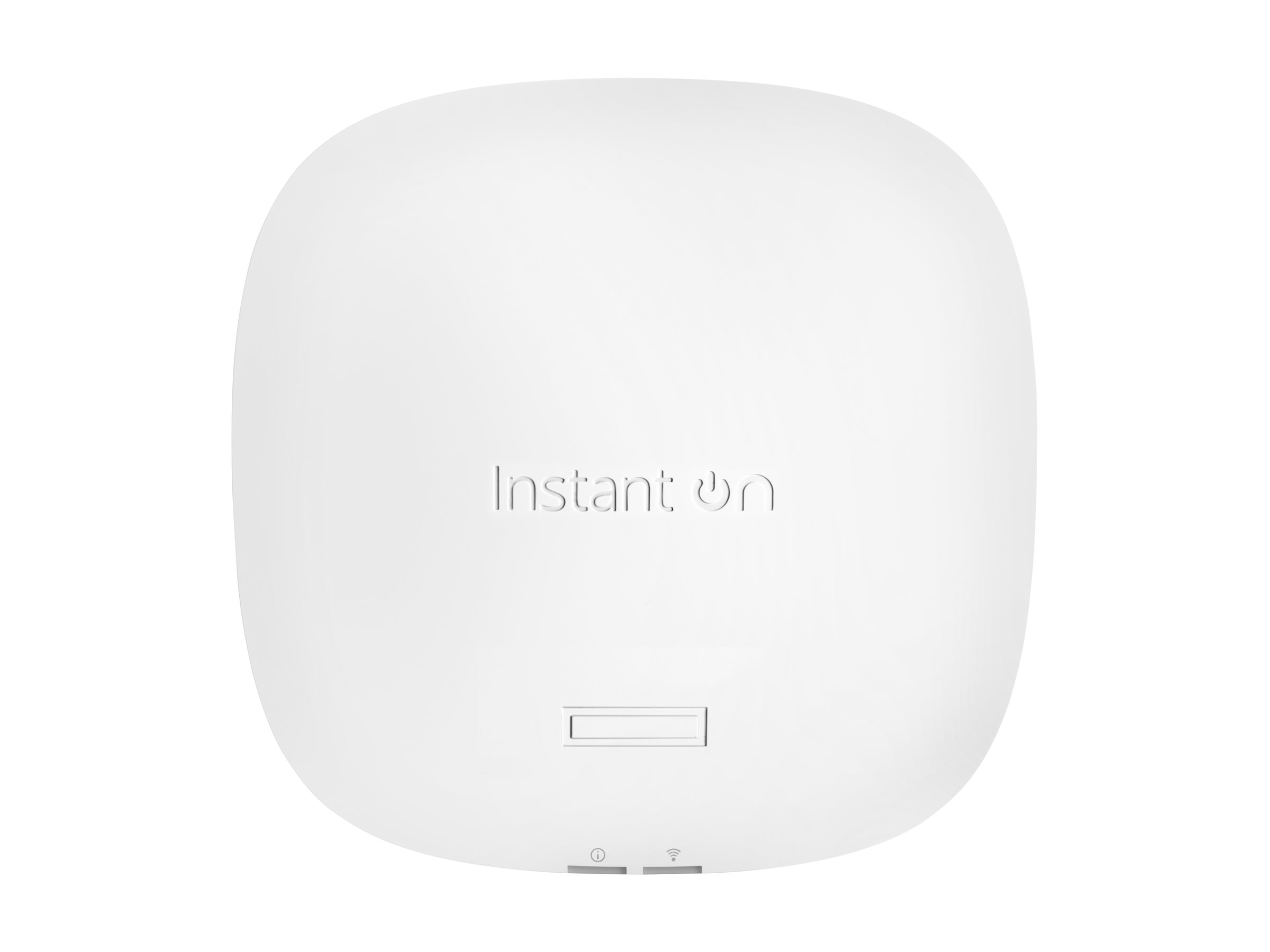

HPE Networking Instant On Indoor Access Point Wi-Fi 6 4x4 (RW) AP25
Wi-Fi Certified 6TM HPE Networking Instant On Access Points AP25 delivers faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With the AP25, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future. Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, and target wake time (TWT). With up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (HE160), the Instant On AP25 provides outstanding wireless capabilities for businesses looking to future-proof their networks.
Provides a high performance Dual Radio 802.11ax AP with 4 spatial streams (4X4) for higher capacity and coverage
This series features maximum data rates of 4.8 Gbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 5.3 Gbps)
Includes 2.5 Gigabit Ethernet uplink port and 160 MHz channel bandwidth for increased wireless throughput
Wi-Fi 6 certification supports all mandatory 802.11ax features that include MU-MIMO, OFDMA, TWT, and more
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
Instant On mobile app and/or cloud-based web portal allows for easy network management onsite or remotely
Incredible Efficiency with Wi-Fi 6
- The HPE Networking Instant On Access Points AP25 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
- HPE Networking Instant On Access Points AP25 support features Target Wake Time (TWT) that helps establish a schedule when clients need to communicate with an access point improving efficiency for longer battery life.
- The HPE Networking Instant On Access Points AP25 are 100% backward compatible, allowing businesses to support multiple clients (Wi-Fi 6) and legacy (11a/b/g/n/ac) at the same time.
Higher Performance and Superior Coverage
- The HPE Networking Instant On Access Points AP25 delivers higher capacity, efficiency, and performance to small and growing businesses with device-dense environments.
- High-performance HPE Networking Instant On Access Points AP25 brings powerful 4 spatial streams for superior Wi-Fi coverage.
- Performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are improved, meaning increased network performance and network capacity.
- 160 MHz channel bandwidth delivers increased mesh throughput and Wi-Fi speed ideal for high-def video streaming and virtual reality devices.
- 2.5 Gigabit Ethernet uplink port enhances wireless connectivity.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
- HPE Networking Instant On Access Points AP25 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
- HPE Networking Instant On Access Points AP25 features integrated router, gateway, and firewall functionality.
- HPE Networking Instant On Access Points AP25 supports Two-Factor Authentication (2FA) for additional layer of authentication, preventing attackers from remotely accessing your networks.
- Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 1x 2.5 GbE Base-T uplink port DC power connector Bluetooth Low Energy (BLE) LED status indicators Reset/LED control button Kensington security slot |
| Mounting | Ceiling/Wall mount clip |
| Connectivity, standard | Ultra-fast 802.11ax, 4x4:4 |
| Input voltage | PoE: 802.3at (class 4) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU |
| Power consumption | Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) |
| Certifications | Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Wi-Fi antenna | Antennas: Dual omni-directional 4x4 MU-MIMO Antenna Gain: 3.7 dBi in 2.4GHz 4.5 dBi in 5 GHz Maximum transmit power: 5 GHz band: +24 dBm (+18 dBm per chain, 6 dB MIMO gain) 2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) |
| Radio coverage | Dual-radio 802.11ax 4x4 5 GHz MU-MIMO 2x2 2.4 GHz MU-MIMO |
| Product dimensions (metric) | 5.1 x 20.3 cm |
| Weight | 1.18 kg |
