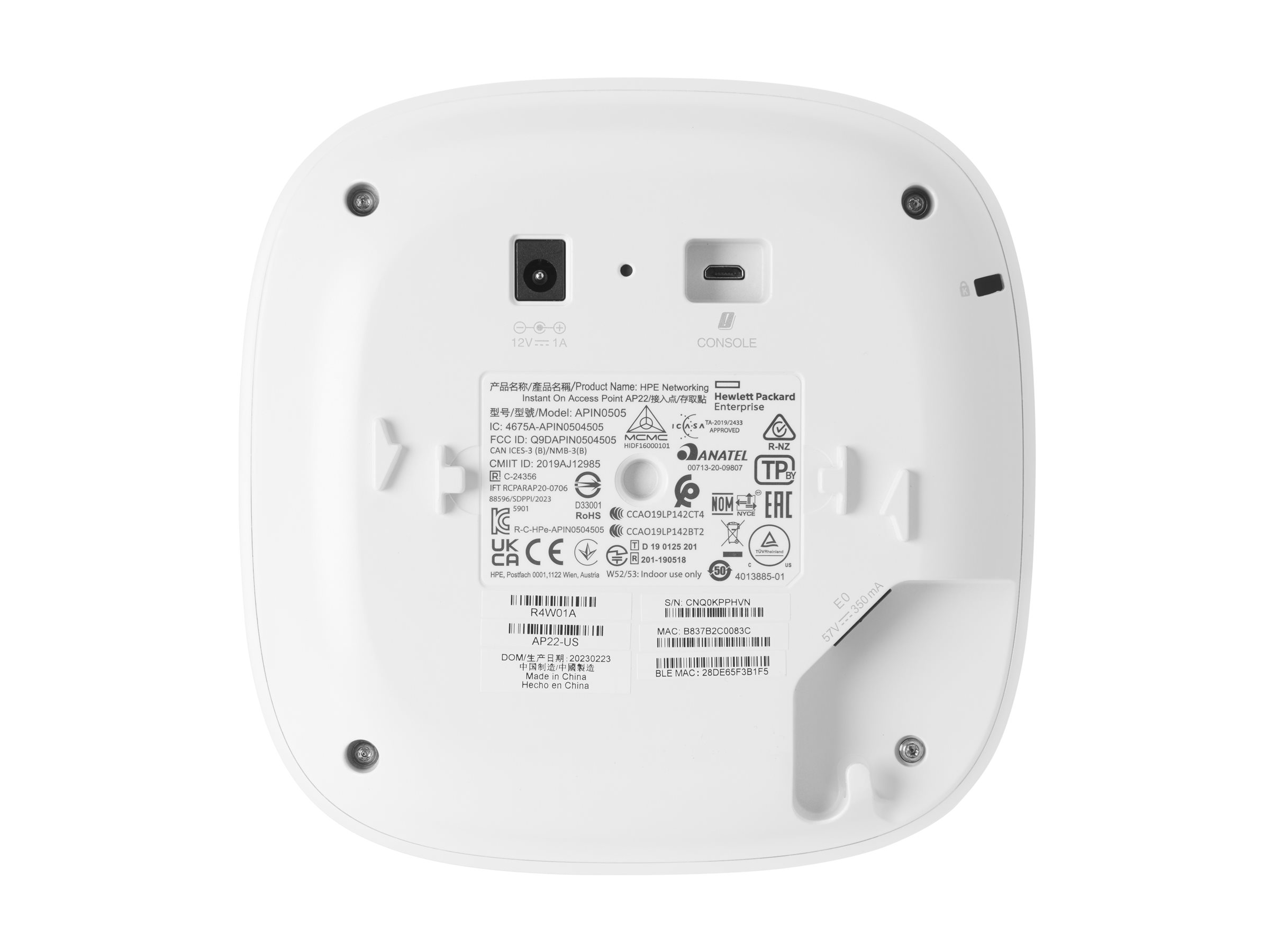

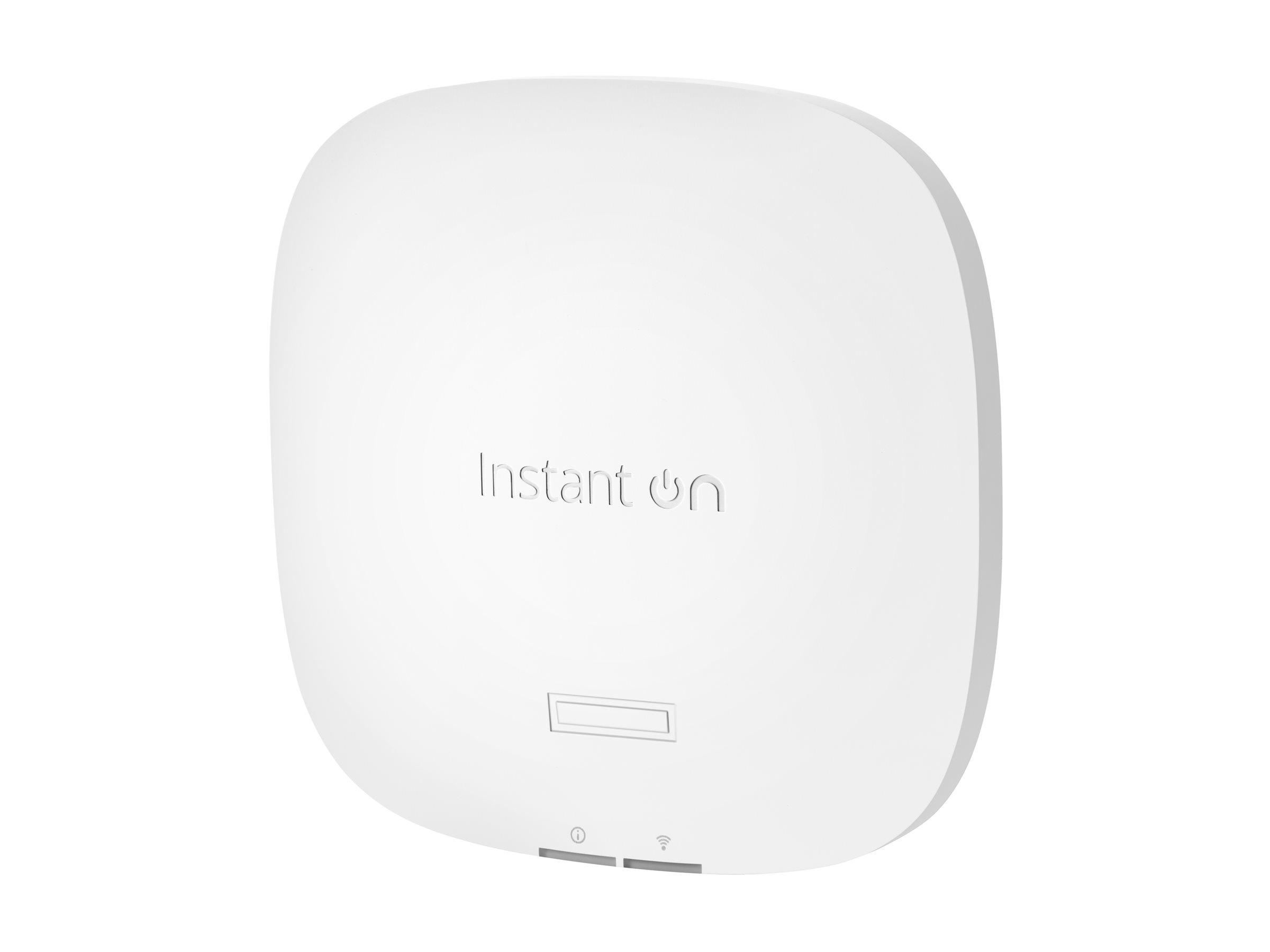

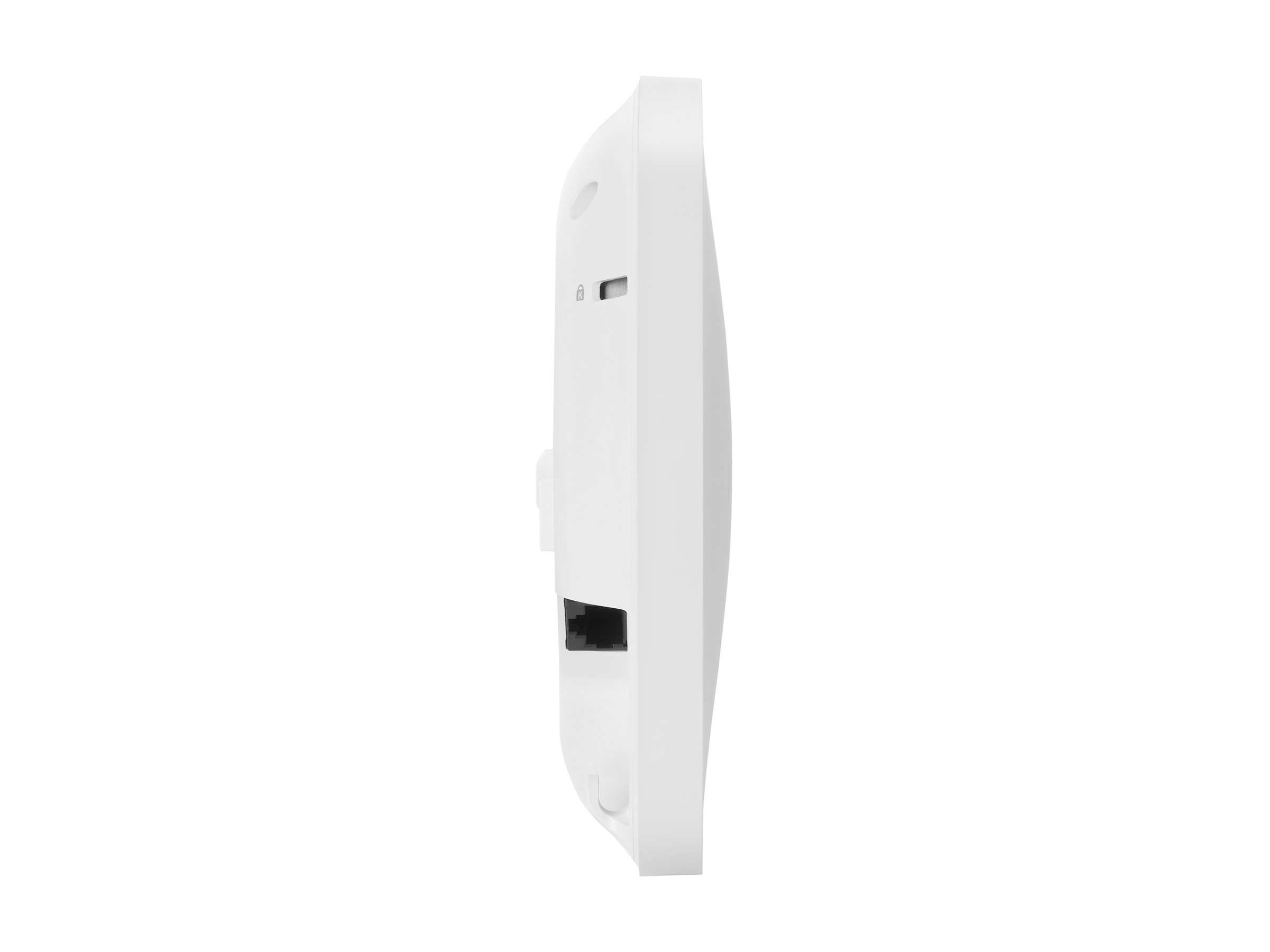

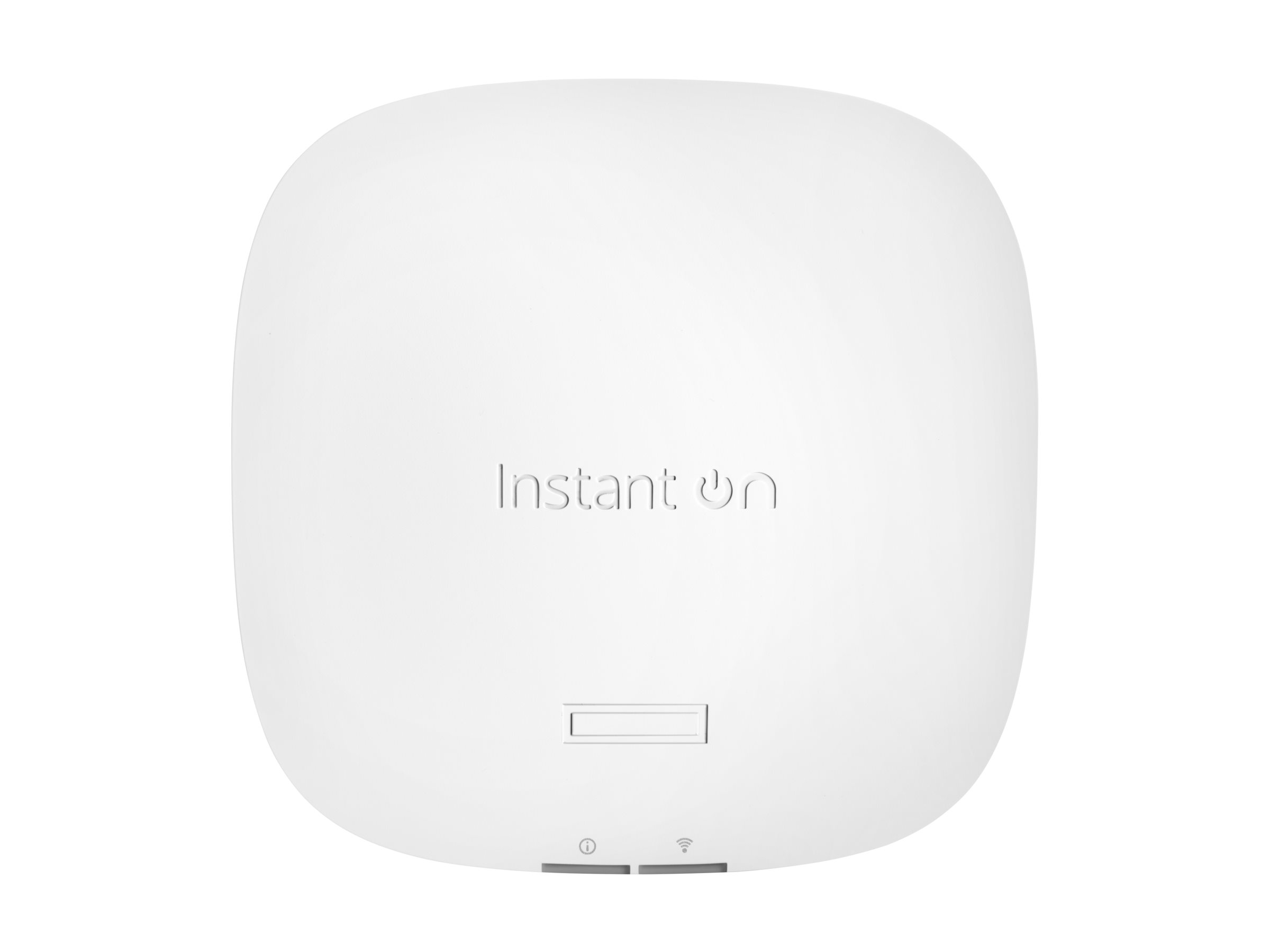

HPE Aruba Instant ON AP22 Trådløs forbindelse Hvid
HPE Networking Instant On AP22 - Trådløs forbindelse - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - DC strøm - væg/loftsmonterbar
Specifications
|
Produktbeskrivelse
|
HPE Networking Instant On AP22 - trådløs forbindelse - Bluetooth, Wi-Fi 6
|
|
Enhedstype
|
Trådløs forbindelse
|
|
Formfaktor
|
Væg/loftsmonterbar - indendørs
|
|
Lokalisering
|
Europa
|
|
Dataforbindelsesprotokol
|
Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
|
|
Frekvensbånd
|
2.4 GHz, 5 GHz
|
|
Præstation
|
Maksimum datahastighed (5 GHz): 1,2 Gbps<br>Maksimum datahastighed (2,4 GHz): 574 Mbps
|
|
Udstyr inkluderet
|
Væg/loftsskinnemonteringsklemme
|
|
Power Over Ethernet (PoE) understøttet
|
PoE
|
|
Effekt
|
DC 12 V
|
|
Dimensioner (B x D x H)
|
16 cm x 16 cm x 3.7 cm
|
|
Vægt
|
500 g
|
|
Producentgaranti
|
1 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Depth
|
16 cm
|
|
Device Type
|
Wireless access point
|
|
Height
|
3.7 cm
|
|
Localization
|
Europe
|
|
Ruggedized Design
|
Indoor
|
|
Weight
|
500 g
|
|
Width
|
16 cm
|
|
Networking
|
|
|
Compliant Standards
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
|
|
Connectivity Technology
|
Wireless
|
|
Data Link Protocol
|
Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
|
|
Encryption Algorithm
|
WPA2, WPA3
|
|
Features
|
Firewall protection, manageable, static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), M
|
|
Form Factor
|
Wall / ceiling mountable
|
|
Frequency Band
|
2.4 GHz, 5 GHz
|
|
Line Coding Format
|
1024 QAM
|
|
Network / Transport Protocol
|
PPPoE
|
|
Performance
|
Maximum data rate (5 GHz): 1.2 Gbps | Maximum data rate (2.4 GHz): 574 Mbps
|
|
Spread Spectrum Method
|
OFDMA
|
|
Status Indicators
|
Status
|
|
Antenna
|
|
|
Antenna
|
Internal
|
|
Directivity
|
Omni-directional
|
|
Internet of Things (IoT)
|
|
|
Communications Technology
|
Bluetooth Low Energy (LE)
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x Ethernet 1000 (uplink)
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x network cable | 1 x power adapter | 1 x power cable (EU)
|
|
Compliant Standards
|
UL 2043, EN 60601-1-2, EN 60601-1-1
|
|
Included Accessories
|
Wall/ceiling rail mounting clip
|
|
MTBF
|
91 years
|
|
Power
|
|
|
Power Device
|
External power adapter
|
|
Power Over Ethernet (PoE) Supported
|
PoE
|
|
Power Provided
|
18 Watt
|
|
Voltage Required
|
DC 12 V
|
|
Software / System Requirements
|
|
|
Software Included
|
InstantOn
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 1 year | Technical support - phone consulting - 90 days | Product info support - web support - 1 year
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
Media
HPE Networking Instant On Access Point Bundle with PSU (EU) AP22
HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.
Wi-Fi 6 for high performance and efficiency
Supports up to 75 associated clients
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
Incredible Efficiency with Wi-Fi 6
- HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.
- HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
- HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
- HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
- Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
- HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
- HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
- Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
- Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.
Creates a Custom Guest Access Experience
- HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.
- Simple to build landing page allows customization of your guest access page with your own brand and logo.
- Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot. |
| Mounting | Ceiling/Wall-mount clip |
| Connectivity, standard | Ultra-fast 802.11ax |
| Input voltage | Power over Ethernet (PoE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU |
| Power consumption | Max power consumption: 10.1W (PoE), 8.8W (DC) |
| Certifications | Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Wi-Fi antenna | Antennas: Down-tilt Dual Omni-directional 2x2 MIMO Antenna Gain: 4.9 dBi in 2.4 GHz 5.7 dBi in. 5 GHz Maximum transmit power: 5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain) |
| Radio coverage | Dual-radio 802.11ax 2x2 5 GHz/2.4 GHz MIMO |
| Product dimensions (metric) | 37x 160 x 160 mm |
| Weight | 500 g |
