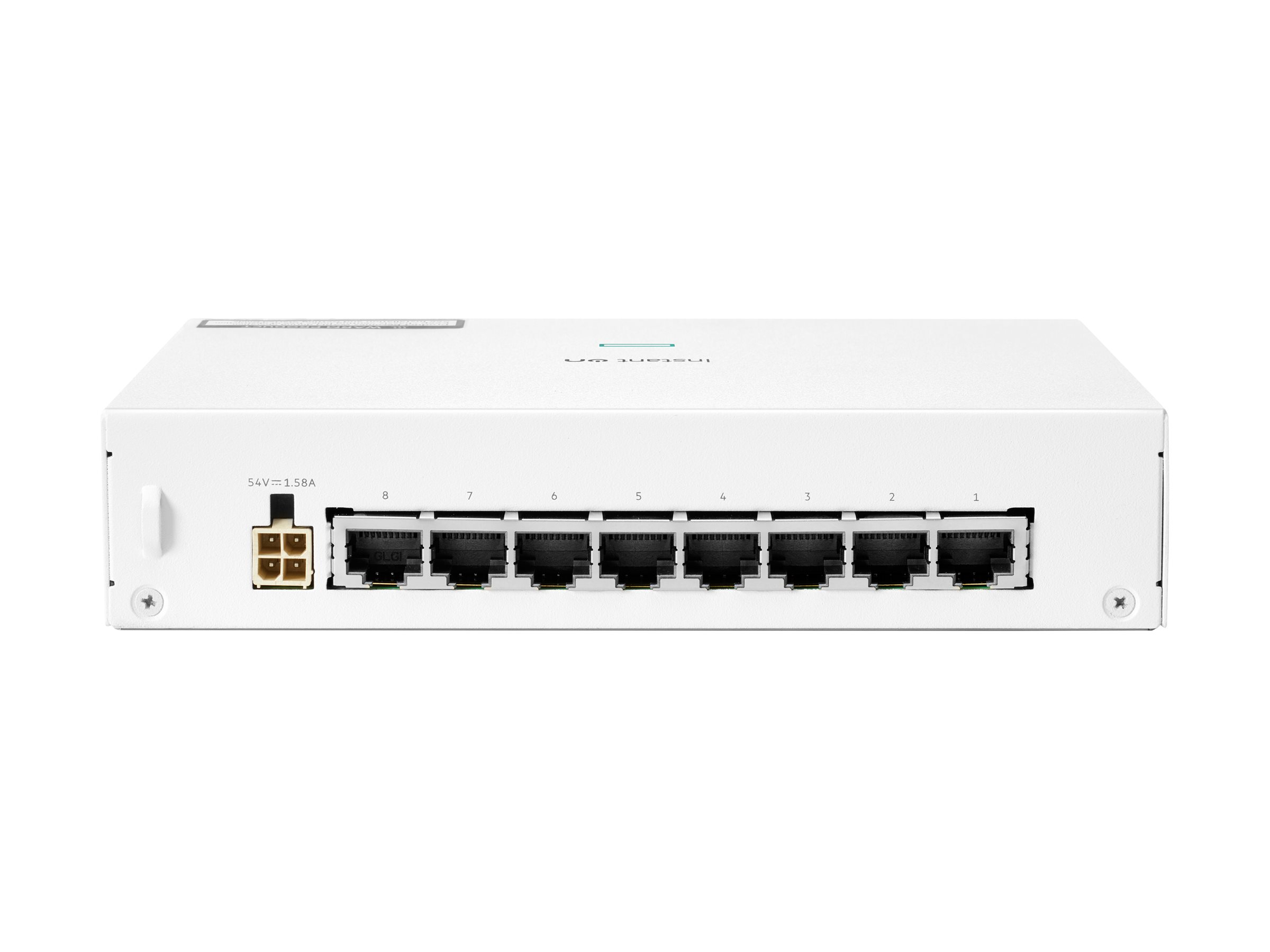

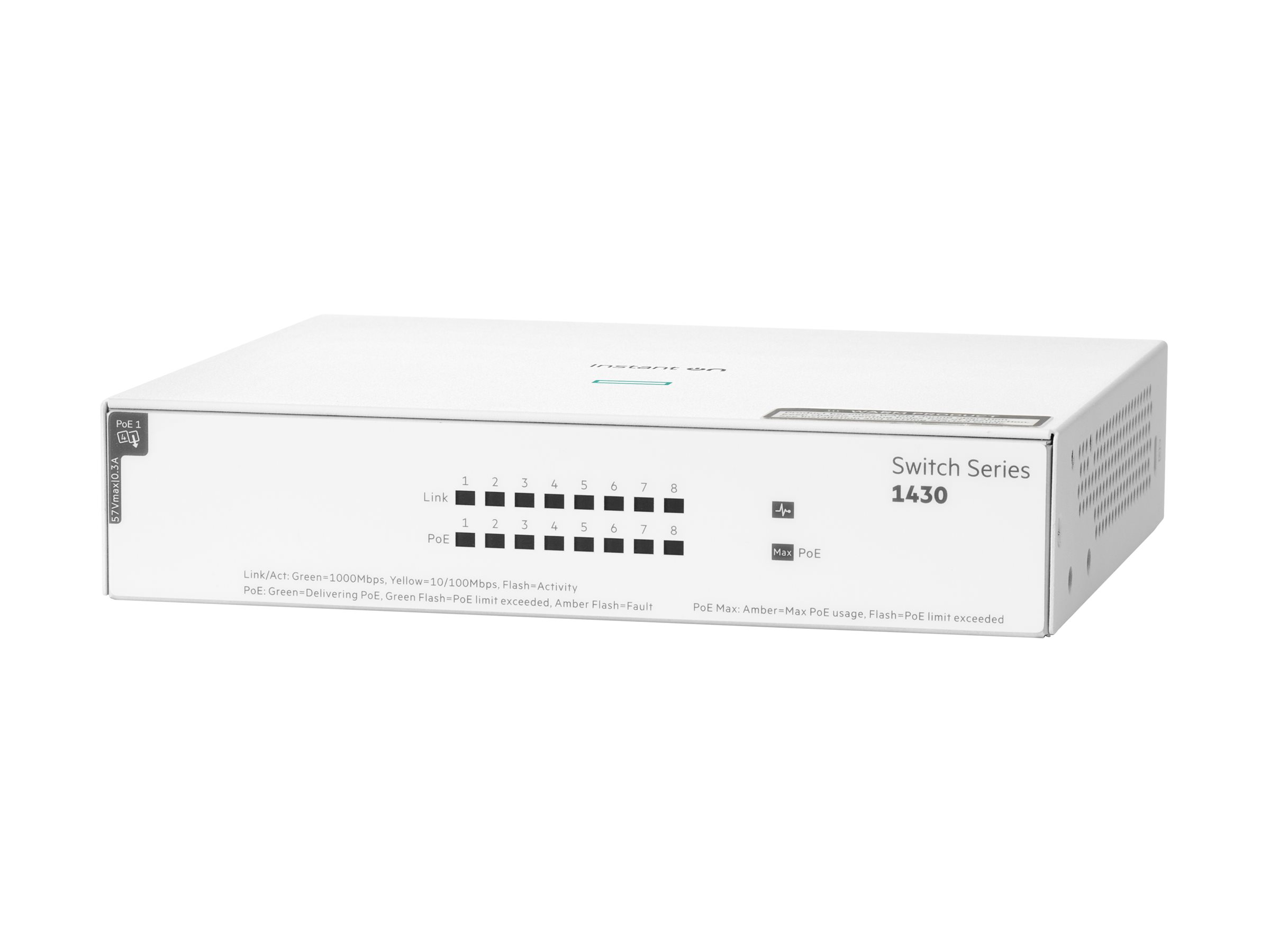

HPE Aruba Instant On 1430 8G Class4 64W Switch 8-porte Gigabit PoE
HPE Networking Instant On 1430 8G Class4 PoE 64W Switch - Switch - ikke administreret - 8 x 10/100/1000 (PoE Class 4) - desktop, monterbar på stativ, væg-monterbar - PoE (64 W) - BTO
Specifications
|
Produktbeskrivelse
|
HPE Networking Instant On 1430 8G Class4 PoE 64W Switch - switch - 8 porte - ikke administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 8 porte - ikke administreret
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
8 x 10/100/1000 (PoE Class 4)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
PoE-budget
|
64 W
|
|
Præstation
|
Kapacitet: 11.9 Mpps<br>Omkoblingskapacitet: 16 Gbps<br>Latens (100 Mbps): 2.7 µs<br>Latens (1 Gbps): 1.8 µs
|
|
Kapacitet
|
MAC-adresseindtastninger: 8192
|
|
MAC adresse table størrelse
|
8192 indtastninger
|
|
Jumborammesupport
|
9216 byte
|
|
Egenskaber
|
Blæserløs, til vægmontering, 2 MB pakke-buffer, EEE, DSCP support, VoIP support, auto-sensing per device
|
|
Overensstemmelsesstandarder
|
IEEE 802.1p, IEEE 802.3az
|
|
Effekt
|
AC 100-240 V (50/60 Hz) 2 A
|
|
Dimensioner (B x D x H)
|
17.7 cm x 15 cm x 3.7 cm
|
|
Vægt
|
770 g
|
|
Pristype
|
BTO
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
MAC address entries: 8192
|
|
Compliant Standards
|
IEEE 802.1p, IEEE 802.3az
|
|
Device Type
|
Switch - 8 ports - unmanaged
|
|
Enclosure Type
|
Desktop, rack-mountable, wall-mountable
|
|
Features
|
Auto-sensing per device, wall mountable, fanless, 2MB packet buffer, VoIP support, DiffServ Code Point (DSCP) support, Energy-Efficient Ethernet (EEE)
|
|
Jumbo Frame Support
|
9216 bytes
|
|
MAC Address Table Size
|
8192 entries
|
|
Performance
|
Throughput: 11.9 Mpps | Switching capacity: 16 Gbps | Latency (100 Mbps): 2.7 µs | Latency (1 Gbps): 1.8 µs
|
|
PoE Budget
|
64 W
|
|
Ports
|
8 x 10/100/1000 (PoE Class 4)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
RAM
|
128 KB EEPROM
|
|
Status Indicators
|
Port status, link/activity, PoE max
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x 10/100/1000 Base-T (PoE) RJ-45
|
|
Power
|
|
|
Electric Current Required
|
2 A
|
|
Power Consumption Stand by
|
4.1 Watt
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
EN 61000-3-2, IEC 61000-3-2, ICES-003 Class B, VCCI Class B, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, CNS 1343
|
|
Included Accessories
|
Rack kit (2 post)
|
|
MTBF
|
131.1 years
|
|
Pricing Type
|
BTO
|
|
Dimensions & Weight
|
|
|
Depth
|
15 cm
|
|
Height
|
3.7 cm
|
|
Weight
|
770 g
|
|
Width
|
17.7 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime | Technical support - live chat - lifetime | Technical support - phone consulting - 90 days from date of purchase
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
15 - 95% (non-condensing)
|
|
Humidity Range Storage
|
15 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
Media
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430
The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
Unmanaged Ethernet Connectivity for Small Businesses

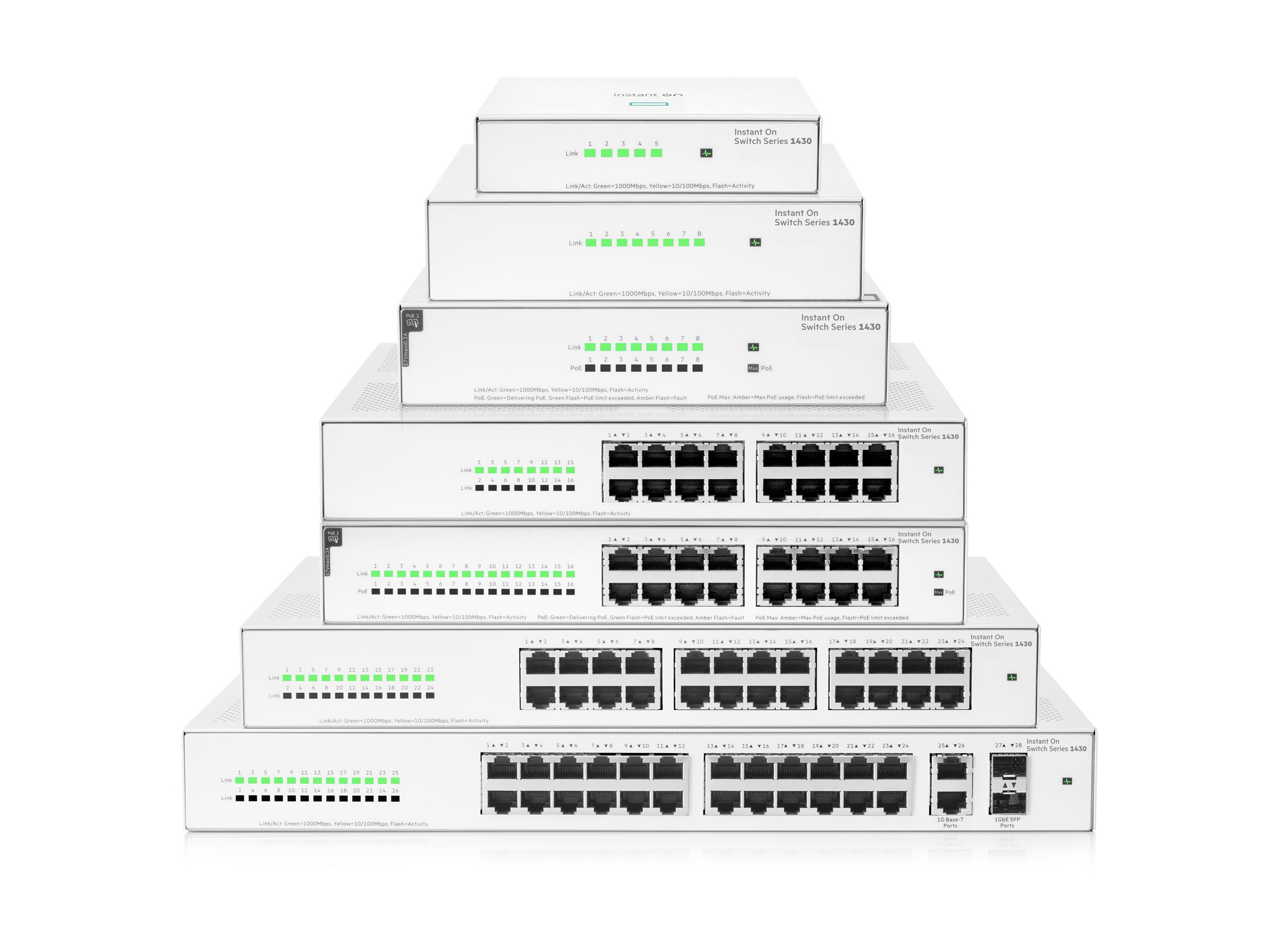

- The HPE Networking Instant On Switch 1430 is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one 5-port, two 8-port, two 16-port, one 24-port, and one 26-port model with 2 SFP uplinks models.
- With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.
- Two dedicated 1 G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.
Plug-and-Play Operation
- The HPE Networking Instant On Switch 1430 models are easy to use with zero configuration and no required ongoing administration.
- The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.
- No configuration beyond installation of optional 1 GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.
- Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).
- Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.
Energy Efficiency and Traffic Optimization
- The HPE Networking Instant On Switch 1430 series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.
- Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
- Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.
- Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full 1000 BASE-T: full only |
| Memory and processor | 128Kb EEPROM Packet buffer size: 2.0 Mb |
| Throughput | 11.90 Mpps |
| Switching capacity | 16 Gbps |
| PoE capability | 64W Class 4 PoE |
| Management features | Unmanaged |
| Power supply | External Power Adapter |
| Input voltage | 100-240VAC |
| Power consumption | Maximum: 90W Idle: 4.1W |
| Product dimensions (metric) | 15.0 x 17.7 x 3.7 cm |
| Weight | 0.77 kg |
