HPE Aruba AP-565 (RW) Trådløs forbindelse Hvid
HPE Aruba AP-565 (RW) - Trådløs forbindelse - ZigBee, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO
Specifications
|
Produktbeskrivelse
|
HPE Aruba AP-565 (RW) - trådløs forbindelse - ZigBee, Bluetooth, Wi-Fi 6
|
|
Enhedstype
|
Trådløs forbindelse
|
|
Formfaktor
|
Ekstern - udendørs
|
|
Dataforbindelsesprotokol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
|
|
Frekvensbånd
|
2.4 GHz, 5 GHz
|
|
Præstation
|
Maksimum datahastighed (5 GHz): 1,2 Gbps<br>Maksimum datahastighed (2,4 GHz): 574 Mbps
|
|
Kapacitet
|
Trådløse klienter per WiFi-radio: 256<br>BSSIDs per radio: 16<br>OFDMA-enheder: 16
|
|
OS nødvendig
|
ArubaOS, InstantOS 8.8.0.0
|
|
Power Over Ethernet (PoE) understøttet
|
PoE+
|
|
Pristype
|
BTO
|
|
Dimensioner (B x D x H)
|
16.5 cm x 16.5 cm x 11 cm
|
|
Vægt
|
1.03 kg
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Depth
|
16.5 cm
|
|
Device Type
|
Wireless access point
|
|
Height
|
11 cm
|
|
Ruggedized Design
|
Outdoor
|
|
Weight
|
1.03 kg
|
|
Width
|
16.5 cm
|
|
Networking
|
|
|
Capacity
|
Wireless clients per Wi-Fi radio: 256 | BSSIDs per radio: 16 | OFDMA units: 16
|
|
Connectivity Technology
|
Wireless
|
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, 802.11ax
|
|
Data Transfer Rate
|
1.49 Gbps
|
|
Encryption Algorithm
|
WPA3-Enhanced Open, WPA2-MPSK
|
|
Features
|
Auto-uplink (auto MDI/MDI-X), Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobi
|
|
Form Factor
|
External
|
|
Frequency Band
|
2.4 GHz, 5 GHz
|
|
Line Coding Format
|
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
|
|
Performance
|
Maximum data rate (5 GHz): 1.2 Gbps | Maximum data rate (2.4 GHz): 574 Mbps
|
|
Spread Spectrum Method
|
OFDM, DSSS, OFDMA
|
|
Status Indicators
|
System, status, radio
|
|
Antenna
|
|
|
Antenna
|
Internal
|
|
Directivity
|
Omni-directional
|
|
Internet of Things (IoT)
|
|
|
Communications Technology
|
Bluetooth Low Energy (LE), Zigbee
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x 1000Base-T - RJ-45 | 2 x antenna | 1 x console - USB-C
|
|
Miscellaneous
|
|
|
Compliant Standards
|
CB, UL 2043, FCC, EN 60601-1-2, cTUVus, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, ETSI 300 019-2-4, RED 2014/53/EU
|
|
Pricing Type
|
BTO
|
|
Power
|
|
|
Power Consumption Operational
|
15.6 Watt
|
|
Power Over Ethernet (PoE) Supported
|
PoE+
|
|
Software / System Requirements
|
|
|
OS Required
|
ArubaOS, InstantOS 8.8.0.0
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
55 °C
|
|
Min Operating Temperature
|
-40 °C
|
Media

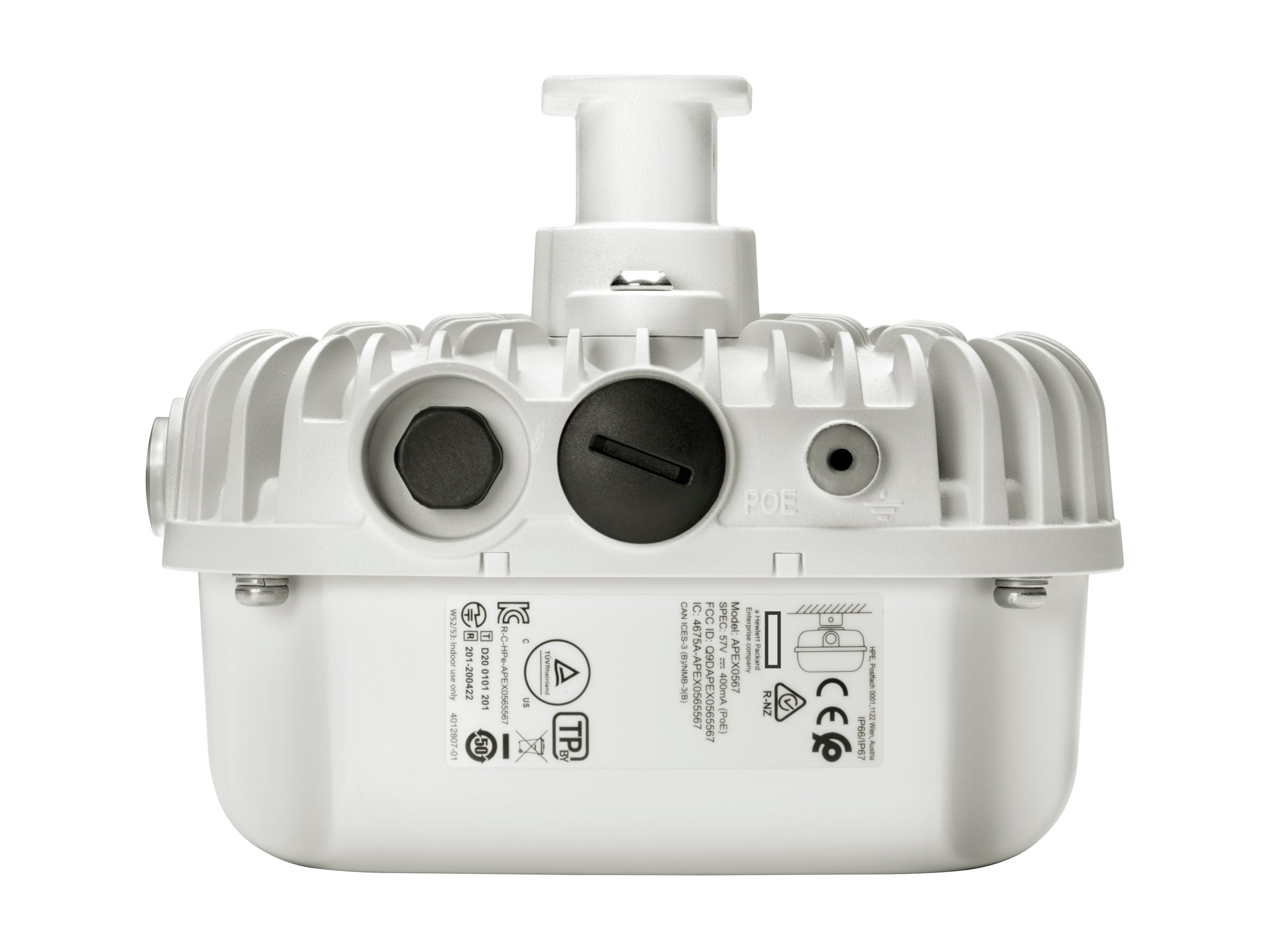

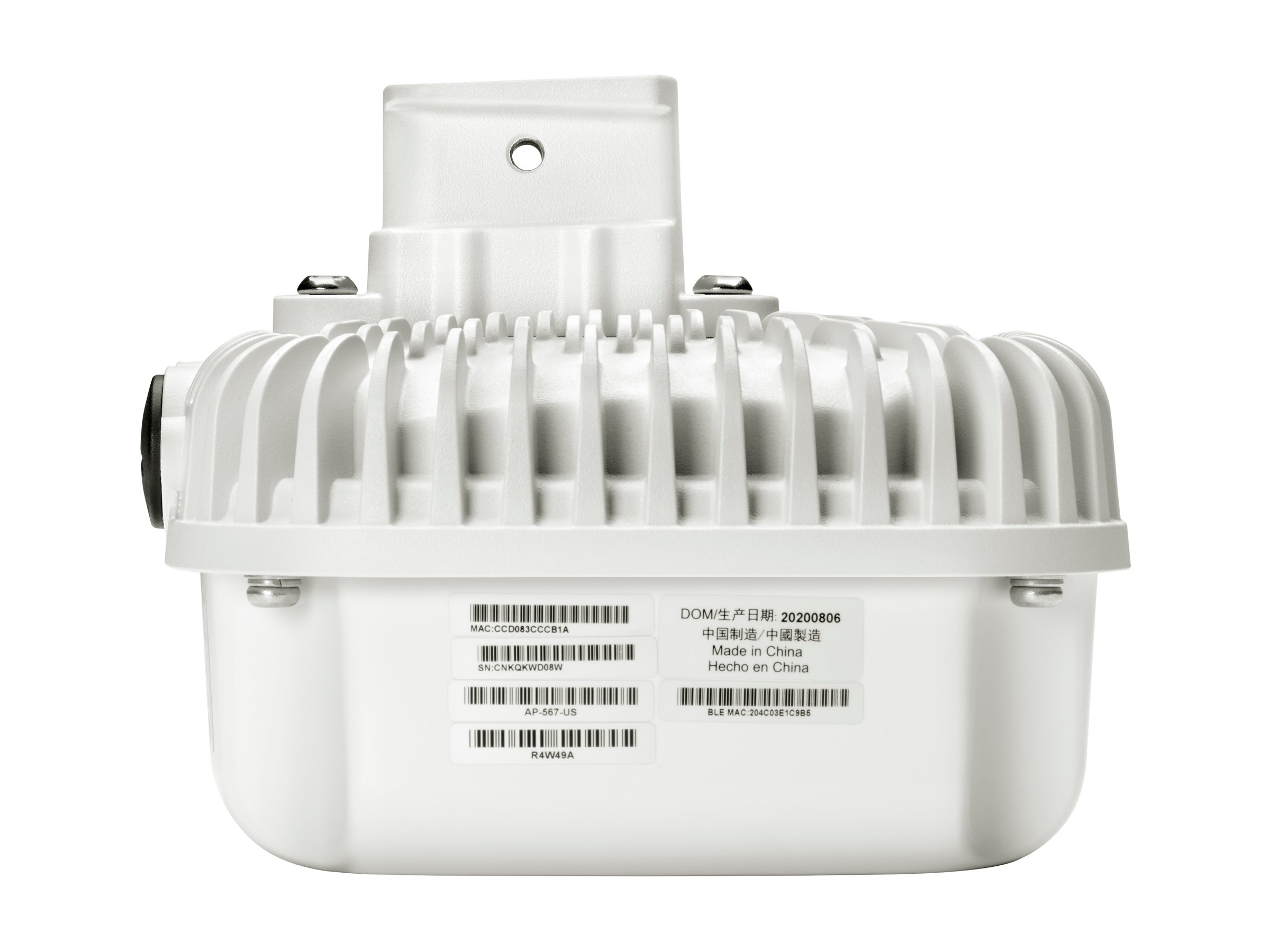

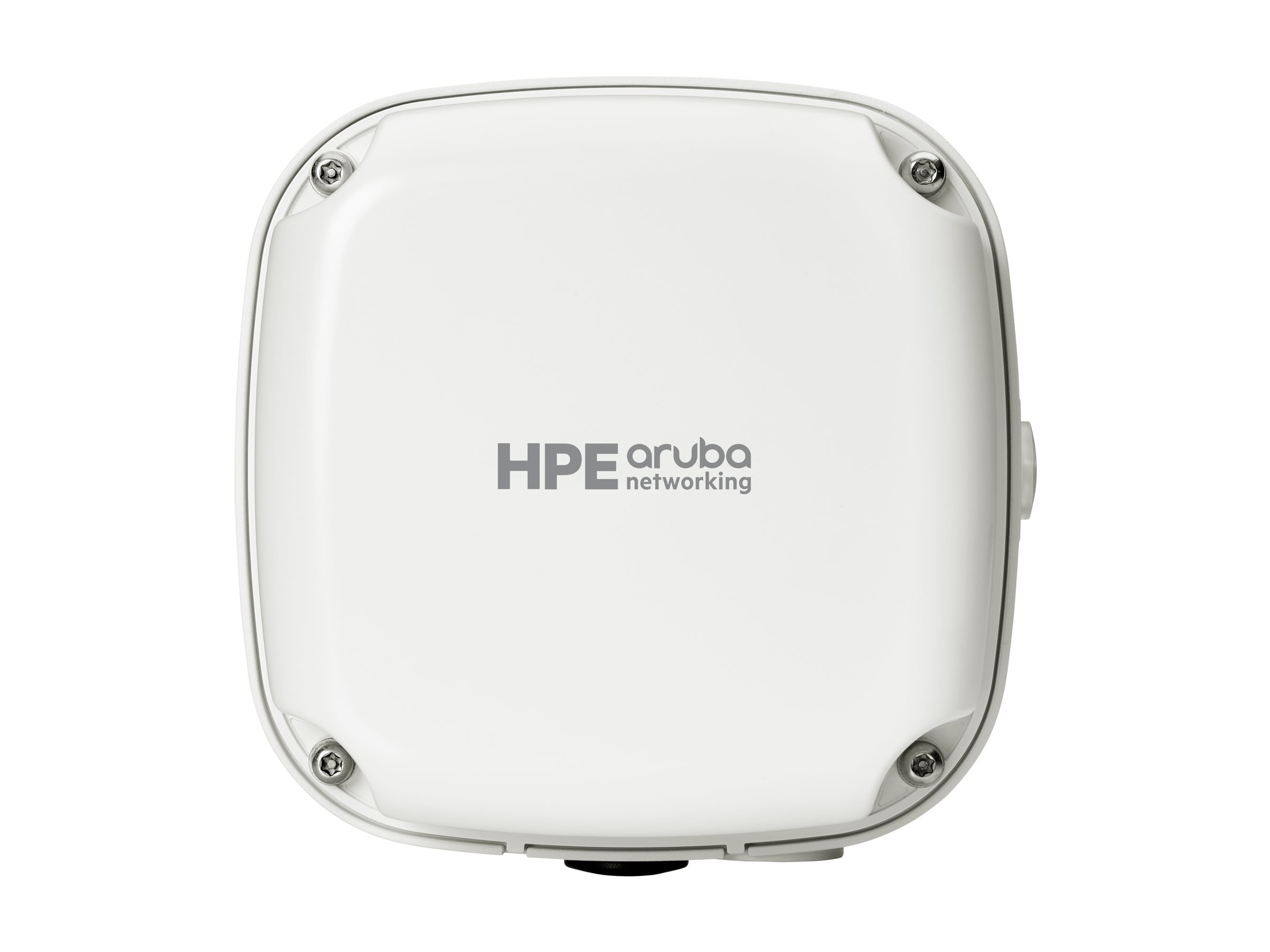

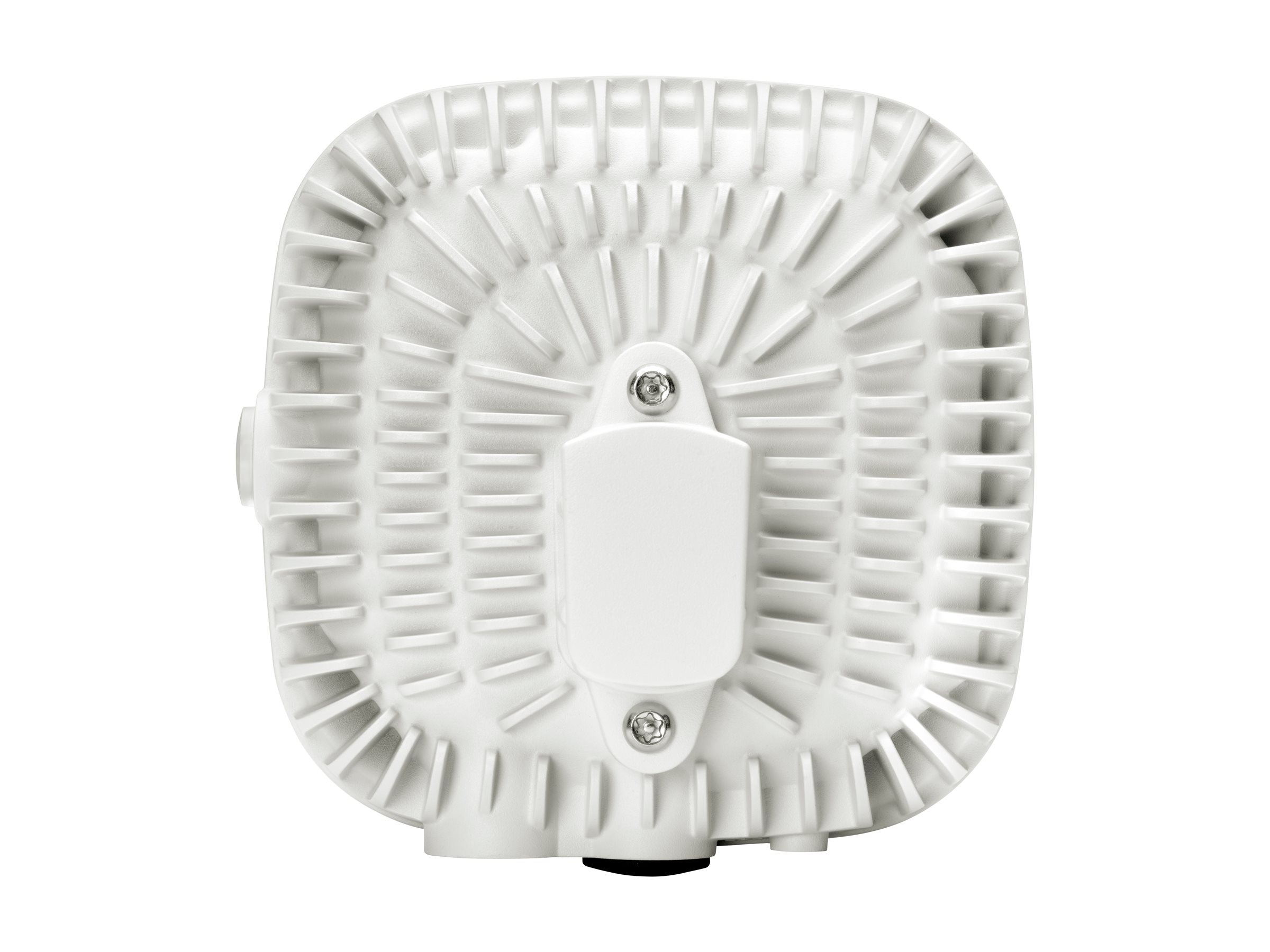

HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP
The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and virtual private networks (VPNs). AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560 series outdoor APs include a limited lifetime warranty.
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps peak aggregate data rate and are ideal for outdoor and warehouse environments
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +55˚C)
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEFs) that automatically enforce consistent policies across all networks, keeping users and devices secure
Entry-level Outdoor Wi-Fi 6
- HPE Aruba Networking 560 Series Outdoor Access Points are ideal for environmentally challenging locations and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.
- Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +55˚C, including full solar loading.
- With peak aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments
- It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
- Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
IoT Ready
- HPE Aruba Networking 560 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
- The AP supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
- Target wake time (TWT) improves battery life of IoT devices.
- HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple Access With Enhanced Security
- The HPE Aruba Networking 560 Series Outdoor Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
- It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls.
- The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
- For enhanced device assurance, the access points include an installed trusted platform module (TPM).
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | E0: 10/100/1000BASE-T (RJ-45) USB-C console interface |
| Certifications | CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance® certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED® ac (with wave 2 features) Wi-Fi CERTIFIED Location |
| Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN/UL 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs: EN 50155:2017—Railway Applications EN 50121-1:2017—Railway EMC EN 50121-3-2—Railway EMC EN 50121-4:2016—Railway Immunity IEC 61373 ed2:2008—Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative. |
| Wi-Fi antenna | Built-in omnidirectional antennas with 5.4 dBi gain maximum, for 5 GHz antennas and 3.2 dBi gain maximum for 2.4 GHz antennas |
| Product dimensions (metric) | 165 x 165 x 130 mm |
| Weight | 1.03 kg |
