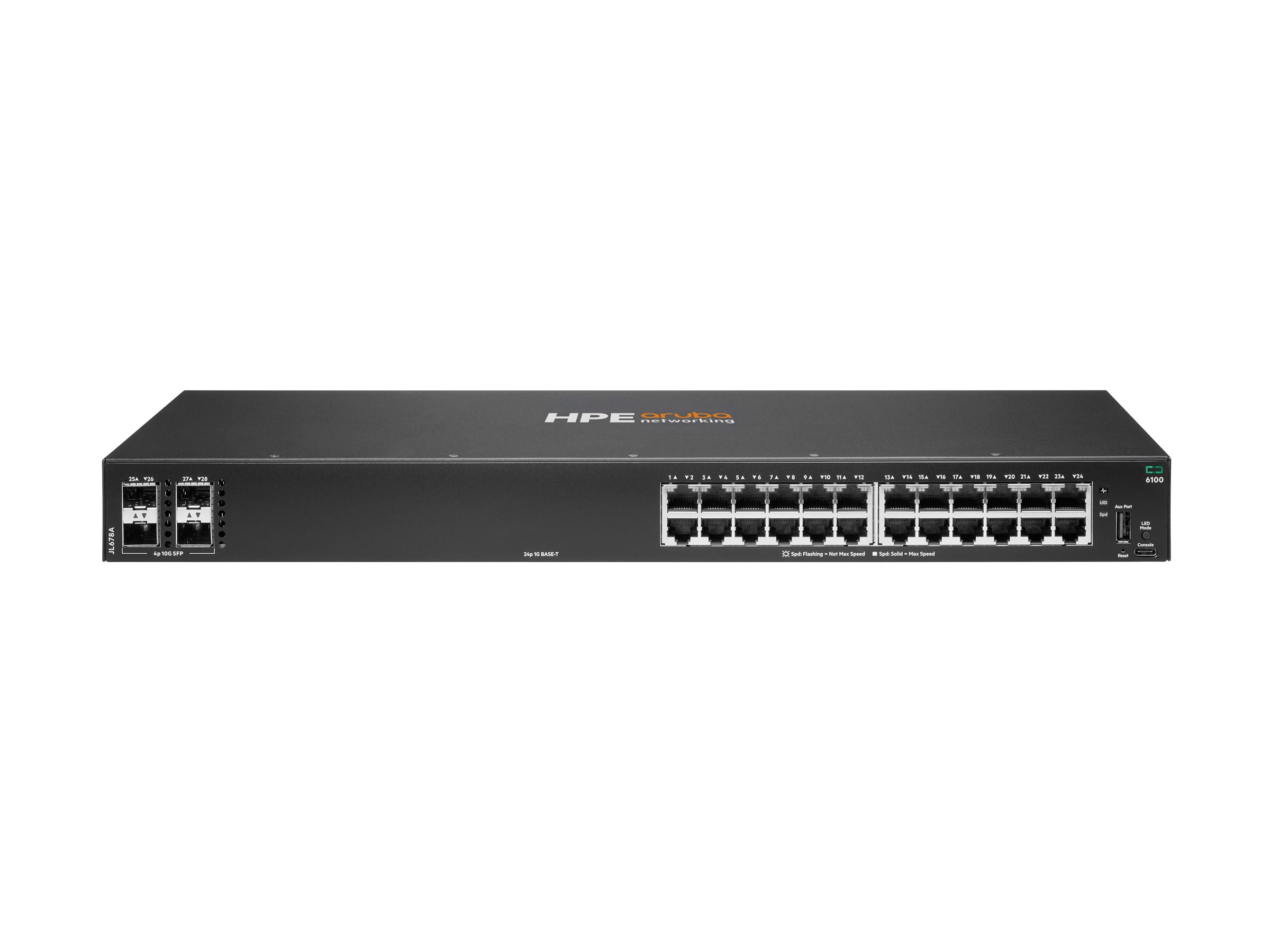

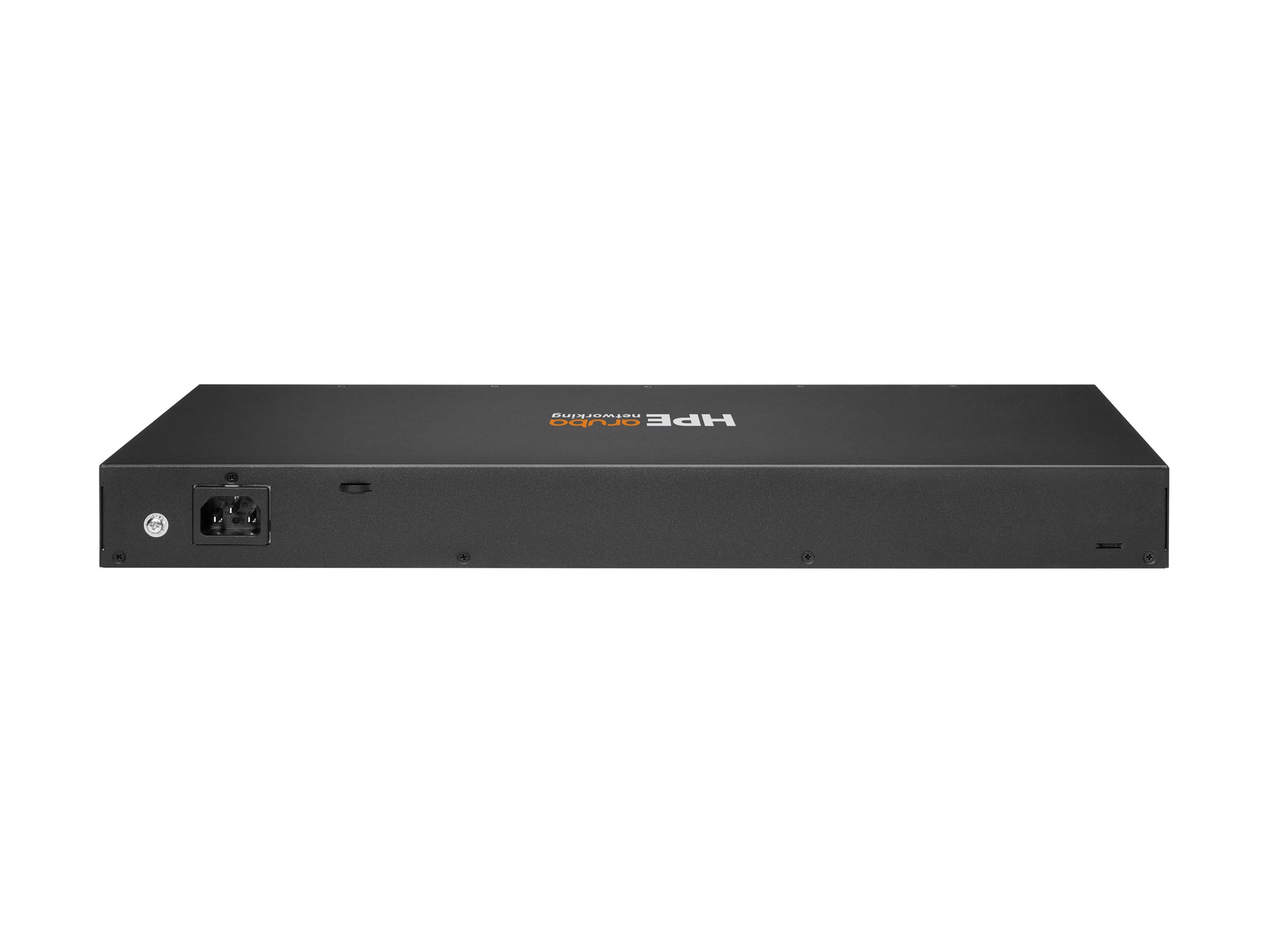

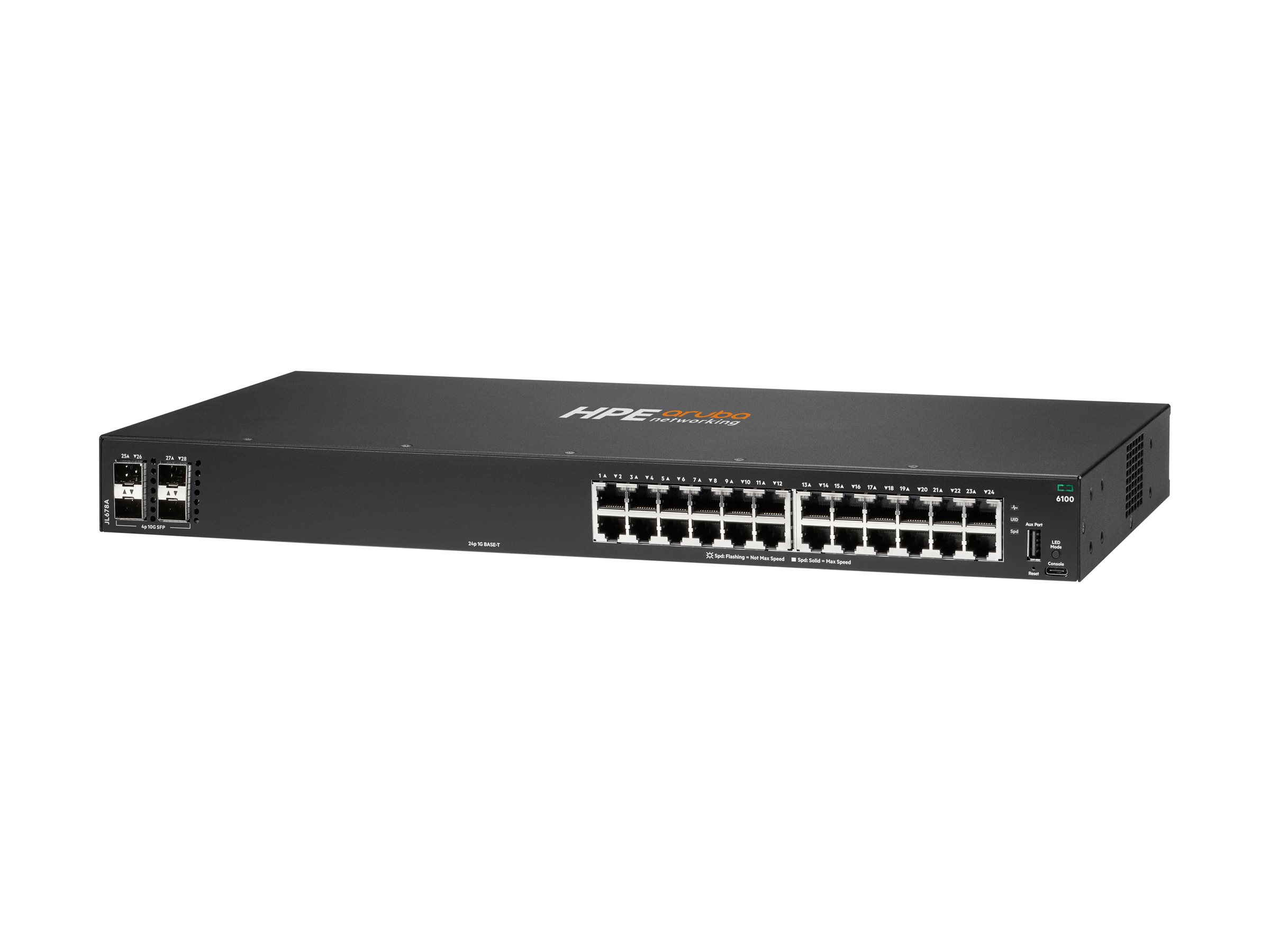

HPE Aruba 6100 24G 4SFP Switch 28-porte 10 Gigabit
HPE Aruba 6100 24G 4SFP+ Switch - Switch - Administreret - 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side til side-luftstrøm - monterbar på stativ
-
Product no 998117036
Model JL678A#ABB
Brand Hewlett Packard Ente
EAN 0190017348728
Weight 3.61 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Switch-type | Administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| 10G understøttelse | Ja |
| MAC adresselabel | 8192 entries |
| Switch kapacitet | 128 Gbit/sek. |
| Stativ-montering | Ja |
| Stabelbar | Ja |
| Strømkilde | Vekselstrøm |
| Strømforsyning inkluderet | Ja |
| Strøm over Ethernet (PoE) | Ingen |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | Switched virtual interfaces (SVIs): 16 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv6 routes (Unicast): 512 | IGMP groups: 512 | MLD groups: 512 | IPv4 ACL entries (ingress): 256 | IPv6 ACL entries (ingress): 128 | MAC ACL entries (ingress): |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az |
| Device Type | Switch - 28 ports - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port |
| Flash Memory | 16 GB |
| MAC Address Table Size | 8192 entries |
| Performance | Switching capacity: 128 Gbps | Throughput: 95.2 Mpps | Latency (1 Gbps): 1.5 µs | Latency (10 Gbps): 1.8 µs |
| Ports | 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Processor | 1 x ARM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Routing Protocol | IGMPv2, IGMPv3 |
| Subtype | 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 | 4 x 1/10Gbit LAN SFP+ | 1 x USB-C console | 1 x USB Type A |
| Power | |
| Power Consumption Operational | 15.4 Watt |
| Power Device | Internal power supply |
| Power Provided | 65 Watt |
| Voltage Required | AC 230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, V |
| Localization | English / Europe |
| Dimensions & Weight | |
| Depth | 20.12 cm |
| Height | 4.39 cm |
| Weight | 2.62 kg |
| Width | 44.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
