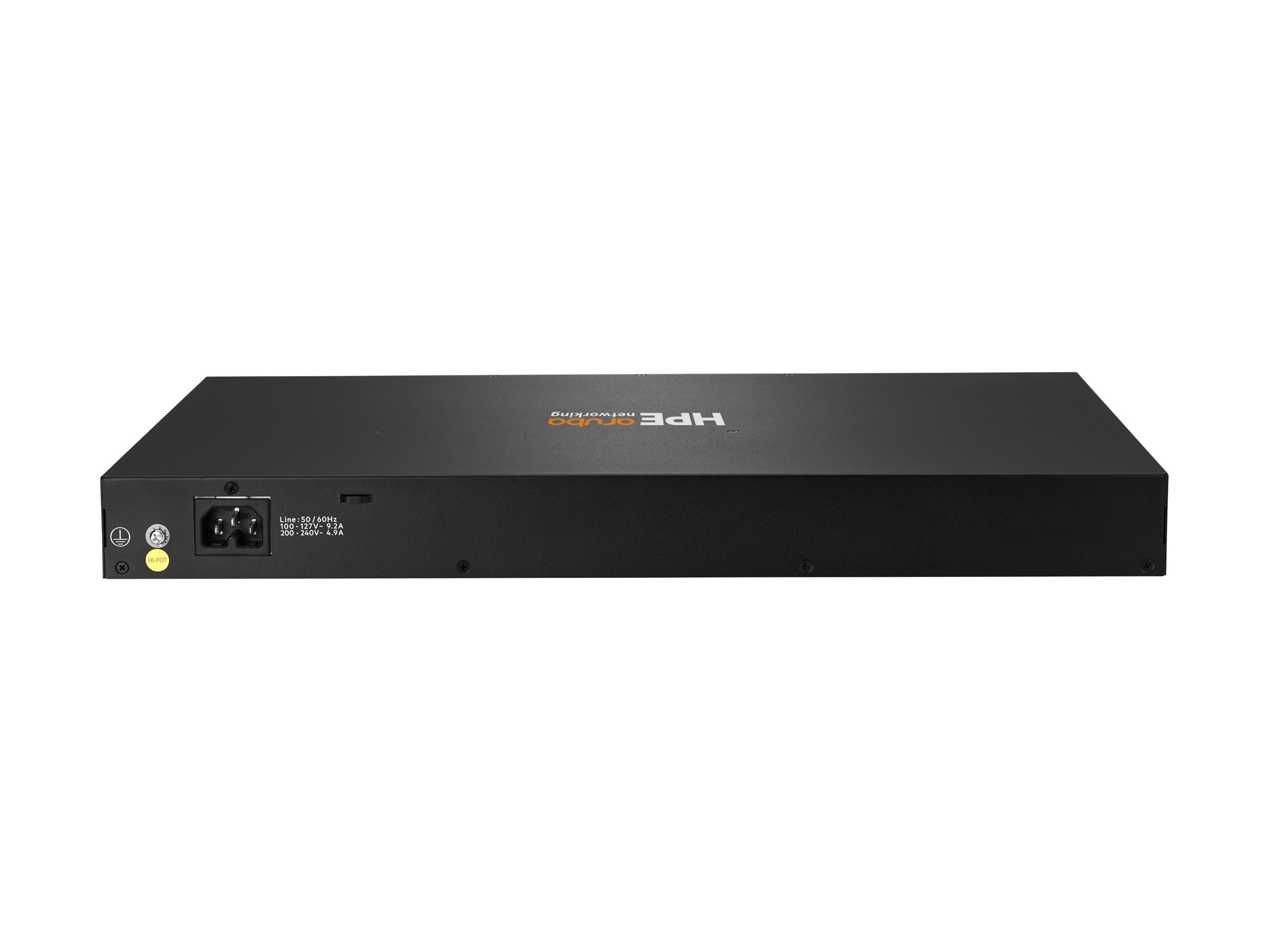

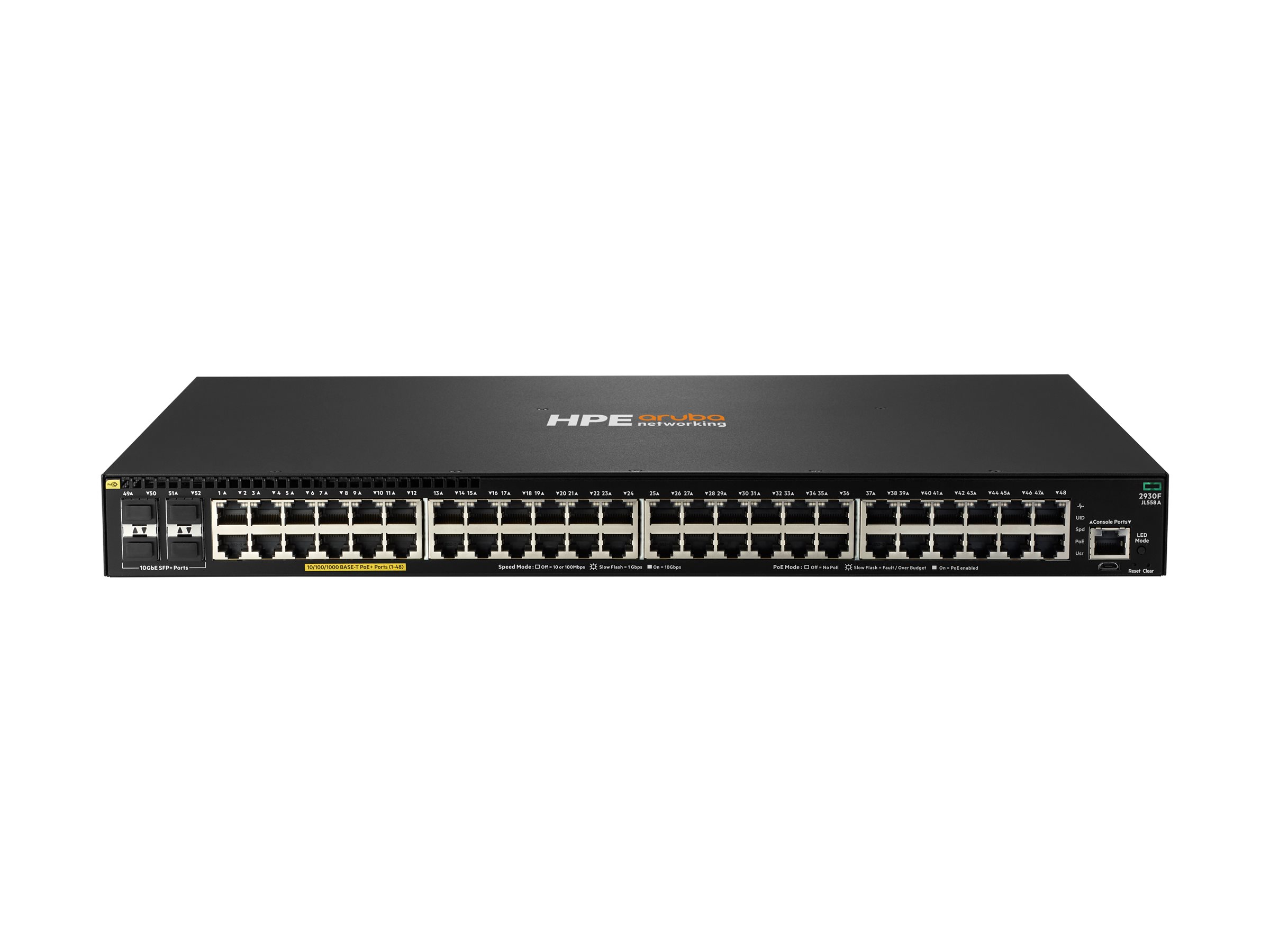

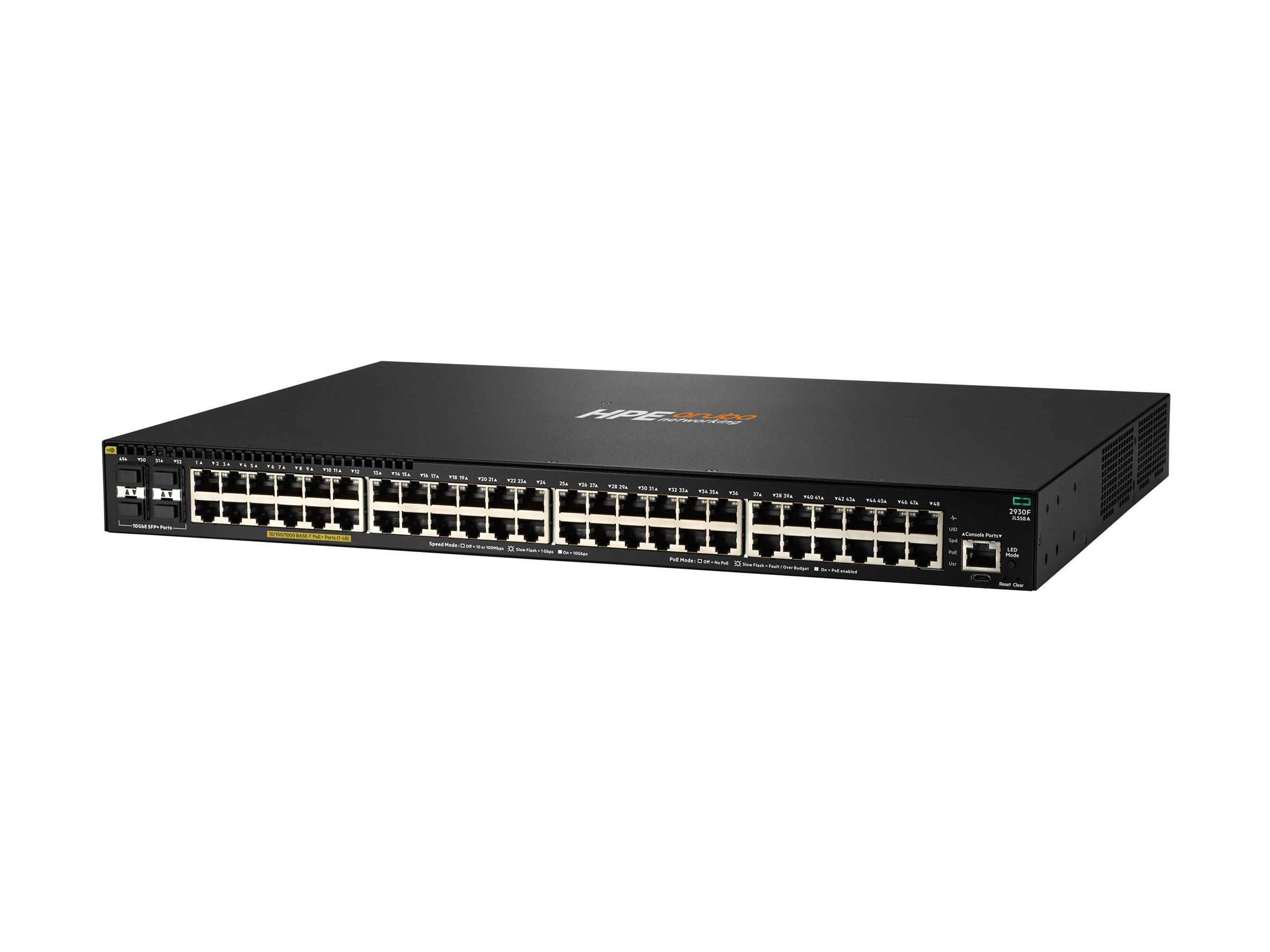

HPE Aruba 2930F 48G 4SFP Switch 48-porte Gigabit PoE+
HPE Aruba 2930F 48G PoE+ 4SFP+ - Switch - L3 - Administreret - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - monterbar på stativ - PoE+ (740 W)
Aruba 2930F Switch-serien er designet til kunder, der skaber digitale arbejdspladser, som er optimeret til mobile brugere med en integreret kablet og trådløs tilgang. Disse grundlæggende Layer 3 access switches er nemme at implementere og administrere med avancerede sikkerheds- og netværksadministrationsværktøjer som Aruba ClearPass Policy Manager og Aruba AirWave og er ideelle til enterprise edge, SMB og filialkontorer.
-
Product no 993308177
Model JL558A
Brand Hewlett Packard Ente
EAN 0190017219677
Weight 6.94 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba 2930F 48G PoE+ 4SFP+ - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 740 W |
| Præstation | Kapacitet: 112 Mpps<br>Omkoblingskapacitet: 176 Gbps<br>Latens (1 Gbps): 3.8 µs<br>Latens (10 Gbps): 1.6 µs |
| Kapacitet | Jumbo-rammestørrelse: 9220<br>IPv4 indtastning i routing-tabel: 10000<br>IPv6 indtastning i routing-tabel: 5000 |
| MAC adresse table størrelse | 32K indtastningshukommelse |
| Routingprotokol | OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, statisk IP routing, IGMPv3, OSPFv3, statisk IPv4 routing, statisk IPv6 routing, RIPng, MLD, CIDR |
| Protokol til fjernadministration | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Egenskaber | Datatransport, komplet duplex ydeevne, DHCP-understøttelse, understøttet af BOOTP, understøttet af ARP, VLAN-understøttet, IGMP snooping, Syslog understøttet, DiffServ understøttet, IPv6 understøttet, SNTP-understøttet, sFlow, STP support, MSTP support, ACL support, QoS, Jumbo Frames support, DHCP server, STP Root Guard, UDLD, LLDP support, LACP, MIB, MAC adresse lockout, dynamisk ARP beskyttelse, DHCP beskyttelse, GVRP, MVRP, NDP, CoS, ToS, OpenFlow support, CPU-beskyttelse, ICMP, ICMP IRDP, VXLAN, MIB II |
| Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.25 cm x 30.42 cm x 4.39 cm |
| Vægt | 4.46 kg |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+ |
| Capacity | Jumbo frame size: 9220 | IPv4 routing table entries: 10000 | IPv6 routing table entries: 5000 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | MD5, SSL |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (M |
| Flash Memory | 4 GB |
| MAC Address Table Size | 32K entries |
| Performance | Throughput: 112 Mpps | Switching capacity: 176 Gbps | Latency (1 Gbps): 3.8 µs | Latency (10 Gbps): 1.6 µs |
| PoE Budget | 740 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ | 4 x Gigabit / 10Gbit LAN SFP+ | 1 x serial (console) |
| Power | |
| 80 PLUS Certification | 80 PLUS Silver |
| Installed Qty | 1 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, |
| Included Accessories | Mounting screws, 4 mounting ears, 4 bumper feet, cable tie |
| Software / System Requirements | |
| Software Included | Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center |
| Dimensions & Weight | |
| Depth | 30.42 cm |
| Height | 4.39 cm |
| Weight | 4.46 kg |
| Width | 44.25 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
Højtydende access layer-switches
Aruba 2930F Switch-serien leverer ydeevne, sikkerhed og brugervenlighed til enterprise edge-, SMB- og branch office-netværk. Leverer en ensartet kablet/trådløs brugeroplevelse med forenede administrationsværktøjer som ClearPass Policy Manager og Airwave Network Management. Giver automatisk optimal konfiguration ved tilslutning til Aruba access points for PoE-prioritet, VLAN-konfiguration og inddæmning af rogue AP. Praktiske indbyggede 1GbE eller 10GbE uplinks og PoE+ modeller leverer netværksadgang i den rigtige størrelse. Robust grundlæggende Layer 3-funktionssæt inkluderer statisk og RIP-routing, ACL'er, sFlow, IPv6 uden krav om softwarelicens. Aruba 2930F er designet med en kraftfuld ProVision ASIC og understøttelse af OpenFlow, så den er klar til at drage fordel af SDN-applikationer som HPE Network Visualizer, Optimizer og Protector Software-produkter.
Ydeevne og kraft på kanten
Aruba 2930F Switch-serien er designet med en kraftfuld Aruba ProVision ASIC, der muliggør den mobile campus med SDN-optimeringer, lav latenstid, øget pakkebuffering og adaptivt strømforbrug. Øg ydeevnen med valgbare kø-konfigurationer og tilhørende hukommelsesbuffering, der opfylder dine specifikke krav til netværksapplikationer. Understøtter op til 370 W intern PoE+-strøm til trådløse adgangspunkter, kameraer og telefoner.
Sikkerhed og servicekvalitet, du kan stole på
Aruba 2930F Switch-serien indeholder funktioner til sikkerhed og servicekvalitet, så du kan opbygge et netværk, der lever op til virksomhedens stadigt skiftende politikker og krav, samtidig med at dine data beskyttes mod angreb både indefra og udefra. Fleksible autentificeringsmuligheder omfatter standardbaserede sikkerhedsprotokoller som 802.1X, MAC og webautentificering for at forbedre sikkerheden og den politikstyrede applikationsautentificering. Kraftfulde sikkerhedskontroller med adgang på flere niveauer omfatter kildeportfiltrering, RADIUS/TACACS+, SSL, portsikkerhed og MAC-adresselåsning.
Forenkling med integreret kablet/trådløs administration
Aruba 2930F Switch-serien understøtter Aruba ClearPass Policy Manager for en samlet og konsistent politik mellem kablede og trådløse brugere og forenkler implementering og administration af gæstelogin, bruger onboarding, netværksadgang, sikkerhed, QoS og andre netværkspolitikker. Understøtter Aruba Airwave Network Management-software, der giver en fælles platform til Zero Touch Provisioning-styring og overvågning af kablede og trådløse netværksenheder. RMON og sFlow giver avancerede overvågnings- og rapporteringsfunktioner til statistik, historik, alarmer og hændelser. Out-of-band Ethernet-administrationsport holder administrationstrafikken segmenteret fra din netværksdatatrafik.
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch
High-performance Access Layer Switches
- The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
- Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
- Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1 GbE or 10 GbE uplinks and PoE+ models deliver right-size network access performance.
- Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
- Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.
Performance and Power at the Edge
- The HPE Aruba Networking 2930F Switch Series is designed with a powerful ProVision ASIC to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- HPE Aruba Networking Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.
- Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely on
- The HPE Aruba Networking 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplified Management for Your Network
- The HPE Aruba Networking 2930F Switch Series supports HPE Aruba Networking ClearPass Policy Manager for unified, consistent policy between wired and wireless users, simplifying implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- HPE Aruba Networking Management Software (AirWave) provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning supported by HPE Aruba Networking Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | (48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less |
| Memory and processor | Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC |
| Latency | 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs |
| Throughput | Up to 112 Mpps |
| Switching capacity | 176 Gbps |
| PoE capability | 740W PoE+ |
| Management features | HPE Aruba Networking Management Software (AirWave) Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Input voltage | 100–127/200–240 VAC, rated |
| Power consumption | 980W (maximum) |
| Heat dissipation | 420.9 BTU/hr (444.1 kJ/hr) |
| Product dimensions (metric) | 4.39 x 44.25 x 32.42 cm |
| Weight | 4.79 kg |
