Produktbeskrivelse
|
HiPower SP-550 - strømforsyning - 550 watt
|
|
Enhedstype
|
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
|
|
Specifikationsoverensstemmelse
|
ATX12V 2.4
|
|
Vægt
|
1.14 kg
|
|
Indgangspænding
|
AC 100/240 V
|
|
Udgangspænding
|
+3.3, +5, ±12 V
|
|
Strømkapacitet
|
550 watt
|
|
Output Current
|
+3.3V - 20 A<br>+5V - 18 A<br>+12V - 40 A<br>-12V - 0.3 A<br>+5VSB - 2.2 A
|
|
Output-stikforbindelser
|
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>1 x 6 pin PCI Express-strøm<br>4 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
|
|
Kølesystem
|
120 mm ventilator
|
|
Udstyr inkluderet
|
Kabelbånd
|
|
Dimensioner (B x D x H)
|
15 cm x 14 cm x 8.6 cm
|
|
Producentgaranti
|
2 års garanti
|
We are continuously resolving any minor issues that may arise. Thank you for your patience.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

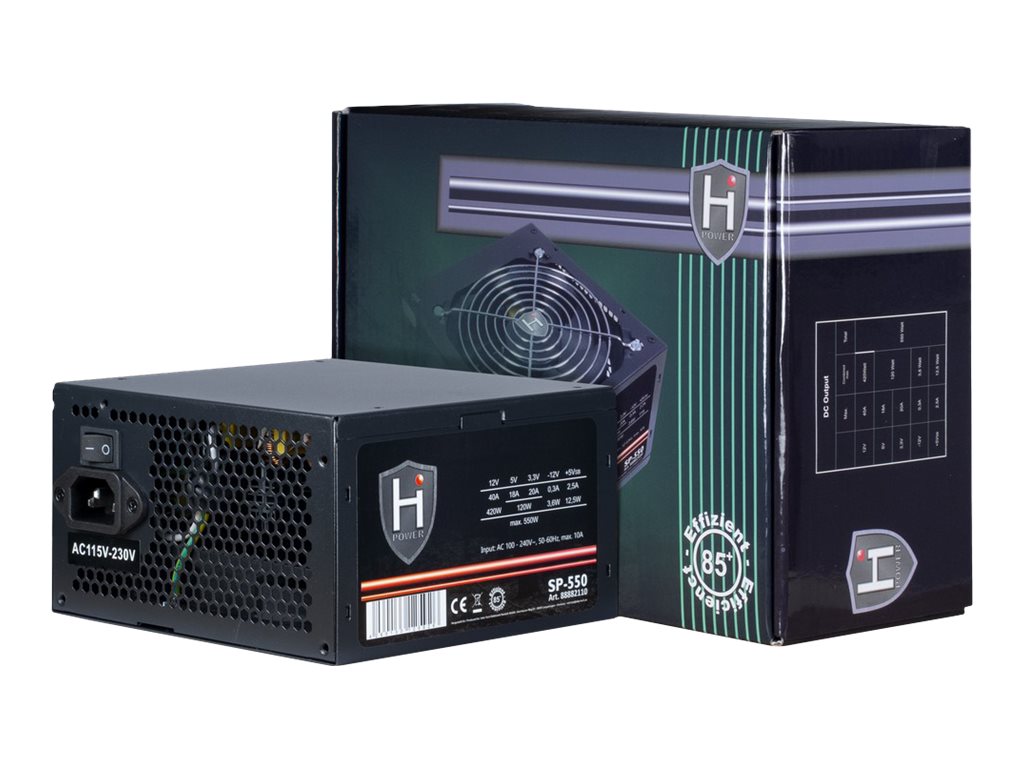

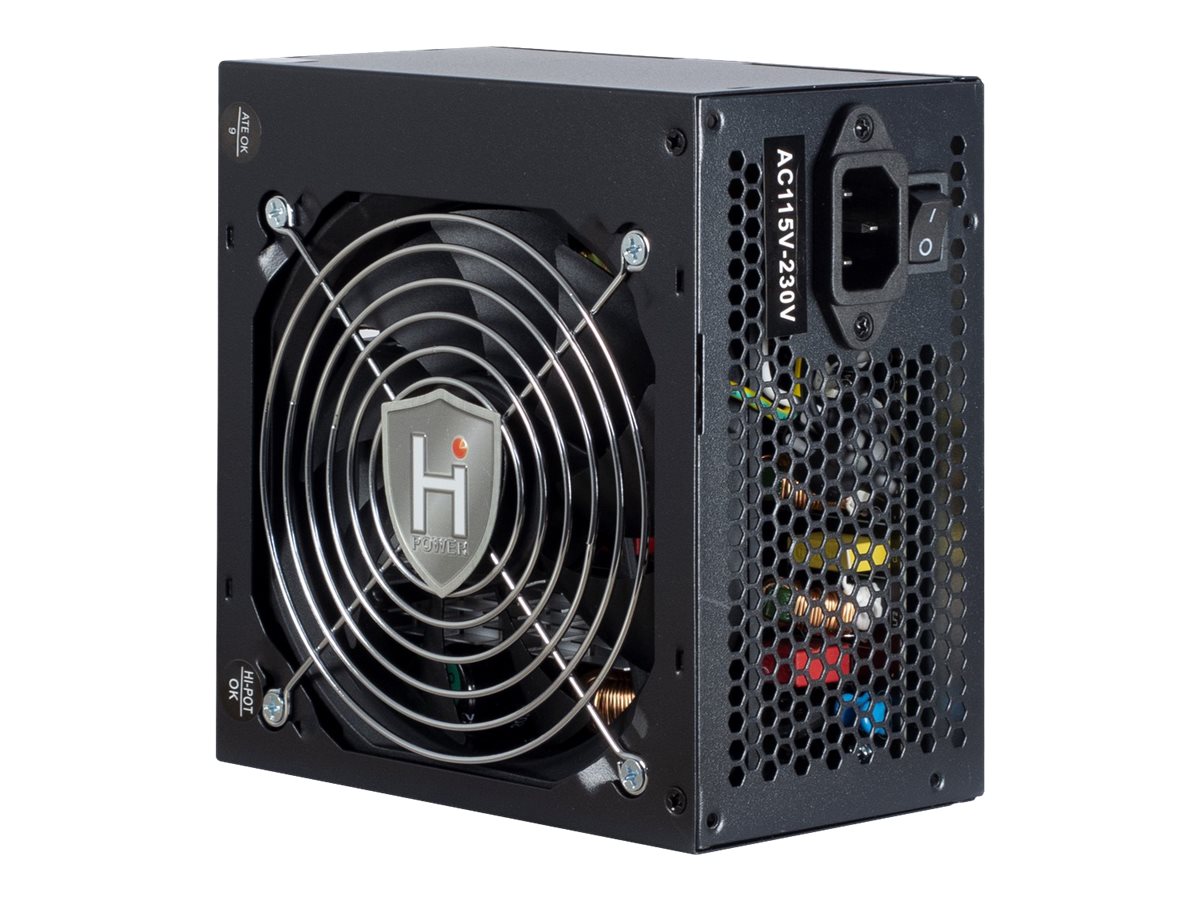

HiPower SP-550 550Watt
HiPower SP-550 - Strømforsyning (intern) - ATX12V 2.4 - AC 100/240 V - 550 watt - aktiv PFC
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Power supply - active Power Factor Correction (PFC) - internal
|
|
PSU Form Factor
|
ATX
|
|
Specification Compliance
|
ATX12V 2.4
|
|
Power Device
|
|
|
Efficiency
|
83% at full Load, 84.3% at 20% Load, 85.6% at 50% Load
|
|
Frequency Required
|
50 - 60 Hz
|
|
Input Voltage
|
AC 100/240 V
|
|
Output Current
|
+3.3V - 20 A | +5V - 18 A | +12V - 40 A | -12V - 0.3 A | +5VSB - 2.2 A
|
|
Output Voltage
|
+3.3, +5, ±12 V
|
|
Power Capacity
|
550 Watt
|
|
Power Output Connectors Details
|
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 1 x 6 pin PCI Express power | 4 x 15 pin Serial ATA power | 4 x 4 pin internal power | 1 x 4 pin mini-power connector
|
|
Miscellaneous
|
|
|
Cables Included
|
Power cable
|
|
Cooling System
|
120 mm fan
|
|
Features
|
Overvoltage protection, overpower protection, short-circuit protection
|
|
Included Accessories
|
Cable ties
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Sound Emission
|
19 dB
|
|
Dimensions & Weight
|
|
|
Depth
|
14 cm
|
|
Height
|
8.6 cm
|
|
Weight
|
1.14 kg
|
|
Width
|
15 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Weight
|
1.49 kg
|
