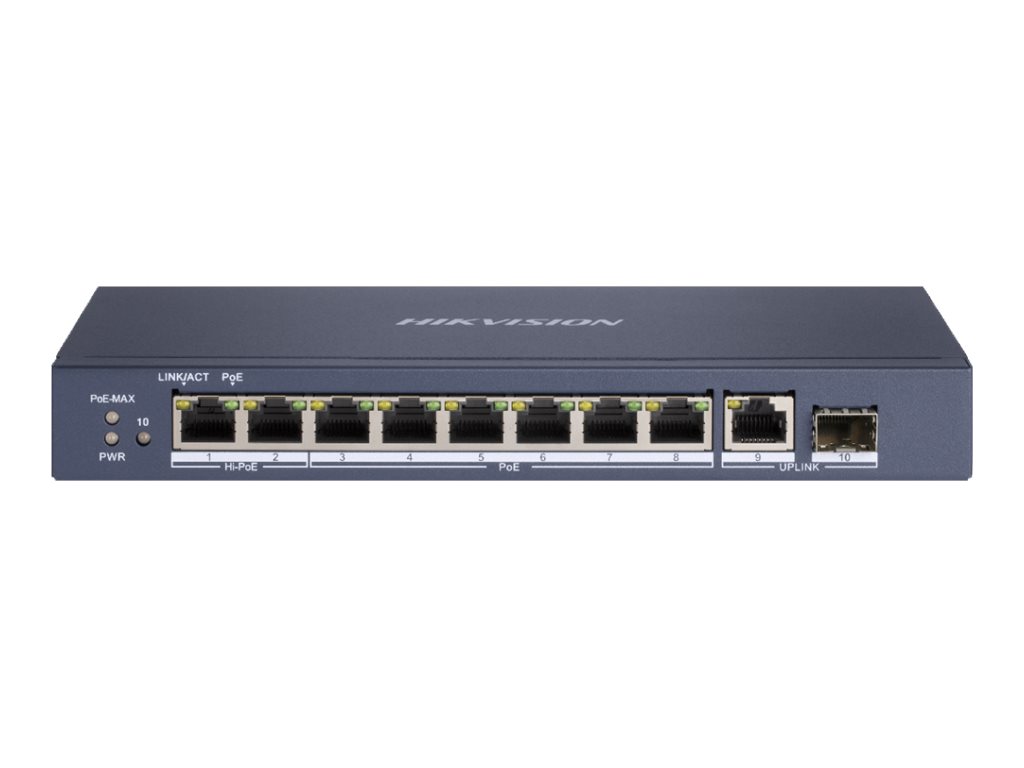

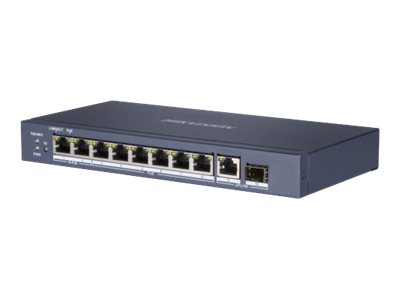

Hikvision Pro Series DS-3E0510HP-E Switch 8-porte Gigabit High PoE / PoE
Hikvision Pro Series DS-3E0510HP-E - Switch - ikke administreret - 6 x 10/100/1000 (PoE) + 2 x 10/100/1000 (Hi-PoE) + 1 x 10/100/1000 + 1 x Gigabit SFP - desktop - High PoE / PoE (110 W)
Varenummer:
995954580
Model:
DS-3E0510HP-E
EAN:
6941264031611
Brand:
Vægt:
1.33 kg
Specifications
|
Produktbeskrivelse
|
Hikvision Pro Series DS-3E0510HP-E - switch - 8 porte - ikke administreret
|
|
Enhedstype
|
Switch - 8 porte - ikke administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
6 x 10/100/1000 (PoE) + 2 x 10/100/1000 (Hi-PoE) + 1 x 10/100/1000 + 1 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
High PoE / PoE
|
|
PoE-budget
|
110 W
|
|
Præstation
|
Omkoblingskapacitet: 20 Gbps<br>Pakkevideresendelseshastighed: 14.88 Mpps
|
|
MAC adresse table størrelse
|
4K indtastningshukommelse
|
|
Egenskaber
|
Auto-uplink (auto MDI/MDI-X), gem og send, fuld dupleksmodus, blæserløs, portisolering, 6 KV PoE strømstødsbeskyttelse, PoE-vagthundetilstand
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
|
|
Dimensioner (B x D x H)
|
21.76 cm x 10.885 cm x 2.78 cm
|
|
Vægt
|
590 g
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
|
|
Device Type
|
Switch - 8 ports - unmanaged
|
|
Enclosure Type
|
Desktop
|
|
Features
|
Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, fanless, port isolation, 6KV PoE surge protection, PoE watchdog mode
|
|
MAC Address Table Size
|
4K entries
|
|
Performance
|
Switching capacity: 20 Gbps | Packet forwarding rate: 14.88 Mpps
|
|
PoE Budget
|
110 W
|
|
Ports
|
6 x 10/100/1000 (PoE) + 2 x 10/100/1000 (Hi-PoE) + 1 x 10/100/1000 + 1 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
High PoE / PoE
|
|
Status Indicators
|
Power, link/activity, PoE max
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
6 x 1000Base-T RJ-45 PoE - 30 W | 2 x 1000Base-T RJ-45 HPoE - 90 W | 1 x 1000Base-T RJ-45 | 1 x Gigabit LAN SFP
|
|
Power
|
|
|
Power Consumption Operational
|
120 Watt
|
|
Power Consumption Stand by
|
10 Watt
|
|
Power Device
|
External power adapter
|
|
Power Provided
|
DC 54 V - 2.22 A
|
|
Miscellaneous
|
|
|
Compliant Standards
|
IC, UL 60950-1, FCC CFR47 Part 15 B, RCM, RoHS 2011/65/EU, EN 61000-3-3:2013, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55024:2010+A1:2015, EN 55032:2015, REACH 2006/1907, AS/NZS CISPR 32:2015, EN 60950-1:2005+Am1:2
|
|
Dimensions & Weight
|
|
|
Depth
|
10.885 cm
|
|
Height
|
2.78 cm
|
|
Weight
|
590 g
|
|
Width
|
21.76 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Humidity Range Storage
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
85 °C
|
|
Min Operating Temperature
|
-10 °C
|
|
Min Storage Temperature
|
-40 °C
|
