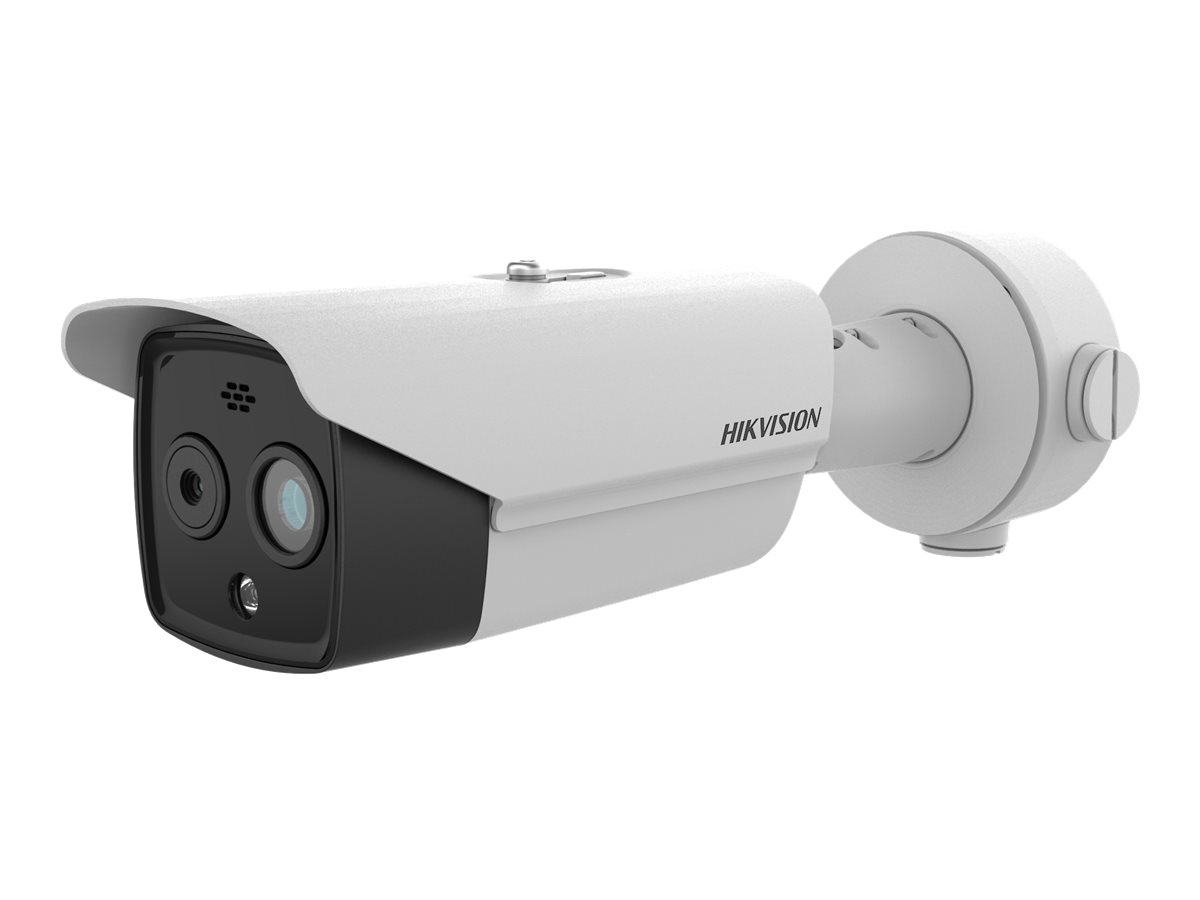

Hikvision HeatPro Series DS-2TD2628-3/QA Termisk/netværksovervågningskamera 2688 x 1520 (optical) / 256 x 192 (thermal)

Hikvision HeatPro Series DS-2TD2628-3/QA - Termisk/netværksovervågningskamera - kugle - farve (Dag/nat) - 2688 x 1520 (optisk)/256 x 192 (termisk) - 720p, 1080p - fast brændvidde - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE klasse 3

Product no: 999703949
Model: DS-2TD2628-3/QA
EAN: 6931847136543
Brand:
Hikvision Digital Te
Weight: 1.55 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Hikvision HeatPro Series DS-2TD2628-3/QA - termisk/netværksovervågningskamera - kugle
Enhedstype
Termisk/netværksovervågningskamera - fast - kugle
Audio
Ja
Dimensioner (B x D x H)
32.13 cm x 10.61 cm x 10.7 cm
Vægt
1.55 kg
Connectivity teknologi
Med ledning
Kamera
Farve - Dag/nat
Maksimum opløsning
2688 x 1520 (optisk)/256 x 192 (termisk)
Billedhastighed (maks.)
30 frames pr. sekund
Bevægelsesdetektion
Ja
Video Modes
720p, 1080p
Billedsensortype
Uncooled VOx FPA / PS CMOS - 1/2.7" (optical)
Minimumbelysning
0.0176 lux - farve - F2.25 - AGC on<br>0.0035 lux - S/H - F2.25 - AGC on
Brændviddekontrol
Fast brændvidde
Brændvidde
4.3 mm
Objektiv Iris
F/1.6 (optical) / f/1.0 (thermal)
Interface
Ethernet 10Base-T/100Base-TX
Kontrolgrænseflade
RS-485
Spænding
DC 12 V / PoE klasse 3
Egenskaber
E-mail advarsler, Wide Dynamic Range (WDR), NAS-Ready, strømstødsbeskyttelse, notifikationsbillede til FTP, kodeordsbeskyttelse, lynresistent, indtrængningsdetektion, lydvarsler, ONVIF (Profil S) support, ONVIF (Profile G) support, Digital Detail Enhancement (DDE), Line Crossing Detection, Voltage Transient Protection, Internet Server Application Programming Interface (ISAPI), IP-adressefiltrering, 3D digital støjreduktion (DNR), regionudgangsdetektion, regionindgangsdetektion, 8 - 14 μm spektral respons, branddetektion, White Light, op til 20 kanalers samtidig live visning, visuel alarm, Automatic Network Replenishment (ANR), Smart VCA, termisk sensitivitet 40 mK (NETD), temperaturmåling, Target Coloration, 2,1 mm termisk objektiv, 150 m menneskedetektion, 460 m køretøjsdetektion, 38 m menneskegenkendelse, 112 m køretøjsgenkendelse, 19 m menneskegenkendelse, 56 m køretøjsgenkendelse
Miljømæssige parametre (operativ)
-40 °C - 65 °C; 0 - 95% relativ luftfugtighed
Specifications

Full specifications

General
Audio Formats
PCM, G.726, G.722.1, MP2L2, G.711a, G.711u
Audio Support
Yes
Connectivity Technology
Wired
Depth
10.61 cm
Device Type
Thermal / network surveillance camera
Form Factor
Bullet
Height
10.7 cm
Weight
1.55 kg
Width
32.13 cm
Camera
Digital Video Capture Resolution
1280 x 720, 352 x 240, 352 x 288, 704 x 576, 704 x 480, 1920 x 1080, 2688 x 1520, 1280 x 720 (thermal), 704 x 576 (thermal), 320 x 240 (thermal), 640 x 512 (thermal)
Digital Video Format
MJPEG, H.264, H.265
Digital Zoom
4
Exposure Range
1 sec - 1/100000 sec
Features
E-mail alerts, Wide Dynamic Range (WDR), NAS-Ready, surge protection, notification picture to FTP, password protection, lightning-resistant, intrusion detection, audible alerts, ONVIF (Profile S) support, ONVIF (Profile G) support, Digital Detail Enh
Frame Rate (max)
30 frames per second
Infrared Distance
30 m
Infrared LEDs
Yes
Max Digital Video Resolution
2688 x 1520 (optical) / 256 x 192 (thermal)
Minimum Illumination
0.0176 lux - color - F2.25 - AGC on | 0.0035 lux - B&amp;W - F2.25 - AGC on
Motion Detection
Yes
Type
Color - Day&amp;Night - fixed
Video Modes
720p, 1080p
Image Sensor
Type
Uncooled VOx FPA / PS CMOS 1/2.7" (optical)
Lens Construction
Focal Length
4.3 mm
Horizontal Field of View (degree)
84
Lens Iris
F/1.6 (optical) / f/1.0 (thermal)
Type
Fixed focal
Vertical Field of View (degree)
43.1
Interfaces
Alarm Inputs Qty
2
Alarm Outputs Qty
2
Control Interface
RS-485
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, IGMP, QOS, CIFS, SRTP, EAP, SFTP, NFS, ISAPI
Expansion / Connectivity
Ports
LAN/power - RJ-45 | Audio line-in/microphone - 3.5 mm jack | Audio line out | Serial RS-485
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Compliant Standards
IP67, IEEE 802.3af
Power
Power Device
6.5 Watt
Power Requirements
DC 12 V / PoE Class 3
Environmental Parameters
Max Operating Temperature
65 °C
Min Operating Temperature
-40 °C
Relative Humidity (operating)
0 - 95%
