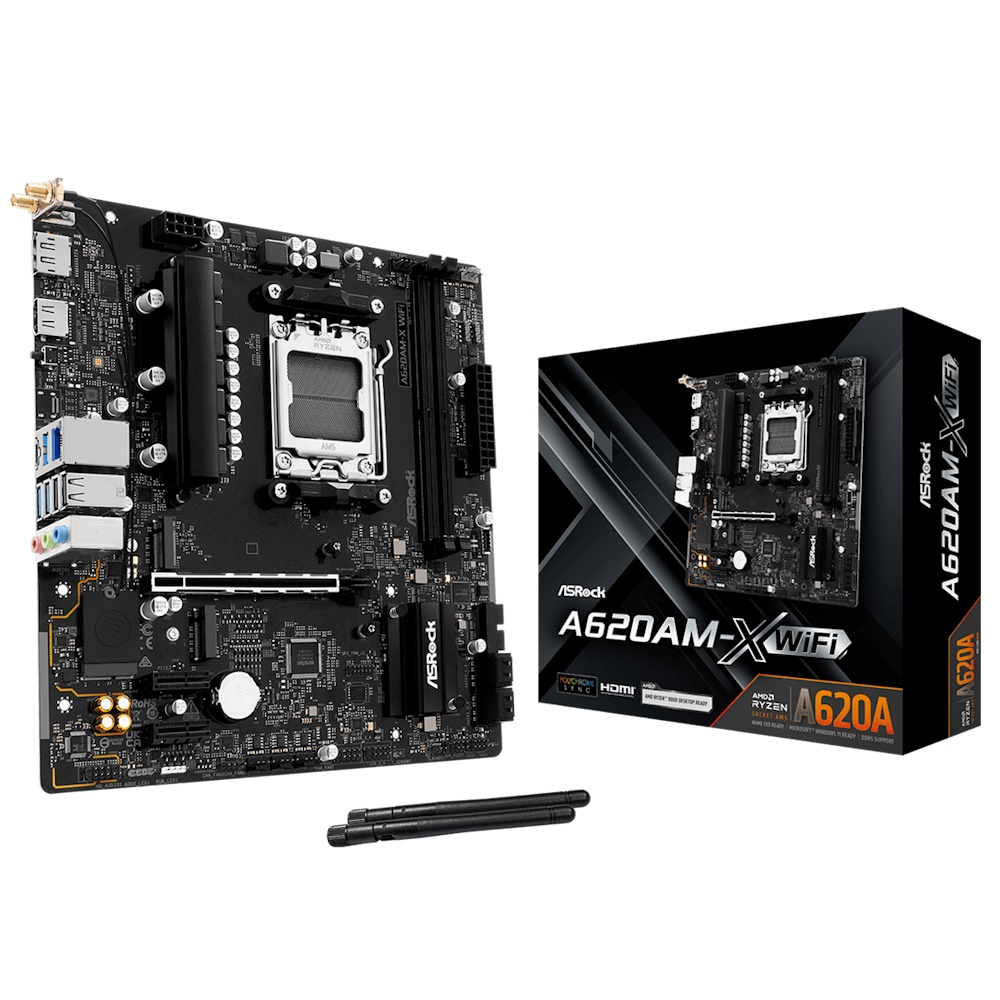

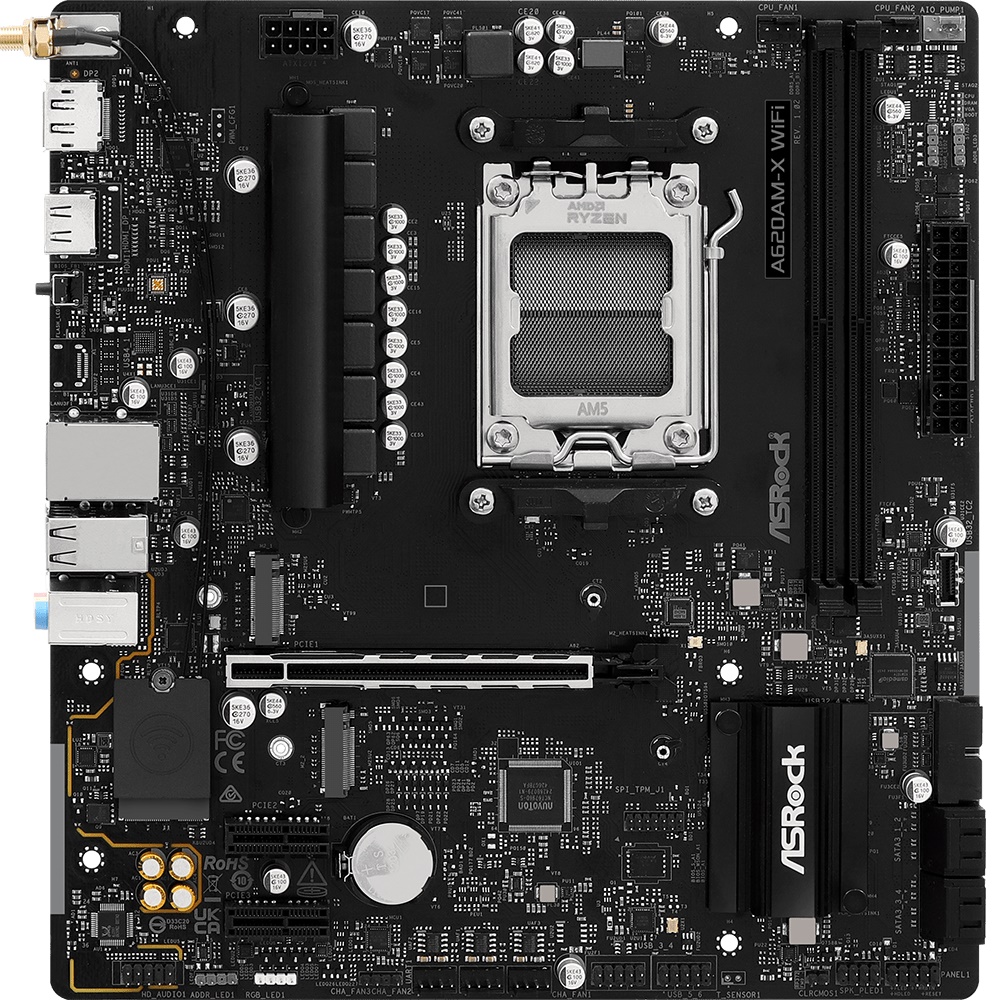

Asrock A620AM-X WiFi mATX AM5

Asrock A620AM-X WiFi - mATX - Socket AM5 - 2x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG - WiFi 5

  • Product no 1003541504

    Model 90-MXBSU0-A0UAYZ

    Brand
    Go to brand's website

    EAN 4711581490826

    Weight 1.09 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Power Phase 6+1+1
CPU Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset AMD A620A
Memory 2x DDR5 DIMM Slots, Dual Channel DDR5
Memory Support Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC), Max 128GB
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Display output 1x HDMI 2.1, 1x DisplayPort 1.4 with DSC support
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN Dragon RTL8125BG, 2.5 Gigabit LAN
Wireless LAN 802.11ac Wi-Fi Module
Slots 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 2x PCIe 3.0 x1 Slot, 1x M.2 Socket (Key E) for WiFi module
Storage 2x Hyper M.2 Socket 2260/2280 PCIe Gen4x4 (64 Gb/s), 4x SATA3 6.0 Gb/s
USB 1x USB 3.2 Gen1 Type-A (Rear (USB32_3)), 2x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 4x USB 3.2 Gen1 Type-A (2 Rear (USB32_1 and USB32_2), 2 Front), 6x USB 2.0 (2 Rear, 4 Front)

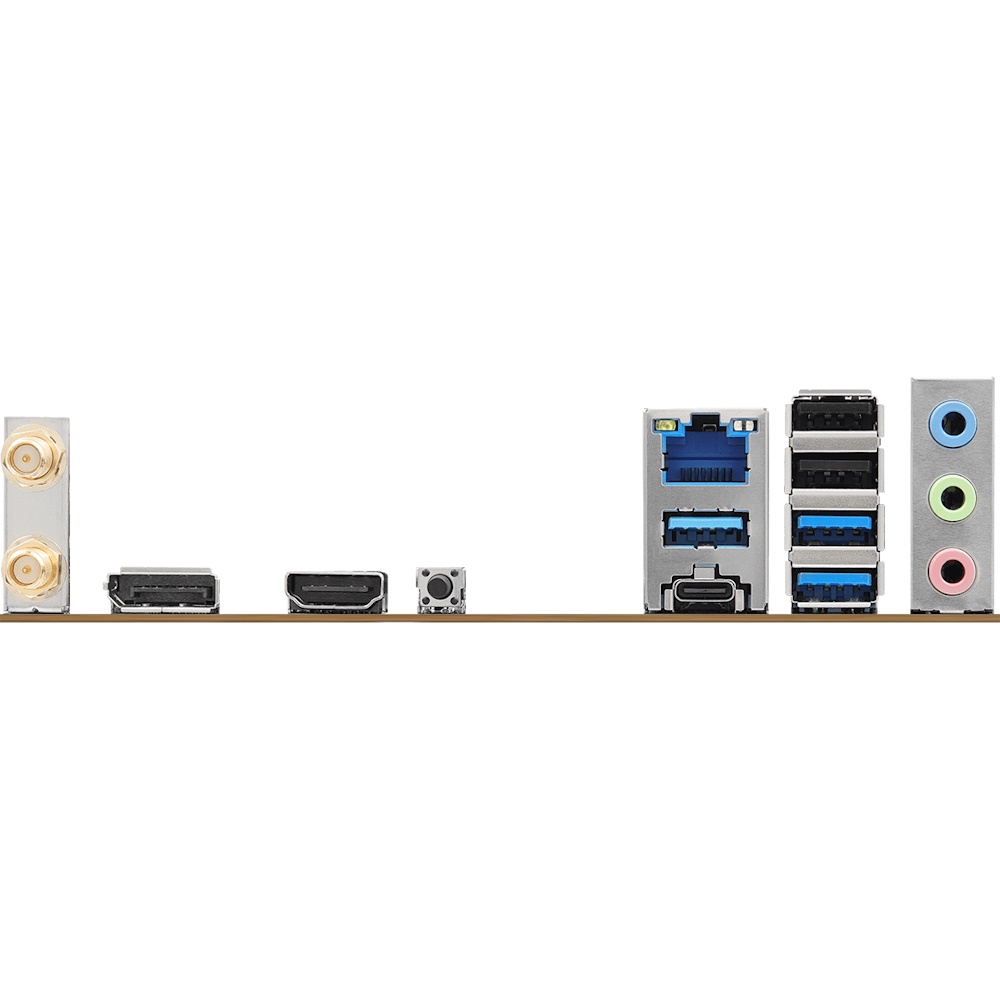

Rear Panel I/O 2x Antenna Ports, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen1 Type-C Port, 3x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories 1x I/O Shield, 2x SATA Data Cables, 2x ASRock WiFi 2.4/5 GHz Antennas
Form Factor Micro ATX Form Factor (24.4 cm x 22.6 cm)
