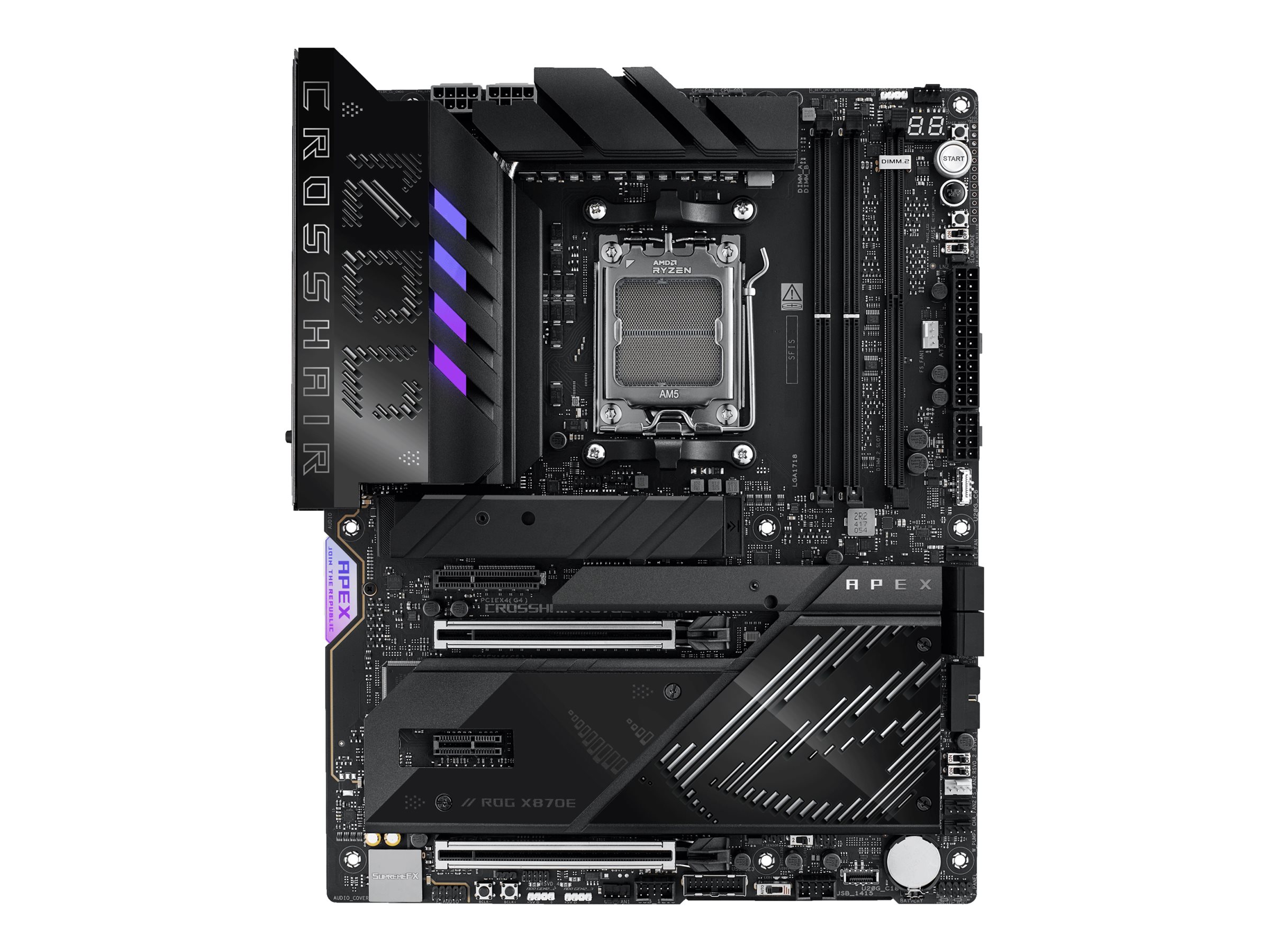

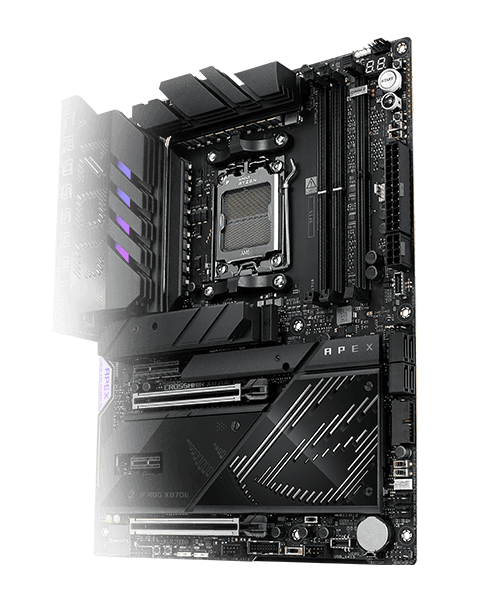

ASUS ROG CROSSHAIR X870E APEX ATX Socket AM5 AMD X870E
ASUS ROG CROSSHAIR X870E APEX - Bundkort - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 1003491899
Model ROG CROSSHAIR X870E
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711387890240
Weight 4.16 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS ROG CROSSHAIR X870E APEX - bundkort - ATX - Socket AM5 - AMD X870E |
| Produkttype | Bundkort - ATX |
| Chipsættype | AMD X870E |
| Processor-socket | 1 x Socket AM5 |
| Kompatible processorer | (understøtter Ryzen 7000/8000/9000 Serien) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 2 DIMM slots - DDR5, ikke-ECC, ECC, on-die ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 5 x M.2 |
| USB / FireWire porte | 2 x USB4 + 1 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
.png)
The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen™ performance enthusiasts.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)

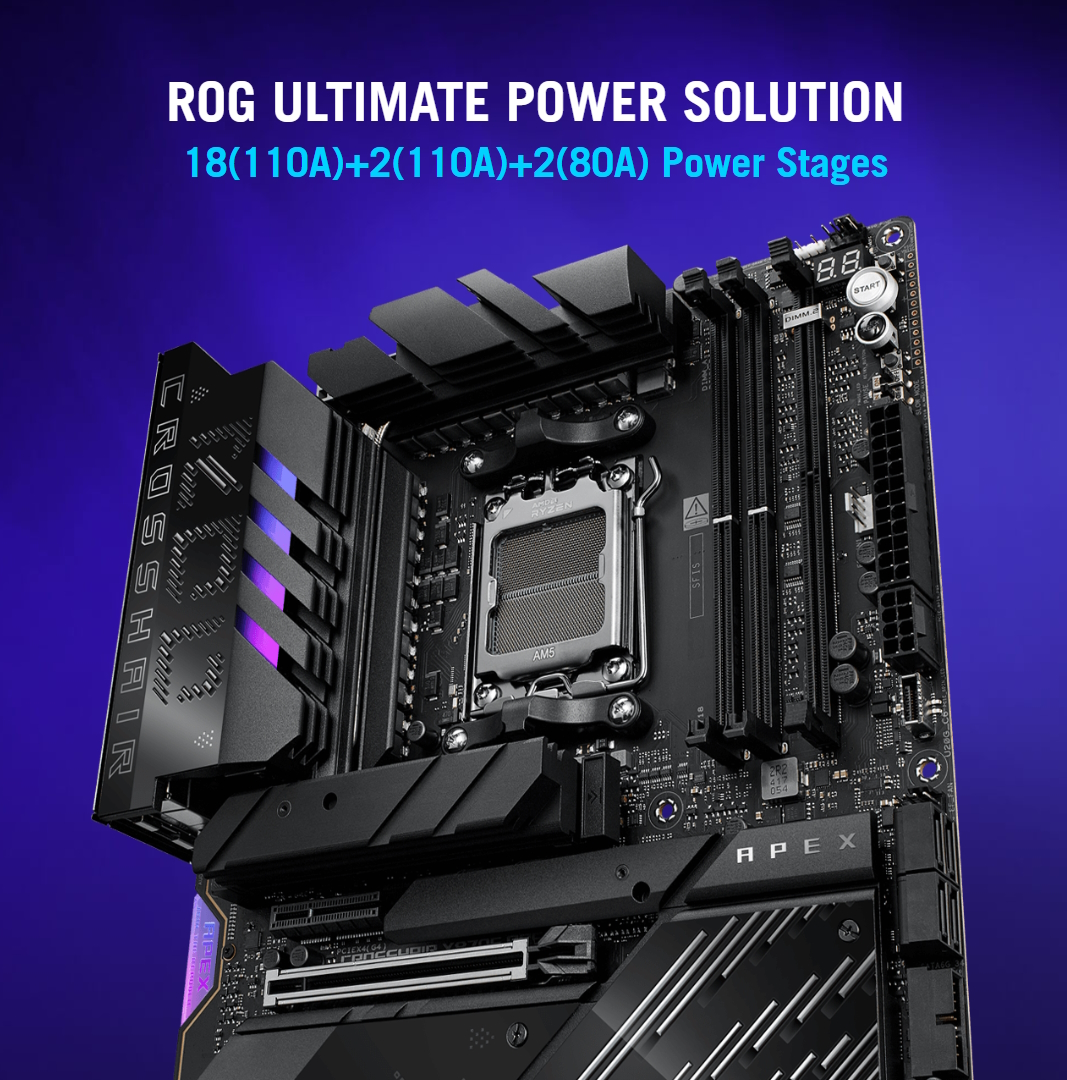

Teamed Power Solution
Overclocking
Effortless performance boostAI Networking II
AI Cooling II
One-click fan tuning
DDR5
Max. 192 GB, AEMPROG Memory Fan Kit
Extensive Gen 5
x3 onboard M.2 slots,and x2 PCIe 5.0 x16 slots
ROG DIMM.2
WI-FI 7
EZ PC DIY
USB4®

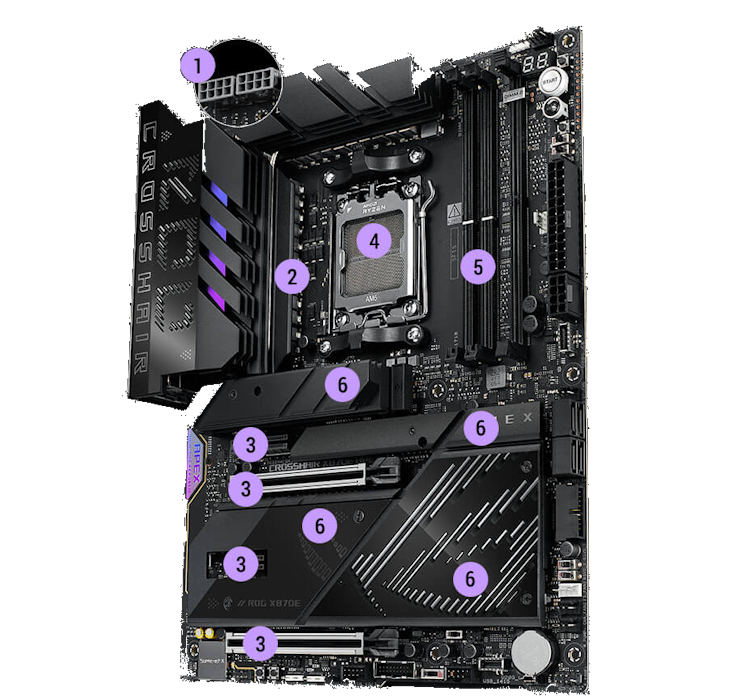

PERFORMANCE
EXTREME POWER & PERFORMANCE
- 2 x PCIe® 5.0 x16 Slots
- 1 x PCIe® 4.0 x4 Slot
- 1 x PCIe® 3.0 x1 Slot
For AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Max. 128 GB
- Dual Channel
- 3 x M.2 2280 (PCIe® 5.0 x4)
- 2 x M.2 22110 (PCIe® 4.0 x4) (via ROG DIMM.2 Card)
COOLING
COMPREHENSIVE COOLING
With backplates and thermal pads
ROG DIMM.2 CARD HEATSINK

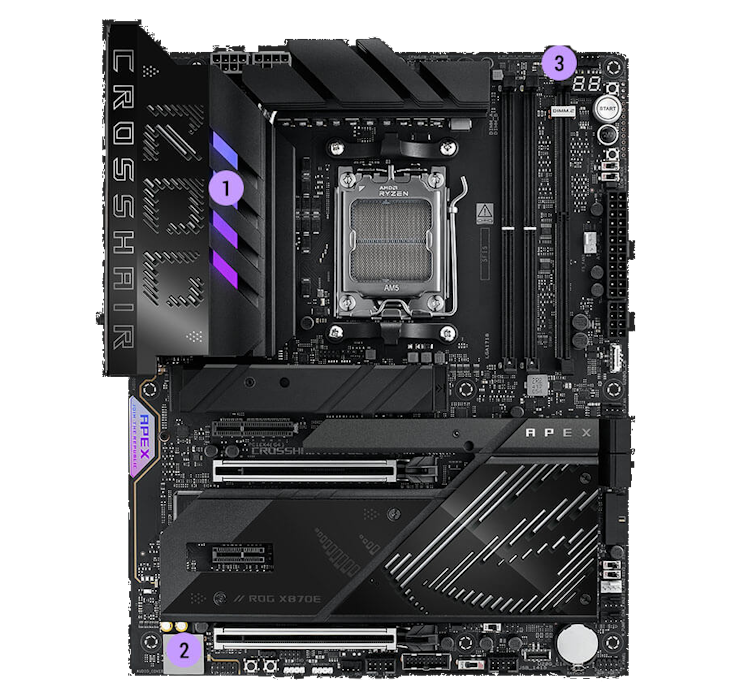

GAMING IMMERSION
TOTAL GAMING IMMERSION
- Savitech SV3H712 AMP
- 20 dB SNR stereo playback output
- 110 dB SNR recording input
- Gold-plated audio jacks

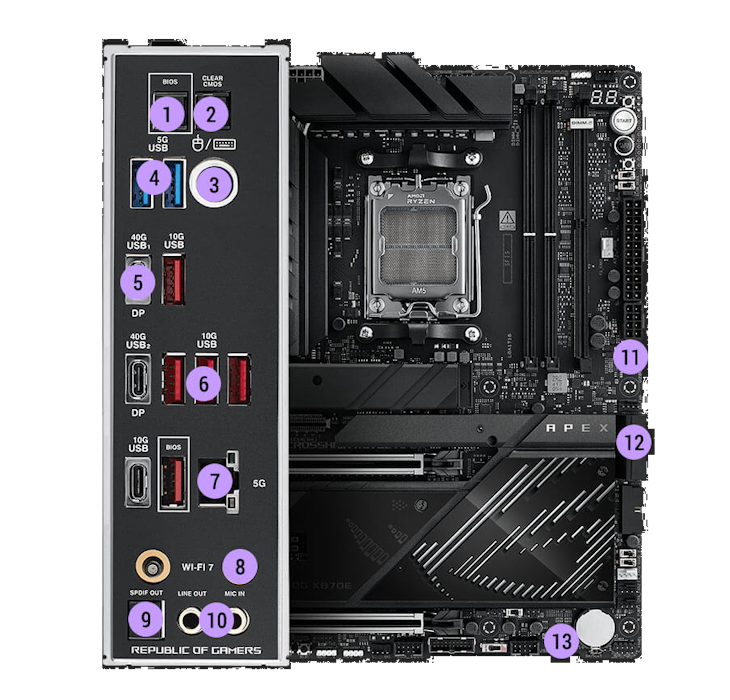

CONNECTIVITY
FULL CONNECTIVITY
(2 x Type-A)
(1 x USB Type-C® +5 x Type-A)
USB Type-C® front panel connector supports QC4+
USB Type-C® front panel connector
ASUS AI INTELLIGENCE

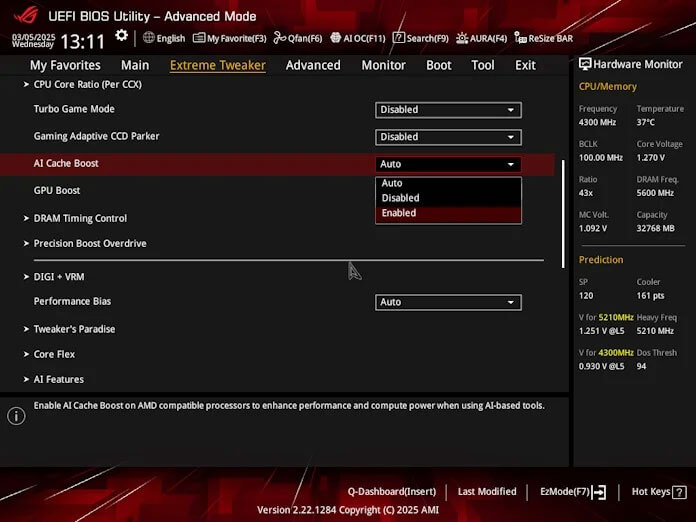

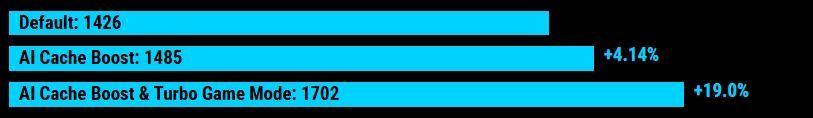

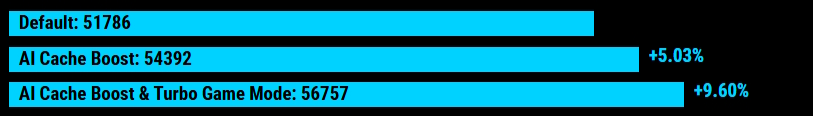

ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.AMD RYZEN 9 9950X3D - RTX 5090 - ROG CROSSHAIR X870E HERO
Geekbench AI
(Higher is better)
UL Procyon - AI Computer Vision Benchmark
(Higher is better)

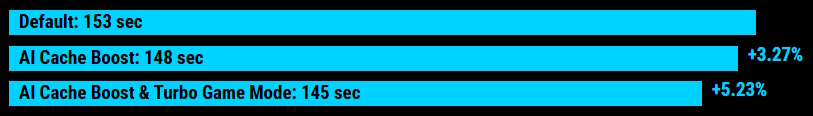

Topaz Video AI
(Lower is better)
AMD RYZEN 7 9800X3D - RTX 4090 - ROG CROSSHAIR X870E HERO
UL Procyon - AI Computer Vision Benchmark
(Higher is better)
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.* Availability of ASUS AI Advisor may vary by region.
ASUS AI ADVISOR
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.* Availability of ASUS AI Advisor may vary by region.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before..gif)
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

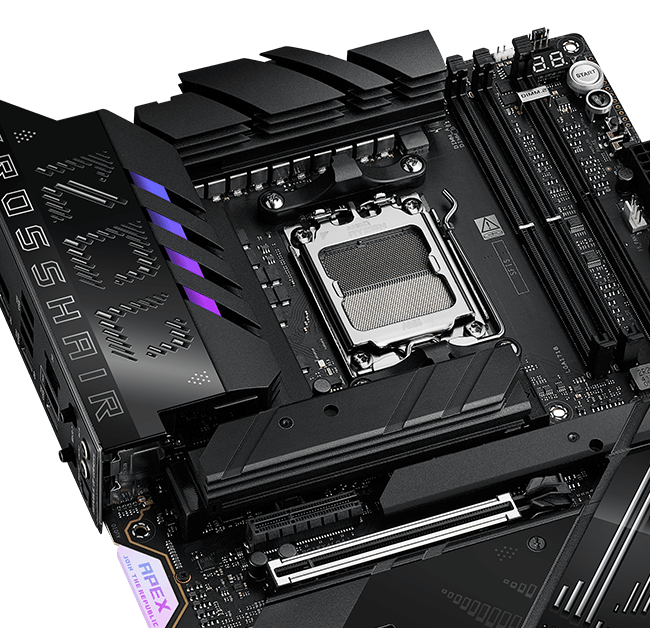

AI COOLING II
Balance the thermals and acoustics of any build with a single click..jpg)
A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of Wi-Fi 7*.*Features may vary by model.
.gif)
TRAFFIC MONITOR
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.*The "Channel Switch" function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the "Router IP" section of the Traffic Monitor.
.gif)
FAST CHECK
Armoury Crate’s Fast Check empowers users to rapidly detect Wi-Fi signal strength..gif)
DIRECTION FINDER
Armoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for achieving the best Wi-Fi signal strength.*The Direction Finder is only compatible with connections in the 5 GHz and 6 GHz bands
.jpg)

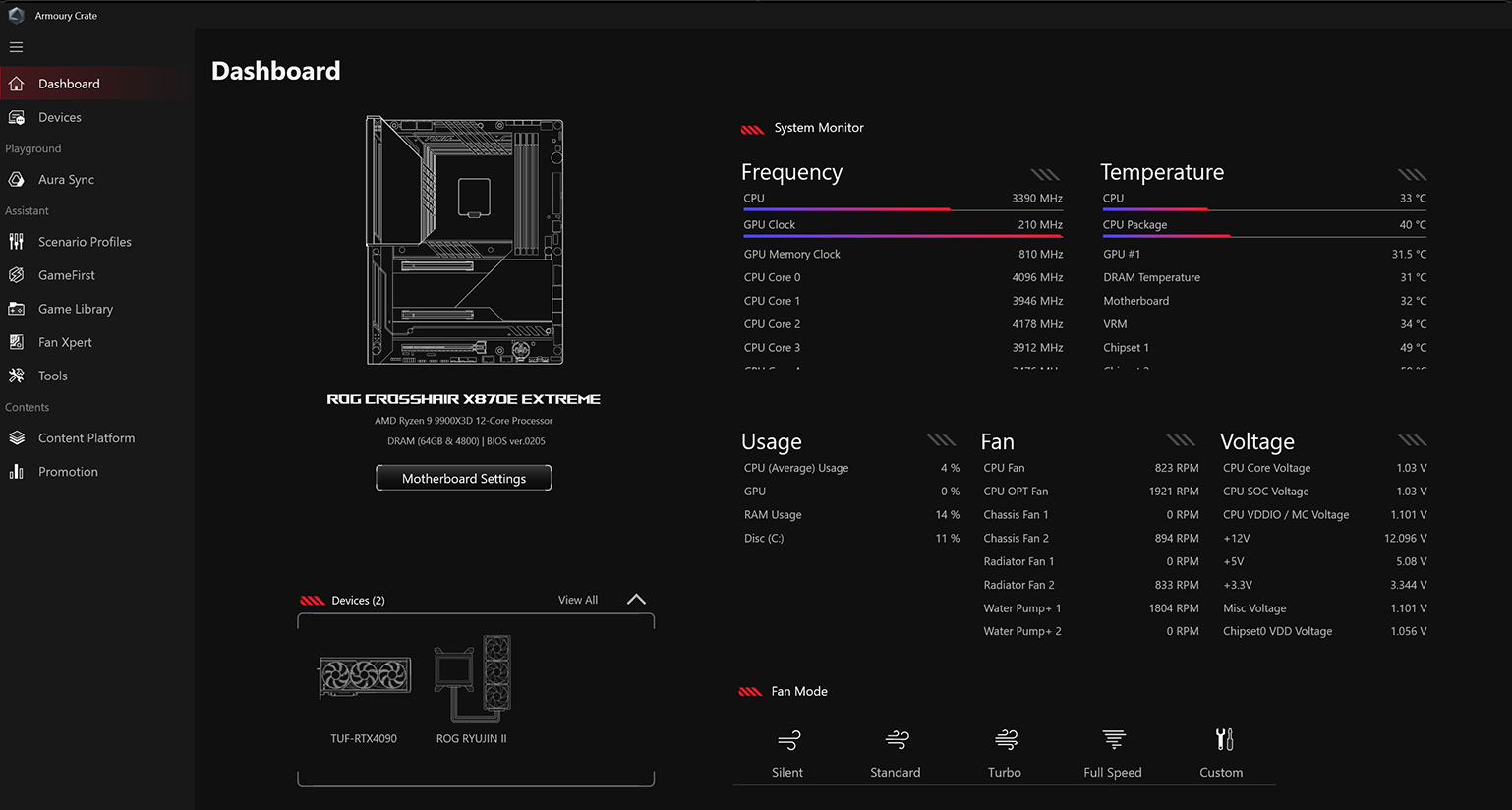

GAMEFIRST
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.Performance
OVERCLOCKING
.png)
DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.Example:
If a user sets thresholds for current and temperature as shown, once CPU current exceeds 35A, the manual overclock engages until the temperature reaches 80°. At all other times, Precision Boost Overdrive will be used.
.png)
CORE FLEX
In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.EXAMPLE:
.jpg)

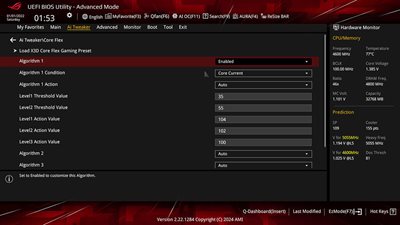

BASE CLOCK
For this CPU, the base clock (BCLK) can be stably increased to give an extra boost during lightly threaded workloads.At Level 1, the BCLK is set to 104, and it remains at that frequency until the current reaches 35A.
Then the BCLK drops down to 102, and stays in that Level 2 range up until 55A.
From that point on, the CPU is using most or all of its threads, so the BCLK scales back to the default 100.
.jpg)

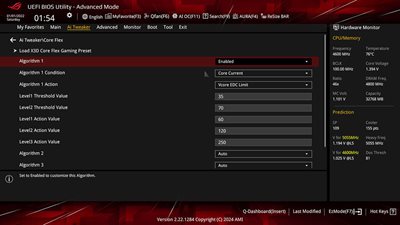

EDC
By managing the Electrical Design Current (EDC) in tandem with the total current, this CPU can gain extra performance for short, demanding bursts.During lightly threaded workloads, below 35A, the Level 1 EDC is set to a low value, in this case 60.
As more cores are needed, the EDC is set to 120, which was found by this user to be a sweet spot for performance.
Once the CPU passes 70A, it is in multi-threaded territory, where it was found that a high EDC of 250 gave optimal performance.
.jpg)

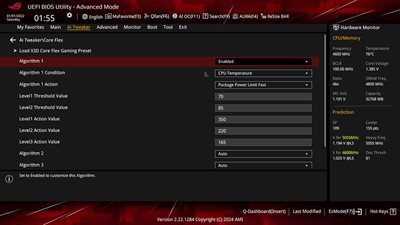

PPT
In order to let the CPU cool off if its temperatures go too high, this user constrains the Package Power Target (PPT) when thermals increase. Specifically the short-term value (“Fast”) is used.Until the CPU reaches 70°, it can run at full performance, so 350 W is set to give plenty of overhead.
At that point, the power limit reduces to 220 W, to let the CPU start reducing heat.
If it is still under sustained load and keeps getting hotter, then a more stringent 165 W PPT is set at 85°.

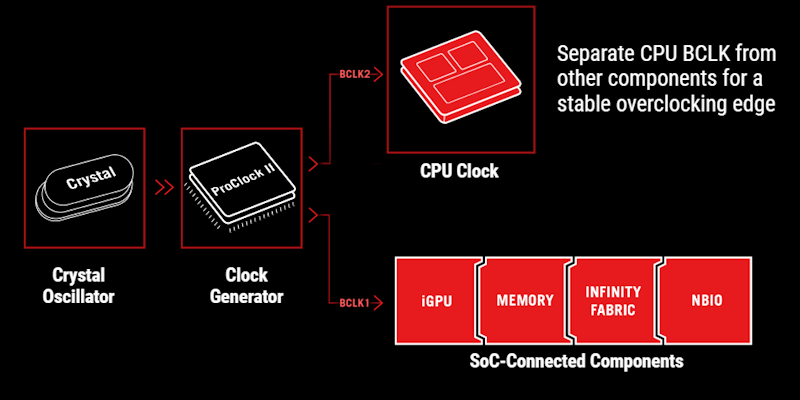

ASYNCHRONOUS CLOCK
For next-level frequency flexibility, the ROG Crosshair X870E Apex features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.

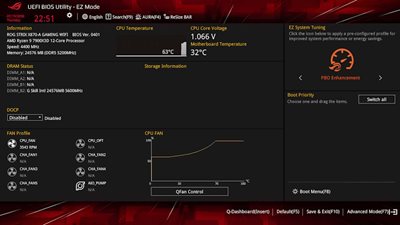

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
.jpg)
By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
OVERCLOCKER'S TOOLKIT
The ROG Overclocker’s Tooklit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
SAFE BOOT BUTTON
Instantly reset the PC and boot directly into Safe mode.
BCLK BUTTONS
Adjust the BCLK frequency to improve system performance.
PROBEIT
Includes eighteen integrated measurement points for advanced tuning.
RETRY BUTTON
Instantly initiates a hard reset with just a press.
RSVD SWITCH
Helps the system boot under extreme temperatures (≤ -120°C).
LN2 MODE
Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
BIOS SWITCH
Switches between BIOS 1 and 2.
SLOW MODE SWITCH
Reduces the CPU ratio to 8X to keep the system stable during setup for extreme overclocking.
Performance

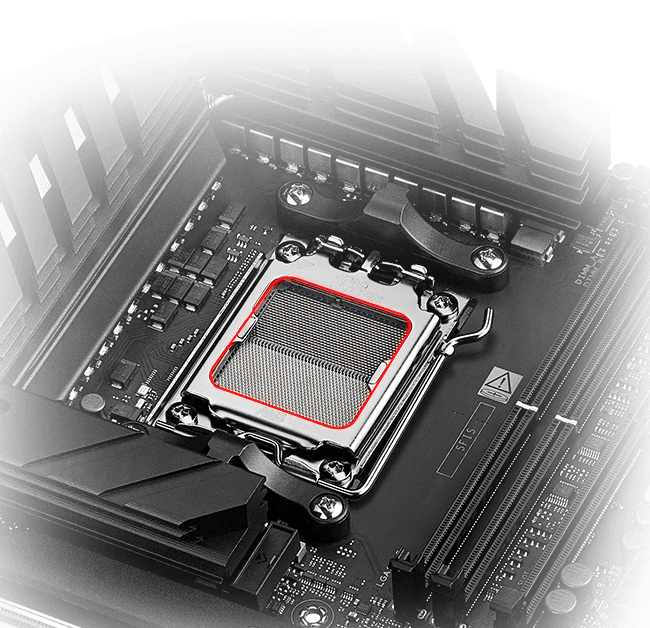

MEMORY
DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven beyond the 9 GT/s mark on the ROG Crosshair X870E Apex*.*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
.png)

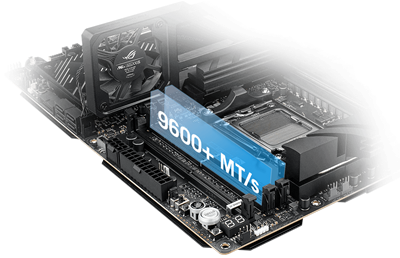

DDR5 STRENGTH
For those who want to fly past stock DDR5 speeds, the ROG Crosshair X870E Apex is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.The ROG Crosshair X870E Apex is also equipped with the ROG Memory Fan Kit – a cooling solution to solidify DDR5 stability and unleash memory overclocking. With the ROG Memory Fan Kit, your DDR5 modules can push the boundaries and reach overclocking speeds of 9000+ MT/s. Experience superior cooling performance and unlock the full potential of your memory with ease.
*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
.jpg)

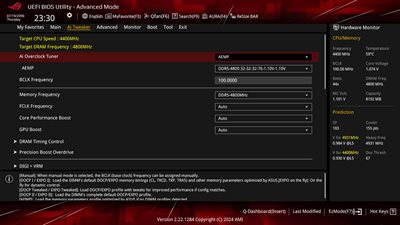

AEMP
AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.POWER SOLUTION

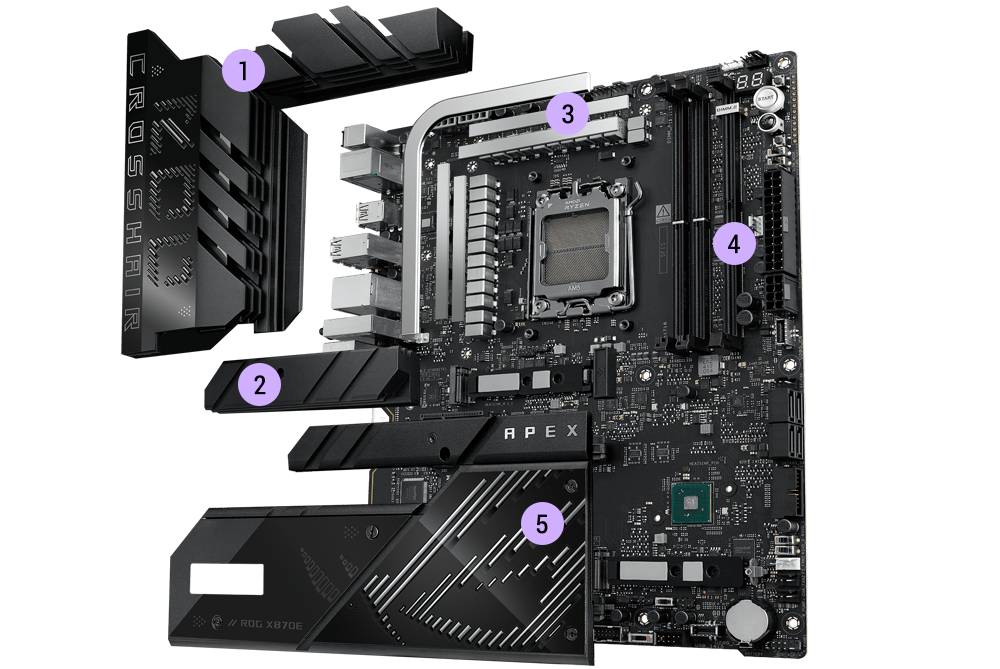

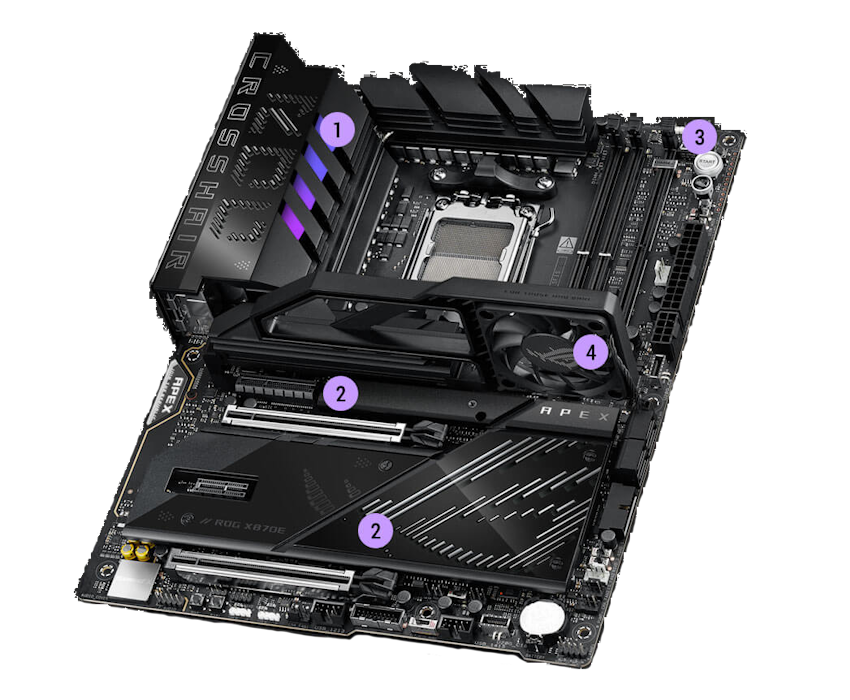

COOLING
VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation.
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and three onboard M.2 slots have dedicated backplates for additional heat dissipation.
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
Two additional M.2 slots are kept cool with the DIMM.2 card's hefty heatsinks.
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

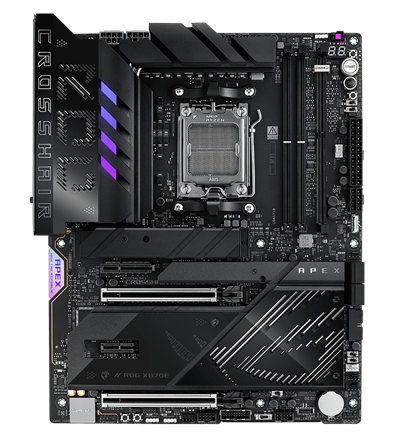

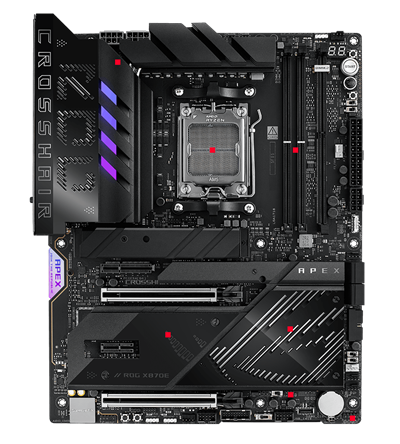

THERMAL MANAGEMENT
An extensive array of headers allows for precise cooling control and monitoring.
.png)
MULTIPLE TEMPERATURE SOURCES
Each header can be set to monitor and react to user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
.png)
4-PIN FAN HEADERS
Every onboard header supports auto-detection of DC or PWM fans.
.png)
AIO PUMP HEADER
A dedicated PWM/DC header for self-contained water-cooling setup.
.png)

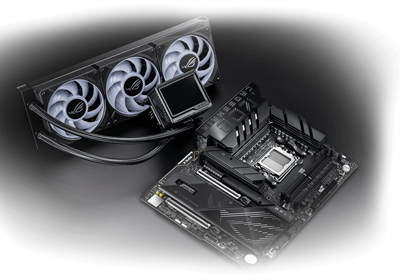

COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.CONNECTIVITY
.png)

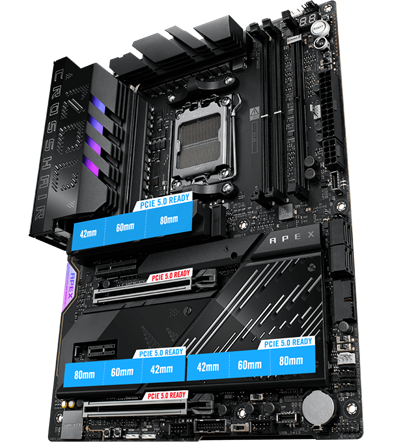

THREE ONBOARD M.2 SLOTS
The ROG Crosshair X870E Apex features three onboard PCIe 5.0 M.2 slots, which offer blistering 16 GB/s speeds.EXPANSION SLOTS
Both x16 expansion slots offer PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe Slot Q-Release Slim..png)

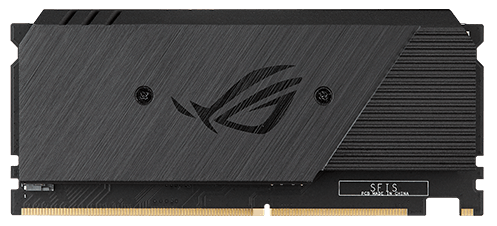

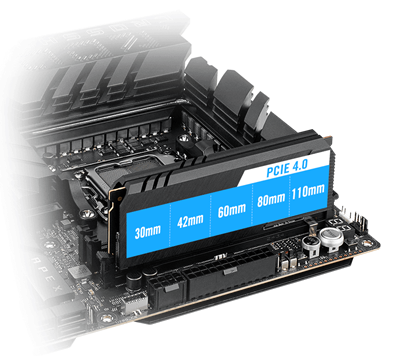

ROG DIMM.2 CARD
The ROG DIMM.2 card allows you to easily mount two M.2 drives next to the memory slots, where its large heatsinks benefit directly from chassis airflow for prime cooling performance..png)

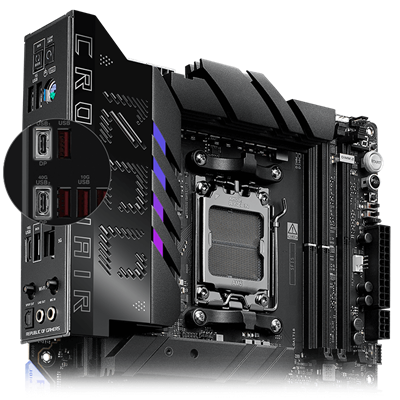

TWO USB4® TYPE-C® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays..png)

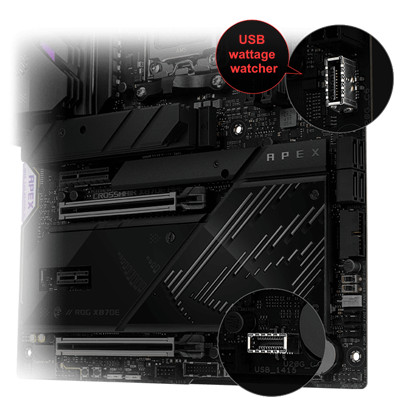

TWO USB 20 Gbps TYPE-C FRONT-PANEL CONNECTORS
One of which features Quick Charge 4+ technology that can rapidly charge devices up to 60 W*.* Requires a PCIe® power supply cable to be plugged into the nearby 8-pin connector.

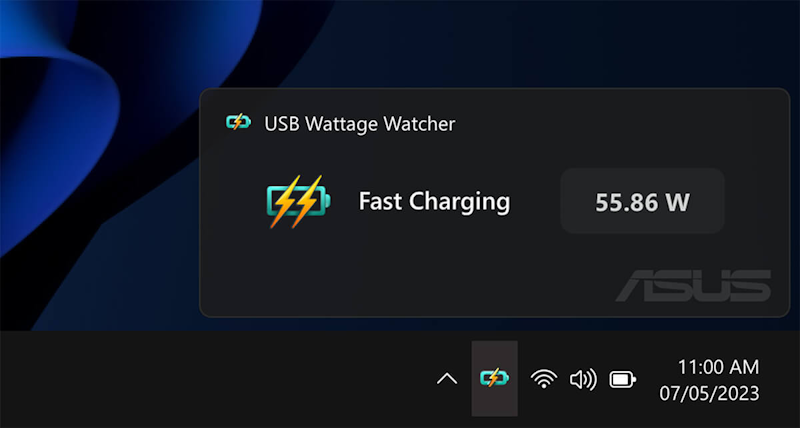

USB WATTAGE WATCHER
USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 20 Gbps Type-C® front-panel connector. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device’s Fast-Charging status.
WI-FI7
320
MHz
MHz
6 GHz
band
band
4096
QAM
QAM
up to 4,8X
ultra-fast Wi-Fi speeds
ultra-fast Wi-Fi speeds
5 GB ETHERNET
WI-FI 7
The revolutionary Wi-Fi 7 is up to 4.8X times faster than standard Wi-Fi 6*, thanks to tech like 320 MHz channels** on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable Wi-Fi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.*Wi-Fi 7 features require onboard Wi-Fi chipset, Wi-Fi AP, and Wi-Fi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
**Specifications vary by model.
5 GB ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet..jpg)

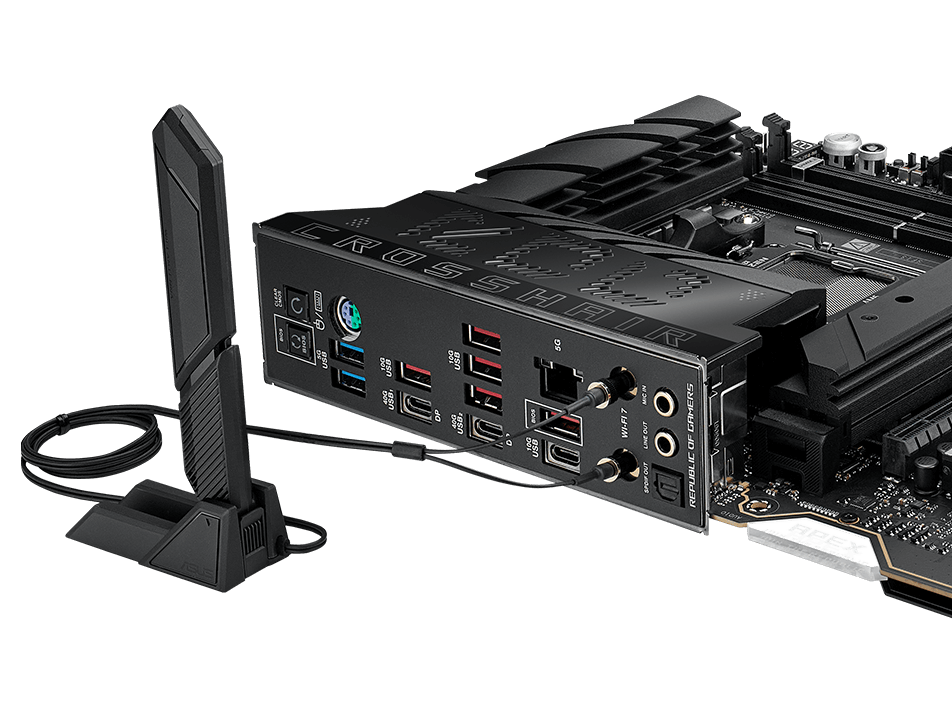

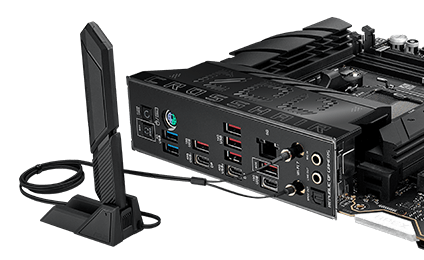

ASUS WI-FI Q-ANTENNA
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.Wireless Signal Reception Improvement
Versus previous-generation antenna
Up to +6%
6 GHz
6 GHz
Up to +18%
5/2.4 GHz
5/2.4 GHz

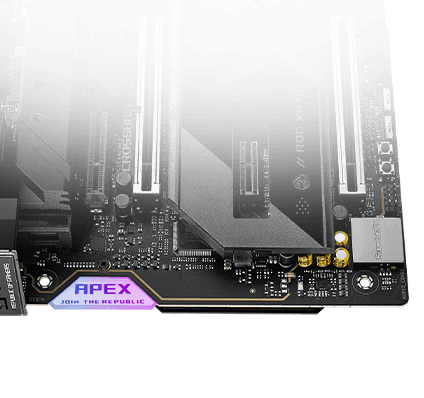

GAMING AUDIO
ROG SupremeFXDolby Atmos
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Crosshair X870E Apex's SupremeFX implementation features the ALC4080 codec with up to 32-bit/384 kHz playback. The front-panel output is streamed through a highly integrated Savitech amplifier that is capable of driving a wide variety of gaming headsets and high-fidelity headphones.
.png)

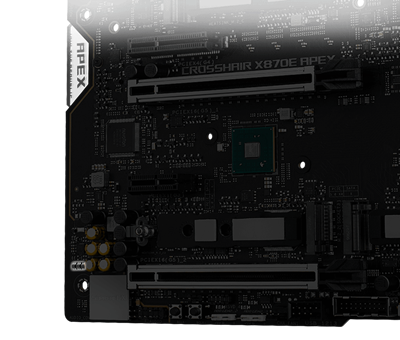

SWITCHING MOSFETS
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
.png)

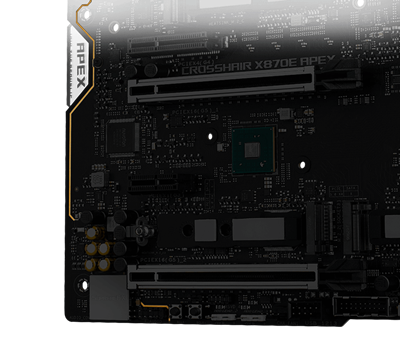

AUDIO LINE SHIELDING
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
.png)

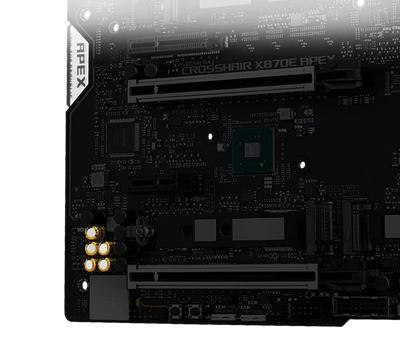

CAPACITORS
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity.
.png)

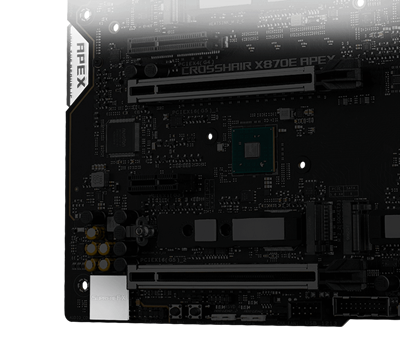

ALC4080 CODEC
Instead of the conventional high-definition audio (HDA) interface, the ALC4080 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution.
.png)

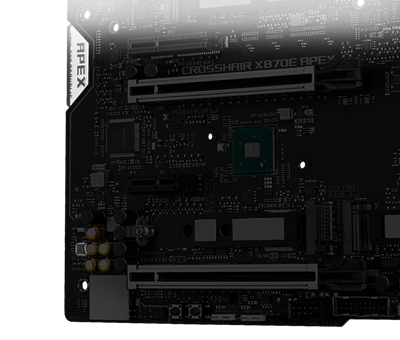

SAVITECH SV3H712 AMPLIFIER
The integrated Hi-Fi Savitech amplifier holds up its end of the signal path with -89 dB THD+N and a signal-to-noise ratio of 114 dB, bringing pristine audio to gaming headsets and premium cans.
.jpg)
0:09DOLBY ATMOS
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.EZ PC DIY

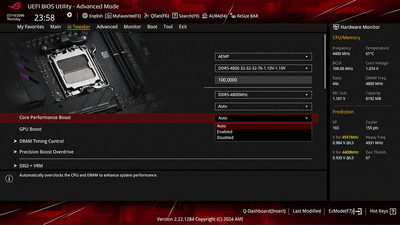

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
.jpg)
My Favorites
Quickly locate tuning options and add preferred tools to your favorites list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Quickly locate tuning options and add preferred tools to your favorites list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
SOFTWARE
ASUS DRIVERHUB
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
ASUS GLIDEX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or Wi-Fi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.Mirror
Extend
(PC to Mobile)
Extend
(PC to PC)
Unify Control
HWINFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
AIDA64 EXTREME
The ROG Crosshair X870E Apex includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin III and later models.
*Support available for ROG Ryujin III and later models.
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
PERSONALIZATION

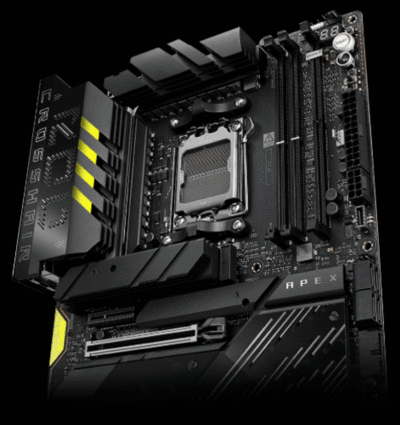

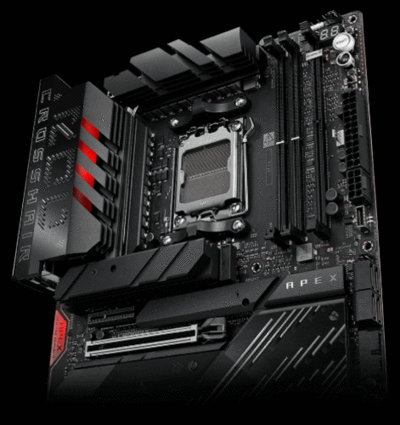

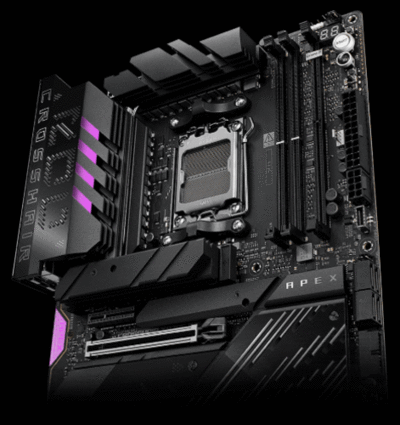

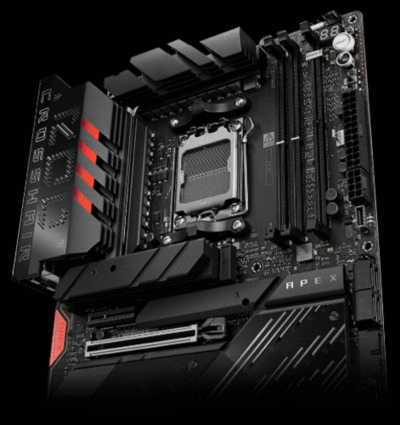

GLOW YOUR GAMING WORLD WITH AURA SYNC
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look..jpg)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.jpg)

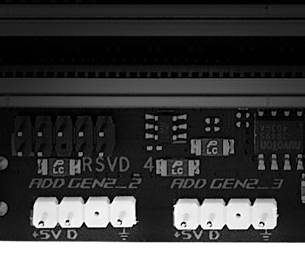

ADDRESSABLE GEN 2 RGB HEADERS
The addressable Gen 2 RGB headers can be controlled with Aura software, which automatically tailors your preferred lighting effects to the number of LEDs present in the connected gear or strip. The new headers also offer backward-compatibility with existing Aura RGB components.
Dare to Be Green
ROG at the Republic of Gamers is on a mission to create a sustainable future where all gamers can flourish on the planet everyone call home.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
1. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.
© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.
© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.
- The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- Wi-Fi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz Wi-Fi.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
About ASUS
ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2022 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2022 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
