Produktbeskrivelse
|
Gigabyte P850GM - strømforsyning - 850 watt
|
|
Enhedstype
|
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
|
|
Specifikationsoverensstemmelse
|
ATX12V 2.31
|
|
80 PLUS certificering
|
80 PLUS Gold
|
|
Indgangspænding
|
AC 100-240 V
|
|
Udgangspænding
|
+3.3, +5, ±12 V
|
|
Strømkapacitet
|
850 watt
|
|
Output Current
|
+3.3V - 20 A<br>+5V - 20 A<br>+12V - 70.8 A<br>-12V - 0.3 A<br>+5VSB - 3 A
|
|
Output-stikforbindelser
|
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>8 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
|
|
Modulær Kabel Administration
|
Ja
|
|
Kølesystem
|
120 mm ventilator
|
|
Dimensioner (B x D x H)
|
15 cm x 14 cm x 8.6 cm
|
|
Producentgaranti
|
5 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

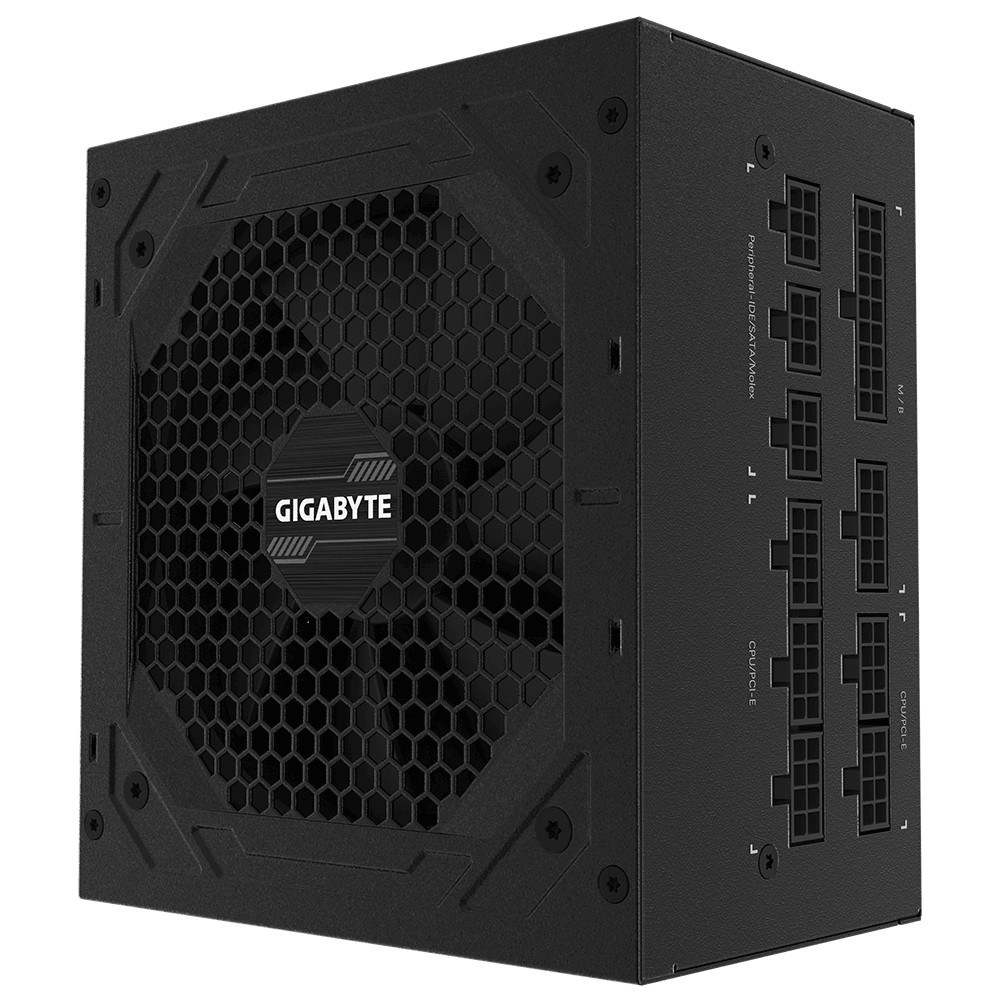

Gigabyte P850GM 850Watt 80 PLUS Gold
Gigabyte P850GM - Strømforsyning (intern) - ATX12V 2.31 - 80 PLUS Gold - AC 100-240 V - 850 watt - aktiv PFC
Product no:
996691602
Model:
GP-P850GM
EAN:
4719331551865
Brand:
Weight:
2.5 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Power supply - active Power Factor Correction (PFC) - internal
|
|
PSU Form Factor
|
ATX
|
|
Specification Compliance
|
ATX12V 2.31
|
|
Power Device
|
|
|
80 PLUS Certification
|
80 PLUS Gold
|
|
Efficiency
|
90%
|
|
Frequency Required
|
50 - 60 Hz
|
|
Input Voltage
|
AC 100-240 V
|
|
Modular Cable Management
|
Yes
|
|
Output Current
|
+3.3V - 20 A | +5V - 20 A | +12V - 70.8 A | -12V - 0.3 A | +5VSB - 3 A
|
|
Output Voltage
|
+3.3, +5, ±12 V
|
|
Power Capacity
|
850 Watt
|
|
Power Factor (PF)
|
0.9
|
|
Power Output Connectors Details
|
1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 8 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x 4 pin mini-pow
|
|
Miscellaneous
|
|
|
Compliant Standards
|
CCC, FCC, RoHS, TUV SUD, EAC, cRUus
|
|
Cooling System
|
120 mm fan
|
|
Features
|
Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, fully modular
|
|
MTBF
|
100,000 hours
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 5 years
|
|
Dimensions & Weight
|
|
|
Depth
|
14 cm
|
|
Height
|
8.6 cm
|
|
Width
|
15 cm
|
