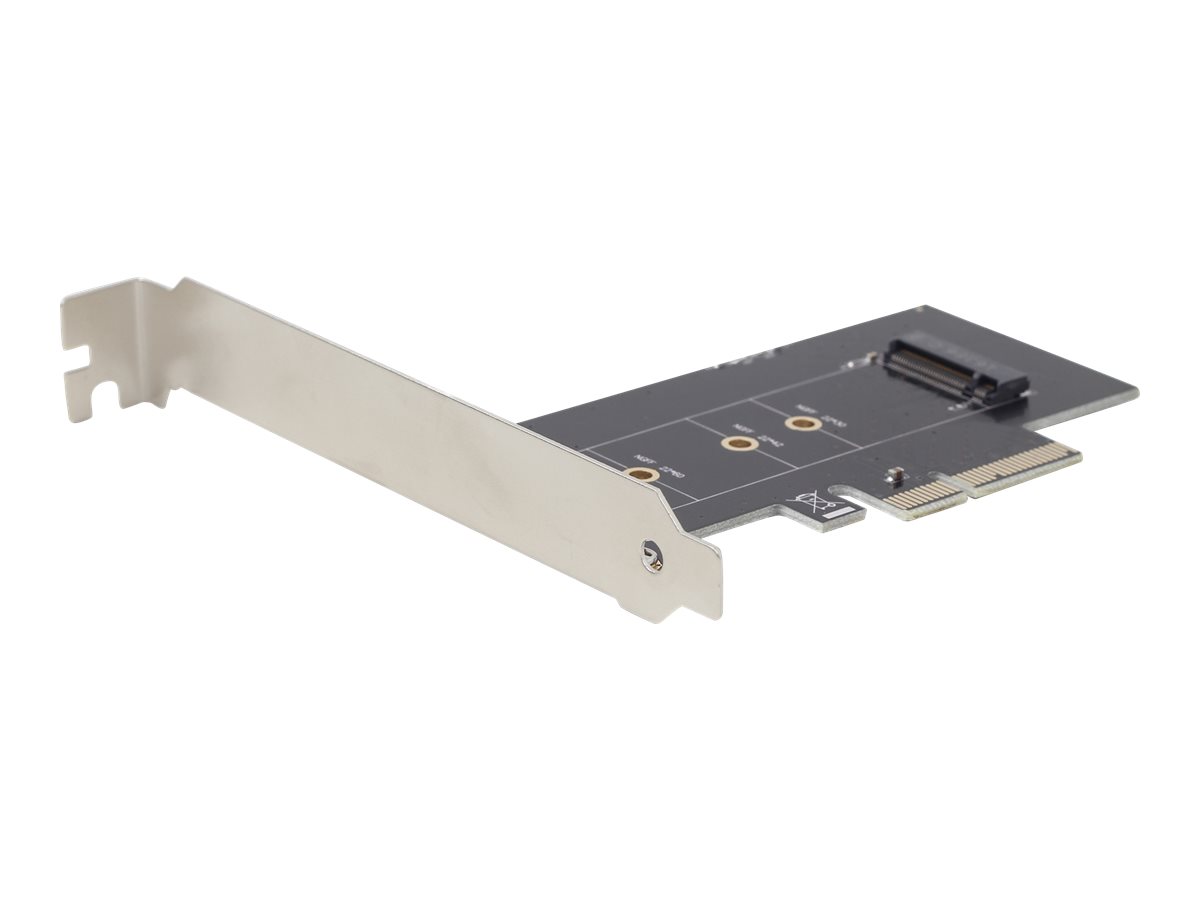

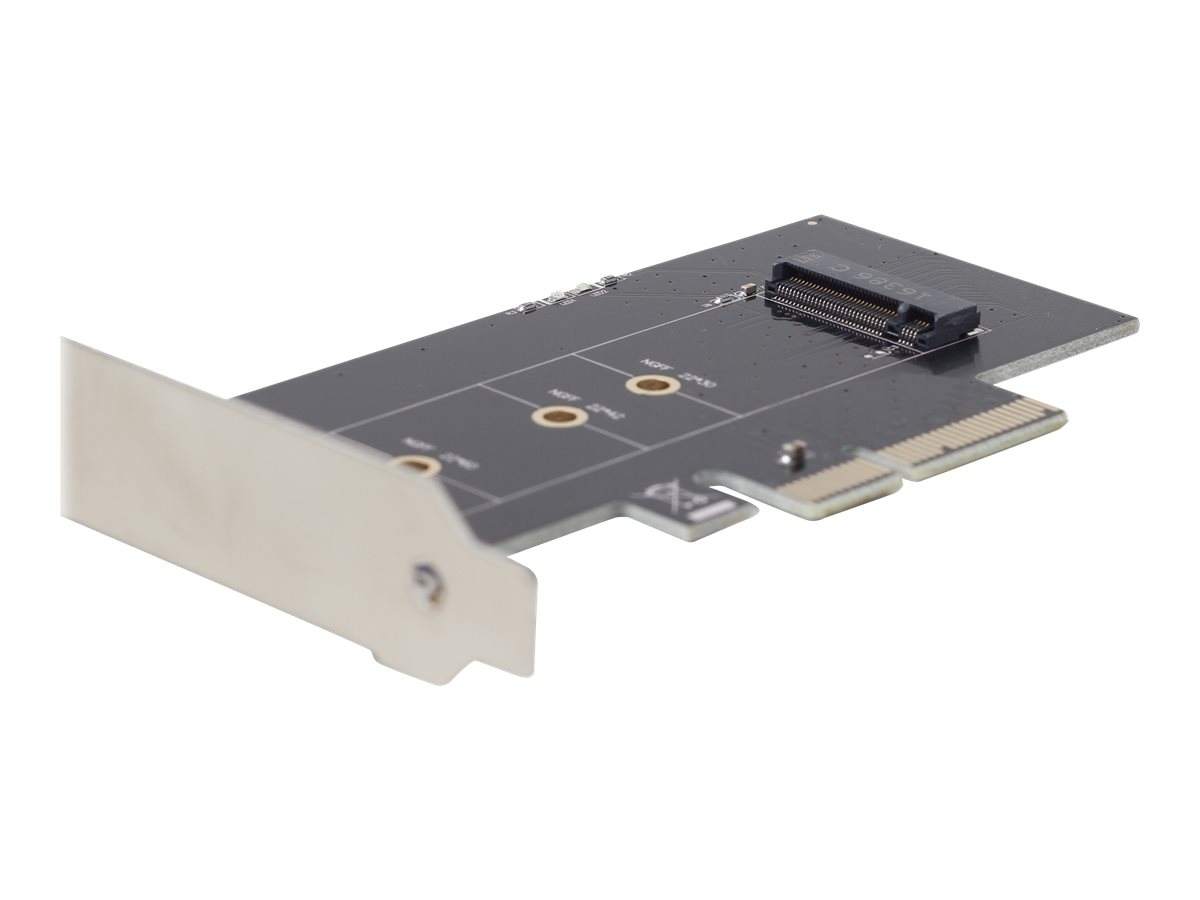

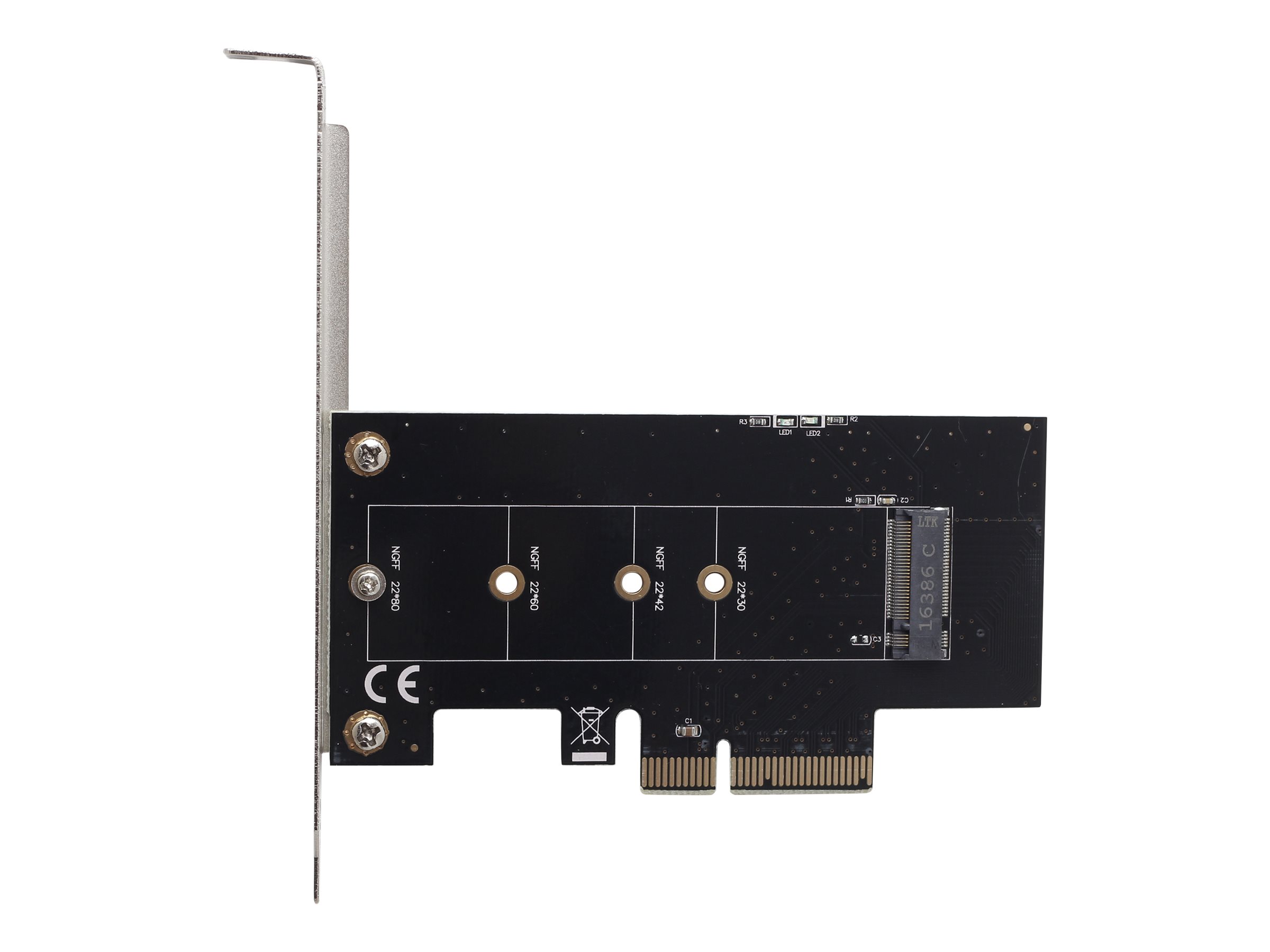

Gembird PEX-M2-01 Interfaceadapter

Gembird PEX-M2-01 - Interfaceadapter - M.2 Card - lavprofil - PCIe 3.0 x4

Varenummer: 993694700
Model: PEX-M2-01
EAN: 8716309099530
Brand:
Gembird
Vægt: 0.11 kg

Specifications

Produktbeskrivelse
Gembird PEX-M2-01 - interfaceadapter - M.2 Card - PCIe 3.0 x4
Enhedstype
Interfaceadapter - indstikskort - lavprofil
Bustype
PCIe 3.0 x4
Udvidelses-båse
1 x intern - M.2 NGFF 2242/2260/2280
Interface
M.2 Card
Understøttede enheder
Solid state drev
Systemkrav
Windows 10
Dimensioner (B x D x H)
1.2 cm x 10.1 cm x 5.5 cm
Vægt
50 g
Specifications

Full specifications

General
Device Type
Interface adapter - plug-in card - low profile
Host Bus
PCIe 3.0 x4
Storage Controller
Interface
M.2 Card
Supported Devices
Solid state drive
Expansion / Connectivity
Bays
1 x internal - M.2 NGFF 2242/2260/2280
Connections
1 x PCIe 3.0 x4
Interfaces
1 x M.2 Card - key M slot (supports M-key or B+M-key modules)
Miscellaneous
Compliant Standards
ISO 9002, RoHS, WEEE
Features
Supports NVM Express, M.2 modules with key M or key B+M based on PCIe, ex UEFI version 2.3.1
Included Accessories
Low-profile bracket
Software / System Requirements
OS Required
Windows 10
Dimensions & Weight
Depth
10.1 cm
Height
5.5 cm
Weight
50 g
Width
1.2 cm
Dimensions & Weight (Shipping)
Shipping Depth
3 cm
Shipping Height
14 cm
Shipping Width
16 cm
