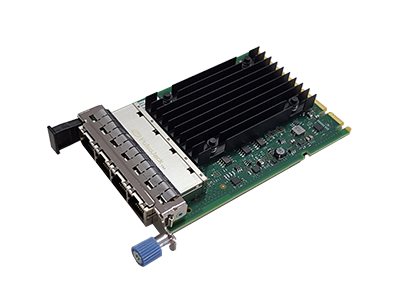

FUJITSU PLAN CP Netværksadapter Open Compute Project mezzanine (OCP) 3.0 1Gbps
FUJITSU PLAN CP Intel I350-T4 - Netværksadapter - OCP 3.0 - Gigabit Ethernet x 4 - for PRIMERGY RX2530 M6, RX2540 M6
Stol på netværkskommunikationen fra Ethernet LAN-adapteren. Intel I350-T4 Ethernet LAN-adapteren, der er baseret på Intel 1GbE LAN Powerville-chippen, har fire Gigabit Ethernet-porte til 10/100/1000BaseT.
-
Product no 999775019
Model PY-LA274U
Brand Fujitsu
EAN 4063872788670
Weight 0.25 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | FUJITSU PLAN CP Intel I350-T4 - netværksadapter - OCP 3.0 - Gigabit Ethernet x 4 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort |
| Grænseflade (bus) type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI-specifikationsrevision | PCIe 2.1 |
| Porte | Gigabit Ethernet x 4 |
| Dimensioner (B x D x H) | 115 mm x 76 mm |
| Kabeltype | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Dataoverførselshastighed | 1 Gbps |
| Netværks/overføselsprotokol | TCP/IP, UDP/IP, iSCSI, NFS |
| Processor | 1 x Intel I350-AM4 |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az |
| Designet for | PRIMERGY RX2530 M6, RX2540 M6 |
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 2.1 |
| Networking | |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Features | Flow control, auto-negotiation, VLAN support, wake on LAN (WOL), IPv6 support, Jumbo Frames support, Virtual Machine Device Queues (VMDq), IPv4 support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Pro |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, NFS |
| Ports | Gigabit Ethernet x 4 |
| Status Indicators | Link/activity |
| Processor / Memory | |
| Processor | 1 x Intel I350-AM4 |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, BSMI, KCC, Directive 2011/65/EU |
| Included Accessories | Pull tab bracket |
| Power | |
| Power Consumption Operational | 4.63 Watt |
| Dimensions & Weight | |
| Depth | 115 mm |
| Height | 76 mm |
| Environmental Parameters | |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | Fujitsu PRIMERGY RX2530 M6, RX2540 M6 |
Baseret på Intel 1 GbE LAN Powerville I350 AM4-chip
Branchens førende, energieffektive chip er designet til næste generations 1 Gigabit-ydelse og multi-core-processorer.
Strømstyring såsom understøttelse af Ethernet Efficient Ethernet (EEE) og DMA Coalescing (DMAC)
Dette bidrager til øget effektivitet og reducerer strømforbruget.
10/100/1000 Mbps
Automatisk kompatibel med Ethernet-, Fast Ethernet- og Gigabit Ethernet-netværk.
Understøttelse af virtualisering via VMDq og SR-IOV
Multiportkort giver platformen den porttæthed, der kræves til virtualiserede miljøer.
