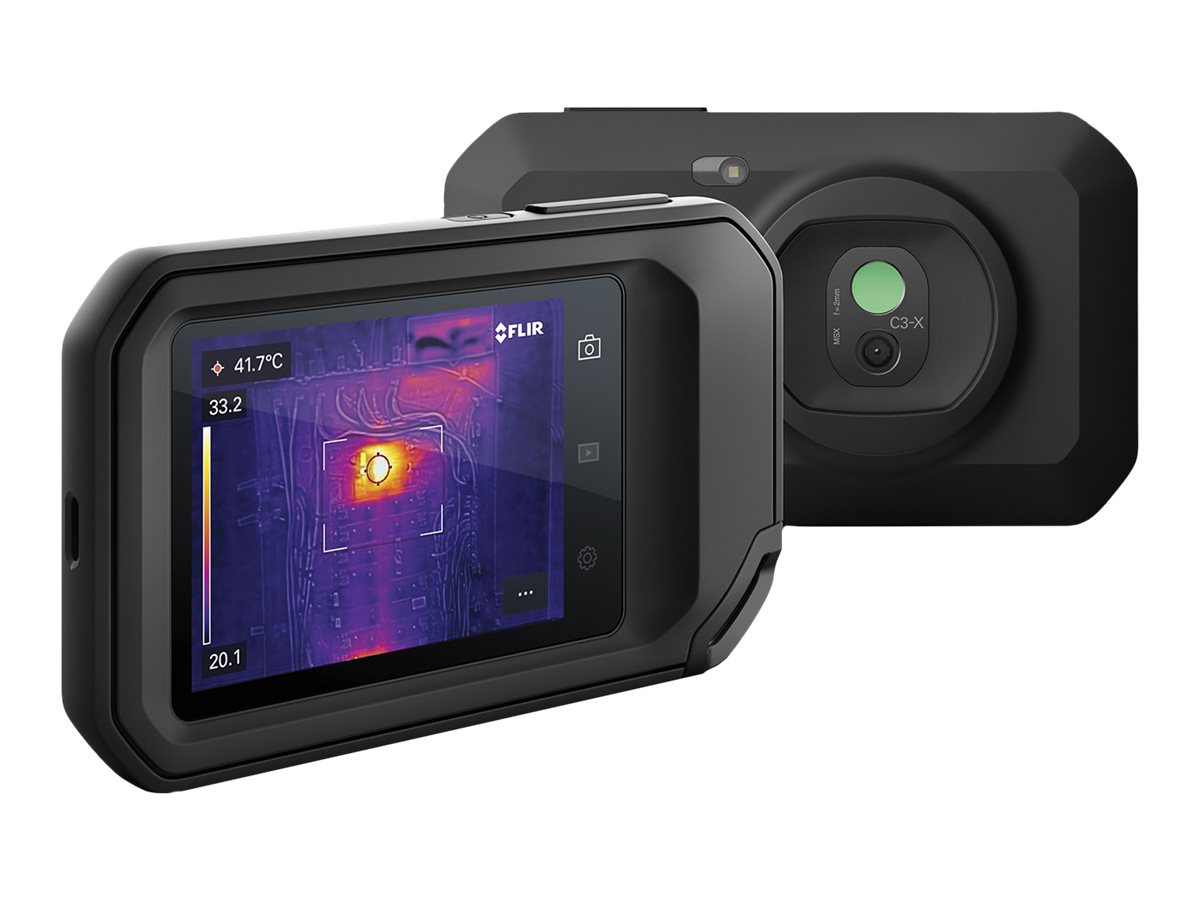

FLIR C3-X 0.012Megapixel Sort Termisk kamera

FLIR C3-X - Termisk kamera - kompakt - 0.012 MP - Wi-Fi, Bluetooth - sort

FLIR C3-X gør det nemmere end nogensinde at inspicere for skjulte problemer, dokumentere reparationer og dele beviser med kunderne. C3-X har en 128 × 96 pixel termisk sensor, MSX (Multi-Spectral Dynamic Imaging), et 5-megapixel visuelt kamera og LED-lommelygte og er et prisbilligt inspektionsværktøj til elektriske/mekaniske, bygnings- og vedligeholdelsesopgaver. Upload og gem billeder direkte i FLIR Ignite-skyen, hvor du kan organisere og sikkerhedskopiere filer. Del øjeblikkeligt billeder med kunder, eller lav professionelle rapporter fra en mobil enhed eller computer.

Product no: 998133716
Model: C3-X
EAN: 4743254004764
Brand:
FLIR Systems
Weight: 0.56 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
FLIR C3-X - termisk kamera
Produkttype
Termisk kamera - kompakt
Trådløst interface
Wi-Fi, Bluetooth
Sensor opløsning
0.012 Megapixel
Objektivsystem
F/1.1
Fokusindstilling
Disponibel fokus
Min. fokusafstand
10 cm
Billedskærm
LCD display - 3.5"
Understøttet batteri
Li-ion genopladeligt batteri - 1800 mAh (inkluderet)
Grænseflade
USB-C
Farve
Sort
Dimensioner (B x D x H)
13.8 cm x 2.4 cm x 8.4 cm
Vægt
190 g
Specifications

Full specifications

General
Built-in Light
LED video light
Connectivity Features
Remote live view, Live streaming, wireless image upload to cloud server
Effective Sensor Resolution
12,288 pixels
Enclosure Color
Black
Image Recording Format
JPEG
Interface
USB-C, IEEE 802.11a/b/g/n/ac, Bluetooth
Optical Sensor Type
Focal plane array / uncooled microbolometer
Product Type
Thermal camera - compact
Sensor Resolution
0.012 Megapixel
Lens System
Focus Adjustment
Focus free
Max View Angle
84 degrees
Min Focus Distance
10 cm
Type
F/1.1
Additional Features
Additional Features
Picture-in-picture capability, auto power save, camera orientation detection, MSX image enhancement technology, adjustable thermal span
Thermal Camera Features
Refresh Rate
8.7 Hz
Resolution
128 x 96
Spectral Range
8-14 μm
Thermometry Range
-20 °C to 300 °C
Tripod Mount
Connection Point
1/4"-20 screw
Display
Display Form Factor
Built-in
Resolution
640 x 480 pixels
Touch Screen
Yes
Type
3.5" LCD display
Connections
Connector Type
USB 2.0 (USB Type-C)
Miscellaneous
Body Material
Aluminum, TPE, PC/ABS
Protection
Splashproof, dust-resistant, IP54
Battery
Battery Type
Lithium ion - manufacturer-specific
Details
Li-ion rechargeable battery - 1800 mAh (included)
Run Time (Up To)
4 hour(s)
Dimensions & Weight
Depth
2.4 cm
Height
8.4 cm
Weight
190 g
Width
13.8 cm
Environmental Parameters
Max Height of Shock Resistance
2 m
Max Operating Temperature
50 °C
Max Storage Temperature
70 °C
Min Operating Temperature
-10 °C
Min Storage Temperature
-40 °C

Features

Identificer og fejlfind

Find hurtigt skjulte fejl, og reducer diagnosticeringstiden med MSX og 128 × 96 ægte termisk billeddannelse.

Dokumentér og del

Upload billeder direkte ved hjælp af FLIR Ignite cloud-tilslutning, og lav derefter professionelle rapporter, som du kan sende til kunderne via e-mail.

Robust, pålidelig, kompakt

Tag den lomme-bærbare C3-X med dig til hvert job - den er IP54-klassificeret til beskyttelse mod vand og støv og designet til at modstå et fald på 2 m.
