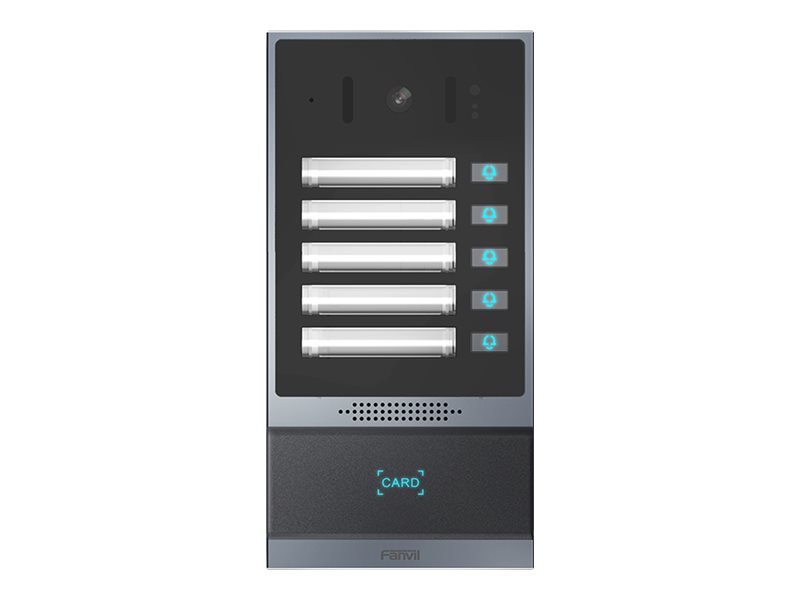

Fanvil I63 Door phone Grå

Fanvil I63 - Dørtelefon - med kamera - kablet - 10/100 Ethernet - grå, sort

Product no: 1000438470
Model: I63
EAN: 6937295602920
Brand:
Fanvil Technology
Weight: 0.69 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Fanvil I63 - dørtelefon - grå, sort
Produkttype
Dørtelefon - med kamera
Funktioner
Adgangskontrol
Integrerede sensorer
Infrarød (IR) sensor, lyssensor
Integrerede komponenter
Mikrofon, højttaler, kamera, SmartCard-læser, display
Strømkilde
PoE
Forbindelse
Kablet - 10/100 Ethernet
Inputtype
5 knapper - berøring/mekaniske knapper
Kamera
2 Megapixel - CMOS 1/2.9" - Maksimum opløsning 1920 x 1080 - audio - Dag/nat
Farve
Grå, sort
Dimensioner (B x D x H)
8.8 cm x 3.615 cm x 17.74 cm
Specifications

Full specifications

General
Connectivity Technology
Wired - Ethernet, Fast Ethernet
Features
Waterproof, dustproof, wall mountable, flush mountable, H.264 streaming video, anticollision DHCP support, IPv6 support, firmware upgradable, SNTP support, IPv4 support, TFTP client, ONVIF support, FTP client, TR-069 Remote Management, PPPoE client,
Functions
Access control
Integrated Components
Microphone, speaker, camera, SmartCard reader, display
Integrated Sensors
Infrared (IR) sensor, light sensor
Interfaces
2 x Wiegand | 2 x relay | Tamper switch | Power input | LAN/power | Card access reader port
Power Source
PoE
Product Type
Door phone - with camera
Control Unit
Buttons Qty
5
Input Type
Touch / mechanical buttons
Camera
Audio Support
Yes
Day & Night Functionality
Yes
Features
120° field of view (horizontal), 60° field of view (vertical), 141° field of view (diagonal)
Image Sensor
2 Megapixel - CMOS - 1/2.9"
Max Digital Video Resolution
1920 x 1080
Video Modes
1080/30p, 480/30p
Miscellaneous
Color
Gray, black
Compliant Standards
IP66, IK07, G.711 A-Law, G.711 U-Law, G.722, iLBC, G.726-32
Product Material
Aluminum alloy
Voltage Required
DC 12 V
Dimensions & Weight
Depth
3.615 cm
Height
17.74 cm
Width
8.8 cm
Environmental Parameters
Humidity Range Operating
10 - 95%
Max Operating Temperature
70 °C
Min Operating Temperature
-40 °C
