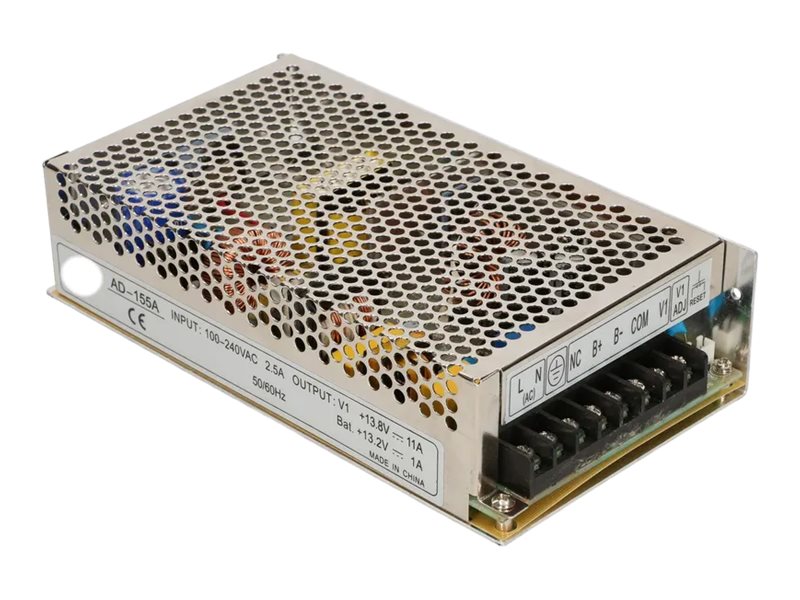

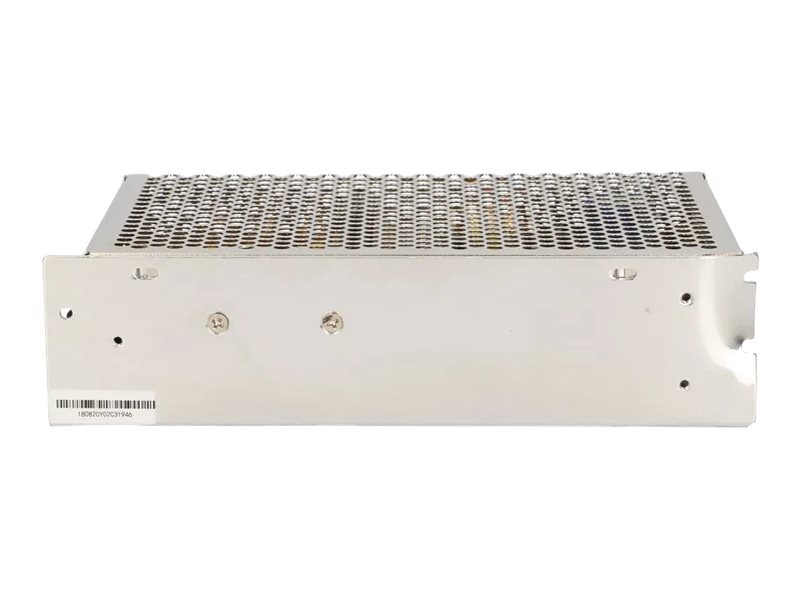

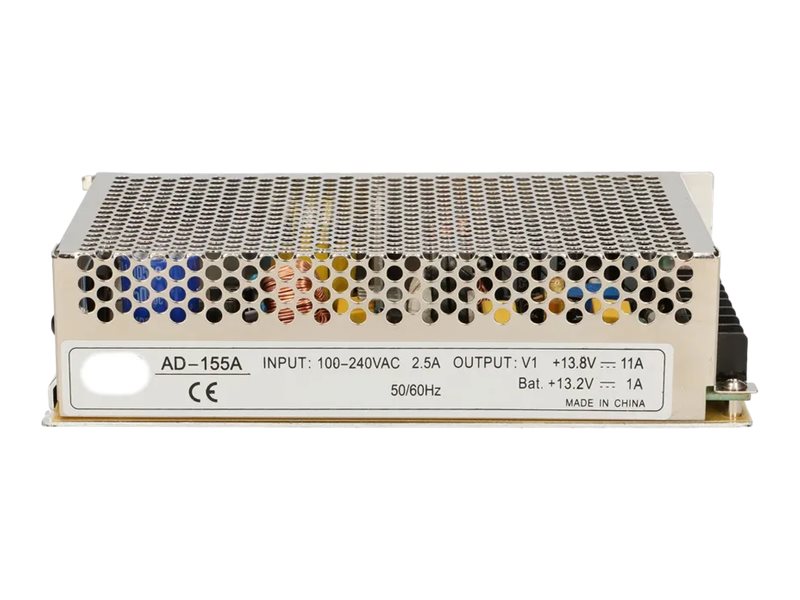

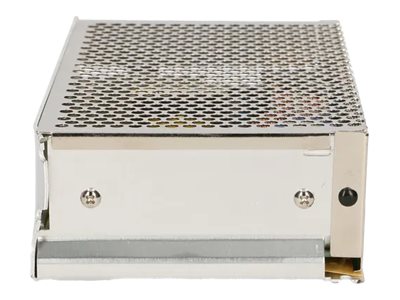

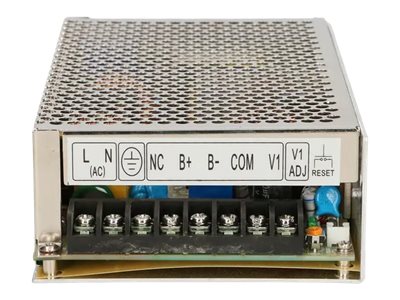

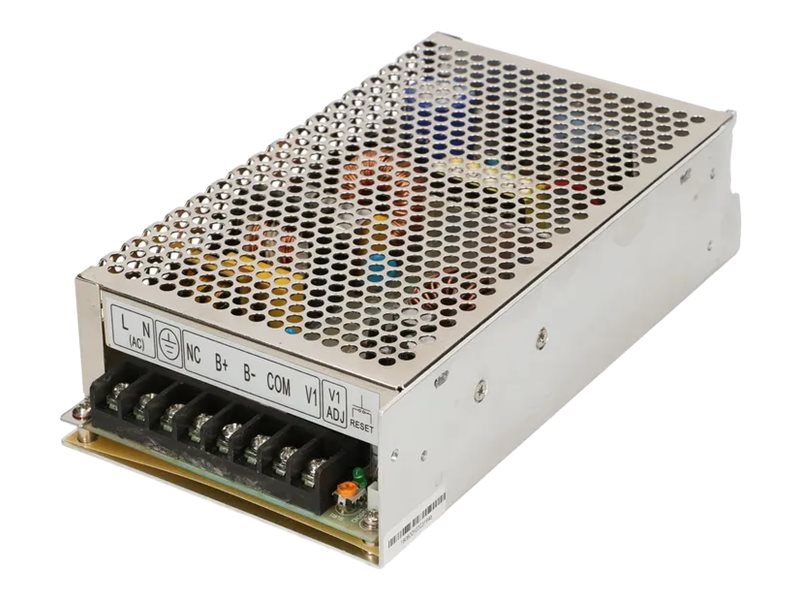

Extralink AD-155A Batterioplader/strømadapter 155Watt

Extralink AD-155A - Batterioplader/strømadapter (intern) - AC 88 - 264/ DC 124 - 370 V - 155 Watt

  • Product no 995995830

    Model EX.14077

    Brand Extralink

    EAN 5903148914077

    Weight 0.88 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Extralink AD-155A - batterioplader/strømadapter - 155 Watt
Enhedstype Batterioplader/strømadapter - intern
Vægt 880 g
Indgangspænding AC 88 - 264/ DC 124 - 370 V
Udgangspænding DC 12 / 13.8 V
Strømkapacitet 155 Watt
Input-stik 3 x Terminalblok (skrueklemmer)
Output-stikforbindelser 5 x Terminalblok (skrueklemmer)
Dimensioner (B x D x H) 11 cm x 19.9 cm x 5 cm
General
Device Type Battery charger / power adapter - internal
Power Device
Circuit Protection Fuse
Frequency Required 47 - 63 Hz
Input Connectors 3 x terminal block (screw)
Input Voltage AC 88-264/ DC 124-370 V
Output Voltage DC 12 / 13.8 V
Power Capacity 155 Watt
Power Output Connectors Details 5 x terminal block (screw)
Miscellaneous
Compliant Standards CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1
Features Metal housing, perforated, built-in battery charger, overvoltage protection, overload protection, output voltage adjustment, grounded, auto power restore
Environmental Parameters
Humidity Range Operating 20 - 90% RH
Max Operating Temperature 60 °C
Min Operating Temperature -10 °C
Dimensions & Weight
Depth 19.9 cm
Height 5 cm
Weight 880 g
Width 11 cm
