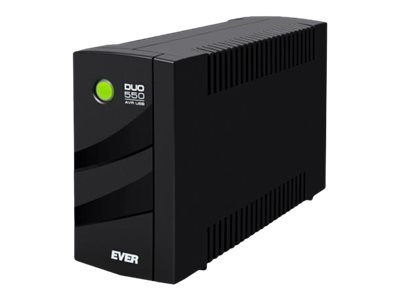

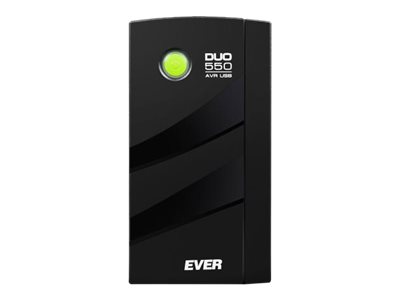

EVER DUO 550 PL AVR USB UPS 330Watt 550VA

EVER DUO 550 PL AVR USB - UPS - AC 230 V - 330 watt - 550 VA - 1-faset - 5 At - USB - output-stikforbindelser: 3

Varenummer: 999868524
Model: T/DAVRTO-000K55/01
EAN: 5907683607180
Brand:
Ever
Vægt: 4.2 kg

Specifications

Produktbeskrivelse
EVER DUO 550 PL AVR USB - UPS - 330 watt - 550 VA
Enhedstype
UPS - ekstern
Vægt
3.8 kg
Indgangskabler
1-faset
Indgangspænding
AC 230 V
Udgangspænding
AC 230 V
Strømkapacitet
330 watt / 550 VA
Input-stik
1
Output-stikforbindelser
2 x strøm Type E<br>1 x power IEC 60320 C13
Batteri
Blysyre - 5 At
Antal batterier
1
Driftstid (op til)
1 min ved fuld belastning
Netværk
USB
Dimensioner (B x D x H)
8.4 cm x 25.2 cm x 15.8 cm
Specifications

Full specifications

General
Device Type
UPS - external
Power Device
Circuit Protection
Circuit breaker
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz ± 1Hz
Input Connectors
1
Input Voltage
AC 230 V
Input Voltage Margin
± 7 V
Input Voltage Range
AC 162 - 290 V
Input Wiring
1-phase
Output Voltage
AC 230 V 50/60 Hz
Output Waveform
Stepped approximation to a sinewave
Power Capacity
330 Watt / 550 VA

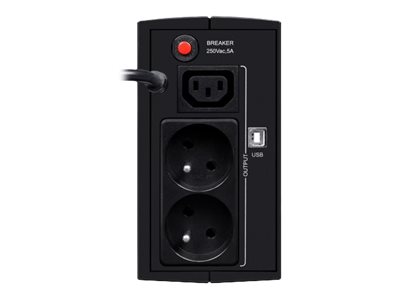

Power Output Connectors Details
2 x power Type E | 1 x power IEC 60320 C13
Surge Suppression
Yes
UPS Technology
Line interactive
Battery
Capacity
5 Ah
Features
Valve-regulated
Quantity
1
Recharge Time
8 hours
Run Time (Up To)
1 min at full load | 2 min at 80% load | 6 min at half load
Technology
Lead acid
Transfer Time
6 ms
Voltage Provided
12 V
Networking
Remote Management Interface
USB
Expansion / Connectivity
Interfaces
1 x management (USB) - 4 pin USB Type B
Miscellaneous
Cables Included
AC input cable - integrated
Features
Automatic Voltage Regulation (AVR), overload protection, cold-start function, short-circuit protection
Software / System Requirements
Software Included
PowerSoft Professional
Environmental Parameters
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Dimensions & Weight
Depth
25.2 cm
Height
15.8 cm
Weight
3.8 kg
Width
8.4 cm
Dimensions & Weight (Shipping)
Shipping Depth
28.6 cm
Shipping Height
22.5 cm
Shipping Weight
4.2 kg
Shipping Width
12.2 cm
