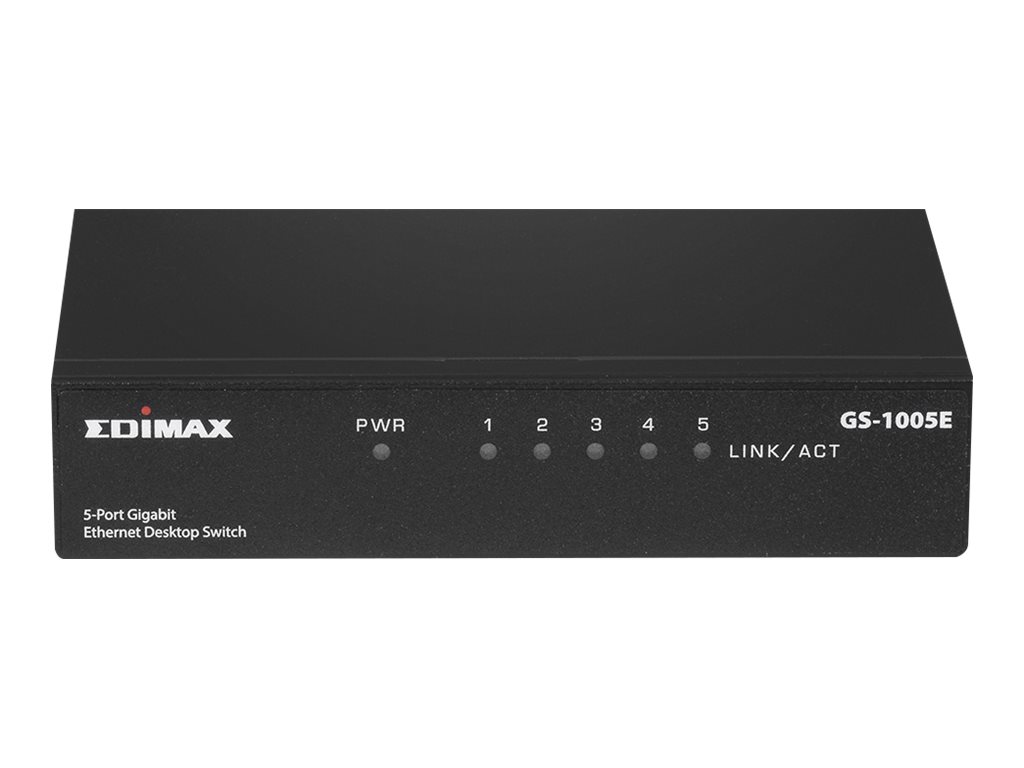

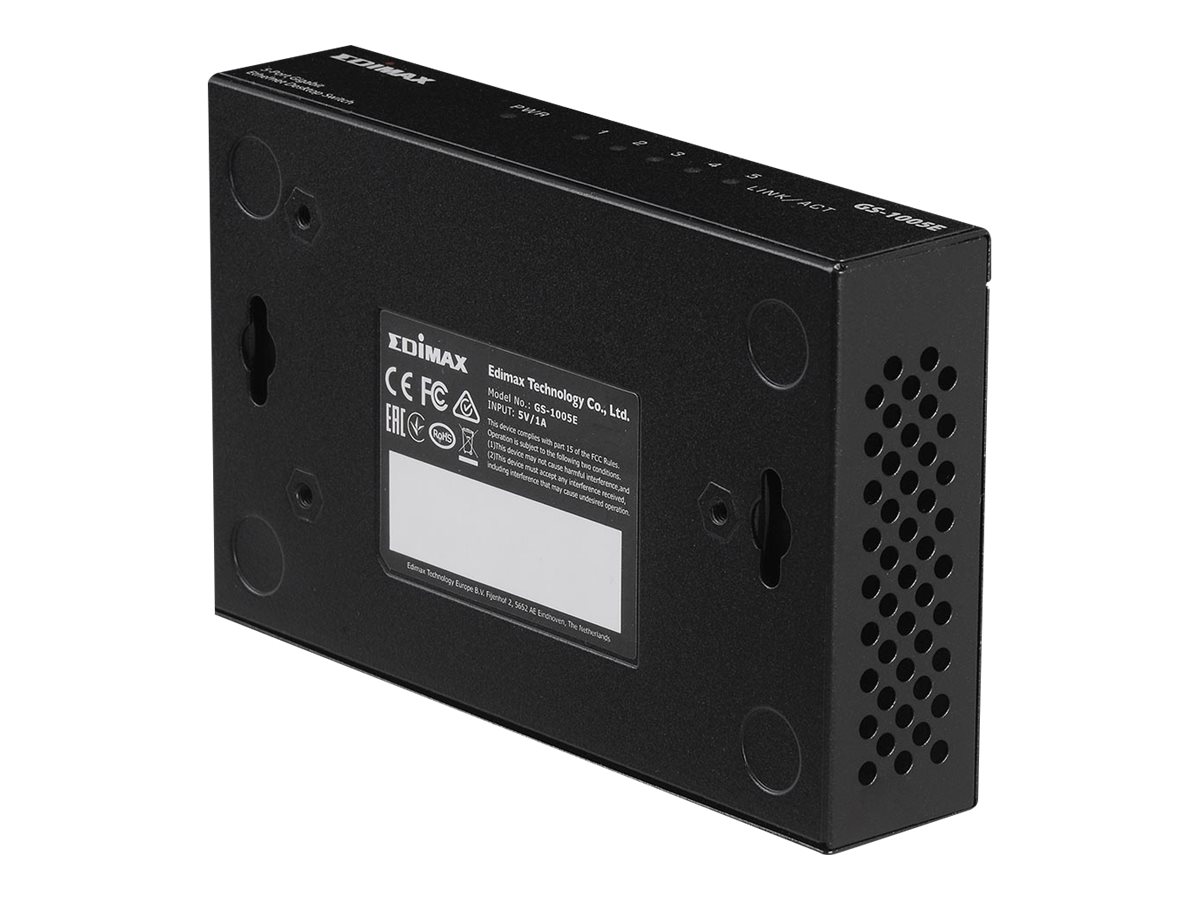

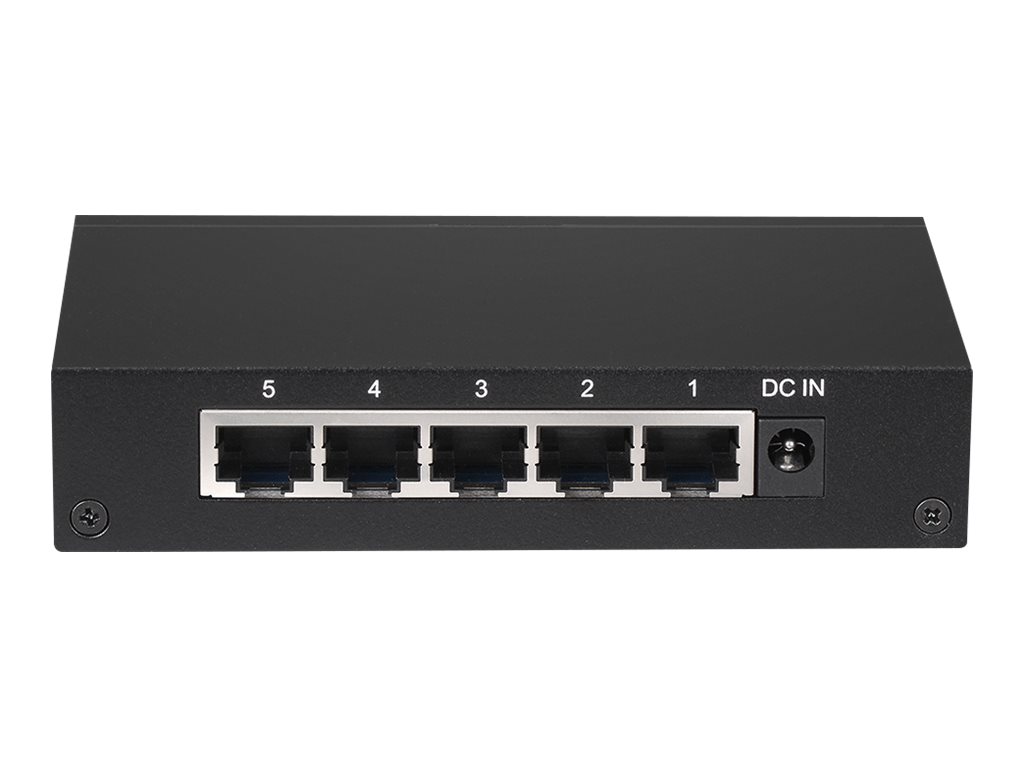

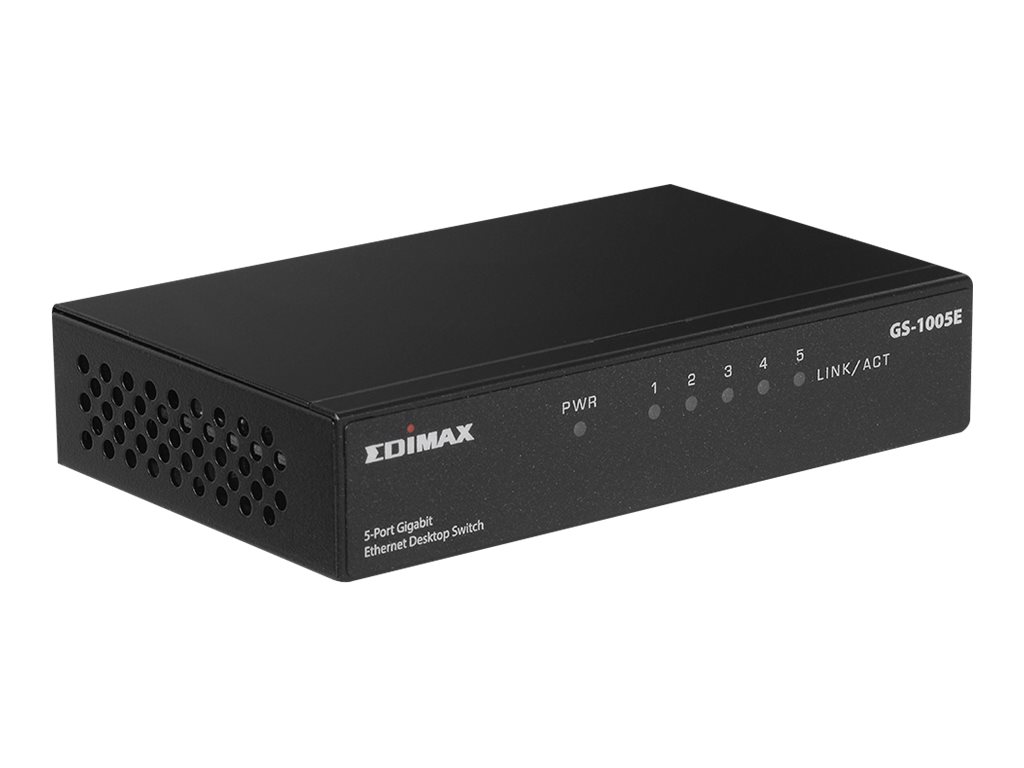

Edimax GS-1005E Switch 5-porte Gigabit
Edimax GS-1005E - Switch - ikke administreret - 5 x 10/100/1000 - desktop
Specifications
|
Produktbeskrivelse
|
Edimax GS-1005E - switch - 5 porte - ikke administreret
|
|
Enhedstype
|
Switch - 5 porte - ikke administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
5 x 10/100/1000
|
|
Præstation
|
Omkoblingskapacitet: 10 Gbps
|
|
MAC adresse table størrelse
|
2K indtastningshukommelse
|
|
Jumborammesupport
|
9KB
|
|
Egenskaber
|
Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, fuld dupleksmodus, til vægmontering, blæserløs, 128 KB pakkebuffer, autokorrektion, metalkabinet, EEE, tilbageløkke-detektion, CRC support, kabellængdedetektion
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
|
|
Dimensioner (B x D x H)
|
12.1 cm x 7.5 cm x 2.6 cm
|
|
Vægt
|
229 g
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
|
|
Device Type
|
Switch - 5 ports - unmanaged
|
|
Enclosure Type
|
Desktop
|
|
Features
|
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, wall mountable, fanless, 128KB packet buffer, auto-correction, metal housing, Energy-Efficient Ethernet (EEE), loopback detection, Cyclic Redundancy Ch
|
|
Jumbo Frame Support
|
9KB
|
|
MAC Address Table Size
|
2K entries
|
|
Performance
|
Switching capacity: 10 Gbps
|
|
Ports
|
5 x 10/100/1000
|
|
Status Indicators
|
Power, link/activity
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
5 x 1000Base-T RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
2.4 Watt
|
|
Power Device
|
External power adapter
|
|
Power Provided
|
5 V - 1 A
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC
|
|
Dimensions & Weight
|
|
|
Depth
|
7.5 cm
|
|
Height
|
2.6 cm
|
|
Weight
|
229 g
|
|
Width
|
12.1 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Humidity Range Storage
|
5 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
