Eaton Ellipse PRO 850 UPS 510Watt 850VA
Eaton Ellipse PRO 850 - UPS - AC 230 V - 510 Watt - 850 VA - 9 At - USB - output-stikforbindelser: 4 - 2U - 19" - sort
-
Product no 988276396
Model ELP850IEC
Brand Eaton Corporation
EAN 0743172437648
Weight 8.2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA |
| Enhedstype | UPS - ekstern |
| Rackstørrelse | 19" - 2U |
| Vægt | 7.3 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 220/230/240 V + 15% / - 20% |
| Strømkapacitet | 510 Watt / 850 VA |
| Input-stik | 1 x strøm IEC 60320 C14 |
| Output-stikforbindelser | 3 x power IEC 60320 C13 (UPS og overspænding)<br>1 x power IEC 60320 C13 (overspænding) |
| Batteri | Blysyre - 9 At |
| Driftstid (op til) | 1 min ved fuld belastning |
| Netværk | USB |
| Farve | Sort |
| Dimensioner (B x D x H) | 8.2 cm x 28.5 cm x 26 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Color | Black |
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 165 - 285 V |
| Input Voltage Range (Adjustable) | AC 150 - 285 V |
| Output Voltage | AC 220/230/240 V + 15% / - 20% - 50/60 Hz |
| Power Capacity | 510 Watt / 850 VA |

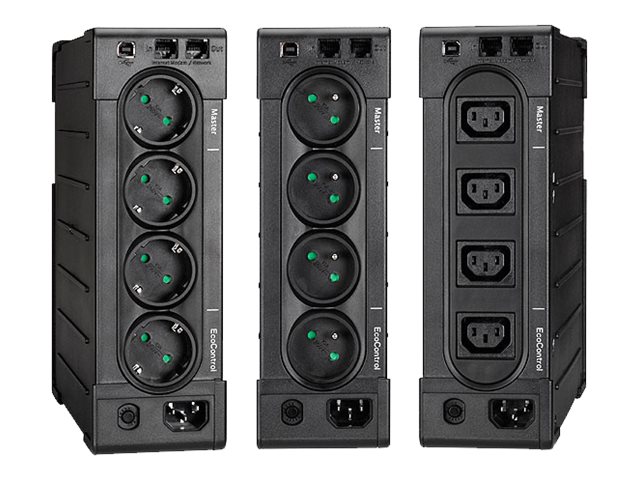

| Power Output Connectors Details | 3 x power IEC 60320 C13 (UPS and surge) | 1 x power IEC 60320 C13 (surge) |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Capacity | 9 Ah |
| Run Time (Up To) | 9 min at half load | 1 min at full load |
| Technology | Lead acid |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | USB cable - external |
| Compliant Standards | CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2 |

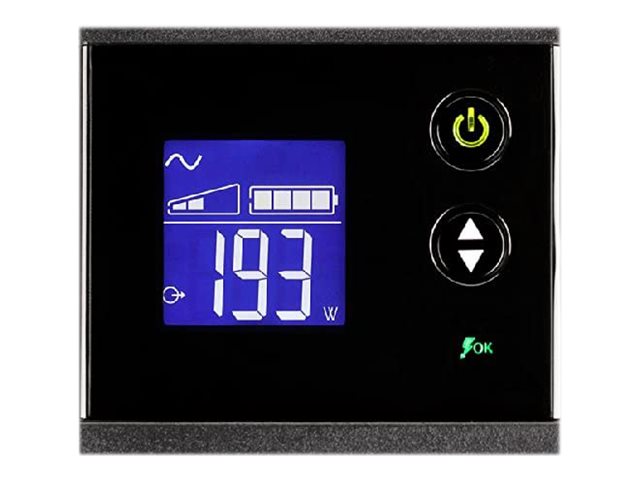

| Features | Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets |
| Rack Mounting Kit | Optional |
| Software / System Requirements | |
| Software Included | Eaton UPS Companion |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 28.5 cm |
| Height | 26 cm |
| Weight | 7.3 kg |
| Width | 8.2 cm |
