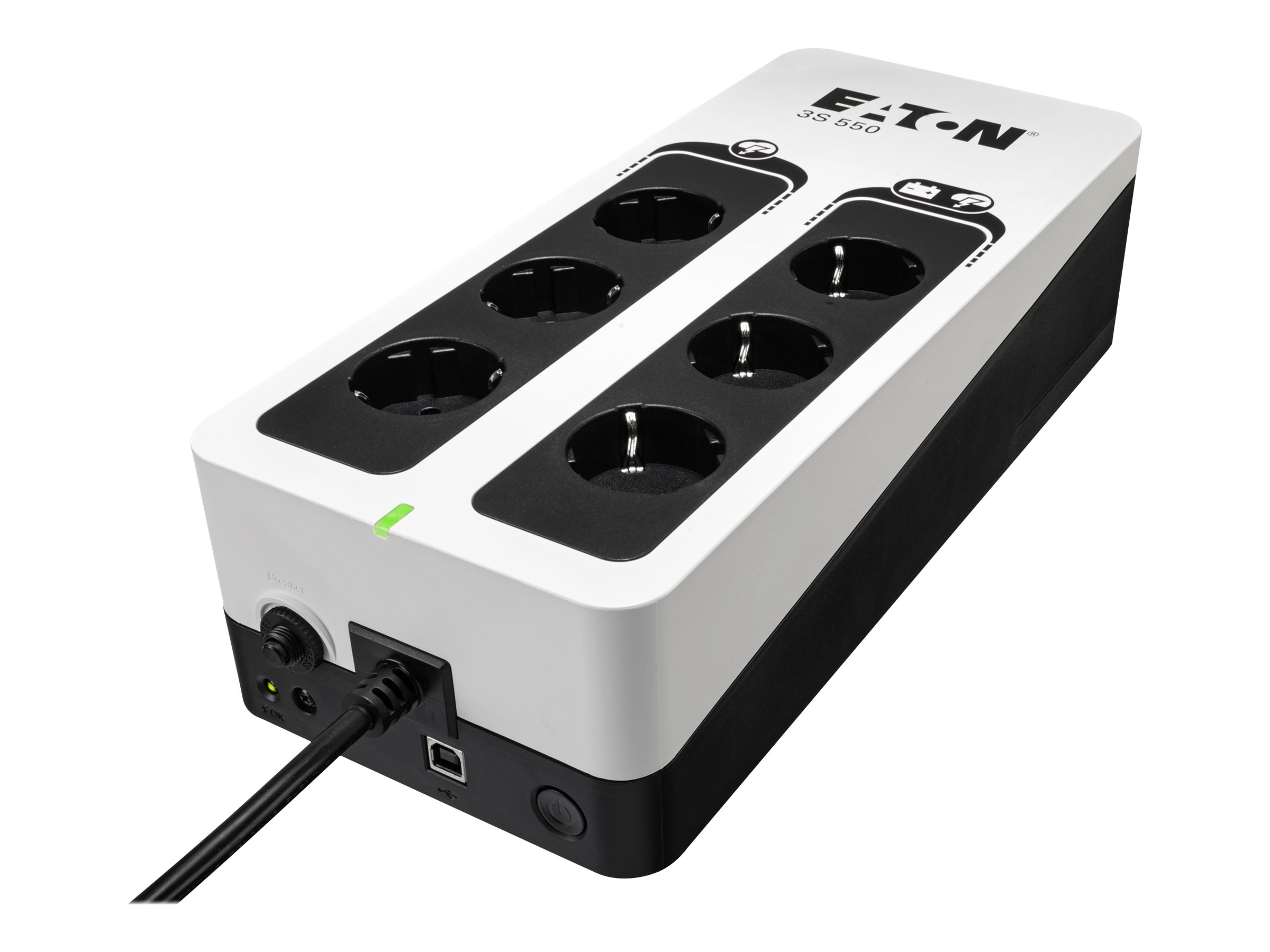

Eaton 3S 550 UPS 330Watt 550VA

Eaton 3S 550 - UPS - AC 220-240 V - 330 watt - 550 VA - 1-faset - USB - output-stikforbindelser: 6

Eaton 3S giver strøm- og overspændingsbeskyttelse til stationære computere, trådløse netværk, spillekonsoller og andet kritisk udstyr i dit hjem eller din virksomhed.

Product no: 995637247
Model: 3S550D
EAN: 0743172101754
Brand:
Eaton Corporation
Weight: 3.88 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Eaton 3S 550 - UPS - 330 watt - 550 VA
Enhedstype
UPS - ekstern
Vægt
3.2 kg
Indgangskabler
1-faset
Indgangspænding
AC 220-240 V
Udgangspænding
AC 220/230/240 V
Strømkapacitet
330 watt / 550 VA
Input-stik
1
Output-stikforbindelser
3 x DIN (overspænding)<br>3 x DIN (UPS og overspænding)
Batteri
Blysyre
Driftstid (op til)
8 min
Netværk
USB
Dimensioner (B x D x H)
14 cm x 32.5 cm x 8.6 cm
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
UPS - external
Power Device
Circuit Protection
Circuit breaker
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1
Input Voltage
AC 220-240 V
Input Voltage Range
AC 161 - 284 V
Input Wiring
1-phase
Max Electric Current
10 A
Output Voltage
AC 220/230/240 V 50/60 Hz
Power Capacity
330 Watt / 550 VA
Power Output Connectors Details
3 x DIN (surge) | 3 x DIN (UPS and surge)
Surge Suppression
Yes
Battery
Technology
Lead acid
Networking
Remote Management Interface
USB
Expansion / Connectivity
Interfaces
1 x management (USB)
Miscellaneous
Cables Included
Power cable - integrated | USB cable
Compliant Standards
CB, IEC 62040-3, IEC 62040-2, EAC, IEC 62040-1, IEC 62040-4, IEC 61643-11, CM, Ukraine
Features
On/off switch, reset button, deep discharge protection, cold-start function
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Dimensions & Weight
Depth
32.5 cm
Height
8.6 cm
Weight
3.2 kg
Width
14 cm
