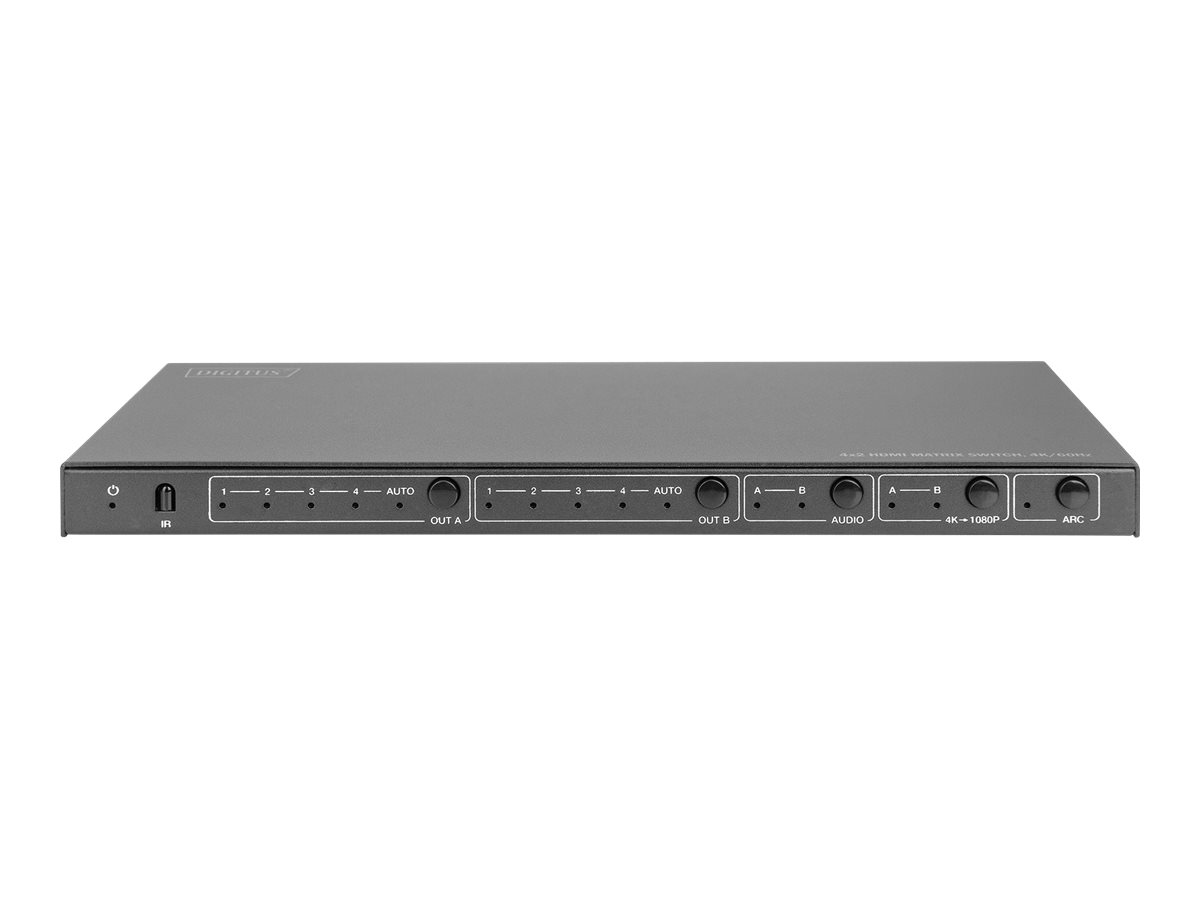

DIGITUS Video-/audioswitch HDMI

DIGITUS - Video-/audioswitch - 4 x 2 - desktop, væg-monterbar

Product no: 1000583755
Model: DS-55509
EAN: 4016032478966
Brand:
DIGITUS
Weight: 1.02 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
DIGITUS - video-/audioswitch - 4 x 2
Enhedstype
Video-/audioswitch - 4 x 2
Undertype
HDMI
Præstation
Båndbredde: 18 Gbps
Egenskaber
Firmware kan opgraderes, til vægmontering, ARC, 4K opløsningssupport, metalkabinet, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, DTS support, DTS-HD support, DSD, 4KV ESD Protector (kontaktafladning), 8KV ESD Protector (lufthulsafladning), Dolby Digital-support, Dolby Vision HDR support, HDR10+ support, HLG support, 4:4:4 chroma subsampling-support, audio-udtrækker, ESD Protector
Overensstemmelsesstandarder
HDCP 1.4, HDCP 2.2
Dimensioner (B x D x H)
25.1 cm x 10.5 cm x 2 cm
Vægt
620 g
Farve
Sort
Specifications

Full specifications

General
Compliant Standards
HDCP 1.4, HDCP 2.2
Device Type
Video/audio switch - 4 x 2
Enclosure Type
Desktop, wall-mountable
Features
Firmware upgradable, wall mountable, Audio Return Channel (ARC), 4K resolution support, metal housing, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, DTS support, DTS-HD support, Direct Stream Digital (DSD), 4KV ESD Pr
Max Resolution
4K @ 60 Hz
Performance
Bandwidth: 18 Gbps
Status Indicators
Power, auto
Subtype
HDMI
Expansion / Connectivity
Interfaces
2 x HDMI output | 4 x HDMI input | 1 x TOSLINK output | 1 x audio output mini-jack | 1 x management (micro-USB)
Power
Power Consumption Operational
3.8 Watt
Power Device
External power adapter
Power Provided
DC 12 V - 1 A
Miscellaneous
Color
Black
Compliant Standards
EDID compatible
Included Accessories
Wireless remote control, 2 mounting brackets
Dimensions & Weight
Depth
10.5 cm
Height
2 cm
Weight
620 g
Width
25.1 cm
Dimensions & Weight (Shipping)
Shipping Depth
18.1 cm
Shipping Height
6.73 cm
Shipping Weight
1.02 kg
Shipping Width
27.3 cm
Environmental Parameters
Humidity Range Operating
20 - 90% (non-condensing)
Max Operating Temperature
40 °C
Max Storage Temperature
60 °C
Min Operating Temperature
0 °C
Min Storage Temperature
-20 °C
